【Small Space Cooling】The maximum cooling temperature the small dc a/c system achieves, 15-20 degree lower than that of your ambient temperature.It depends on your ambient temperature and space volume and insulation standard.Around 35 cubic feet(1 cubic meters) space will this effectively cool.

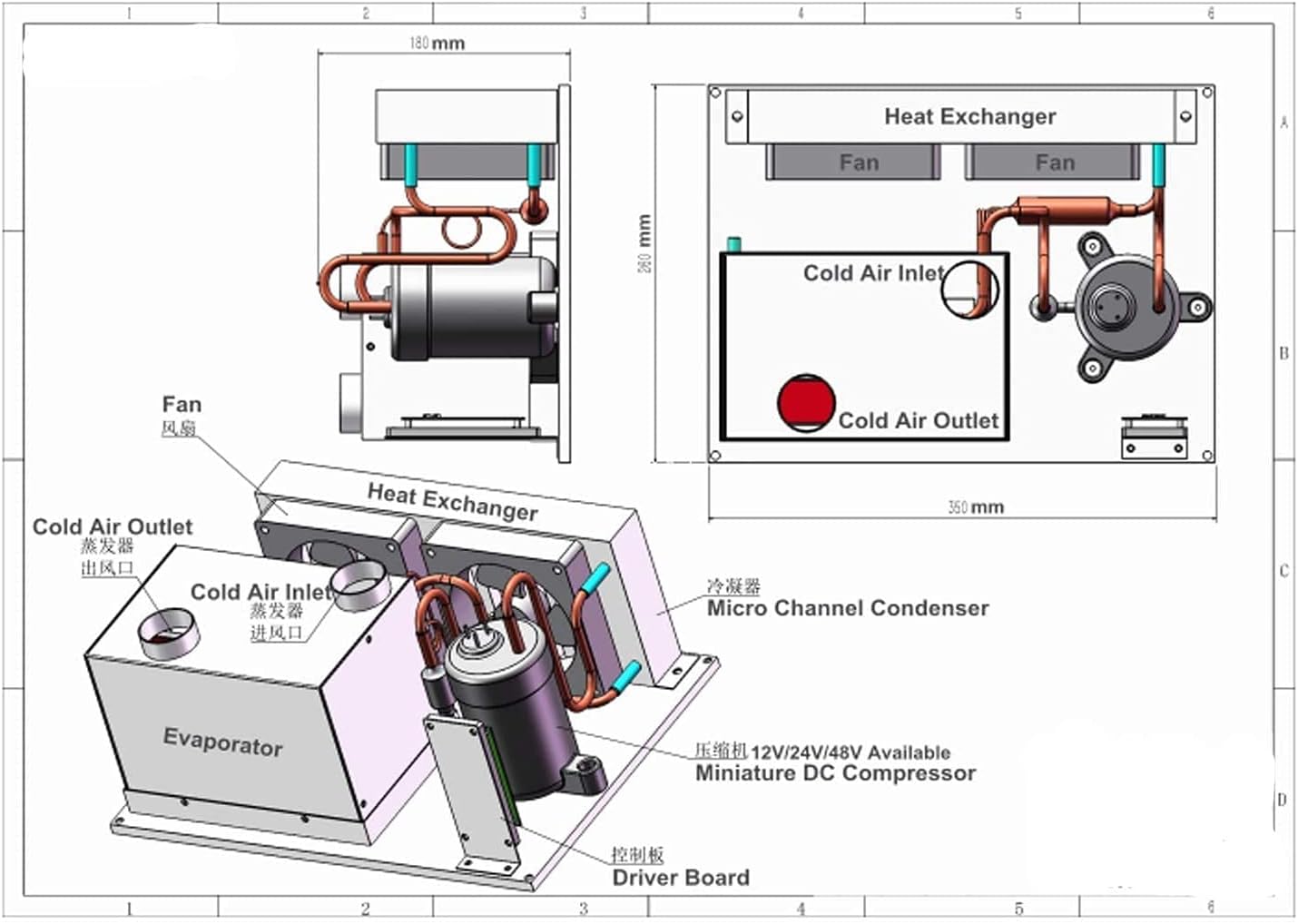

【Package Includes】Size:13.3*8.2*5.7 inch,Weight: 5.0kgs (11.02lbs).Compact refrigeration cooling system kit includes mini rotary compressor,driver board,condenser,evaporator,fan,heat exchanger,capillary.NOTE:Not included a hose kit and thermostat.The two holes on the evaporator are in coming and out going air, which can be recirculated in the cab.A drain pan underneath evaporator.
【Energy Efficient】Rated Voltage: DC 12V; Max Current : 10A; Power:150W; Rated current:1~ 8A,Capacity: 450W (1,535Btu). Compact air conditioner module is powered by battery, grid, car power and solar power,which is a efficient solution for small and confined space cooling.
【Quiet & Easy To Install】Refrigeration cooling system is quiet, less than 48dB during operation.Carefully refer to the wiring diagram and instructions when wiring the driver board.A thermostat(not included)controls the cooling process by monitoring the temperature and then switching the compressor on and off.
【Widely Used】For small space cooling such as cabins, cuddy cabins,EV (eletric vehicle), helicopter, cab,compact off-road camper,carriage cooling for trucks and other specialized vehicles such as excavation vehicles and agricultural vehicles,etc. Determine which product items need you can best purchase with your project,PLS contact customer service in advance to provide services about Product specifications.
The maximum cooling temperature the micro dc a/c achieves, 15-20 degree C lower than that of your ambient temperature.
Around 35 cubic feet(1 cubic meters) space will this effectively cool.
It depends on your ambient temperature and space volume and insulation standard.

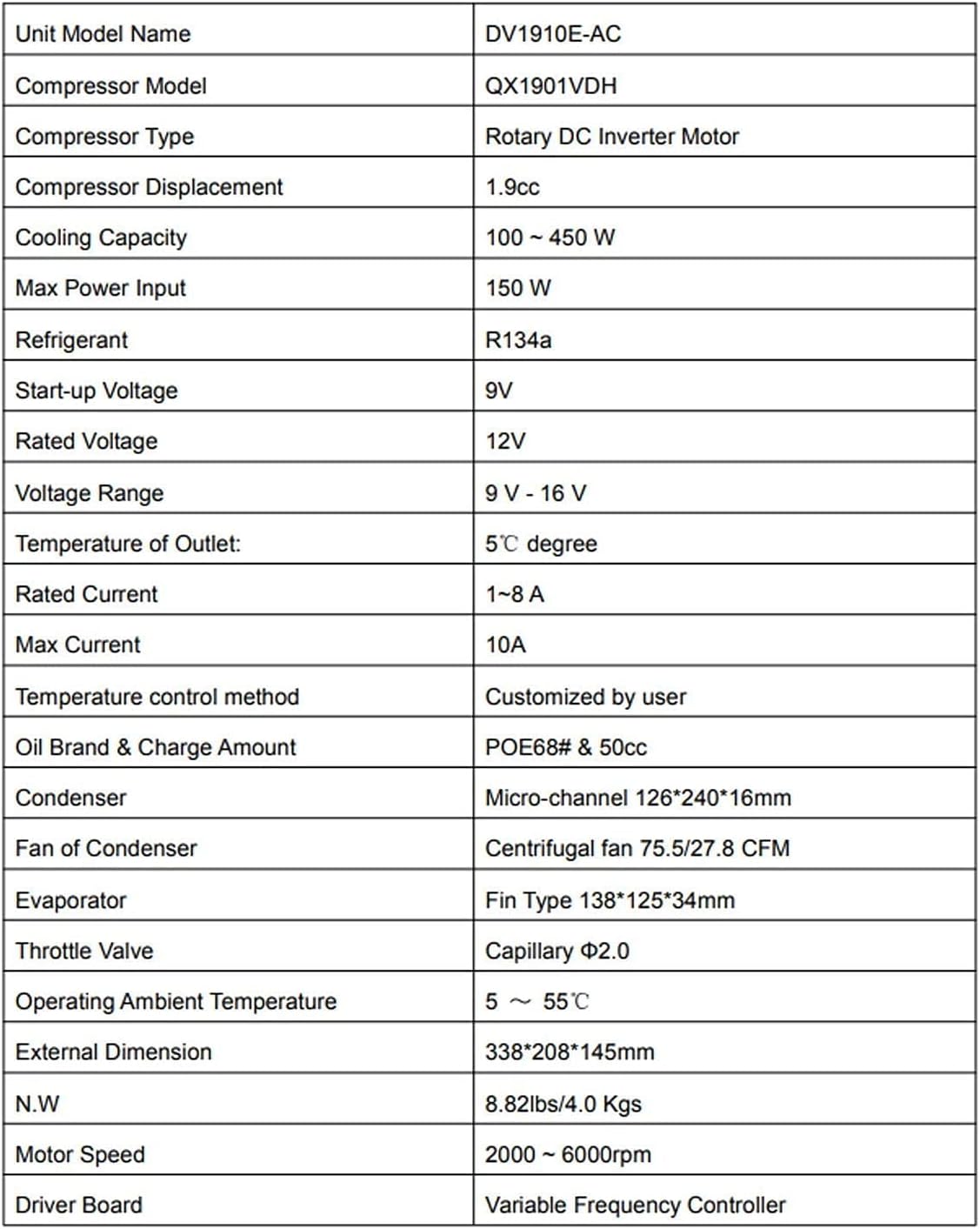

Compressor Type: Rotary DC Inverter Motor
Compressor Displacement:1.9cc
Start-up Voltage: 9V
Rated Voltage:12V
Voltage Range:9 V - 16 V
Temperature of Outlet:5℃ degree
Rated Current:1~8 A
Max Current:10A
Cooling Capacity : 450W (1,535Btu)
Max Power Input: 150 W
Refrigerant: 134a
Oil Brand & Charge Amount:POE68# & 50cc
Condenser:Micro-channel 126*240*16mm
Fan of Condenser:Centrifugal fan 75.5/27.8 CFM
Evaporator:Fin Type 138*125*34mm
Throttle Valve:Capillary Φ2.0
Operating Ambient Temperature:5 ～ 55℃
Motor Speed:2000 ~ 6000rpm
Driver Board:Variable Frequency Controller
Compressor protection:Controller Auto-Protecting
Applications:
Small Space Cooling;
Compact Air Conditioning;
Portable & compact cycle cooling;
DC air conditioning system uses our vapor compression technology to chill the air within an enclosed environment.
The air removes the heat from room and provides circulating chilled air without need to change user's existing system architecture.
Attentions:
1. Please check evaporator & condenser installation properly, when compressor is failed or poor refrigerating. Make sure the system is complete vacuum and no water inside.
Refrigerant oil lacking also leads to poor refrigerating capacity.
2. Notice, Refrigerant oil will be released when we are charging refrigerant gas. Make sure the compressor has enough refrigerant oil (50g).
Or compressor motor will face possible jammed or stuck due to oil blockage.
3. Important Functional Description ........
For more details, please refer to the instructions.
