【Product parameter】Output voltage: 110V; Product capacity:4KVA /5KVA /7.5KVA /10KVA ; Frequency: 50Hz/60Hz; Insulation class: Class B; Working temperature: -5C~+40C; Temperature rise protection: Yes; Current: 9A【Reliable and powerful】The voltage transformers offer you a safe, reliable, affordable & convenient solution to converting voltages from 110 volts up to 220volts or from 220 volts down to 110 volts for both home use & industrial applications【High performance】The Voltage Transformer has 100% Loading Capacity. Simultaneous 3-Mode Output: 110-120V USA Output Socket / 220-240V Universal Output Socket【Warm reminder】For safety, it’s recommended by the manufacturer that the voltage transformer’s maximum power should be equal or greater than the power rating of your appliance multiplied by 2.5【Professional customer services】We want to ensure you are absolutely happy with your purchase!If any issues with our product please feel free to contact us and we will get this resolved as soon as possible.Our warehouses are located in CA and NJ,we will arrange delivery for you as soon as possible

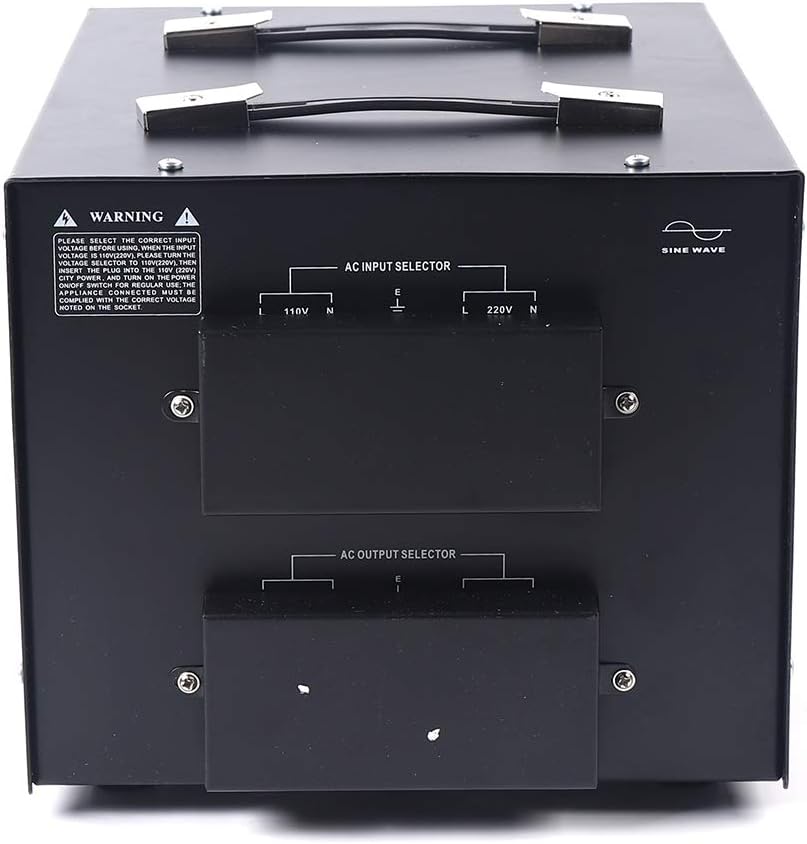

Note:On the back of the machine,Input selection in the upper row. Need toconnect the POWER wire BY YOURSELF.
Output voltage: 110V
Product name: power transformer
Voltage regulation speed: <1 second (when the input voltage changes 10%)
Product capacity:4KVA /5KVA /7.5KVA /10KVA
Overload protection: fuse or overload protection switch
Frequency: 50Hz/60Hz
Insulation class: Class B
Working temperature: -5C~+40C
Temperature rise protection: Yes
Current: 9A
To convert 110 volts to 220 volts:
Make sure the appliance to be plugged in uses fewer watts than the transformer's rating.
Insert the voltage tap plug (located on the rear of the transformer) into the pair of holes marked "110".
Plug the transformer's power cord into a source of 110 volts.

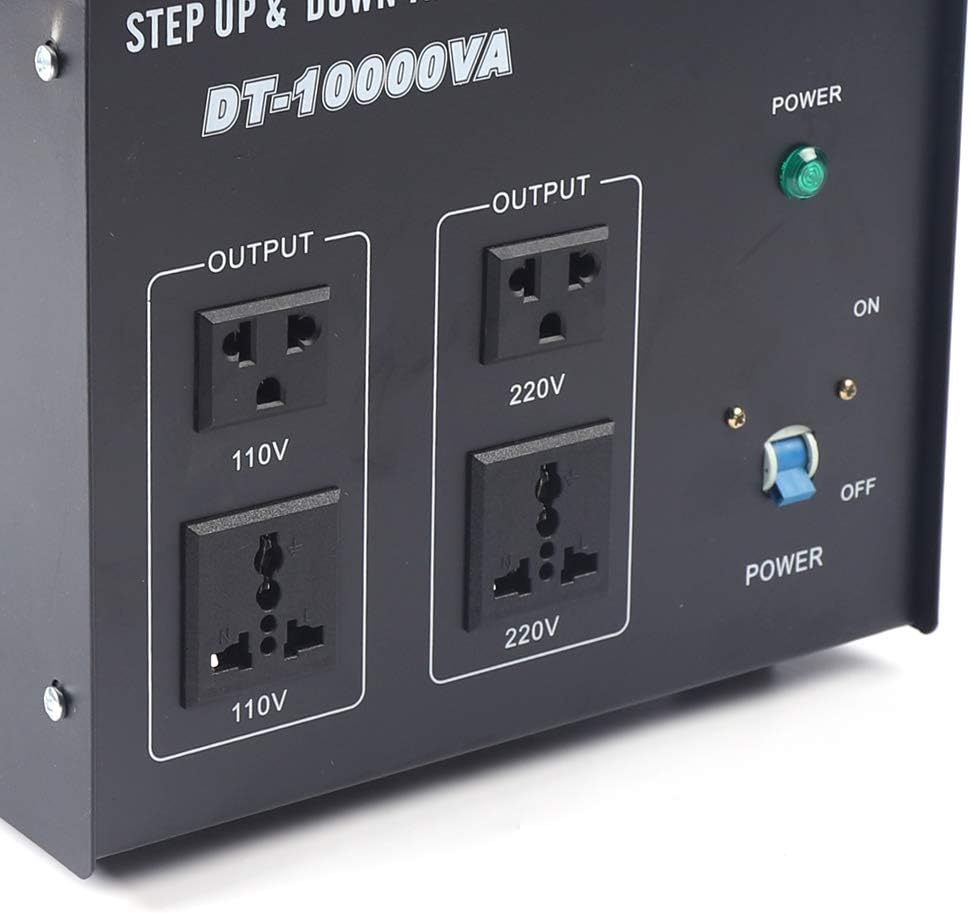

220 volts will be available at the front panel outlet marked "220" volts when the power switch is turned on.
To convert 220 volts to 110 volts:
Make sure the appliance to be plugged in uses fewer watts than the transformer's rating.
Insert the voltage tap plug (located on the rear of the transformer) into the pair of holes corresponding to the local voltage standard . Check carefully to be sure no error has been made.
（The power of our transformer must be 2.5 times larger than the buyer's appliance to be used normally.）
