Frequency: 50Khz~250Mhz and 400Mhz~2000Mhz
Mode: AM, LSB, USB, NFM, WFM,CW
Screen: 3.5 inch capacitive screen
Due to the characteristics of msi001 chip used, dynamic blocking range is about 85dB.
Aluminum shell, Better RF performance
1) The radio is built on the principle of SDR-the function is determined by loaded software;
2) Frequency range: 50Khz~250Mhz and 400Mhz~2000Mhz (Registered already)
3) All types of analog modulation: AM, LSB, USB, NFM, WFM, CW

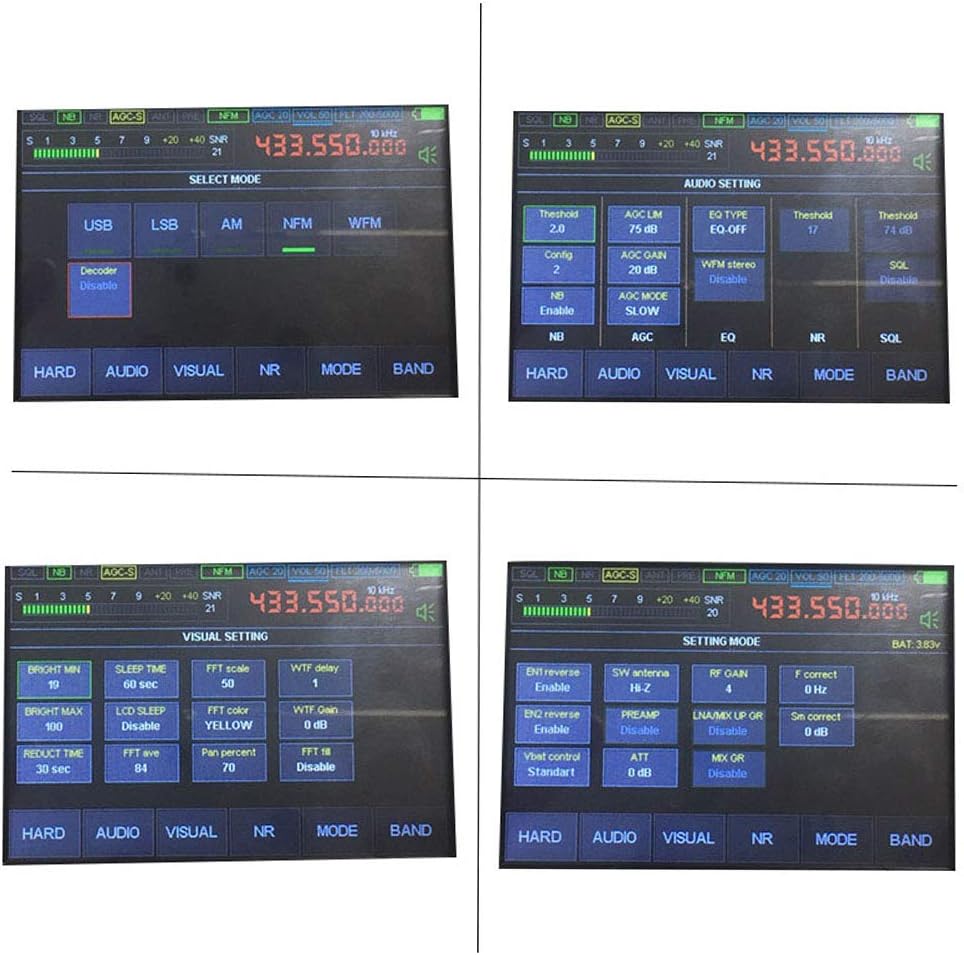

4) Powerful functions: variable filter width, adaptive noise suppressor, threshold noise suppressor, for Noise Blanker, AGC, equalizer;
5) fully functional chip msi001;
6) The powerful stm32H 743VIT6 with a clock frequency of 480 MHz is applied;
7) Controls: 2pcs; encoders with buttons and touch screen;
8) It is powered by an external TYPE-C interface or battery (Built-in battery 3800mah )
9) Connect to computer via USB, which can transfer CAT, IQ and audio.
10) 160 kHz span, with scalability;
11 ) Sensitivity: Under the condition of up to 250MHz, s/w is 0.3μV = 10dB; due to lack of measurement equipment, so the above measurements were not taken;
12) Due to the characteristics of msi001 chip used, dynamic blocking range is about 85dB.

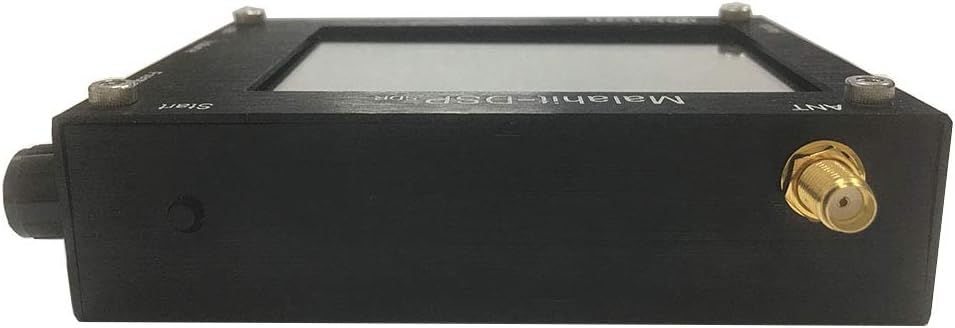

13) SMA female antenna socket;

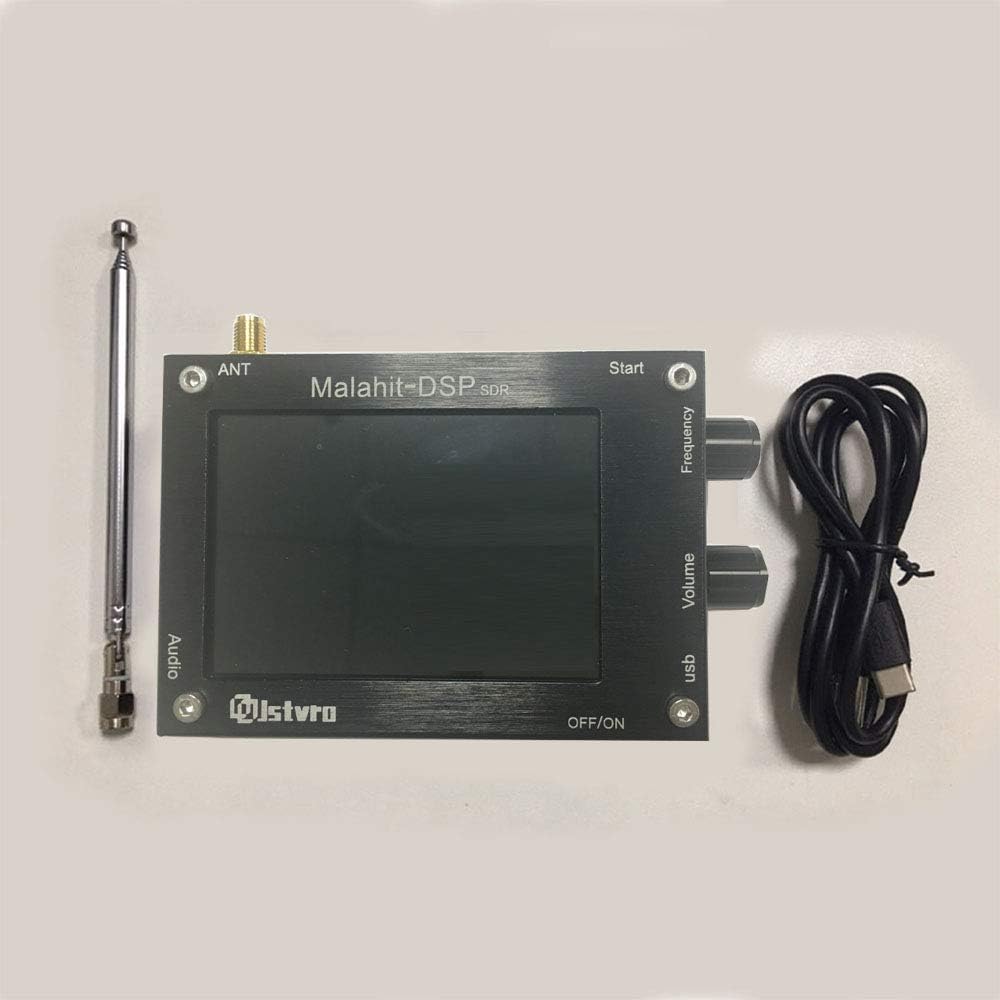

Package:
* Malahit Receiver (battery included )
* Antenna x1
* Usb cable x1
Tips:The Antenna come with this receiver is a 80Mhz~500Mhz antenna. WFM is nice sound.
If you need to receive AM or LSB radio, please buy the right Antenna.
