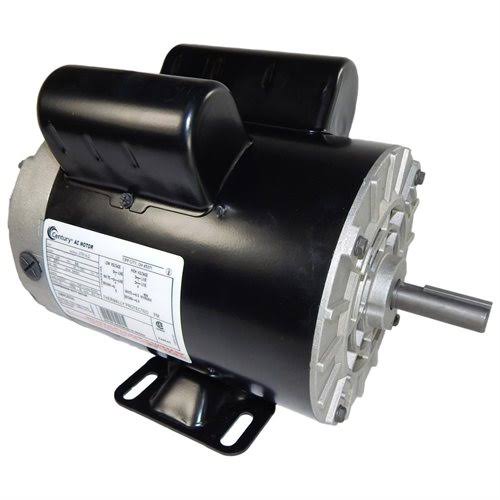

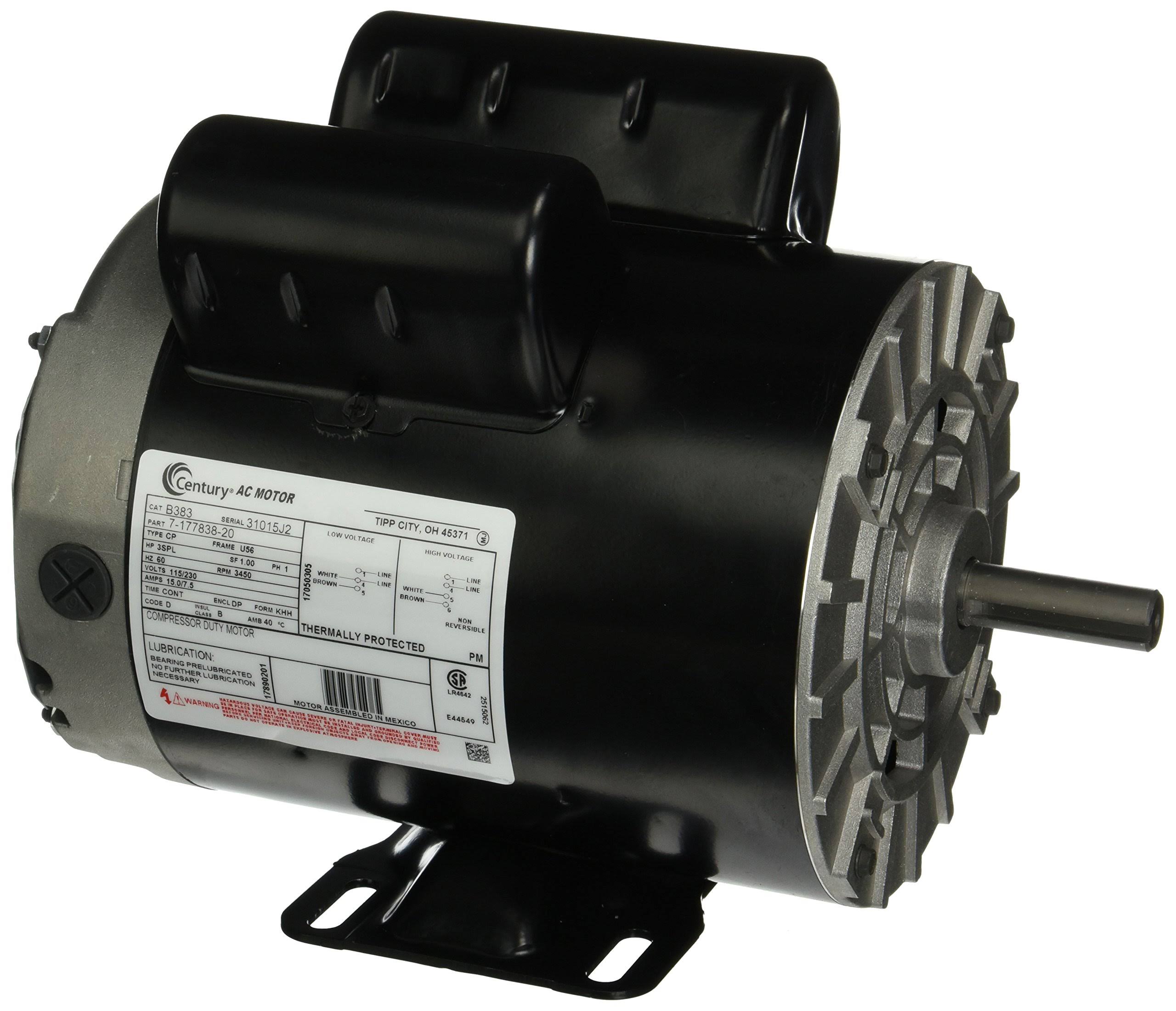

3 HP Spl 3450 RPM U56 Frame 115/230V Air Compressor Motor - Century #B383

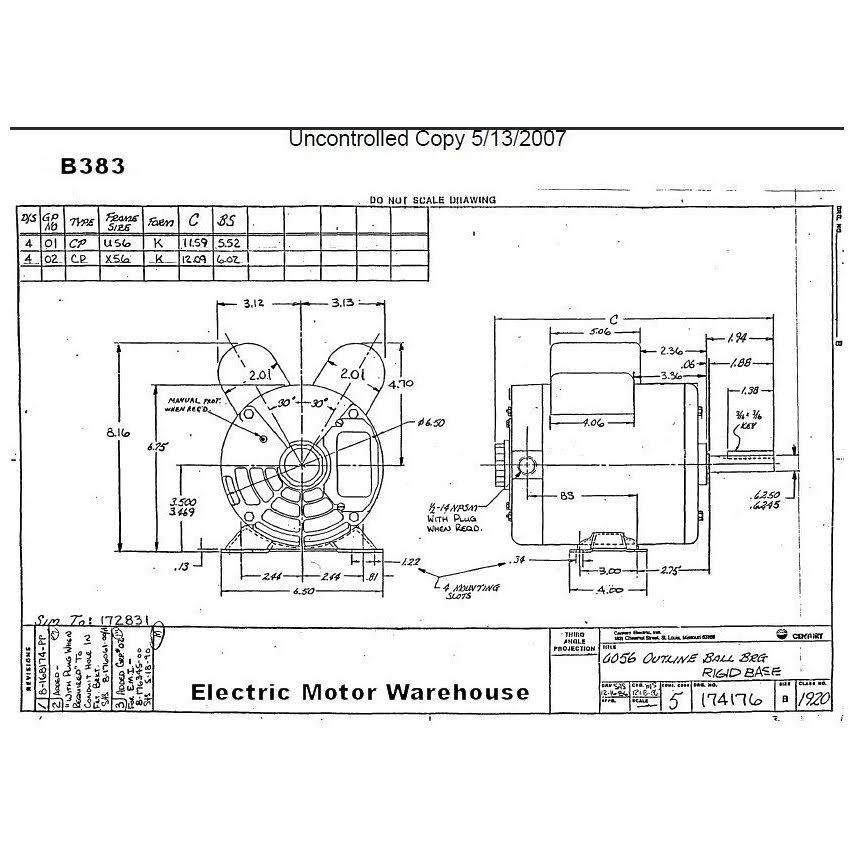

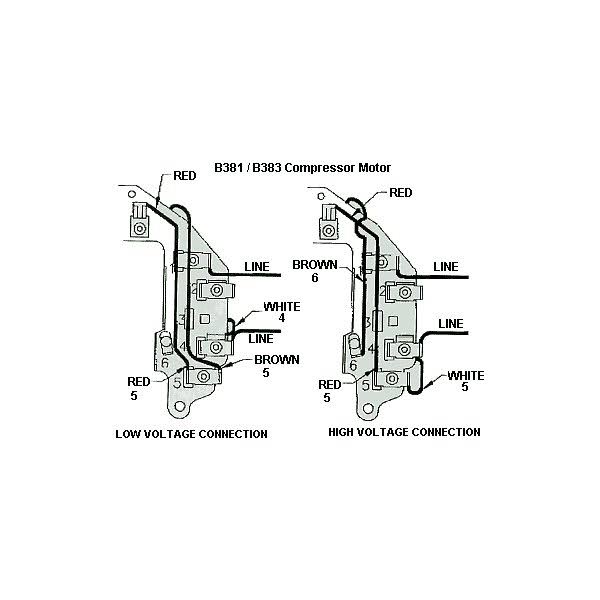

3 HP SPL 3450 RPM, 15.0/7.5 amps, 115/230V 60hz. The motor is designed to be used with a belt driven compressor. Not to be used where the motor is part of the compressor head. 56 Frame motor has a standard 3" x 5" bolt mounting pattern. Horsepower is designated as SPL. Not to be used where the mount is a pivot type mount. Overall motor length 11.59"; Motor connection diagram on motor name plate. Capacitor Start/Capacitor Run.
