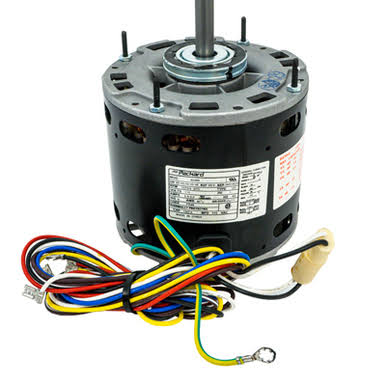

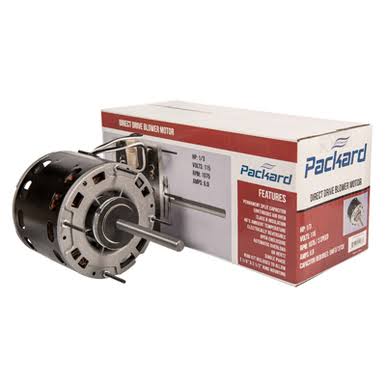

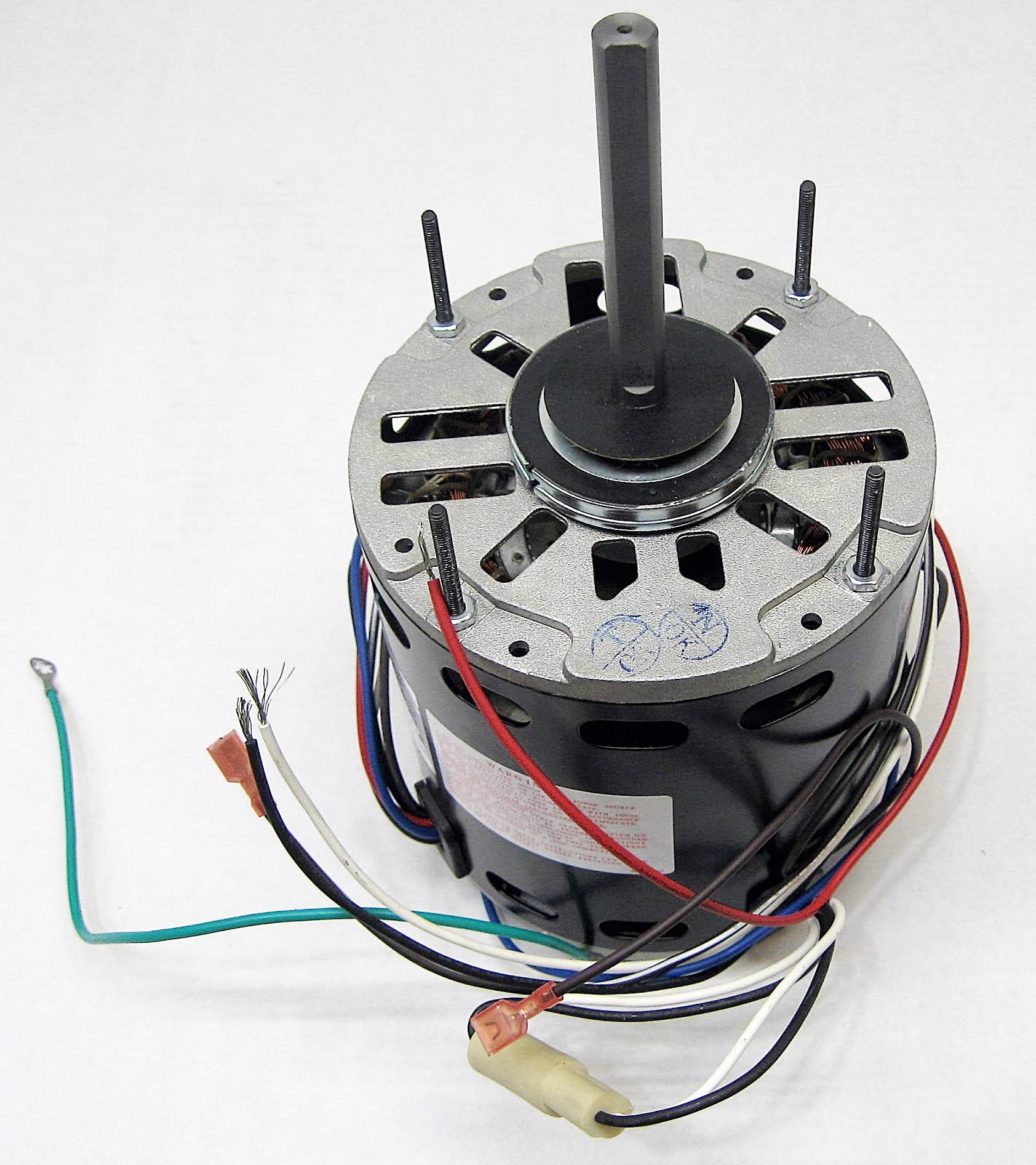

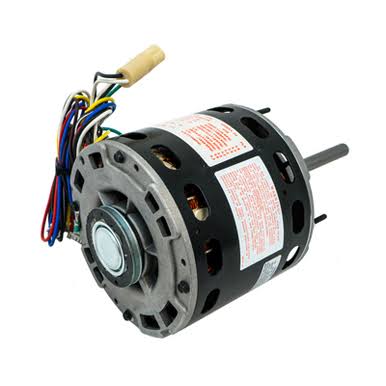

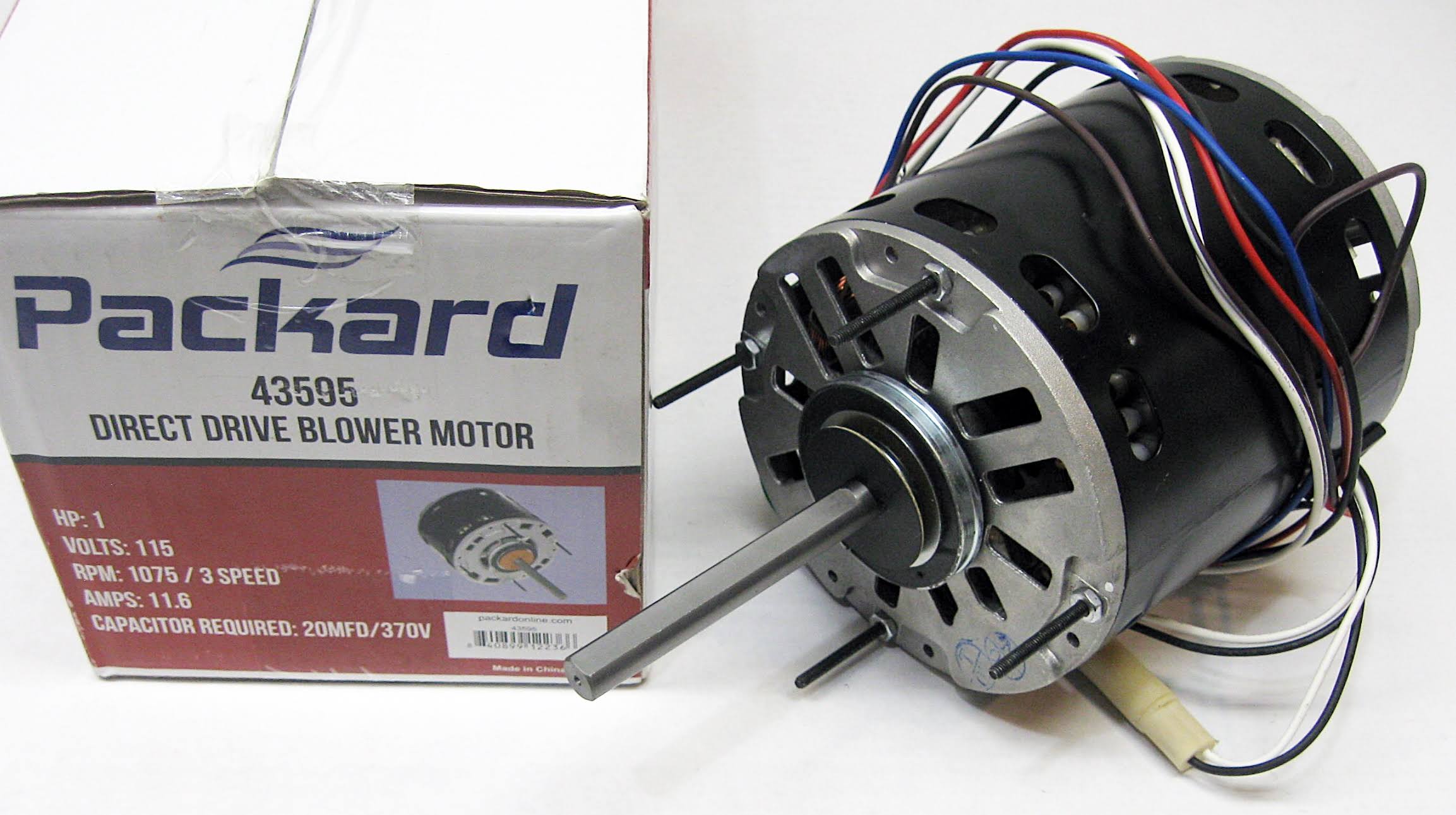

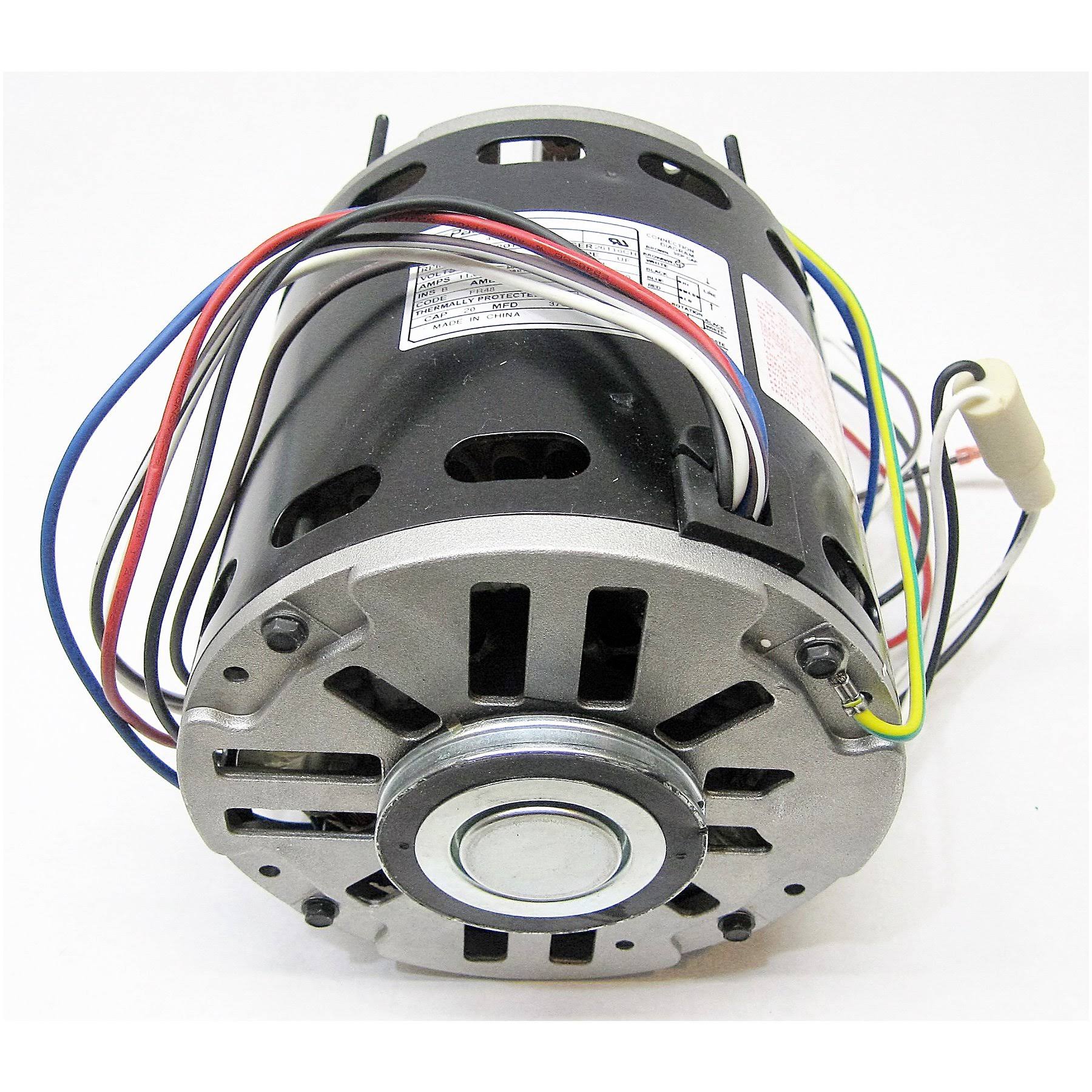

3 Speed Furnace Blower Fan Motor Packard 43595 1 HP 1075 RPM 115 Volt 48 Frame

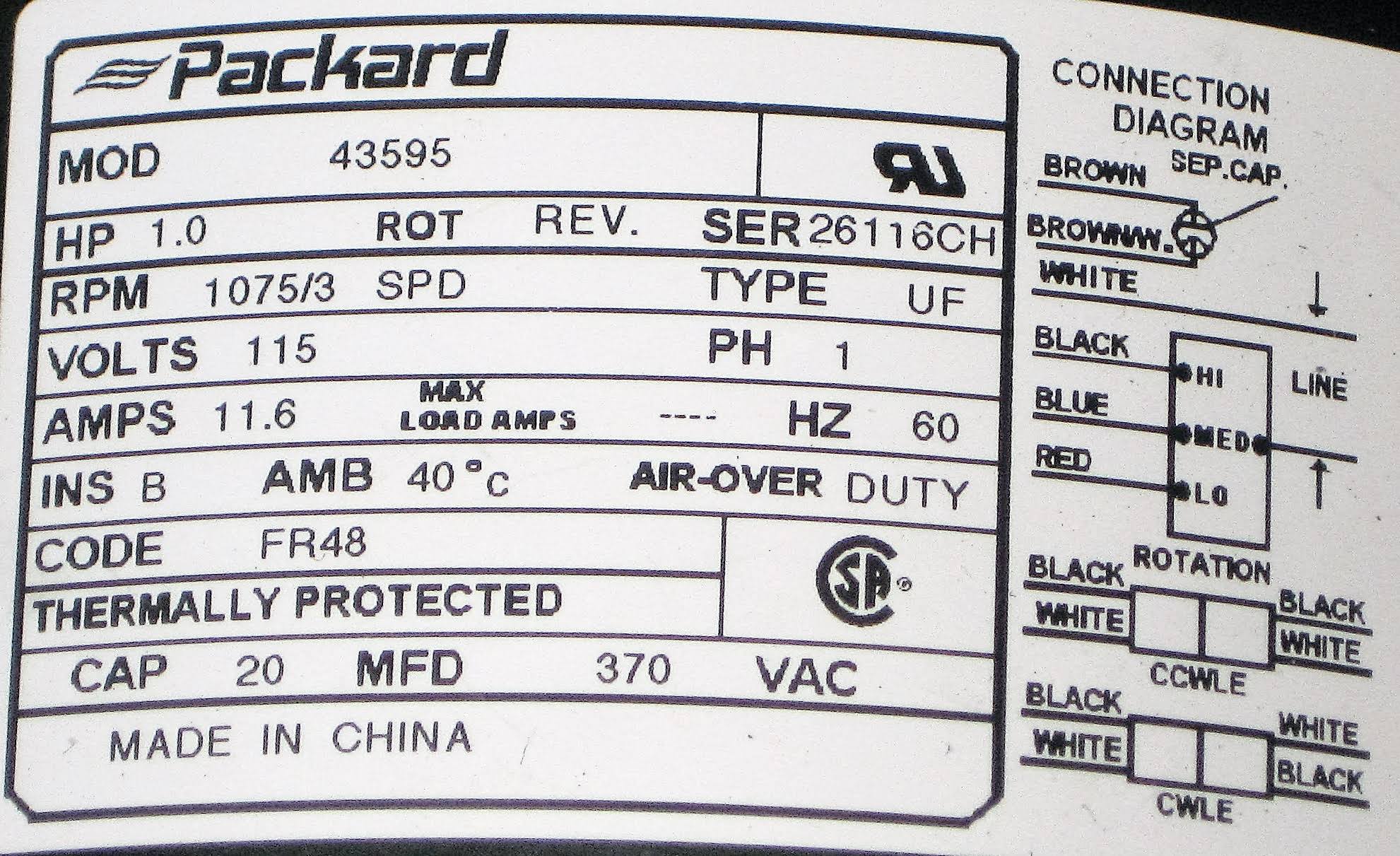

Packard Blower Motor Part Number 48906 Replacement for GE Stock Number 3595, Emerson Stock Number 8906 Motor Specifications: 1 HorsePower 115 Volts 11.6 Amps on High Speed 1075 RPM All Angle Mounting 5-5/8" Diameter 5-7/8" Body Length 6-3/4" Length from center of hub to center of hub (for cradle mount) 1/2" x 3.75" Shaft (can be cut down with a hacksaw if needed) Mounts with belly band strap or with 4 studs, studs measure 3-1/2" apart center to center or cradle mount Ball Bearing Three Speed Electrically Reversible (by flipping 2 wires) Thermally Protected Requires a 20 mfd 370 vac run capacitor not included Wiring Diagram Printed on Motor This motor is a universal fit for Air Conditioners, Air Handlers, Furnaces, or anything else you want to move air.
