♚♚High-quality materials:Solar panels use ETFE. ETFE material has higher light transmittance and longer service life than ordinary materials. ETFE materials ensure the best performance day after day. The backplane adopts TPT, which has good heat dissipation, waterproof, high temperature resistance and easy cleaning.
♚♚Light and thin:300W solar panels weigh about 4 pounds and are 0.12 inches thick, which is 70% lighter than traditional solar panels, making transportation and installation a breeze.
♚♚Practicability:Light energy converts electrical energy into electrical energy. It has strong practicability and is suitable for areas without electricity and inaccessible to cities, such as mountainous areas, oceans, deserts, and remote areas.
♚♚Semi-flexible:The plastic backplane can be bent to a maximum arc of 30 degrees and can be installed on RVs, boats, cabins, tents, cars, trucks, trailers or any other irregular surfaces.
♚♚Warranty:The quality of solar panels is provided directly by the manufacturer. Any problems you encounter will be resolved satisfactorily. This product is a flexible monocrystalline solar panel. It is recommended to use with controller and battery.
Product Description

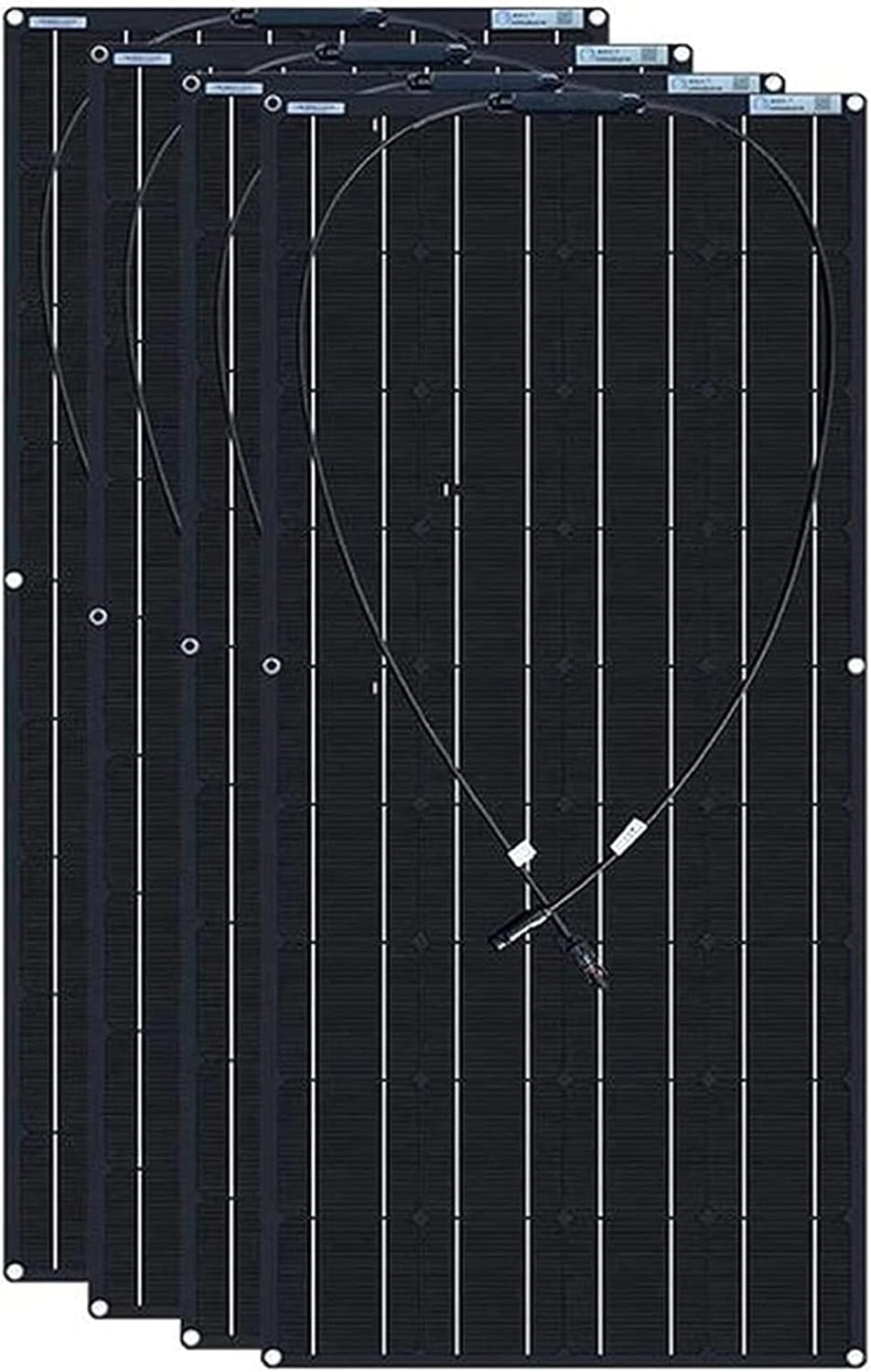

The flexible solar panel is made of high-efficiency monocrystalline cells,with a conversion efficiency of 22%, can be bent 30-40 degrees,and can be installed on a curved surface.
Only 80% lighter than glass solar panels,3mm thickness,easy to carry,easy to transport,easy to install.
Suitable for golf carts,yachts,RVs,electric cars,sightseeing cars,patrol cars,roofs, camping,roof power generation,tents,boats, etc.
Product parameter
Maximum power (Pmax): 300W
Output tolerance: ± 3%
Maximum system voltage: 700V DC
Open circuit voltage (Voc): 19.2V
Short circuit current (Isc): 3.43A
Maximum power supply voltage (Vmp): 18V
Maximum power supply current (Imp): 3.12A
Battery efficiency: 19.5%
Working temperature (NOCT): 45±2℃
Temperature range: -40℃～+80℃
Dimensions: 46.5 x 21.3 x 0.12 inches
color: Black
Standard test conditions: irradiance 1000w/m^2, temperature 25℃, AM=1.5

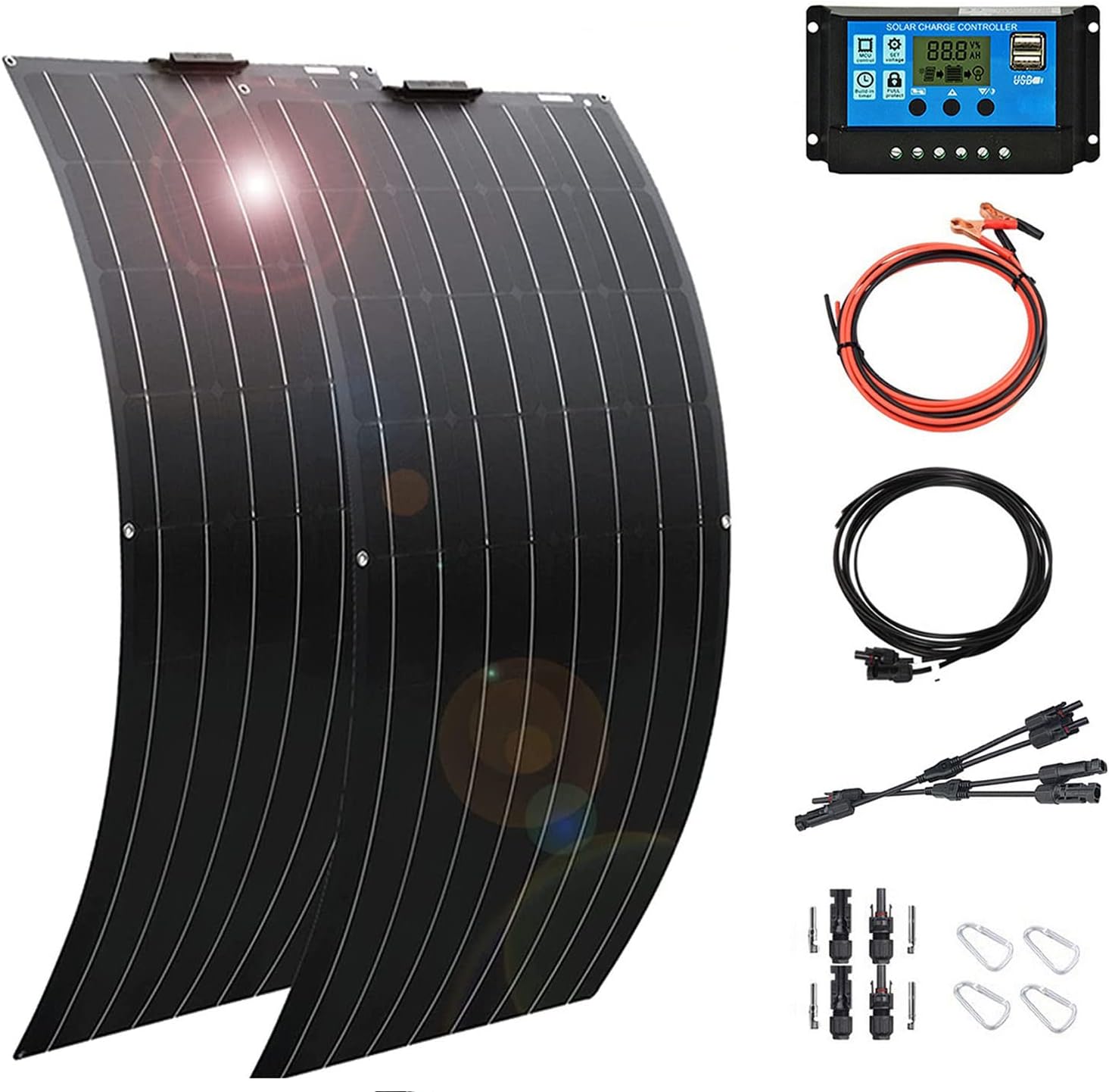

Packing List
2*300 watt flexible solar panel
1 pair of red and black alligator clips
1*40A controller
4*connector
4*Carabiner
2*2 in 1 cable
1*Extension cord
Safety instructions
✸Make sure your battery has enough voltage so that the controller can recognize the battery type before installing it for the first time.
✸The battery cable should be as short as possible to reduce loss.
✸The regulator is suitable for lead-acid batteries (Flood, AGM, GEL) and lithium-ion batteries, (note that the use of the controller should be arranged for the correct battery type) is not suitable for nickel-metal hydride batteries or other batteries.
✸The charging regulator is only suitable for regulating solar components, please do not connect other charging power sources to the charging regulator.
✸The controller will heat up when it is working. Please install the controller on a smooth, well-ventilated surface.
