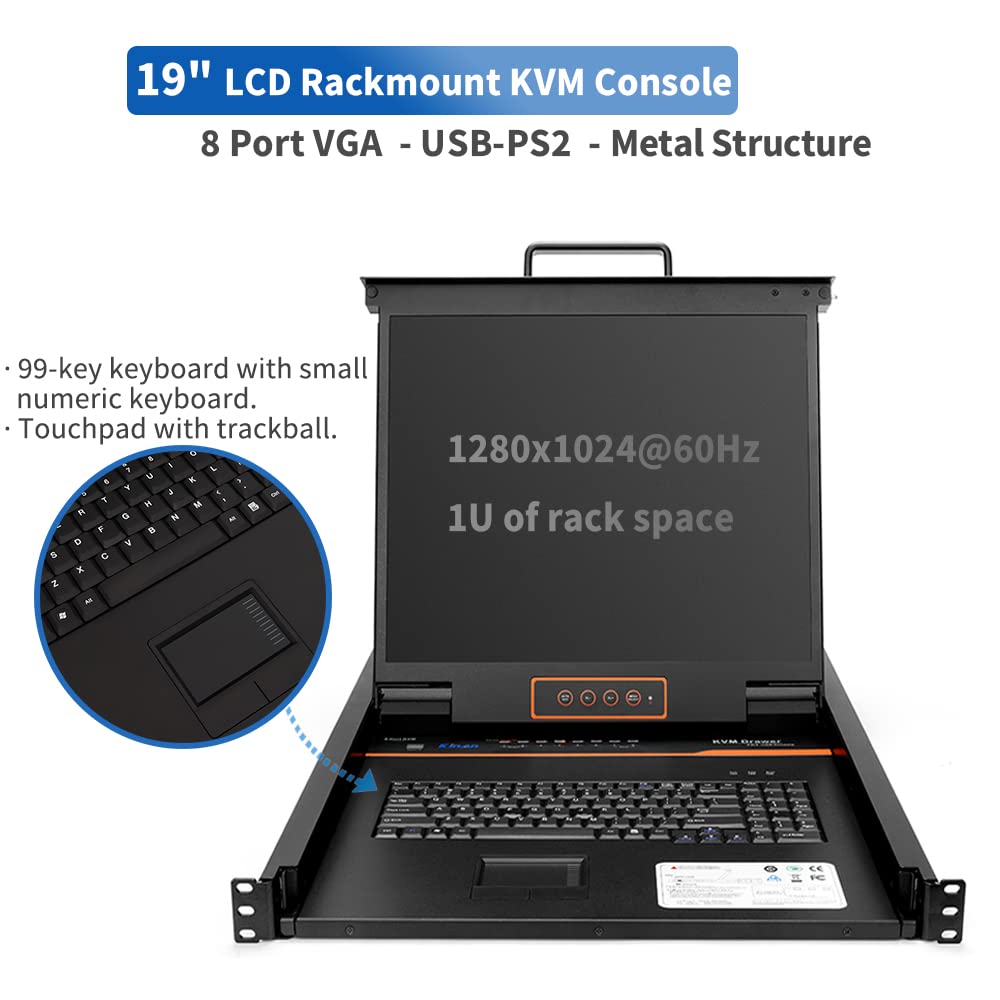

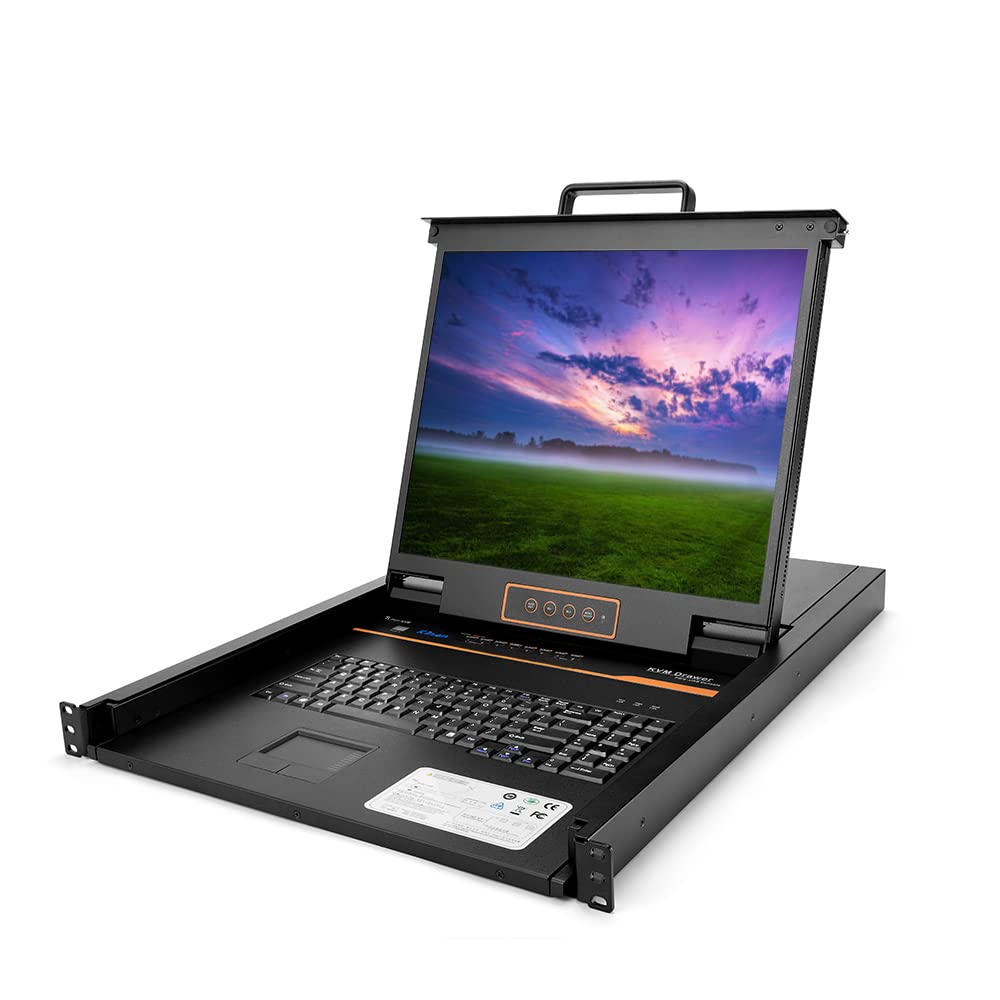

��1U Rackmount KVM Console�� Integrated 19' LCD monitor, keyboard, touchpad and 8-port VGA KVM switch in a single console that occupies only 1U height of rack space. It is designed to access, manage and control 8 computers from a single keyboard, mouse and monitor.
��3 switch way and LED buttons design �� Easily switches between computers via push buttons with LED indicating the active computer, keyboard hotkeys or on-screen-display (OSD).
��1280x1024@60Hz LCD Screen��19-Inch TFT LCD monitor,16.7M Display Colors, 1000:1 Contrast Ratio, 5 ms response time, 85/85/80/80 (L/R/U/D) Viewing Angle.

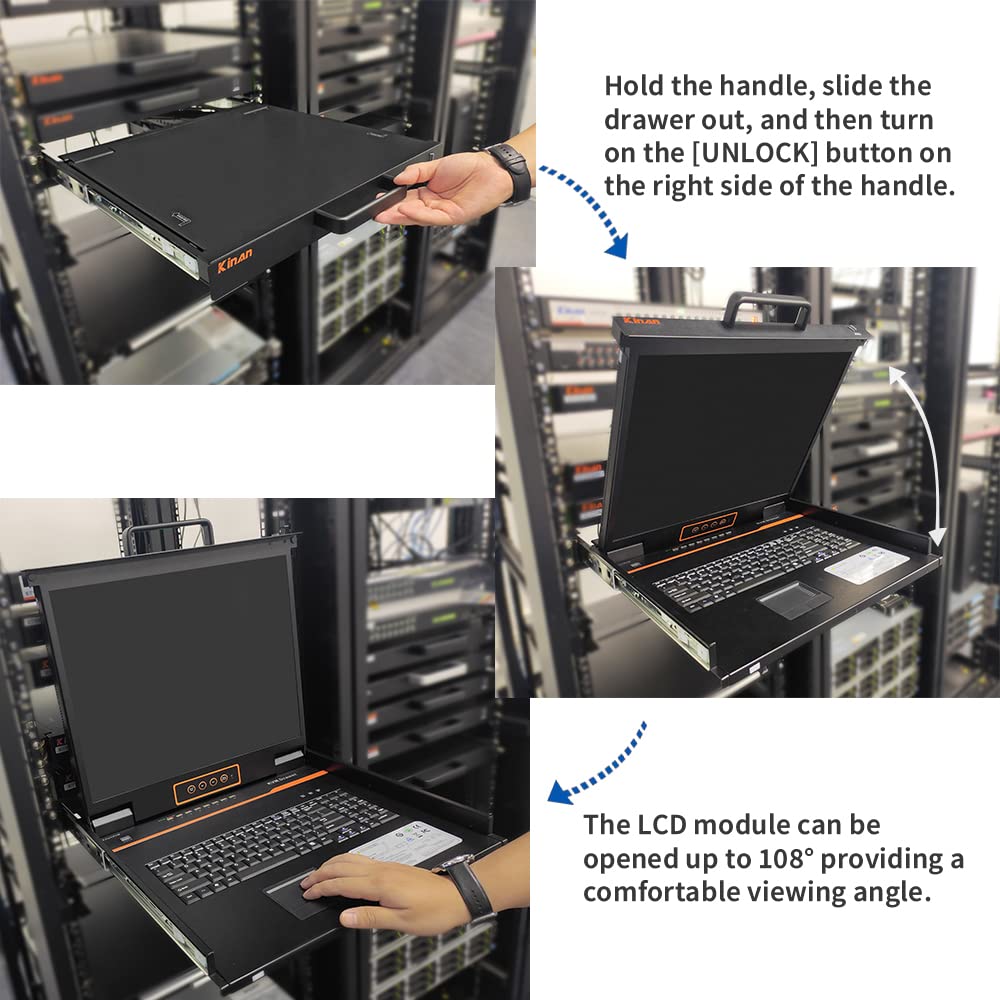

��Mounting Dimensions��The drawer design is suitable for 1U rack mount in the server room. Dimension:17.6��23.8��1.67 inches [448��605��42.5mm]; Mount depth:28.2' [71.6cm] to 32.5' [82.5cm].
��Compliance and 2-year warranty��Company- ISO9001:2015 and ISO14001:2015 registered. / Compliance - UL, CE & FCC, RoHS2.0 Compliant. Kinan��s Professional Technical Support�� We provide 2-year warranty for this KVM console, please feel free to contact us through Amazon if you have any questions.
|
| 8-Port Rackmount KVM Console | 8-Port Rackmount KVM Console | 16-Port Rackmount KVM Console | 1-Port Rackmount KVM Console | 1-Port Rackmount KVM Console |
| Model No. : | XL1908 | XL1708 | XL1916 | LS1901 | LS2701 |
| LCD screen size | 19 ' | 17 ' | 19 ' | 19 ' | 17 ' |
| Computer Connections | 8 | 8 | 16 | 1 | 1 |
| Video Inputs | VGA | VGA | VGA | VGA | VGA |
| Optimum resolution | 1280��1024@60Hz | 1280��1024@60Hz | 1280��1024@60Hz | 1280��1024@60Hz | 1280��1024@60Hz |
| Port selection | Front panel push buttons,hotkeys,OSD menu | Front panel push buttons,hotkeys,OSD menu | Front panel push buttons,hotkeys,OSD menu | | |
| Net weight | 29.8 lb | 28.2 lb | 29.8 lb | 26.5 lb | 25.8 lb |
| Product dimension (W �� D �� H) | 17.6��23.8��1.67 inches | 17.6��22.9��1.67 inches | 17.6��23.8��1.67 inches | 17.6��19.9��1.67 inches | 17.6��18.9��1.67 inches |
| Mounting distance | 28.2' [71.6cm] to 32.5' [82.5cm] | 22' [56cm] to 35.4' [90cm] | 28.2' [71.6cm] to 32.5' [82.5cm] | 27.6' [70.2cm] to 28.2' [71.7cm] & 19.7' [50cm] to 20.7' [52.5cm] | 17.7' [45cm] to 31.1' [79cm] |
