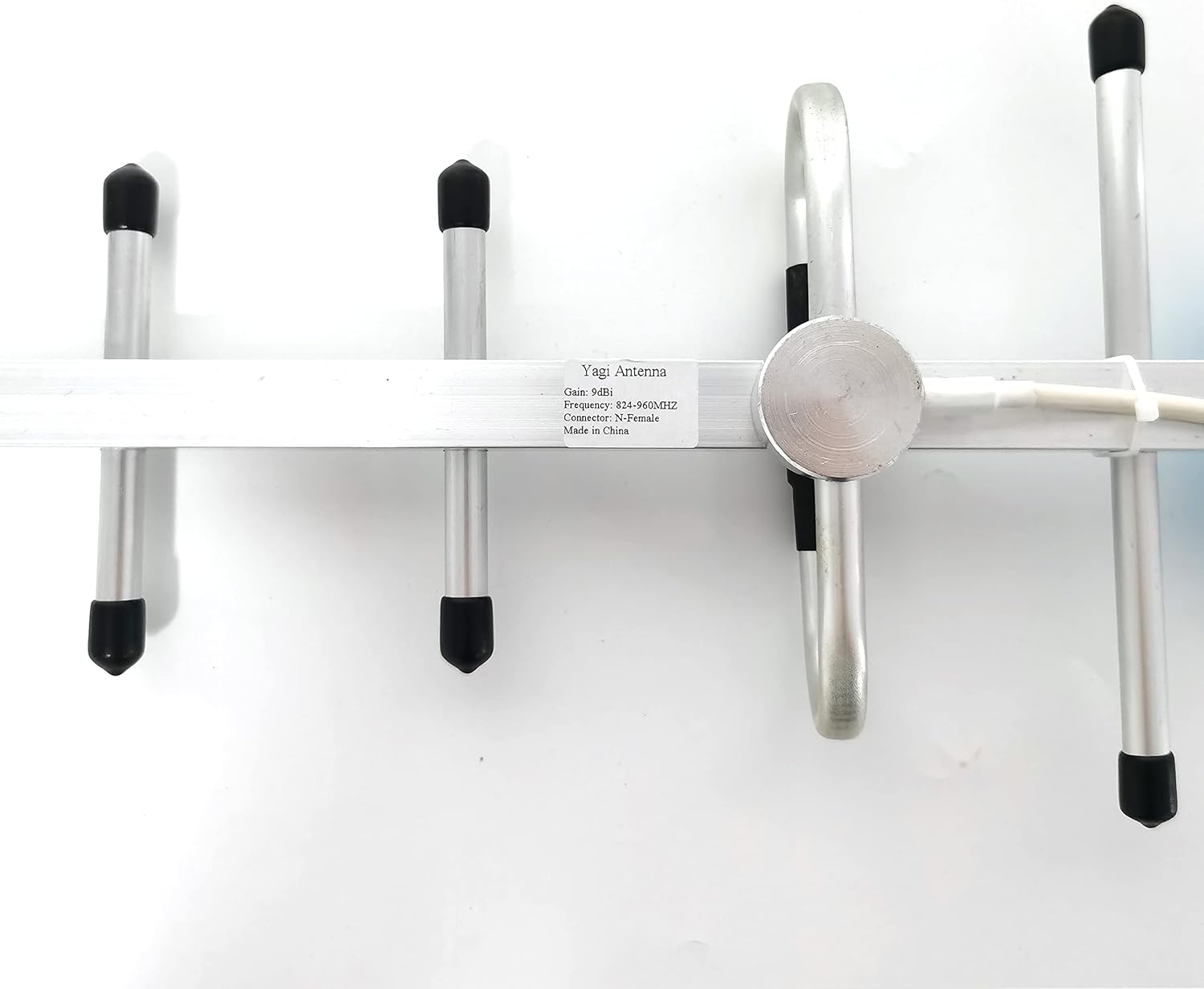

915mhz Lora Antenna-RAK Helium Hotspot Miners Antenna-915mhz Yagi Antenna with RP-SMA Adapter and 16ft RG58 50Ohm Coaxial Cable

9dBi gain with very low SWR.Frequency range（MHz）: 824MHz - 960MHz（include 868mhz /915mhz ）.
Designed for use with HNT miners, LoraWAN, FLARM, OGN, LoRa and other 868Mhz applications
N-female connector on antenna end,and RP-SMA Adapter and 16ft RG58 50Ohm Coaxial Cable

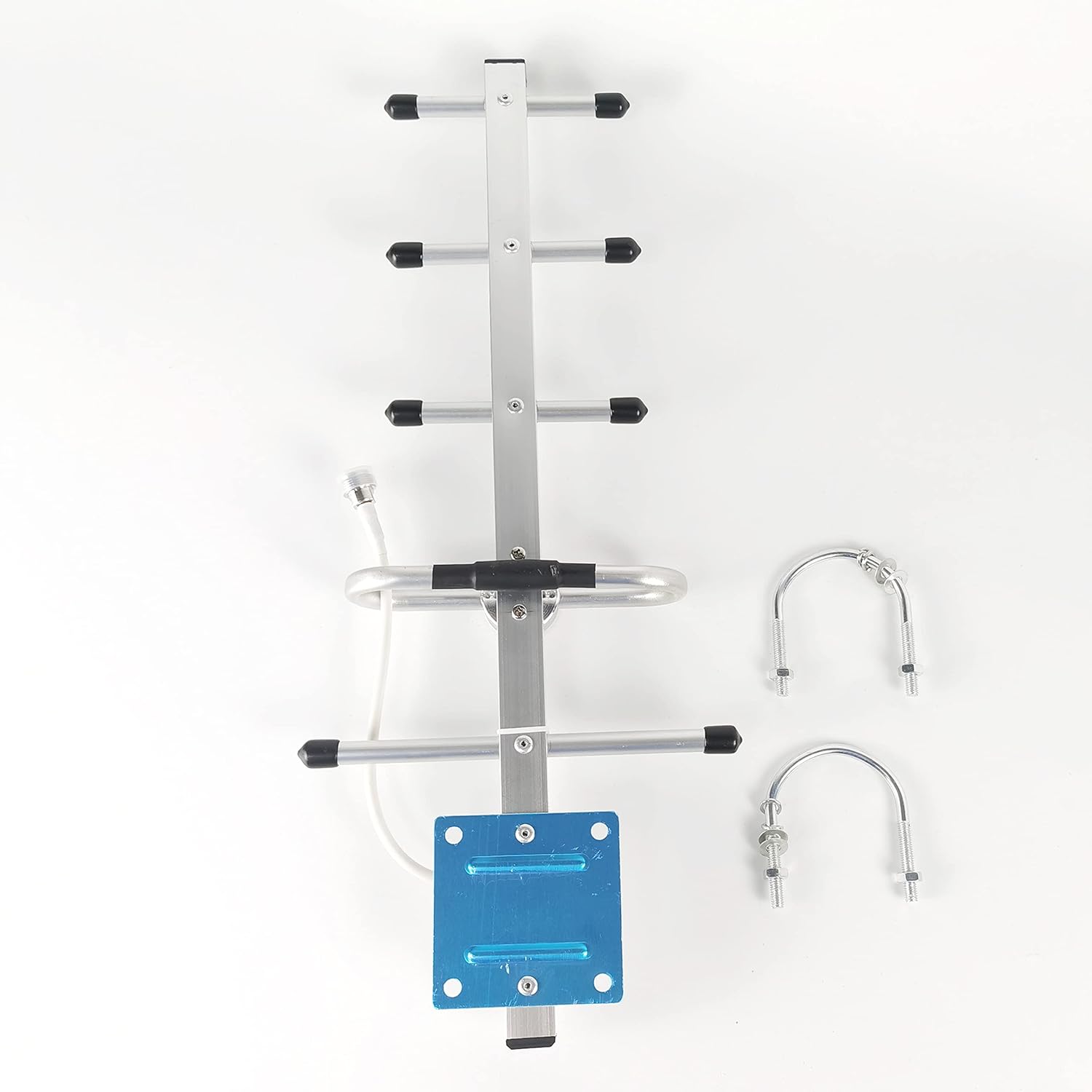

Packing Listing : 1xyagi Antenna & 1X5 meter of SMA RG58 Cable & 1X SMA Female to RP-SMA Male Adapter & 1set U-clip code
Double waterproofing seals keep the weather out.

Frequency range（MHz）: 824MHz - 960MHz（include 868mhz /915mhz ）
. Bandwidth（MHz） : 136 .
Half-power beam width（°） : H:360 V:20 .
VSWR : ≤1.5 .
Input Impedance（Ω） : 50 .
Polarization: Vertical .
Maximum input power（W）: 50 .
Lightning protection : DC Ground .
Input connector type : N Female .
cable connector : SMA /RP--SMA adapter
Dimensions (mm) : 460*190*30 .
Antenna weight（kg） : 0.5 .
Operating temperature（°c）: -40～60 .
Rated Wind Velocity（m/s）: 60 .
Radome color : Gray .
Mounting way : Pole-holding .
Mounting hardware（mm） : ￠40-￠60 .
