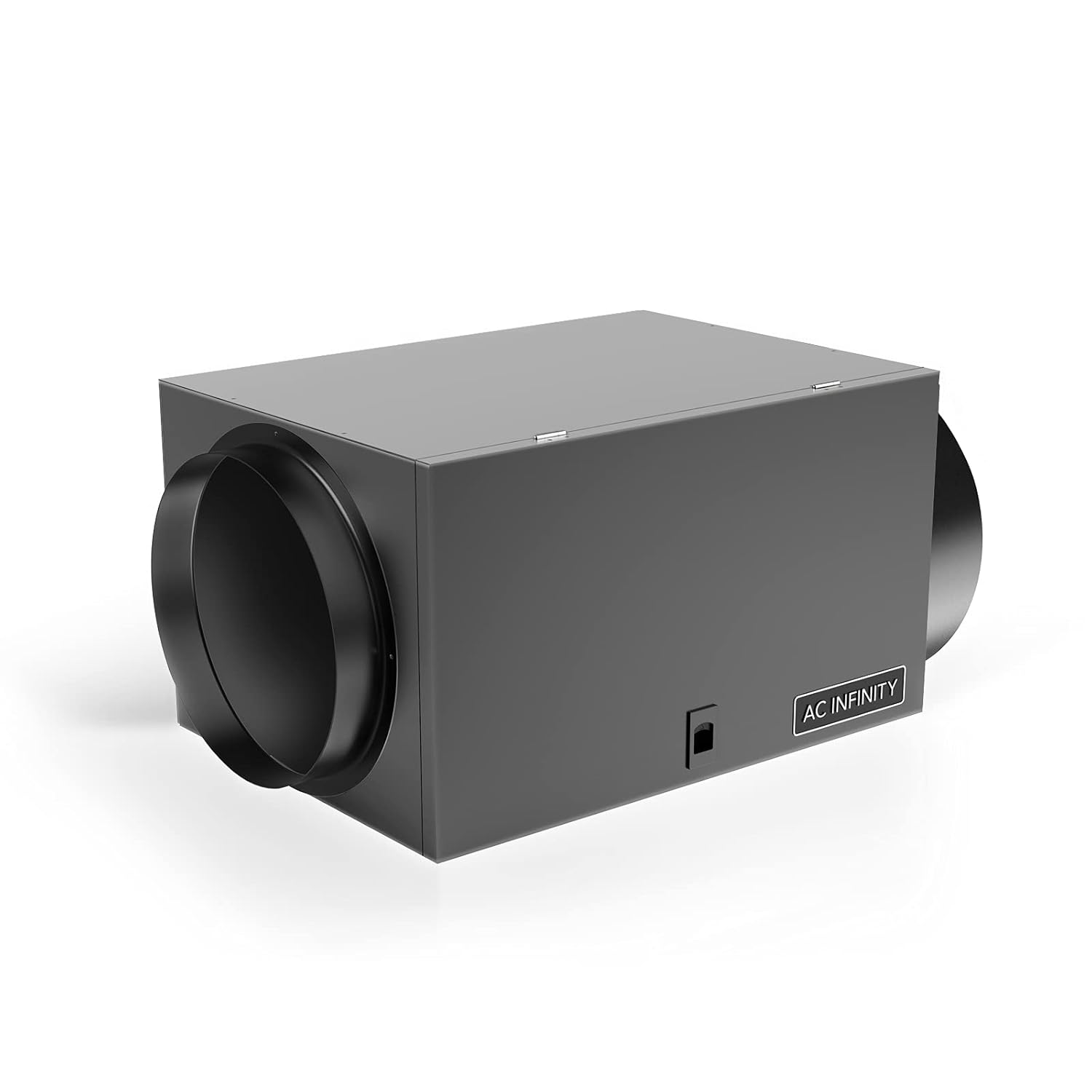

AC Infinity Inline Filter Box 10 with High Efficacy Filter, Whole House HVAC Filtration Kit

A duct filter box designed for use with inline fans to circulate fresh air and block dust and odors.
Built with 1mm thick cold-rolled steel and aluminum duct flanges, able to withstand extreme weather.
Slide lock door gives easy access to inner chamber while soft neoprene layer creates dust-free seal.
Includes a standard high efficacy filter that traps particles like dust, dirt, lint, and odor.
22.51 x 11.57 x 13.93” | Fits 10” Inline Fans | 2400 CFM Maximum | Accepts 14 x 20 x 1” Filters

	AC Infinity 4-Inch Inline Filter Box with High Efficacy Filter	AC Infinity 6-Inch Inline Filter Box with High Efficacy Filter	AC Infinity 8-Inch Inline Filter Box with High Efficacy Filter	AC Infinity 10-Inch Inline Filter Box with High Efficacy Filter
Model	AC-AFB4	AC-AFB6	AC-AFB8	AC-AFB10
Duct Opening Size	4 in.	6 in.	8 in.	10 in.
Dimensions	23.46 x 8.42 x 11.73 in.	23.46 x 8.42 x 11.73 in.	23.46 x 8.42 x 11.73”	23.46 x 8.42 x 11.73”
Box Material	Cold-rolled Steel	Cold-rolled Steel	Cold-rolled Steel	Cold-rolled Steel
Flange Material	Aluminum	Aluminum	Aluminum	Aluminum
Finish	Matte Black	Matte Black	Matte Black	Matte Black
Accepted Filter Size	12 x 20 x 1”	12 x 20 x 1”	14 x 20 x 1”	14 x 20 x 1”
Maximum Airflow	400 CFM	800 CFM	1600 CFM	2400 CFM
Compatible Fan Models	CLOUDLINE S4 and CLOUDLINE T4	CLOUDLINE S6 and CLOUDLINE T6	CLOUDLINE S8 and CLOUDLINE T8	CLOUDLINE S10 and CLOUDLINE T10
Applications	Intake air filtration system for indoor HVAC settings like homes, workshops, clean rooms, power plants, and industrial warehouses.	Intake air filtration system for indoor HVAC settings like homes, workshops, clean rooms, power plants, and industrial warehouses.	Intake air filtration system for indoor HVAC settings like homes, workshops, clean rooms, power plants, and industrial warehouses.	Intake air filtration system for indoor HVAC settings like homes, workshops, clean rooms, power plants, and industrial warehouses.
