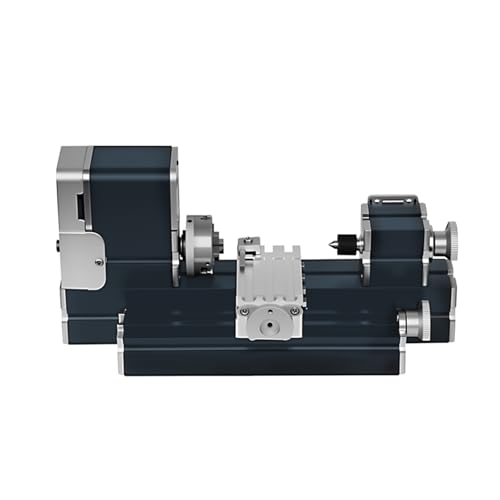

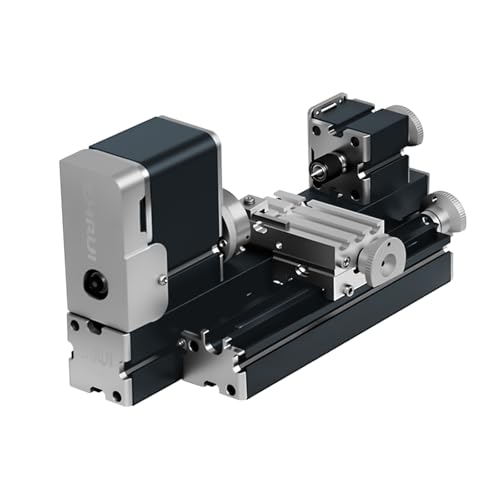

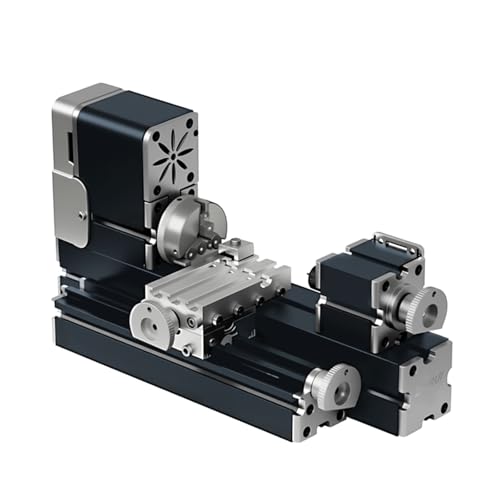

          All-metal Miniature Lathe 36W 20000rpm Didactical Mini metal Lathe Machine for Hobbyist Woodworking Craft
          • All-metal Miniature Lathe 36W 20000rpm Didactical Mini metal Lathe Machine for Hobbyist Woodworking Craft
          1 / 9

          All-metal Miniature Lathe 36W 20000rpm Didactical Mini metal Lathe Machine for Hobbyist Woodworking Craft

          $40.60 USD
          Shipping fees will be calculated at checkout.

          • Free worldwide shipping

          • Free returns

          • Carbon neutral

          • Secure payments

          • Hi-power motor is adopted with all drive axes, maximum speed up to 20,000 rpm;Input voltage/Current /Power: 12V/3A /36W;Input Voltage of Switch Power Supply: 110V-240V
          • The largest diameter of processed material: 30mm (Kind Notice: manual measurement, there will be 2-3mm error.)
          • The length of processed material: 150mm;The chuck and collets is 1 to 6mm;X-axis slider travels:150mm;Machine size:310mm*100mm*150mm;Bottom plate size: 315mm*200mm*17mm
          • Center height- 25mm, center distance- 150 mm

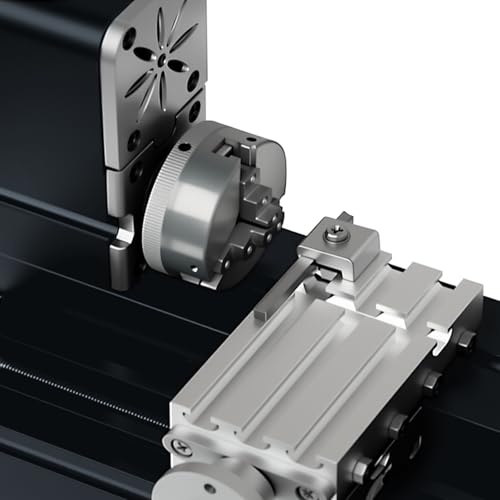

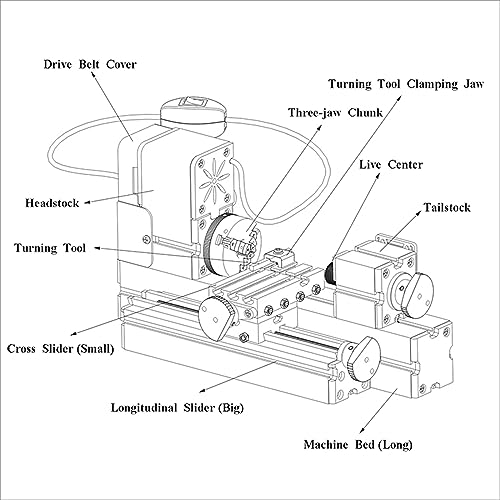

          • The motor case and headstock of all-metal machine tools is jointed completely. Main parts configure with metal structure and no plastic components in the whole machine body, such as motor box, headstock, hand wheels, slider, 3-jaw chunk/4-jaw chunk, turning tools clamping jaw, machine bed, gear, side cover, working table, connection piece, tailstock, countershaft, drive belt cover etc.
          • Fan built-in motor is featured with ultra-quiet & high rotary speed. That's special customized option for motor cooling & effective work.The most parts of machine tools are dealt with two surface treatment methods of electroplating and ink-jet anodized to make appearance more cleaning & glorious, lasting rust-proof.
          • Machine bed is made of Europe standard T-type aluminum material, moving more precisely &smoothly.3C quality assured transformers have the function of over-current, over-voltage and over-heat protection.To improve the stability and service life, the connection block be fixed by square nuts, which avoid screw loosing after long time vibration.

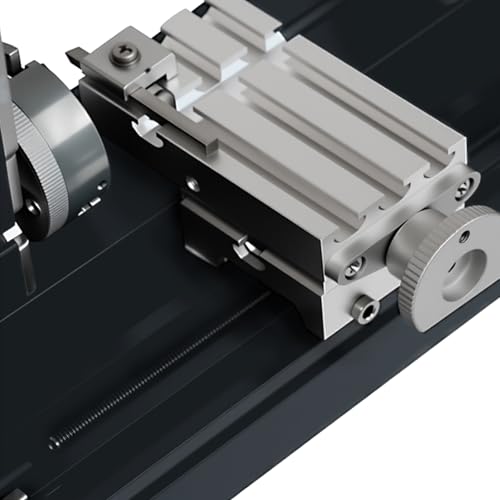

          • The connection block adopts dovetail structure, which matches with each slot of the machine tools parts to enhance its performance and accuracy.Versatile application: The turning tools of mini metal lathe are made of steel material, which can be perfectly used to process the soft metal (gold, silver, copper & aluminum), acrylic and engineering plastics etc.
          • By adding some loose-preventing nuts on the side of small& big slider, not only avoid the gap after excessive vibration, but also improve the processing accuracy.The chuck is fixed by a hexagon nut to increase the tightness of the clamping tools (such as drill bits, cutters, wood-turning lathe driver).
          • The whole hand wheel is made of super alloy material, which be assembled in X, Z axis and tailstock. Featuring with 0.02mm scale line, the hand wheel increases the precision when processing. (The scale lines are molded at one time, aren't sticky label)3/4 semi-circular structure designed hand wheel, that's quite convenient for dismantling connection blocks.
