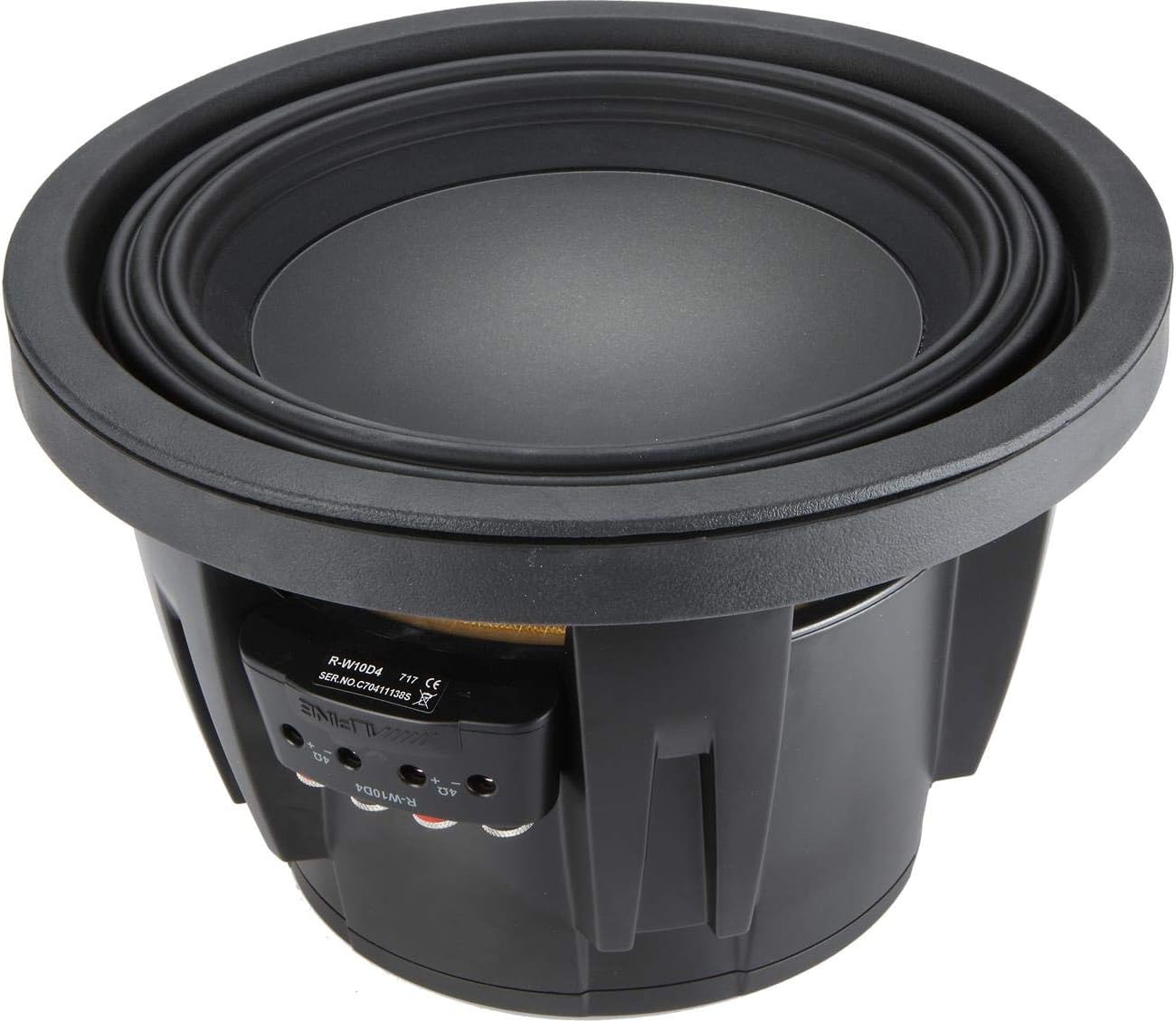

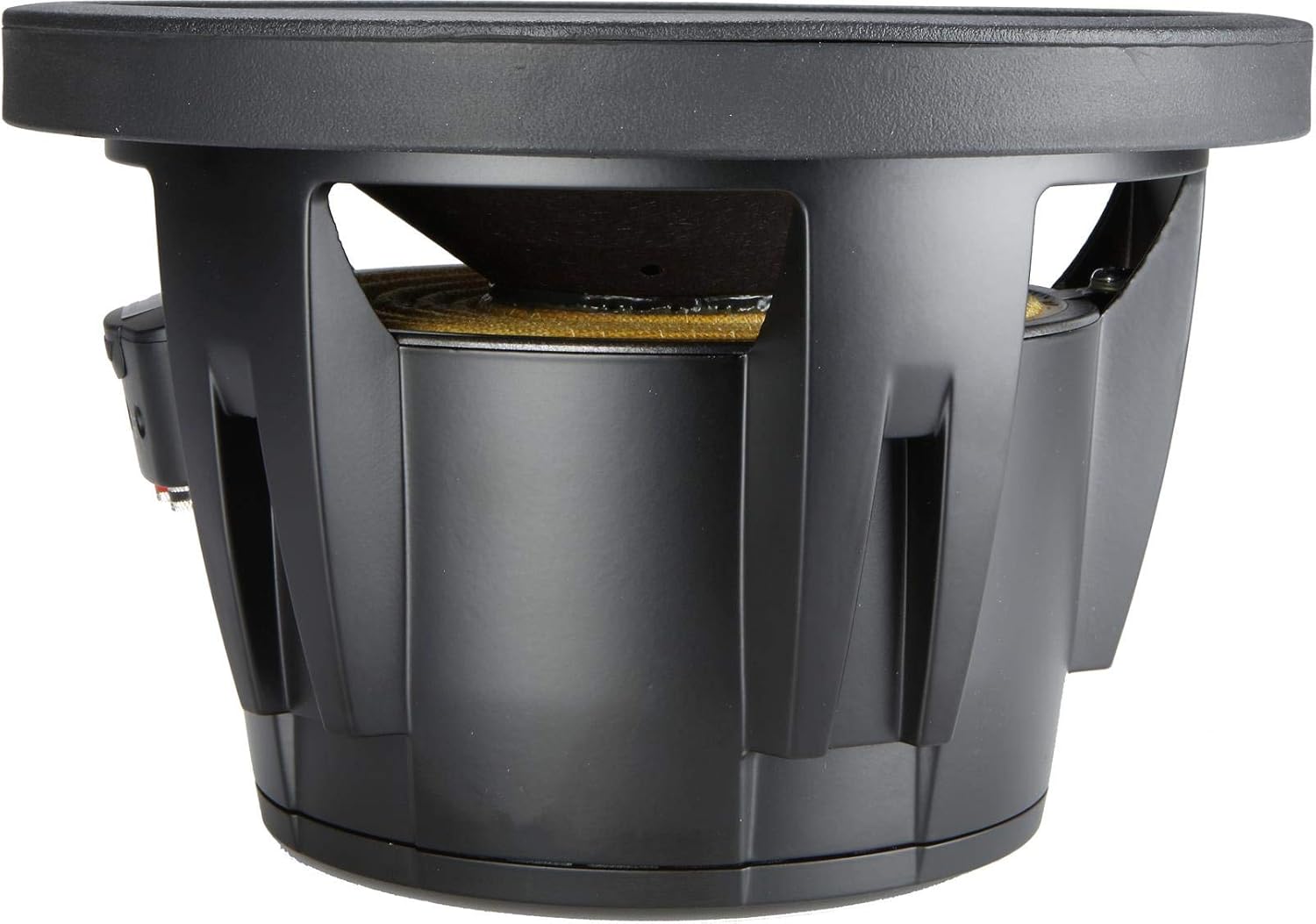

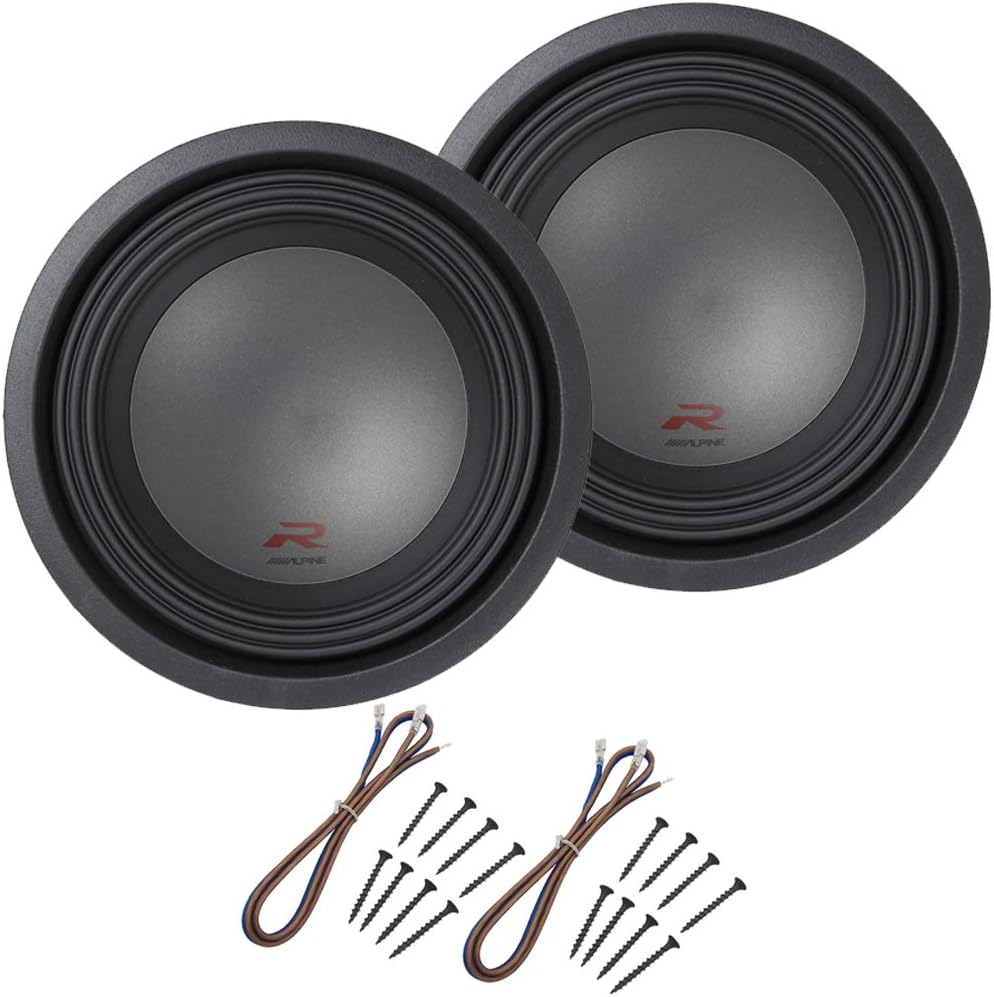

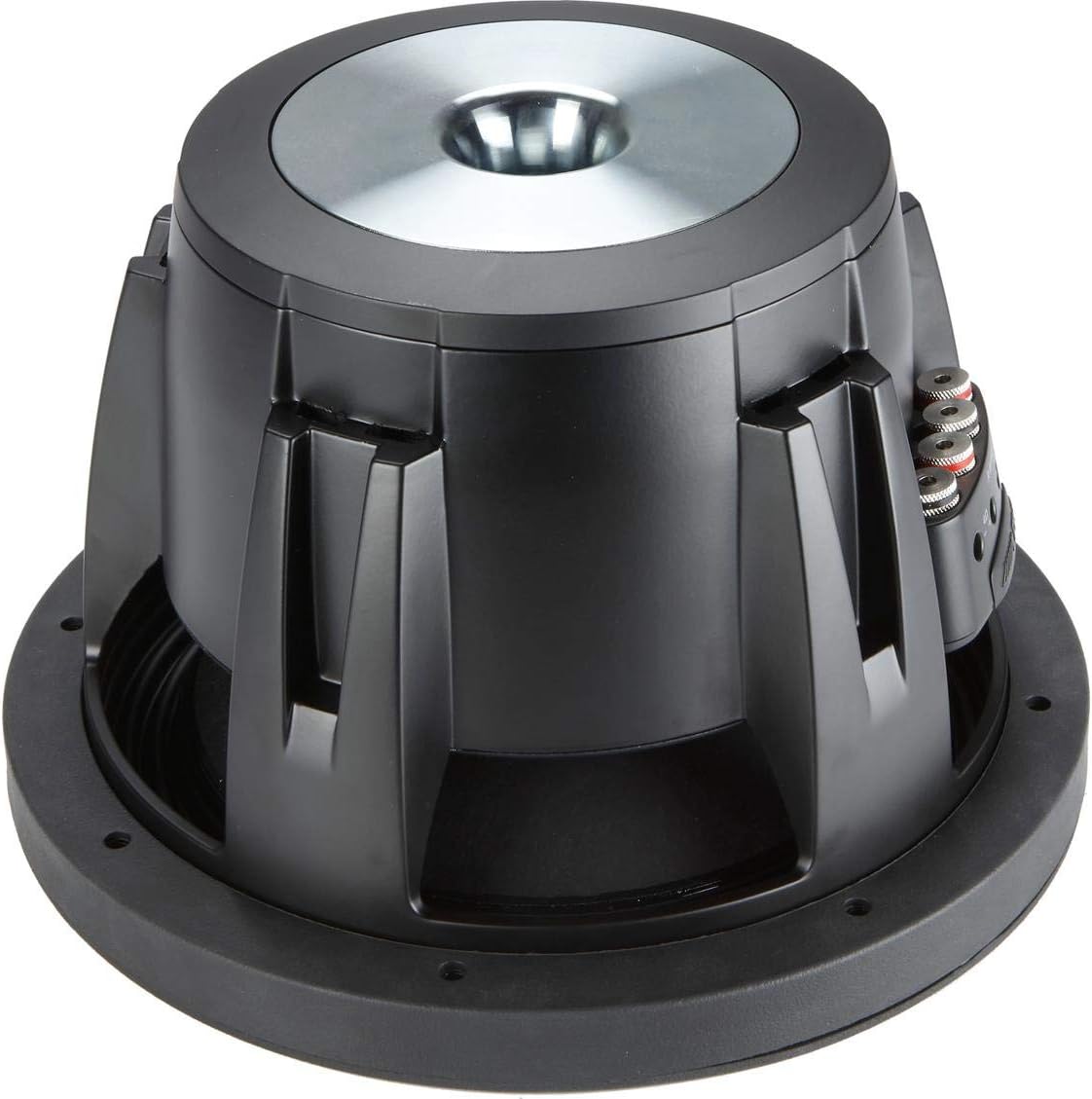

Alpine R-W10D4 Car Audio Type R Dual 4 Ohm 1500W 10" Subwoofer Pair with Install Kit
Includes:
- 2 x Alpine R-W10D4 Subwoofers
- 2 x 24" Length Speaker wire with female spade terminals
- 16 x Coarse wood screws 1 5/8" length (Phillips head)
- General Features:
- 10" Dual 4 ohm Type-R Subwoofer
- Power Handling:
- Peak: 2250watts
- RMS: 750 watts
- Recommended power range: 300 - 750W RMS
- CTA-2031 compliant power ratings
- Parabolic pulp/kevlar cone
- H.A.M.R. surround
- Polypropylene, mica and talc dust cap
- Reinforced cone neck and spider joint
- Cast aluminum frame with integral shorting sleeve
- 8AWG push terminals with VC configuration jumpers
- 2.6" High excursion overhung voice coil
- 111 oz. Strontium ferrite segmented magnet
- Top-mount depth: 5-7/8"
- Cutout diameter: 9-1/16"
- Frequency Response: 26 - 200Hz
- Sensitivity: 82.4dB
- Resonance Frequency (Fs): 31Hz
- Subwoofer Specifications:
- Subwoofer Series: Type-R (Alpine)
- Subwoofer Size: 10"
- Peak Power Handling: 2250 watts
- RMS Power Handling: 750 watts
- Voice Coil(s): Dual
- Impedance (Per Voice Coil): 4 ohms
- Voice Coil Diameter: 2.6"
- Frequency Response: 26 - 200 Hz
- Sensitivity: 82.4 dB
- Xmax (millimeters): 20 mm
- Subwoofer Design: Round / Circle
- Main Cone Color: Black
- Woofer Composition: Kevlar Reinforced Pulp Paper
