850W Continuous Power Supply - 850 watts of stable output with 92% maximum energy efficiency, 80 PLUS Gold certified.

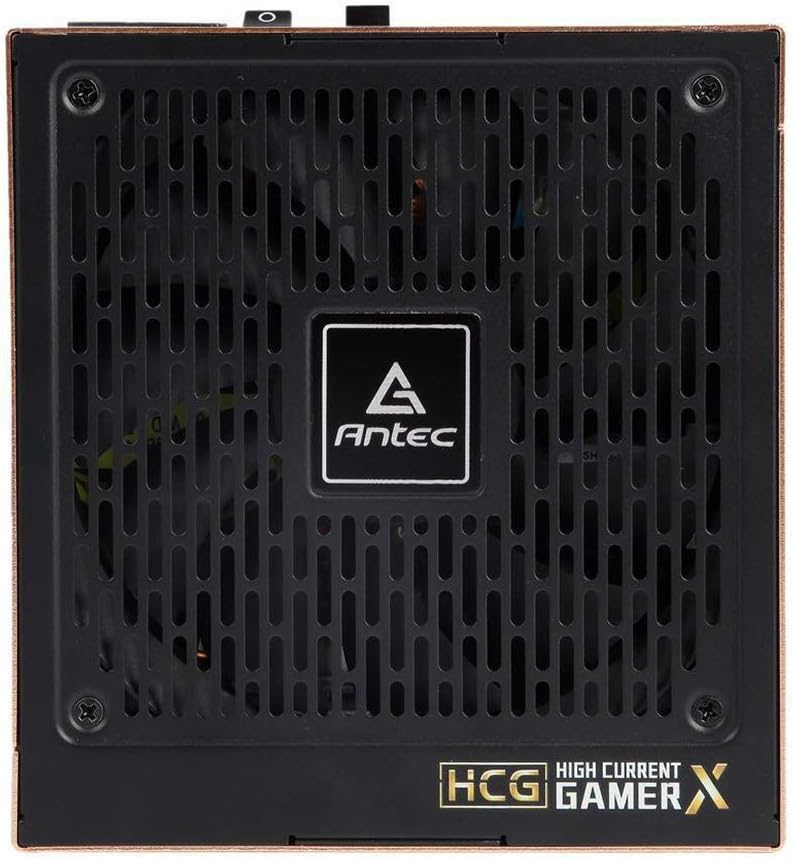

FDB Fan - The 135mm Fluid-Dynamic Bearing FDB fan ensures high airflow to guarantee hours of operation with optimal silence.
High Performance - The full Japanese capacitors ensure the tightest DC stability; the non-stop industrial class performance is ideal for high-end computer systems at up to 50°C ambient.
AQ10 Support - Antec 10 years parts and labor warranty for professional global technical support and customer service.

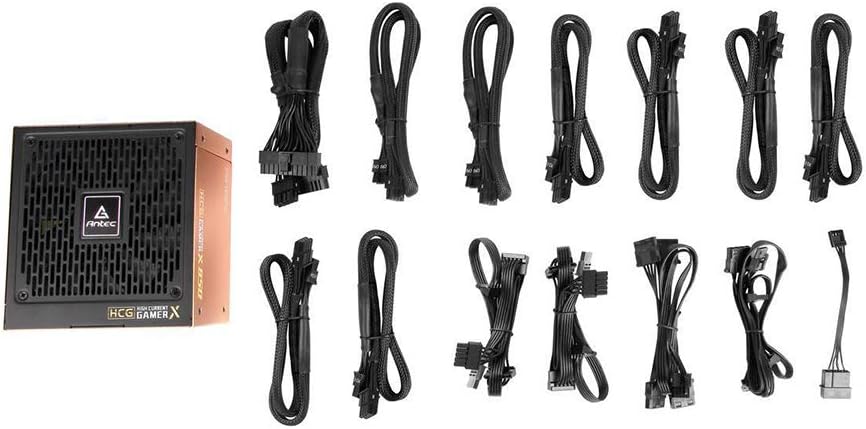

Technical Features - 100% modular for improved airflow; CircuitShield for industry-level protections; 99%+12V; 28(18+10) pin MBU socket; ATX12V 2.4 for CPU compatibility.

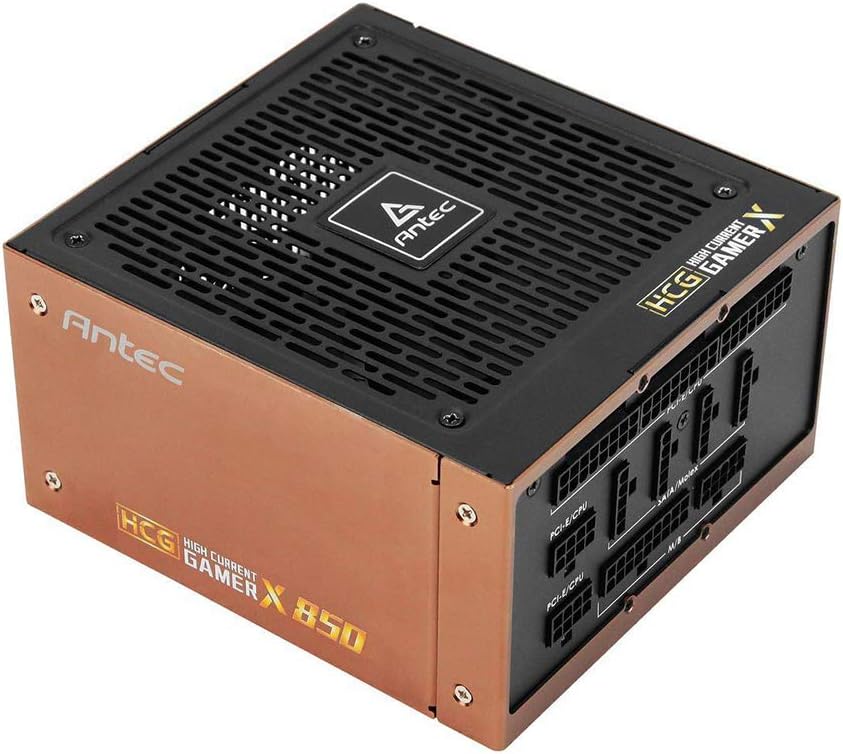

Engineered to meet the power demands of high-end systems, Antec HCG850 Extreme power supply delivers non-stop industrial class performance with 850W of continuous power, 100% modular cable management system, 80 plus gold certified efficiency, 135mm FDB silent fan and Zero RPM manager, which is an ideal option for high-end computer systems at up to 50°C ambient.
Features and Specification
* Model: HCG850 Extreme
* Type: ATX 12V 2.4
* Modular: Fully Modular
* Dimension (W x L x H): 160(L) x 150(W) x 86(H)
* Warranty: 10 years
* Input Voltage: 100-240 VAC ±10%
* Input Current: 12A-6A
* Input Frequency Range: 50Hz-60Hz
* PFC: Active PFC (>0.9 typical)
* Power Good Signal: 100-500ms
* Efficiency: 92% Typically
* Protection: OCP/OVP/UVP/SCP/OPP/OTP/SIP/NLO
* Output Capacity: 850W
* Operation Temperature: 0~50°C
* Fan: 135mm FDB Fan
* Certifications: 80 Plus Gold

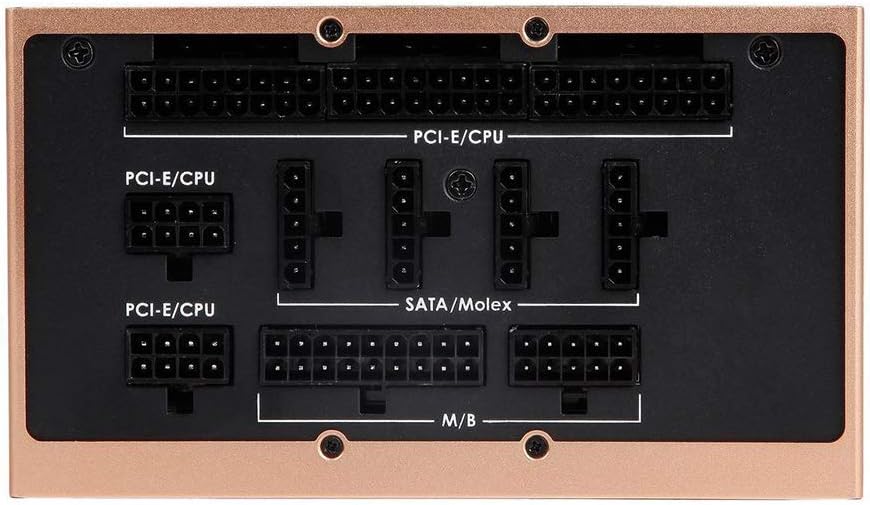

* Connector: 1 x MB 24(20+4) Pin, 2 x 8(4+4) Pin EPS 12V, 6 x 8(6+2) Pin PCI-E, 10 x SATA, 6 x Molex, 1 x FDD
* Net Weight: 1.60 Kgs
* Gross Weight: 3.30 Kgs
