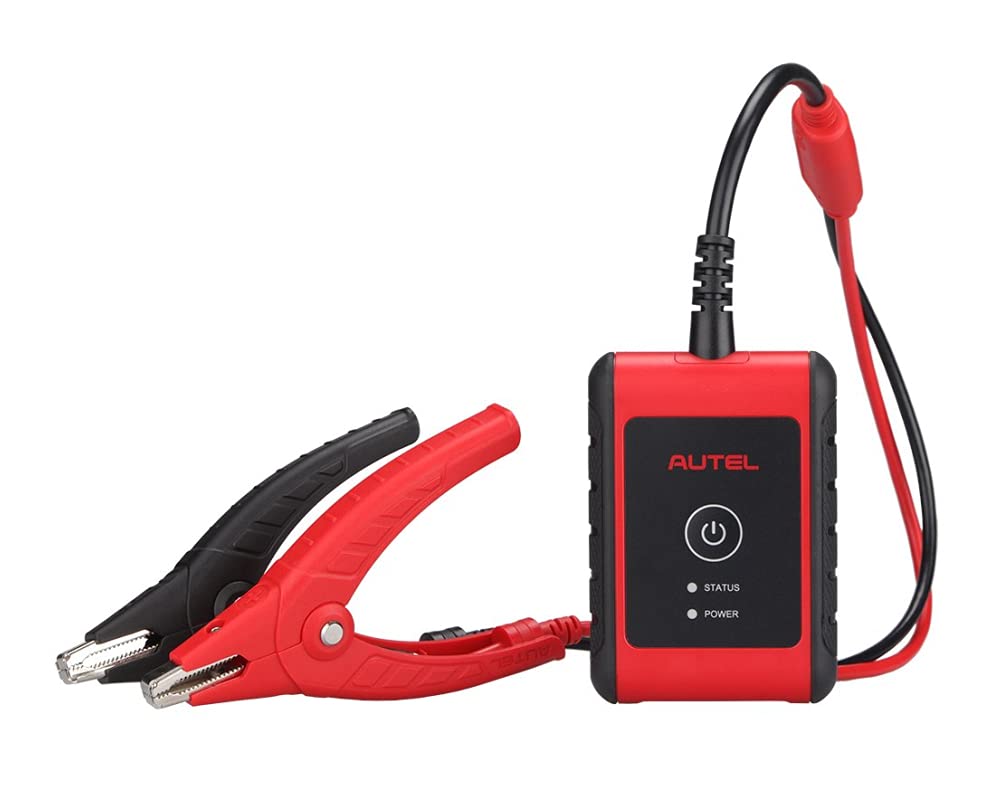

          Autel MaxiBAS BT506 Auto Battery&Electrical System Analysis Tool,Compatible with CCA CA SAE EN IEC DIN JIS MCA, Support in-Car and Out-of-Car Testing
          • Autel MaxiBAS BT506 Auto Battery&Electrical System Analysis Tool,Compatible with CCA CA SAE EN IEC DIN JIS MCA, Support in-Car and Out-of-Car Testing
          1 / 5

          Autel MaxiBAS BT506 Auto Battery&Electrical System Analysis Tool,Compatible with CCA CA SAE EN IEC DIN JIS MCA, Support in-Car and Out-of-Car Testing

          $72.89 USD
          Shipping fees will be calculated at checkout.

          • Free worldwide shipping

          • Free returns

          • Carbon neutral

          • Secure payments

          Support in-vehicle and out-of-vehicle testing of passenger vehicle batteriesTest 6- and 12-volt batteries: 100 - 2000 CCATest 12- and 24- cranking/charging systemsTest Flooded, AGM, AGM Spiral, EFB and GEL batteriesCompatible with CCA, CA, SAE, EN, IEC, DIN, JIS and MCA

          The MaxiBAS BT506 is a battery and electrical system analysis tool that use as Adaptive Conductance an advanced battery analysis method, to produce a more accurate examination of the battery’s cold cranking ability and reserve capacity, vital to determining a battery’s true health. The BT506 enables technicians to view the health status of vehicle’s battery and electrical system.

          SPECIFICATIONS

          • Connectivity: l USB2.0, Type C
          • l Bluetooth V3.0 BR/EDR+ V4.2 LEDual-Mode
          • Input Voltage: 5 V DC
          • Working Current: < 150 mA at 12 V DC
          • Internal Battery: N/A
          • CCA Range: 100 to 2000 A
          • Voltage Range: 6 to 36 V
          • Working Temperature: -10°to 50° C (14° to 122° F)
          • Storage Temperature: -20° to 60° C (-4° to 140° F)
          • Dimension (L x W x H): 107 mm (4.21“) x 75 mm (2.95”) x 26 mm (1.02”) (clamp cable not included)
          • Weight: 320 g (0.7 lb.)
