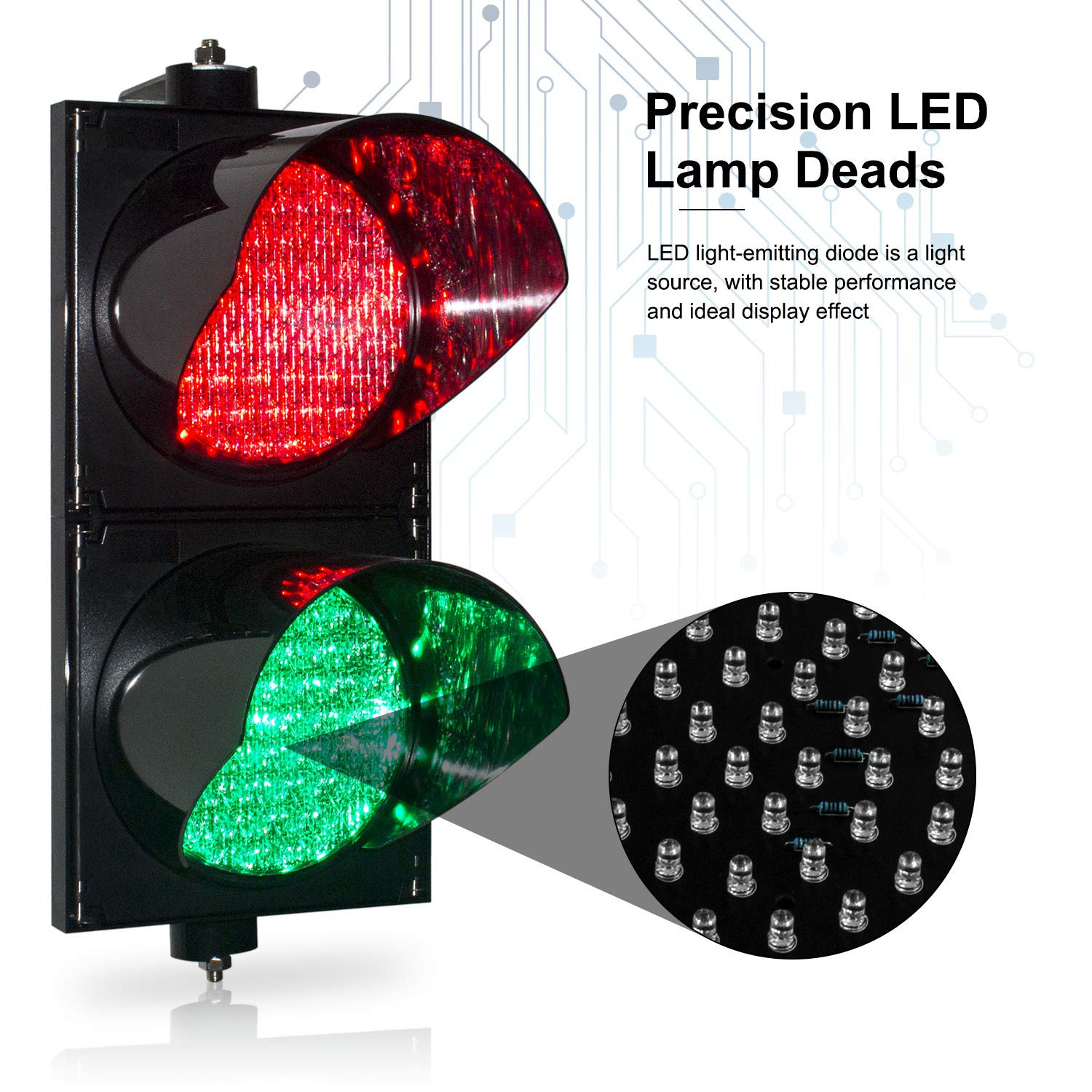

LED: Our LED lamp beads are UL Listed, each LED is imported from Taiwan. The LED life span up to 100000 hours. Red LED with 5000mcd brightness, Green LED with 9500mcd brightness. LED light-emitting diode is a light source, with stable performance and ideal display effect.

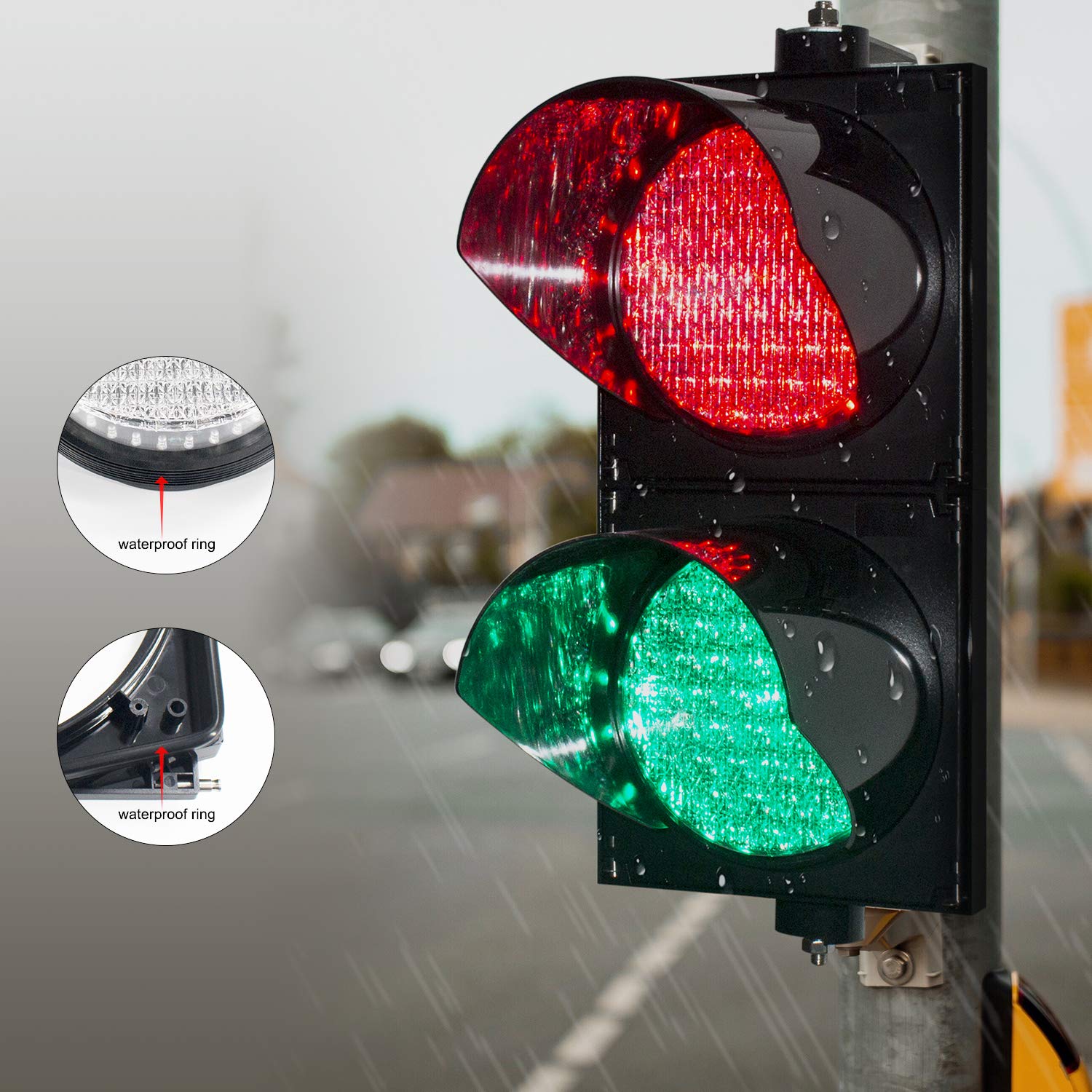

BLACK HOUSING & WATERPROOF : Durable black housing to ensure durability and a multilayer seal protects lens from dust and water seal to keep protected from water in harsh weather environments. The waterproof grade is IP65.

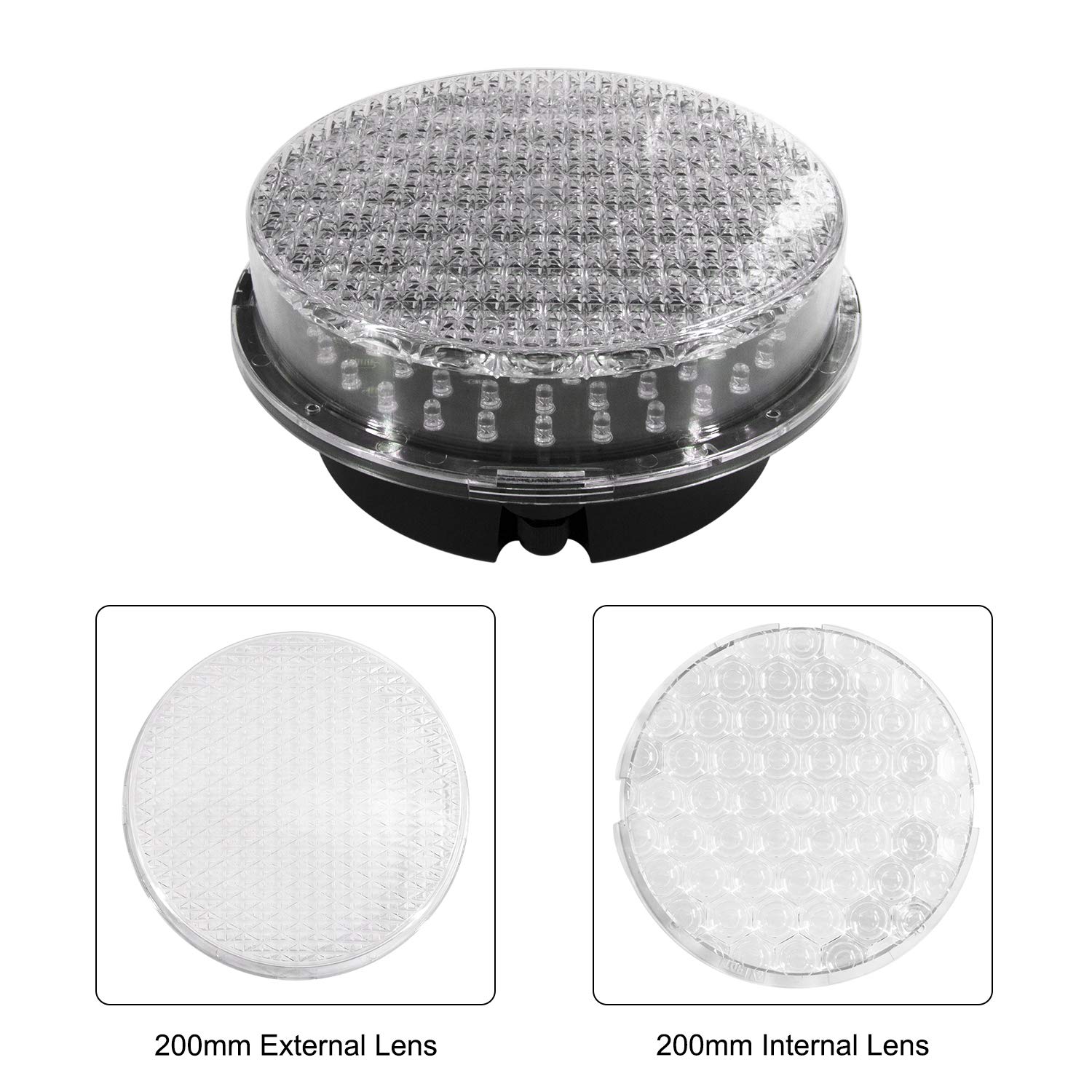

COBWEB LENS & MODULES: It's made of cobweb and button lens, It can astigmatism, bright bur not dazzling. It has two modules (green and red) of diameter 200 mm(8inch). Each light has a visor for frontal display.
WORKING VOLTAGE & EASY INSTALLATION: Operating voltage of DC9-36V; The installation can be horizontal or vertical. Red light to R terminal, green light to G terminal, common is public line.
CERTIFICATE & WARRANTY: It’s get the FCC, CE, IP65, RoHS certifications. Two years warranty promise.

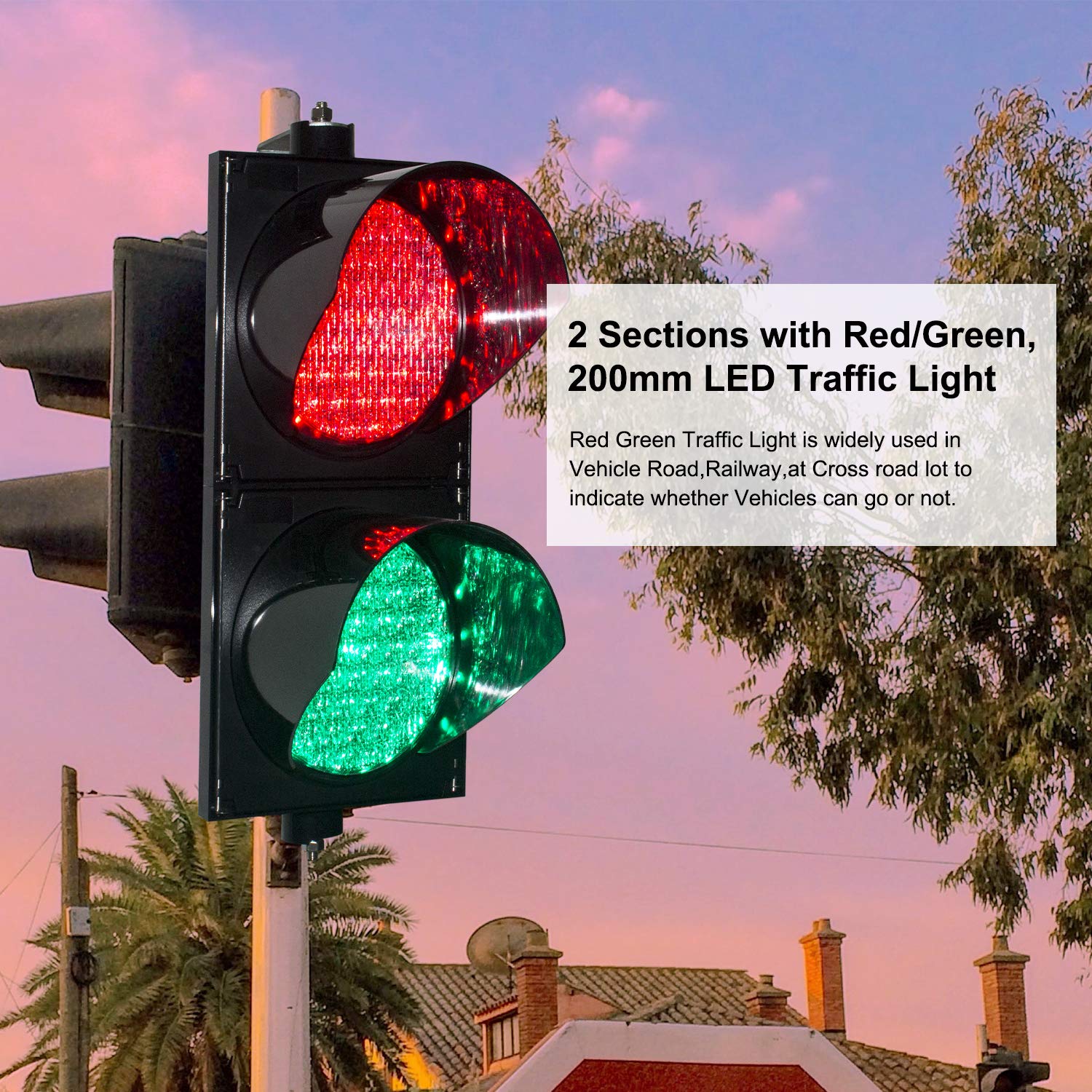

Application: Red Green Traffic Light is widely used in Vehicle Road,Railway,at Cross road lot to indicate whether Vehicles can go or not.
Strengths: Save energy worldwide and thus save costs by offering a series of energy-saving and efficient LED traffic lights with first-rate quality yet affordable price.
Technical Parameters:
Color: red, green
Housing Size:500x250x305mm(19.69x9.85x12.01inch)(height x width x depth)
LED quantity: red: 61pcs, green: 61pcs
Light Intensity: red: ≤305cd , green: ≤579cd
Wave Length:red:625±5nm , green: 505±5nm
Power Fact : >0.9
Viewing Angle: 30°
Power: red: ≤3W, green:≤5W
Working Voltage:DC9-36V;
Housing Material: Polycarbonate
Packing Info:
Carton Size: 66*29*23cm
Q'TY: 1pcs/carton
GW:5.12kg
NW:4.62kg
Wrapper:K=K Carton
Volume(CBM):0.04CBM
Packing List:
1pcs 200mm red green light
2pcs L Bracket
2pcs Sun Visor
8pcs M4x10 Screw
4pcs M4x20 Screw
1pcs Wiring Box And Gasket
