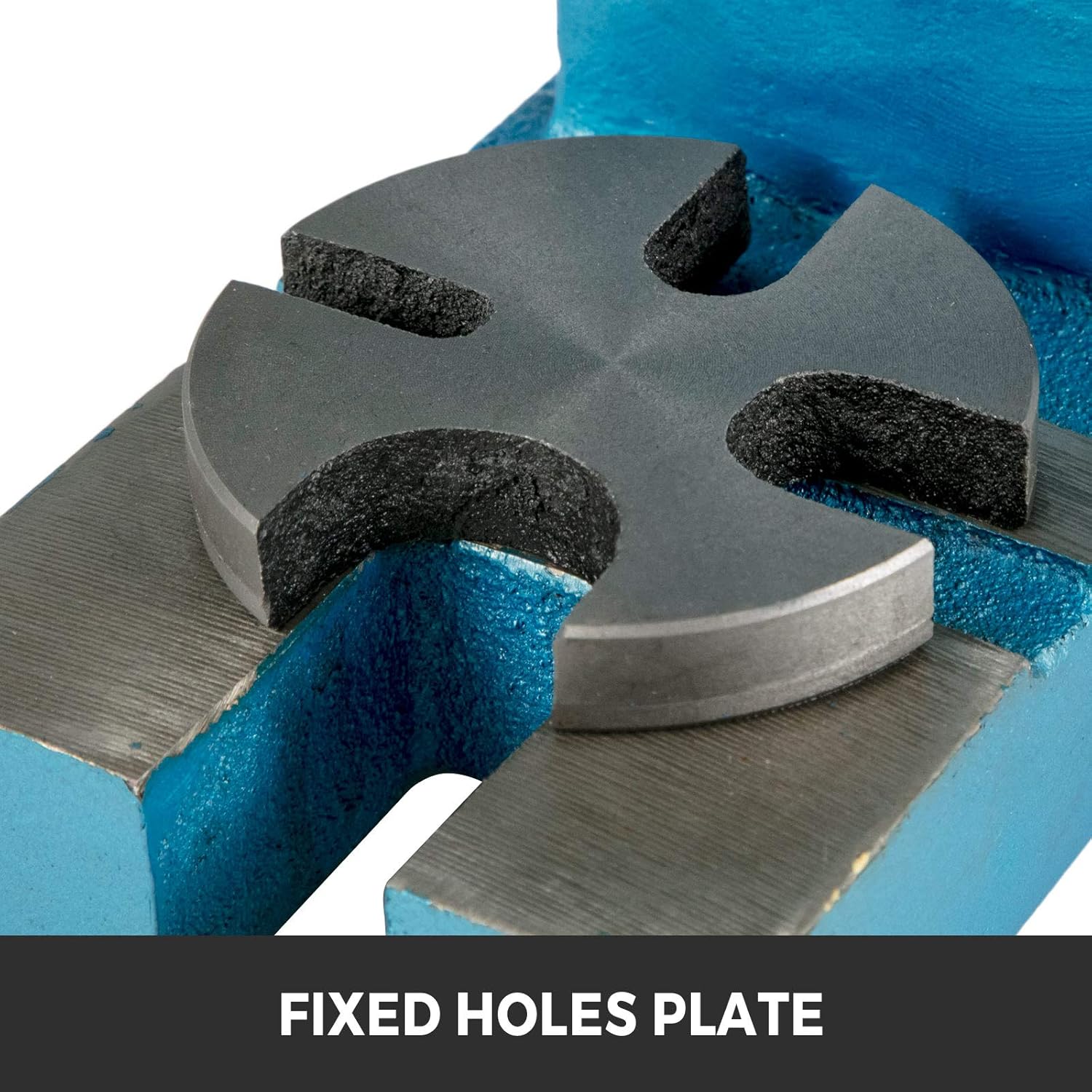

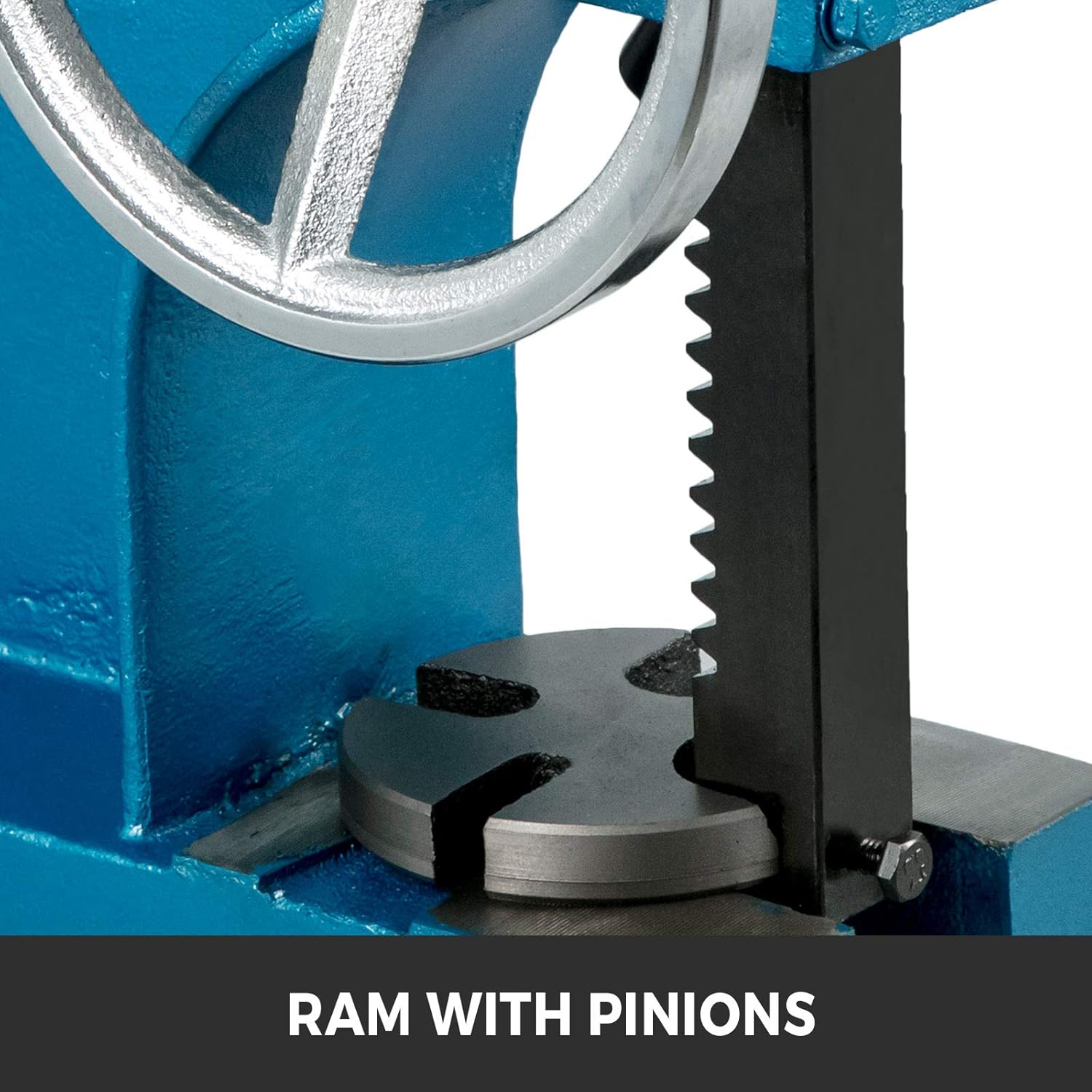

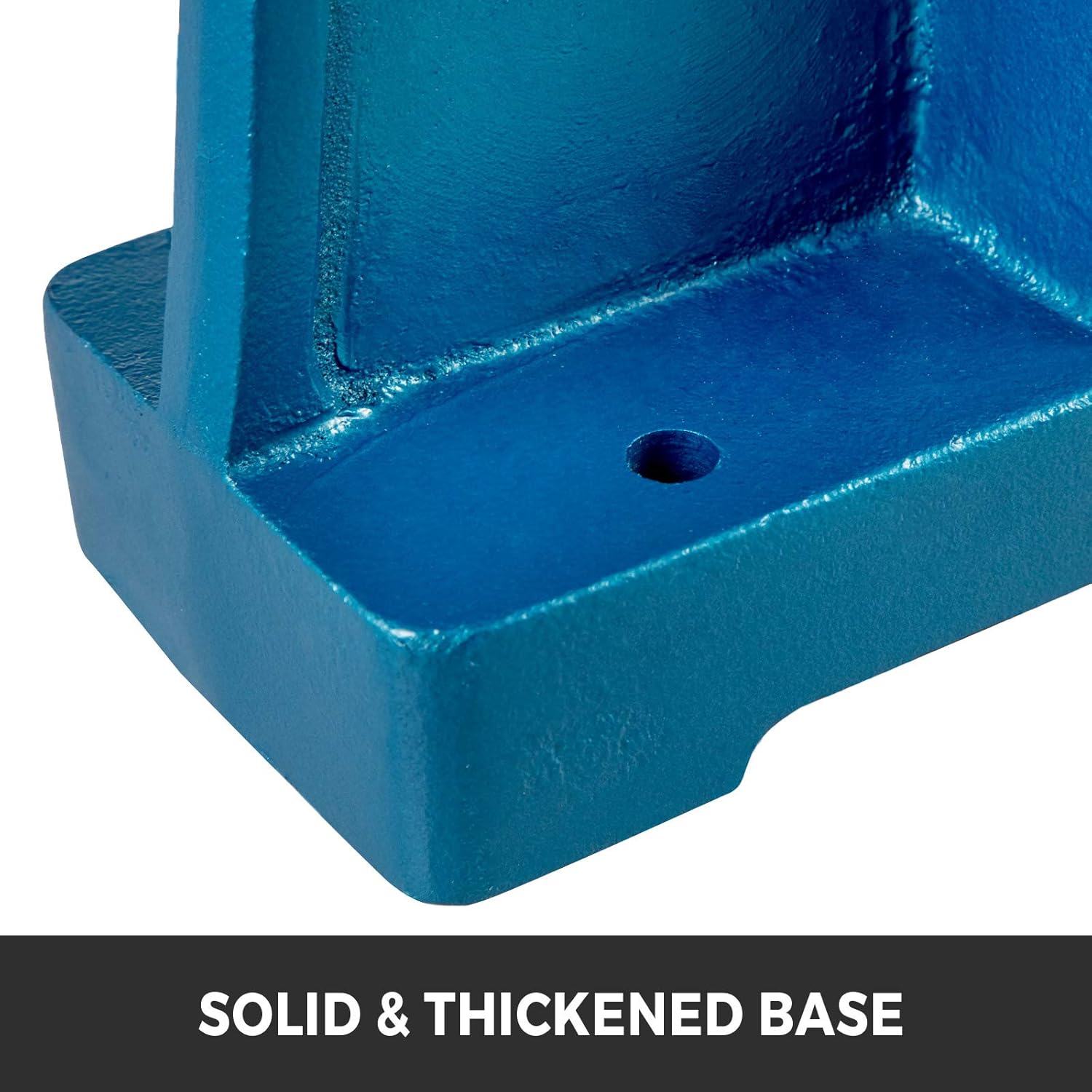

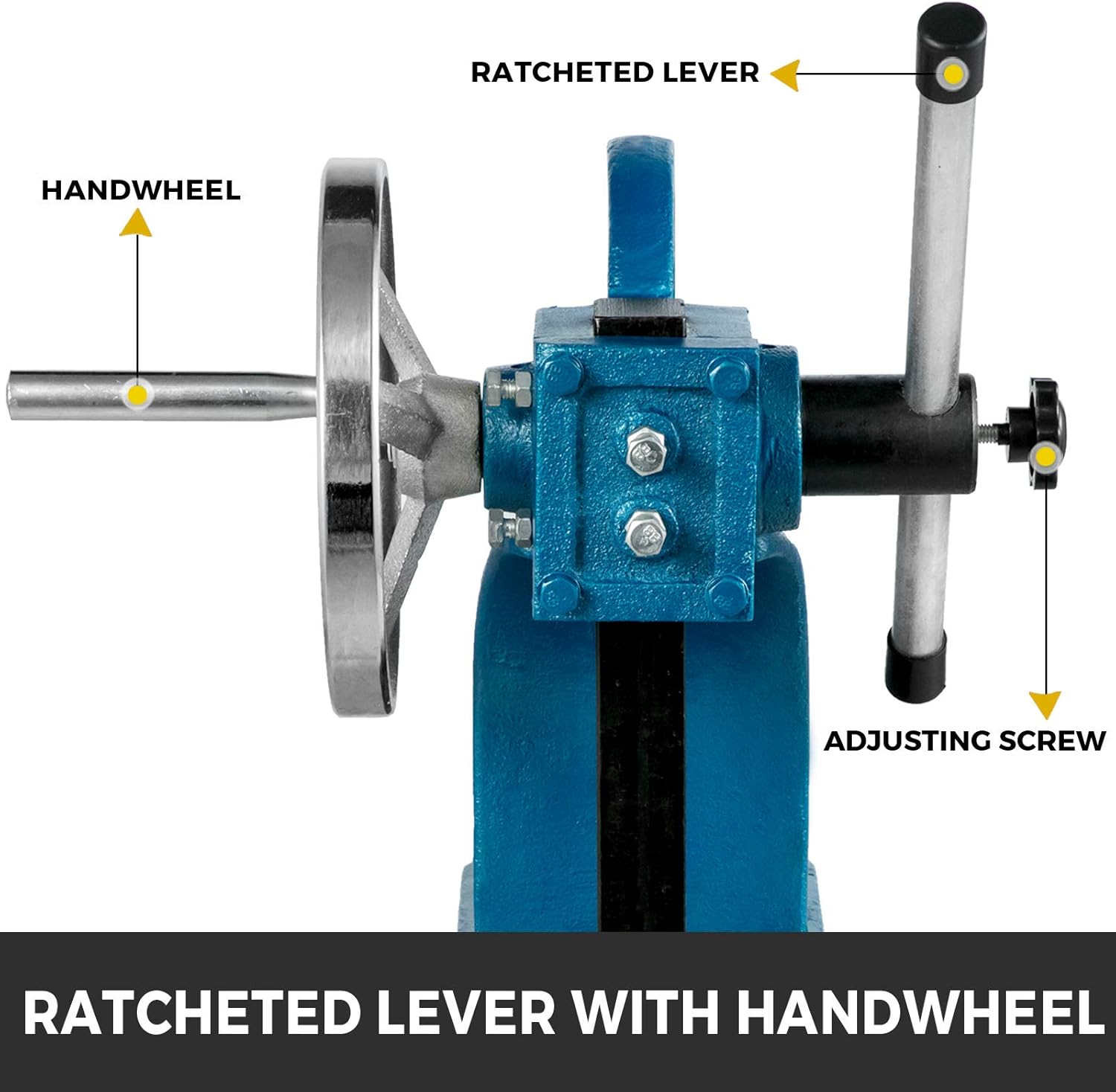

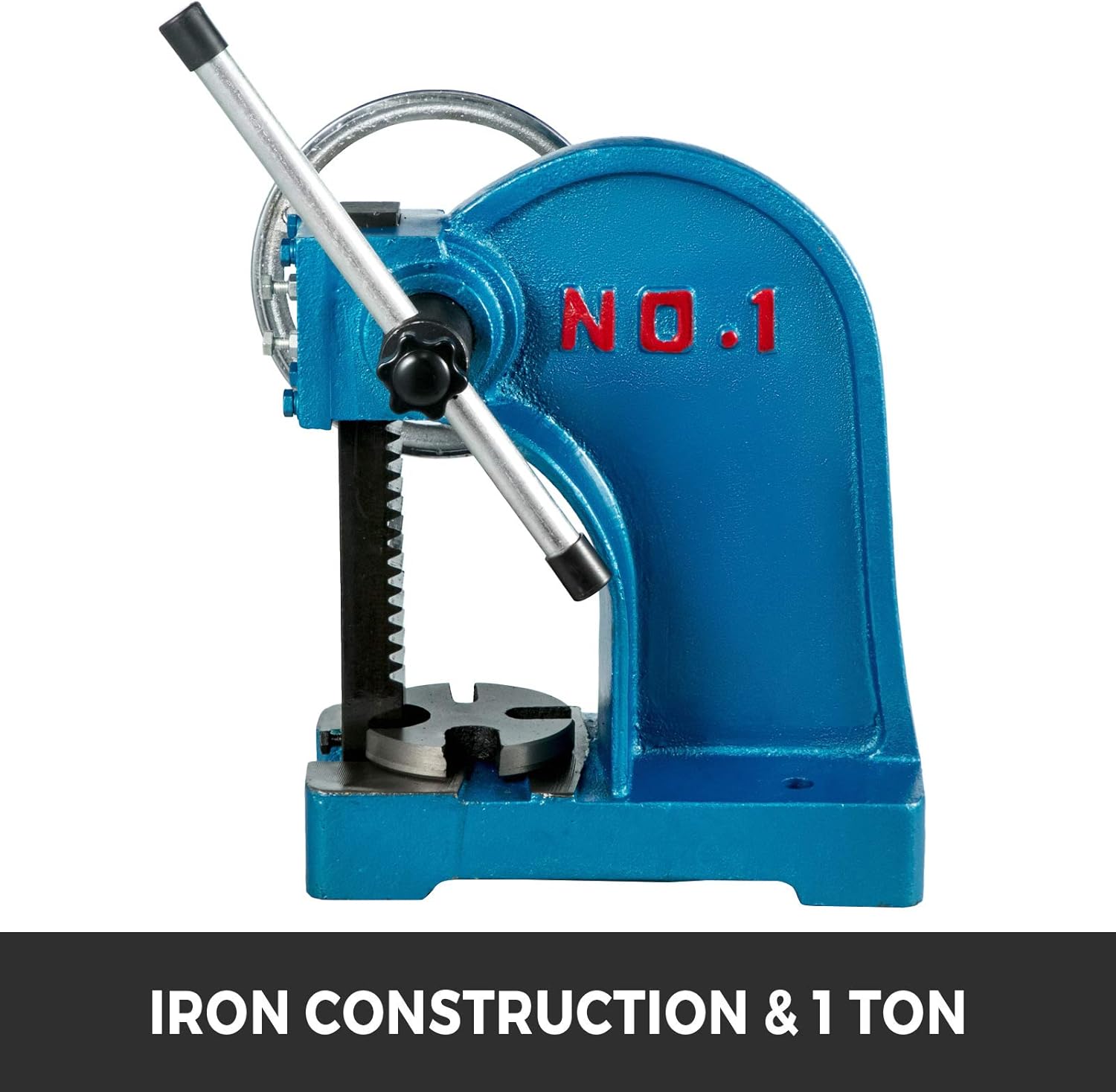

Easy Operation & 1 Ton: This arbor press attachment applies 1 ton of force to facilitate installation, removal, and pressing of items by lowering the steel ram through ratcheted leverage and a convenient handwheel. Max. Work Height: 4.33in/110mm.Premium Iron Material: Made of high quality iron material, this 1 ton arbor press features simple structure, stability and reliability, offering incredible strength and rigidity needed for tougher jobs.Slotted Table-Plate: The hand press comes with an anvil plate, which measures 3.54in/90mm diameter. It is slotted for various application and can be moved and replaced if you have other working demand.Strengthened Base: Designed with thickened and solid base, pre-drilled for mounting on either a bench or pedestal to keep the rivet press sturdy, to ensure the smooth and efficient work.Various Application: This arbor press 1 ton load capacity is suitable for riveting, squeezing, punching, bending, and other pressing applications with different accessories, widely used in assembly and repair industries.

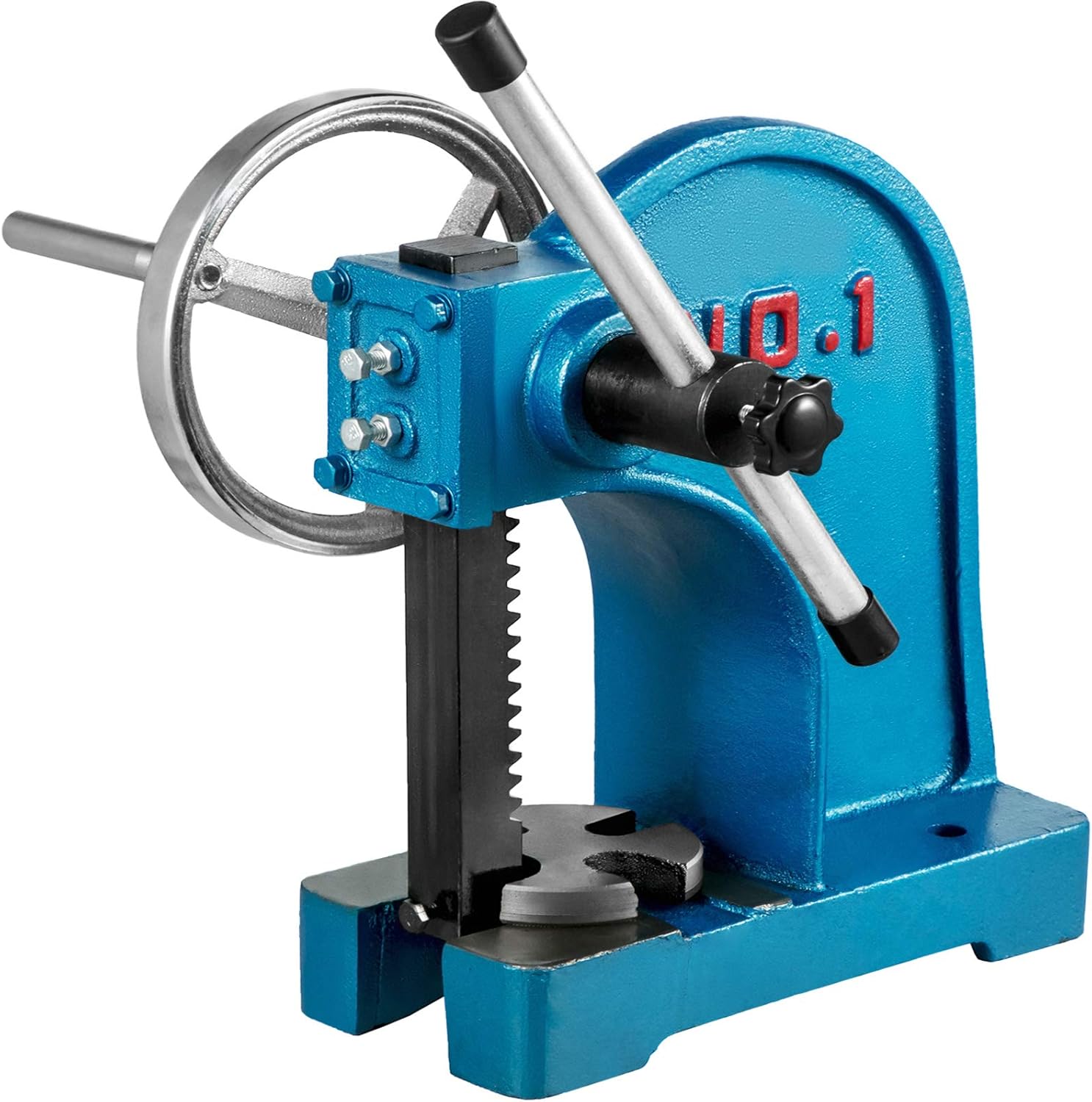

Heavy Duty Arbor Press 1 Ton, Ratchet Leverage Arbor Press with Handwheel, Manual Desktop Metal Arbor Press 4-5/8 Inch Max. Working Height, for Riveting Punching Holes
|
| 0.5 Ton Arbor Press | 1 Ton Arbor Press | 2 Ton Arbor Press | 3 Ton Arbor Press | 1 Ton Arbor Press | 2 Ton Arbor Press |
| Capacity | 0.5 Ton | 1 Ton | 2 Ton | 3 Ton | 1 Ton | 2 Ton |
| Material | Cast Iron | Cast Iron | Cast Iron | Cast Iron | Cast Iron | Cast Iron |
| Max. Work Height | 3.54in/90mm | 4.33in/110mm | 7.09in/180mm | 11.02in/280mm | 4.33in/110mm | 7.09in/180mm |
| Ram Dimensions | 0.7 x 0.7 x 7.1in/18 x 18 x 180mm | 0.98 x 0.98 x 9.1in/25 x 25 x230mm | 1.18 x 1.18 x 12.6in/30 x 30 x 320mm | 1.5 x 1.5 x 17.32in/38 x 38 x 440mm | 0.98 x 0.98 x 9.1in/25 x 25 x230mm | 1.18 x 1.18 x 12.6in/30 x 30 x 320mm |
| Plate Diameter | 3.54in/90mm | 3.54in/90mm | 6.7in/170mm | 6.69in/170mm | 3.54in/90mm | 6.69in/170mm |
| Throat Depth | 3.2in/81mm | 3.82in/97mm | 5.51in/140mm | 6.3in/160mm | 3.82in/97mm | 5.51in/140mm |
