Caution: The center frame will be sent by another package, and if you don’t receive a center frame, please contact with our customer service staff and she will give you quick and responsible answer and trust we are all responsible for our customers.
600mm Large Swing Range: The bench top lathe brings a 3-jaw Chuck with Diameter: 4.9"/125mm. Swing Over Bed: 8.7"/220mm and Swing Over Cross Slide: 23.6"/600mm offers more possibilities for for large size or/and heavy workpieces. Taper in Spindle Nose: MT5. Range of Imperial Threads: 8~44 T.P.I,
Infinitely Variable Speed: The mini metal lathe is driven by brushless motor with Power: 750W. Variable Speed(Rpm): 0-3000. Taper in Spindle Nose: MT5. LED screen shows you the clear and accurate speed for accurate working. Soft start, change-over switch for clockwise or counter-clockwise spondle rotation. Operate either manually or with the adjustable auto feed rate.

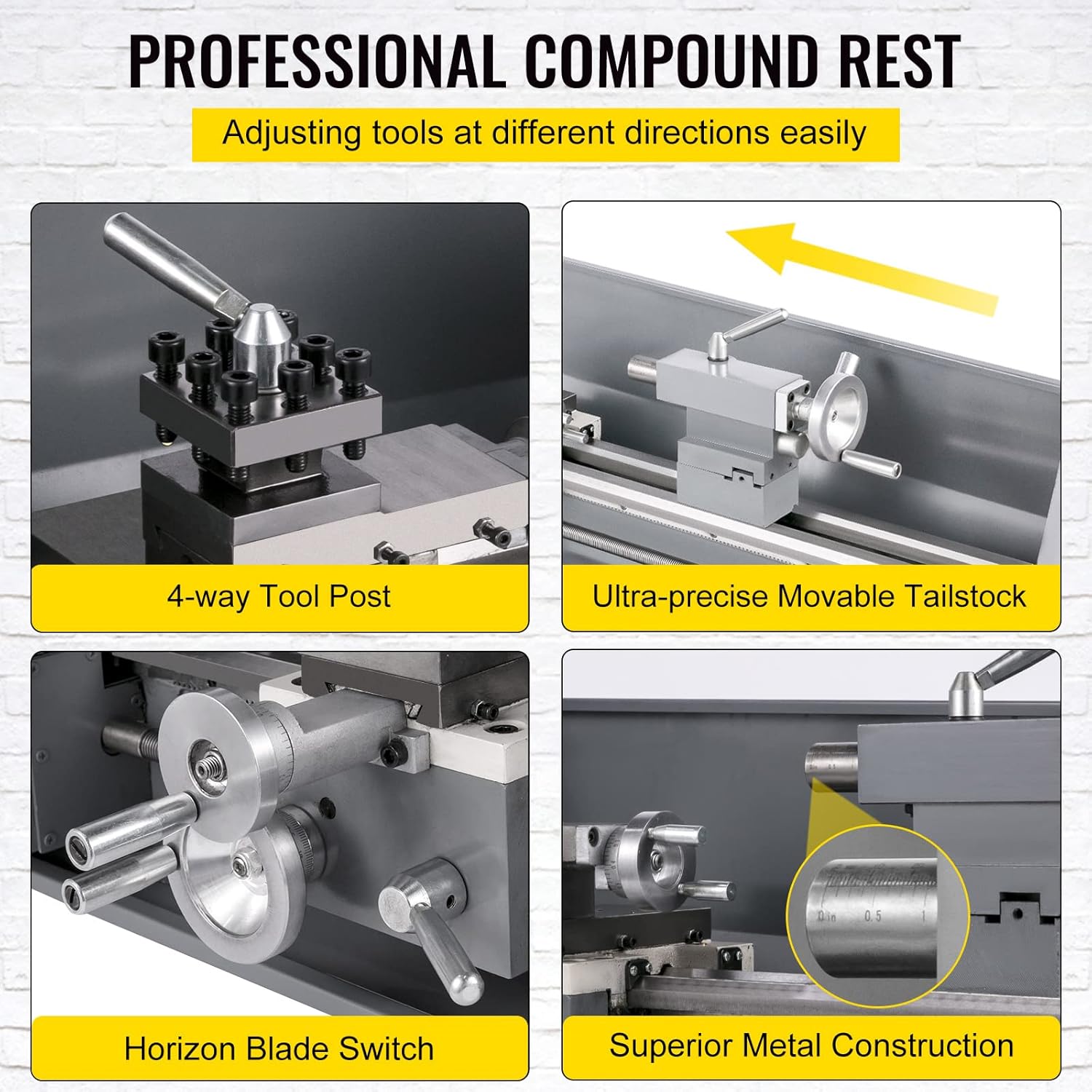

Professional Compound Res: The mini lathe machine quick change tool post can achieve positions of internal cutting, face cutting and bevel cutting by changing the tool post angle and adjusting the compound res. Steady rest works as an end support ensuring chatter-free operation. Backsplash guard included.
Adjustable Tailstock: Taper in Tailstock Spindle: MT2. Rotate the lever clockwise to lock the spindle and rotate clockwise to advance the handwheel. To off-set the tailstock for cutting tapers by adjusting the four set screws located on the tailstock base.
| |
| | 220 x 600MM Mini Metal Lathe | 220 x 750MM Mini Metal Lathe | 8 x 16 inch Mini Metal Lathe | 7 x 14 inch Mini Metal Lathe | 7 x 12 inch Mini Metal Lathe | 7 x 12 inch Mini Metal Lathe |
| Size | 220 x 600MM | 220 x 750MM | 8 x 16inch | 7 x 14inch | 7 x 12inch | 7 x 12inch |
| Variable Speed | 50-3000±10% | 50-2250±10% | 50-2250±10% | 50-2250±10% | 50-2250±10% | 50-2250±10% |
| Swing Over Bed | 8.7"/220mm | 8.7"/220mm | 210mm(8.27") | 180mm(7.09") | 180mm(7.09") | 180mm(7.09") |
| Chuck Diameter | 23.6"/600mm | 29.5"/750mm | 125mm(4.92") | 80mm(3.15") | 80mm(3.15") | 80mm(3.15") |
| Spindle Bore | 1.5"/38mm | 38mm(1.5") | 1.5"/38mm | 21mm(0.83") | 21mm(0.83") | 21mm(0.83") |
| Inch Thread | 8~44 T.P.I | 8~44 T.P.I | 8-44 T.P.I | 12-52 T.P.I | 12-52 T.P.I | 12-52 T.P.I |
