【Parameters】-Displacement: 55cc; Transmission Ratio: 2.08 (27:13); Number of Cylinders: 1; Speed: 4500-5500 rpm; Power: 2.9kw; Gear Shift: clutch; Packing Volume: 95*42*29cm; Ignition System: CDI; Cooling System: wind cooling; Control System: tiller control; Start Mode: manual start
【360°Rotation】-This outboard machine can rotate 360°. With this advantage, your boat can turn easily and let you swim freely on the sea.
【4-Stroke, 4 HP】-The outboard motor is powerful and stable, which is very suitable for small fishing boats, kayaks, canoes and inflatable boats. The air cooling technology perfectly avoids overheating.
【Easy to Operate】-The outboard motor has a CDI system, which is very easy to manually start, can be partially tilted up to sail in shallow water, and can work in most water depth conditions
【Shipment】-We ship directly from the US warehouse. Feel free to contact us if you have any questions.We will provide the best suitable solutions for you.We are committed to provide best service for every customer!

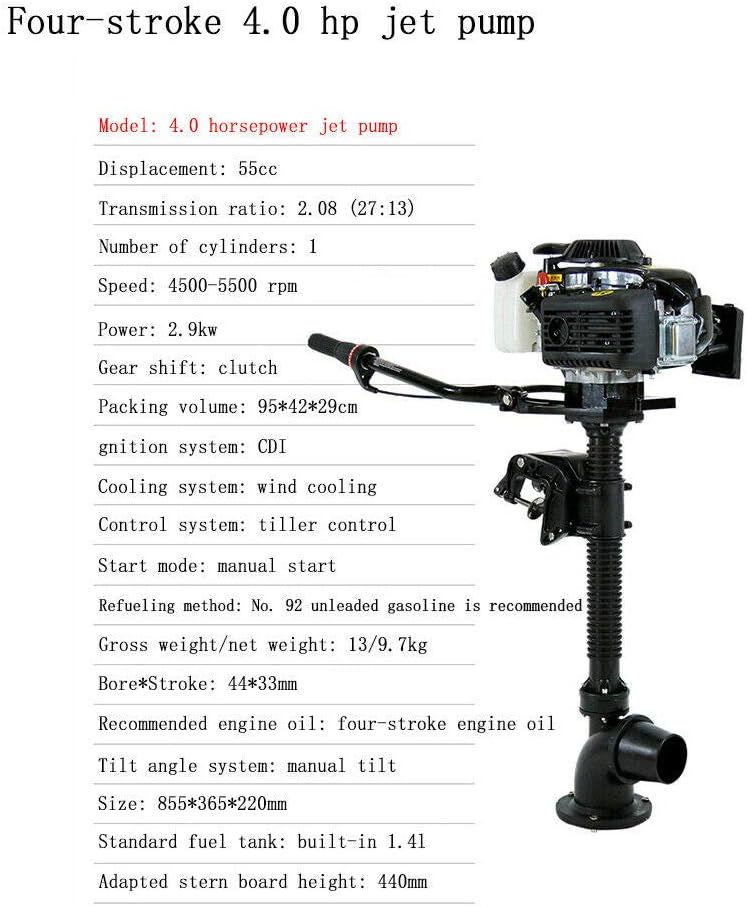

Product Parameters:
Model: 4.0 horsepower jet pump
Displacement: 55cc
Transmission Ratio: 2.08 (27:13)
Number of Cylinders: 1
Speed: 4500-5500 rpm
Power: 2.9kw
Gear Shift: clutch
Packing Volume: 95*42*29cm
Ignition System: CDI
Cooling System: wind cooling
Control System: tiller control
Start Mode: manual start
Refueling Method: No. 92 unleaded gasoline is recommended
Gross Weight/Net Weight: 13/9.7kg
Bore*Stroke: 44*33mm
Recommended Engine oil: four-stroke engine oil
Tilt Angle System: manual tilt

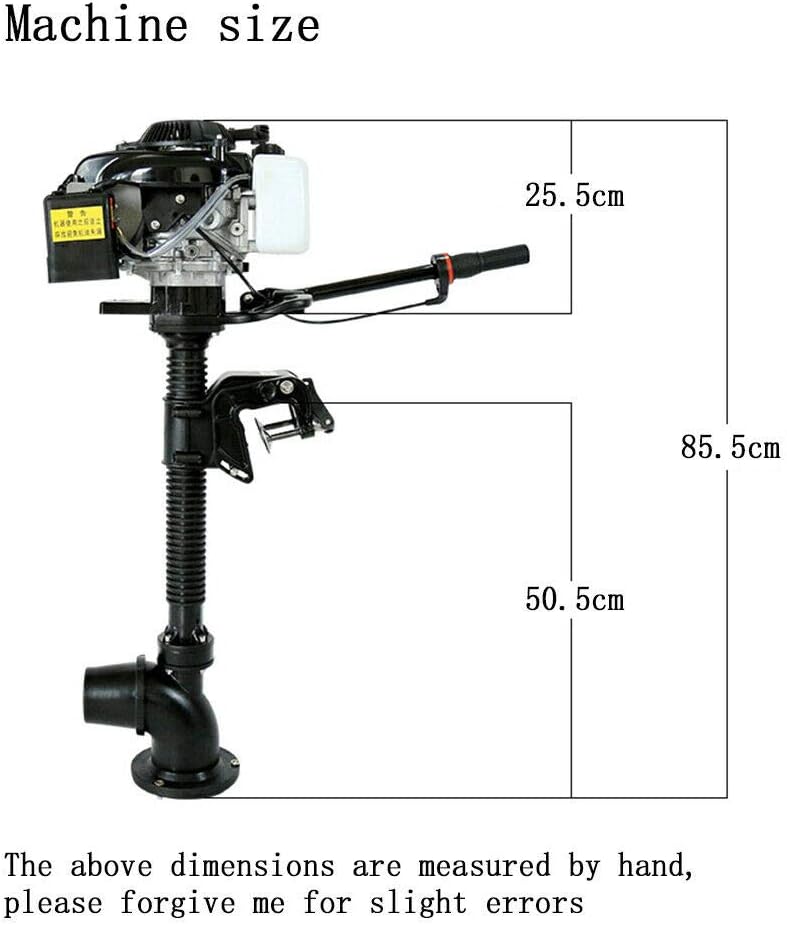

Size: 855*365*220mm
Standard Fuel Tank: built-in 1.4l
Adapted Stern Board Height: 440mm
Precautions:
1. Use four-stroke special engine oil (automobile and motorcycle engine oil);
2. Add oil according to the scale indication on the oil dipstick (the rotating cover), do not add more or less;
3. The fuel tank of the four-stroke outboard engine can only be filled with No. 92 pure gasoline;
4. Gently press the oiler on the carburetor until the oil flows to the top of the transparent oil pipe;
5.Machines below 6 horsepower have no reverse gear and can rotate 360 degrees, and the machine head rotates 180 degrees to be reverse gear;
6. The running-in period is about 10 hours or one month. Do not drive at high throttle during the running-in period;
7. Change the engine oil and gear oil after the running-in period, and the second change time is about 100 hours or six months later;
8. The machine must be erected in a reliable place when not in use;
Packing List:
Instruction + Toolkit + Spark Plug Sleeve + Funnel
1X Motor
