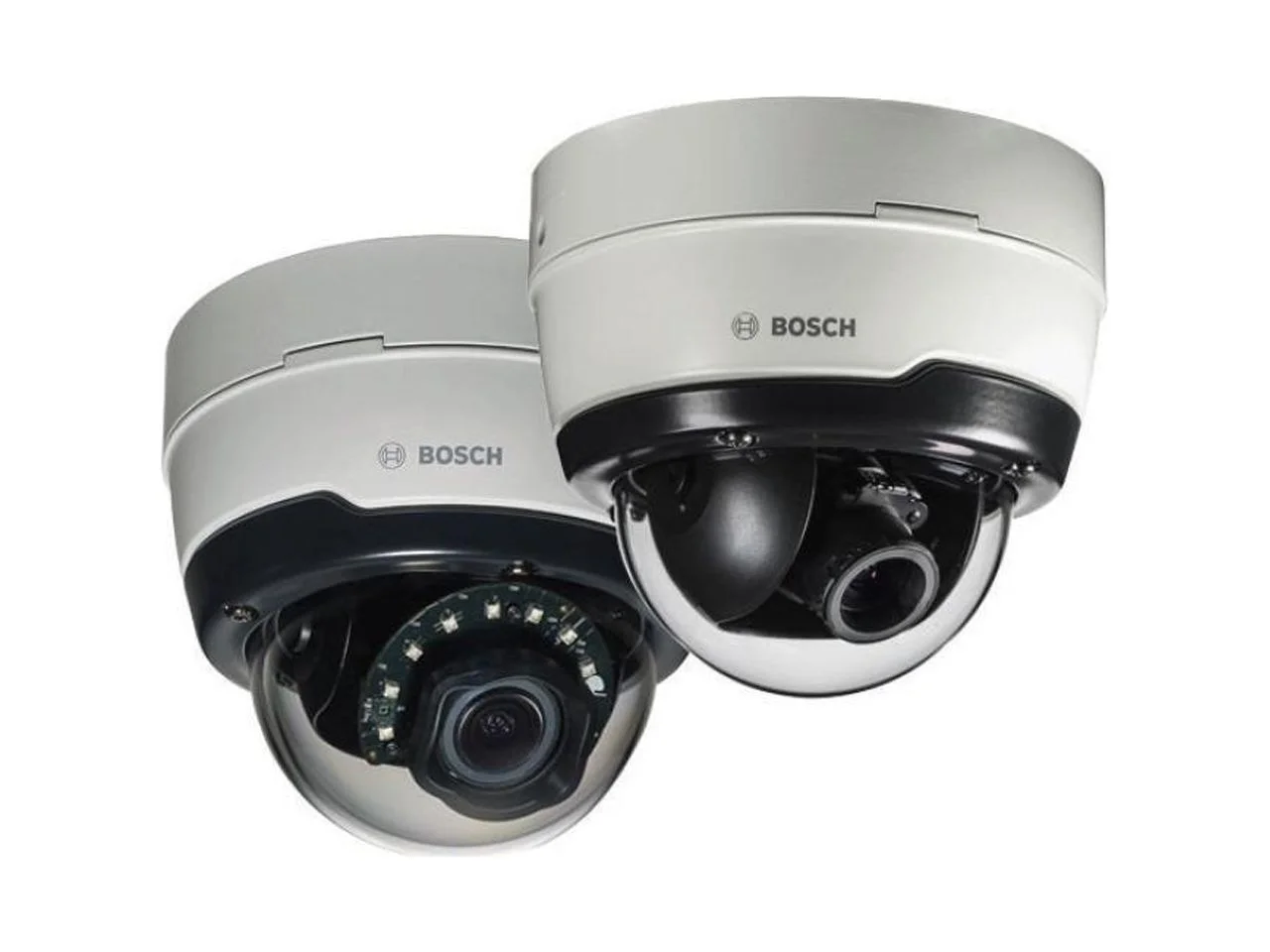

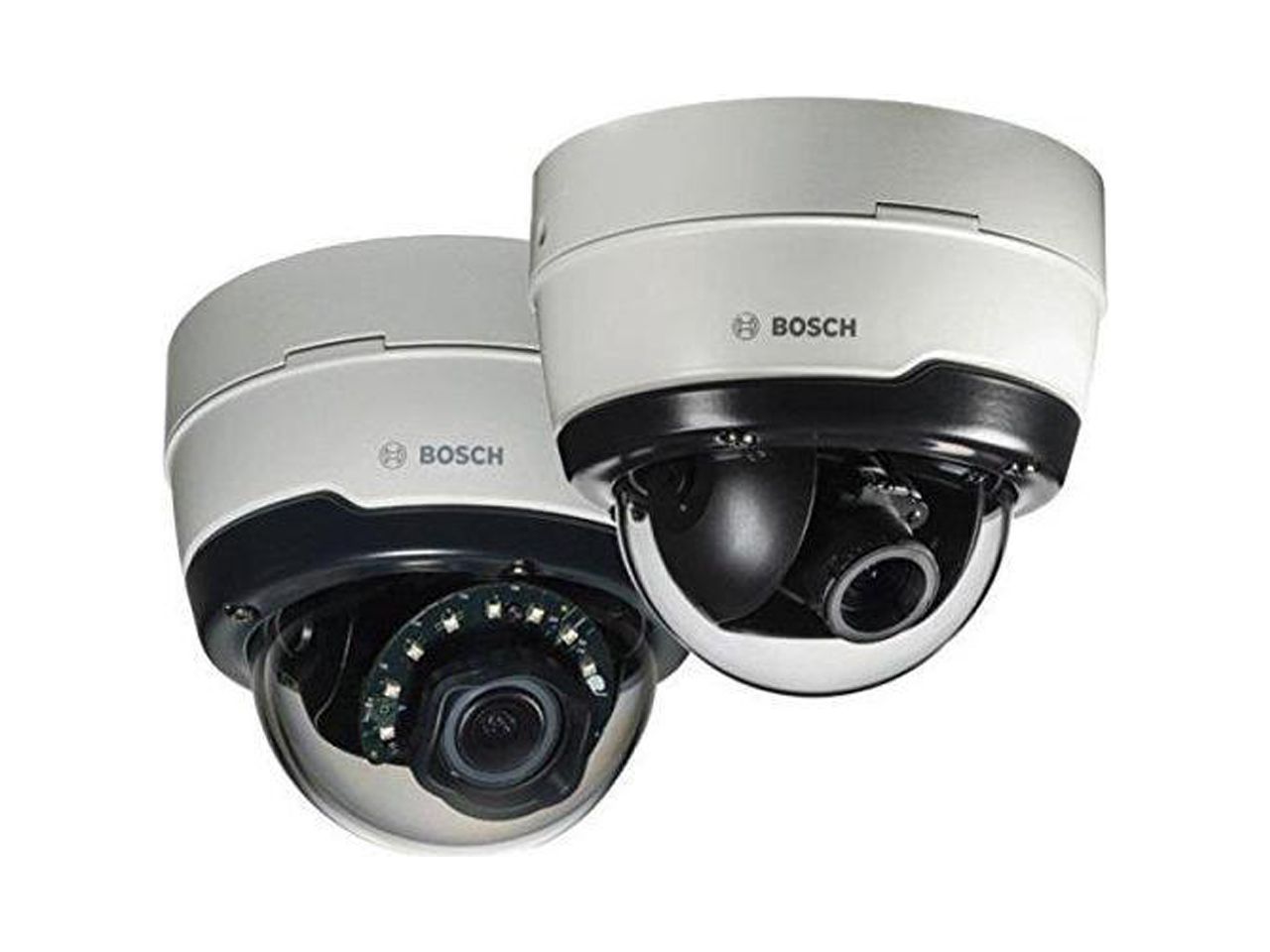

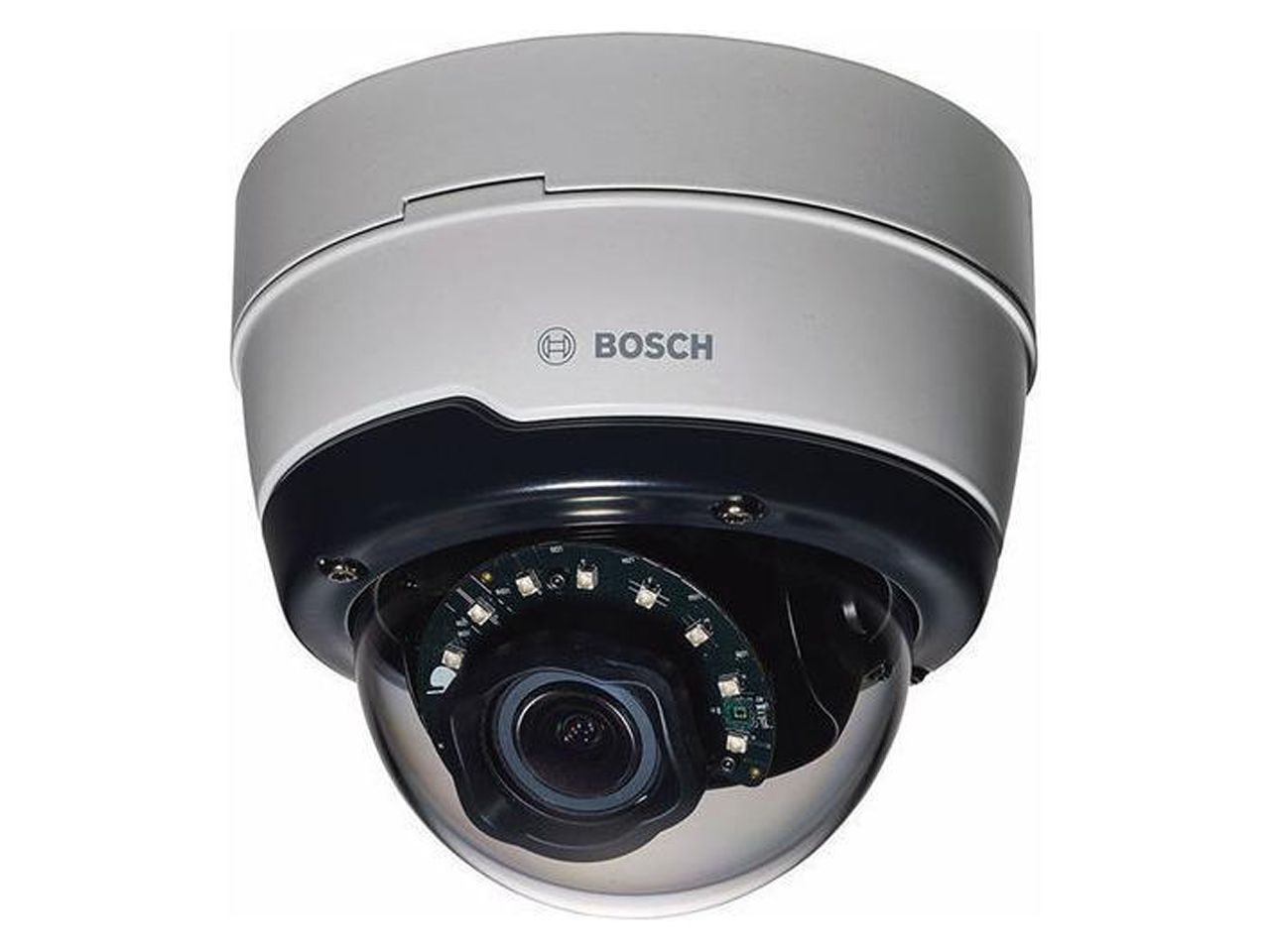

General Information The 5MP outdoor dome cameras from Bosch are professional surveillance cameras that provide high quality images for demanding security and surveillance network requirements. These robust domes are true day/night cameras offering excellent performance day or night. There is a version with a built-in active infrared illuminator that provides high performance in extreme low-light environments. System overview Vandal resistant outdoor dome with varifocal lens Ideal for outdoor use, the IK10-rated design is suitable for installations where a vandal resistance is important. The camera is protected against water and dust to IP66 standards. The varifocal lens allows you to choose the coverage area to best suit your application. Mounting options are numerous, including surface, wall, and suspended-ceiling mounting. The automatic zoom/focus lens wizard makes it easy for an installer to accurately zoom and focus the camera for both day and night operation. The wizard is activated from the PC or from the on-board camera push button making it easy to choose the workflow that suits best. The AVF (Automatic Varifocal) feature means that the zoom can be changed without opening the camera. The automatic motorized zoom/focus adjustment with 1: 1 pixel mapping ensures the camera is always accurately focused.Functions Essential Video Analytics The built-in video analysis reinforces the Intelligence- at-the-Edge concept and now delivers even more powerful features. Essential Video Analytics is ideal for use in controlled environments with limited detection ranges. The system reliably detects, tracks, and analyzes objects, and alerts you when predefined alarms are triggered. A smart set of alarm rules makes complex tasks easy and reduces false alarms to a minimum. Metadata is attached to your video to add sense and structure. This enables you to quickly retrieve the relevant images from hours of stored video. Metadata can also be used to deliver irrefutable forensic evidence or to optimize business processes based on people counting or crowd density information. Technical Information HD Recording: Yes Night Vision Distance: 98 ft Number of IR LEDs: 10 Display & Graphics Image Sensor Type: CMOS Color Supported: Color Color Supported: Monochrome Effective Camera Resolution: 5 Megapixel Video Video Formats: H.265 Video Formats: H.264 Video Formats: Motion JPEG Maximum Video Resolution: 3072 x 1728 Lens Minimum Focal Length: 3 mm Maximum Focal Length: 10 mm Optical Zoom: 3.3x Network & Communication Connectivity Technology: Cable Remote Management: Yes Interfaces/Ports Network (RJ-45): Yes Physical Characteristics Placement: Surface Mount Placement: Wall Mount Placement: Ceiling Mount Placement: Pendant Mount Placement: Pipe Mount Placement: Pole Mount Placement: Flush Mount Form Factor: Dome Height: 5.2" Diameter: 5.7" Weight (Approximate): 2.43 lb
