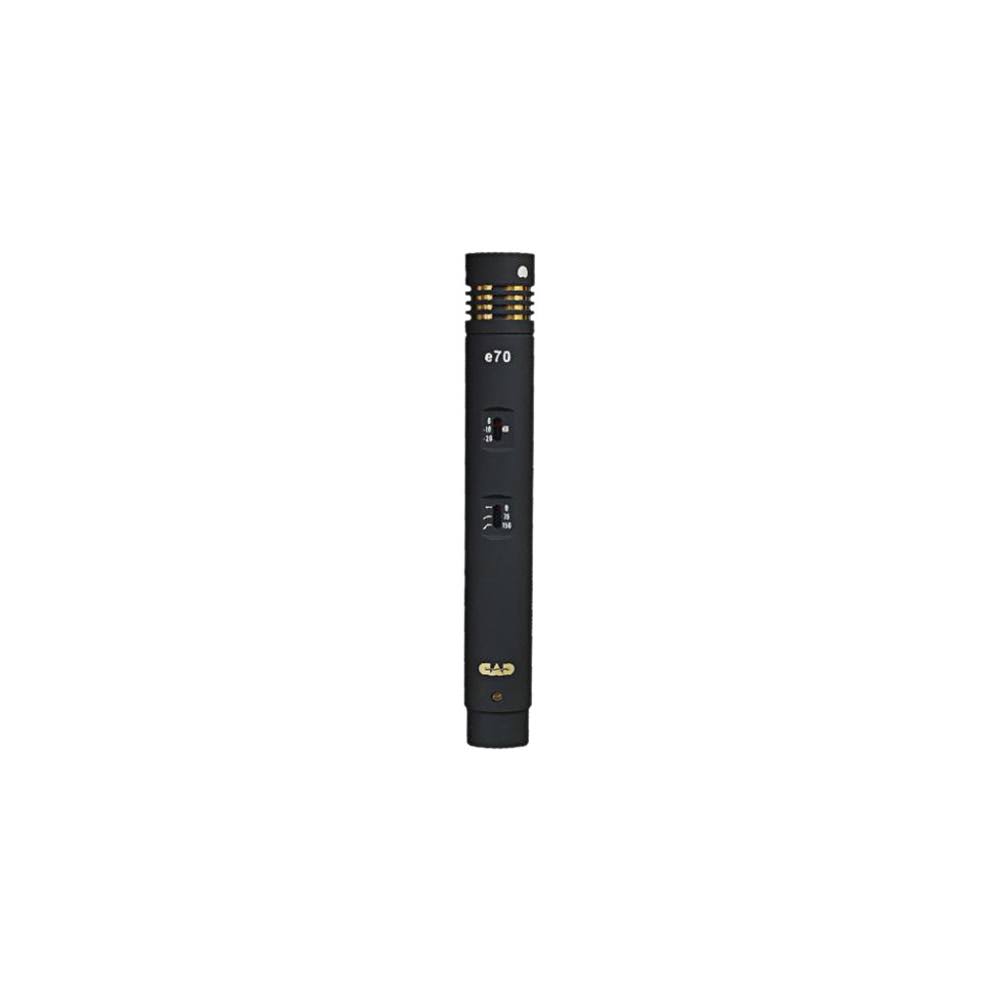

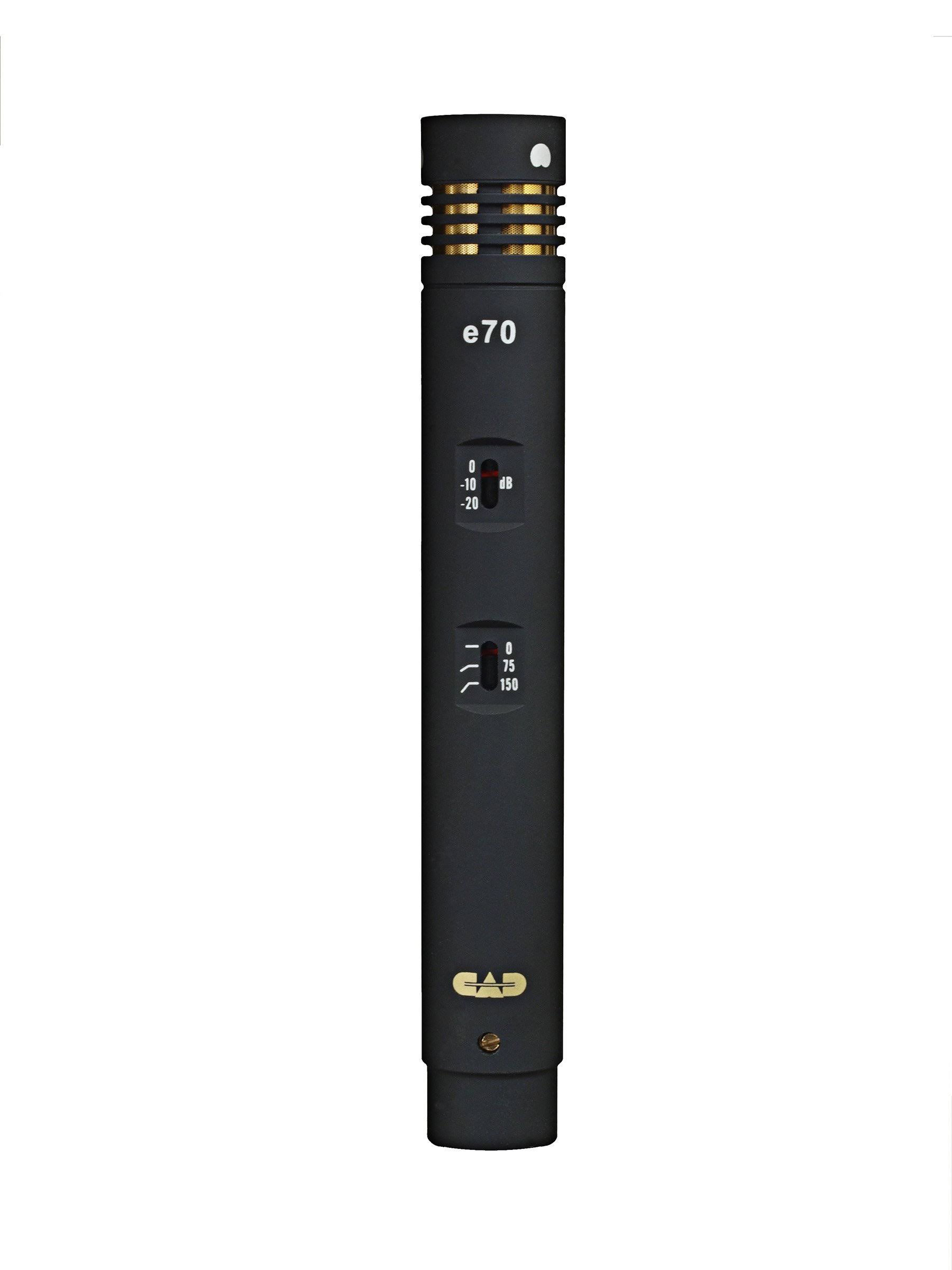

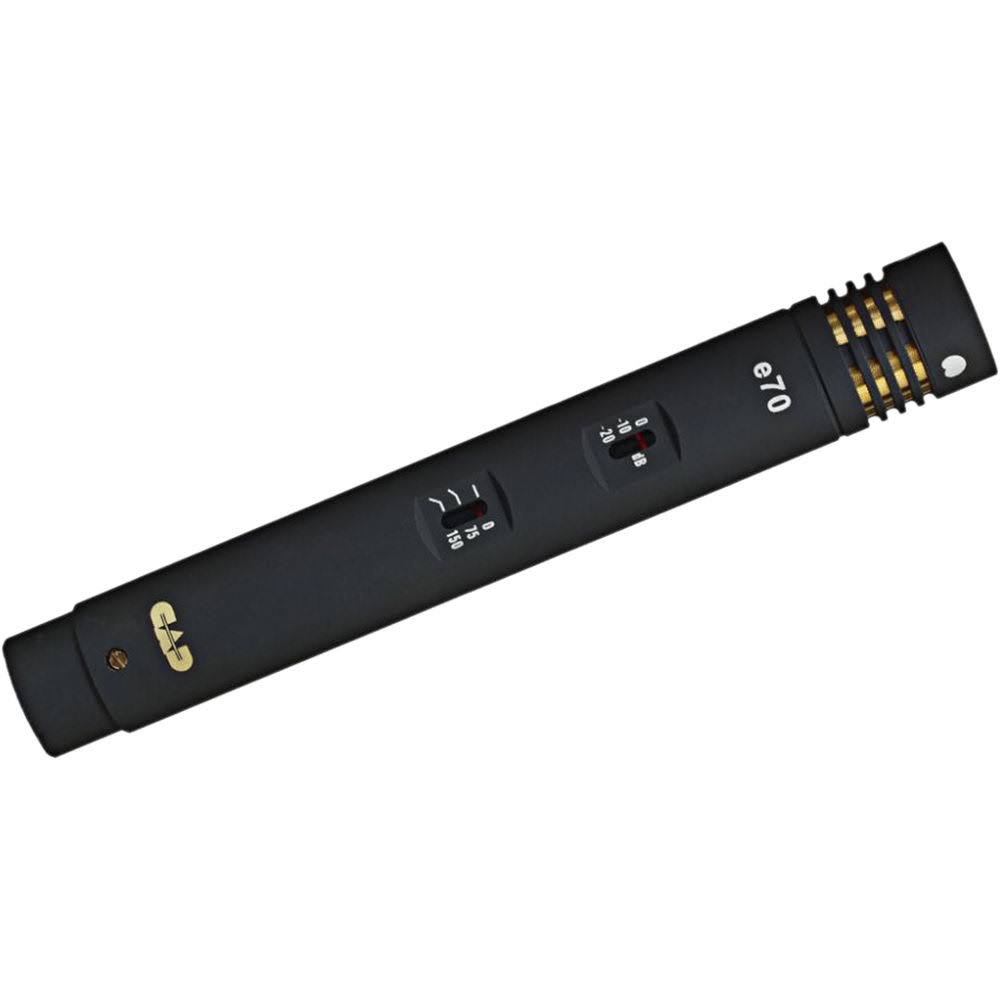

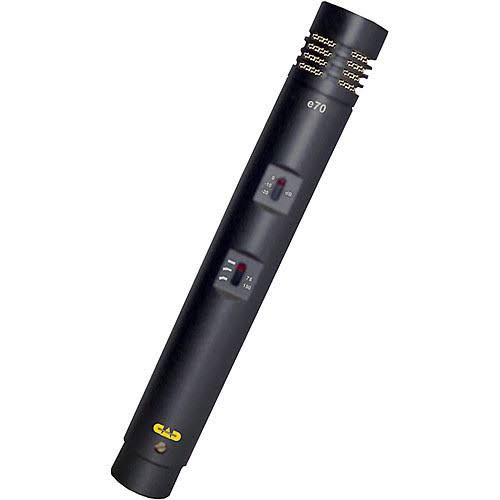

CAD E70 Condenser Microphone

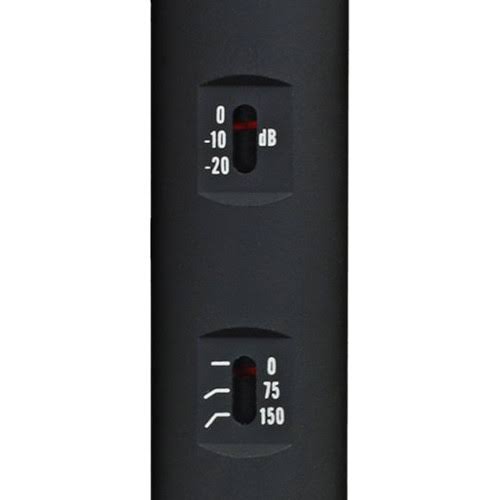

The CAD Equitek e60 is an externally biased point source transduction microphone with high power transformerless drive. It is housed in a bulletproof road ready housing. Features include three frequency hi pass filter, 10 dB attenuator pad and integral stand clamp. 24V to 48V phantom power is required for operation. Specifications: operating principle: externally biased condenser. Polar pattern: cardioid. Frequency response: 30 Hz to 20 KHz. Sensitivity: -41dBV (8.9mV) @ 1 Pa. Impedance: 300 ohms. Max SPL: 140 dB, 1% THD, attenuator engaged. Self noise: 22 dBA. Hi pass filter: 40 Hz, 85 Hz and 122 Hz, 6 dB/oct. Attenuator: 10 dB.
