【Applications】This backup camera system is perfect for the fifth wheel, tractor trailer, trailer, motorhome, RVs, Caravan and Horsebox application. It is complete with one 9 inch monitor which built-in DVR recording, some cameras and a few 4pin extension cables.

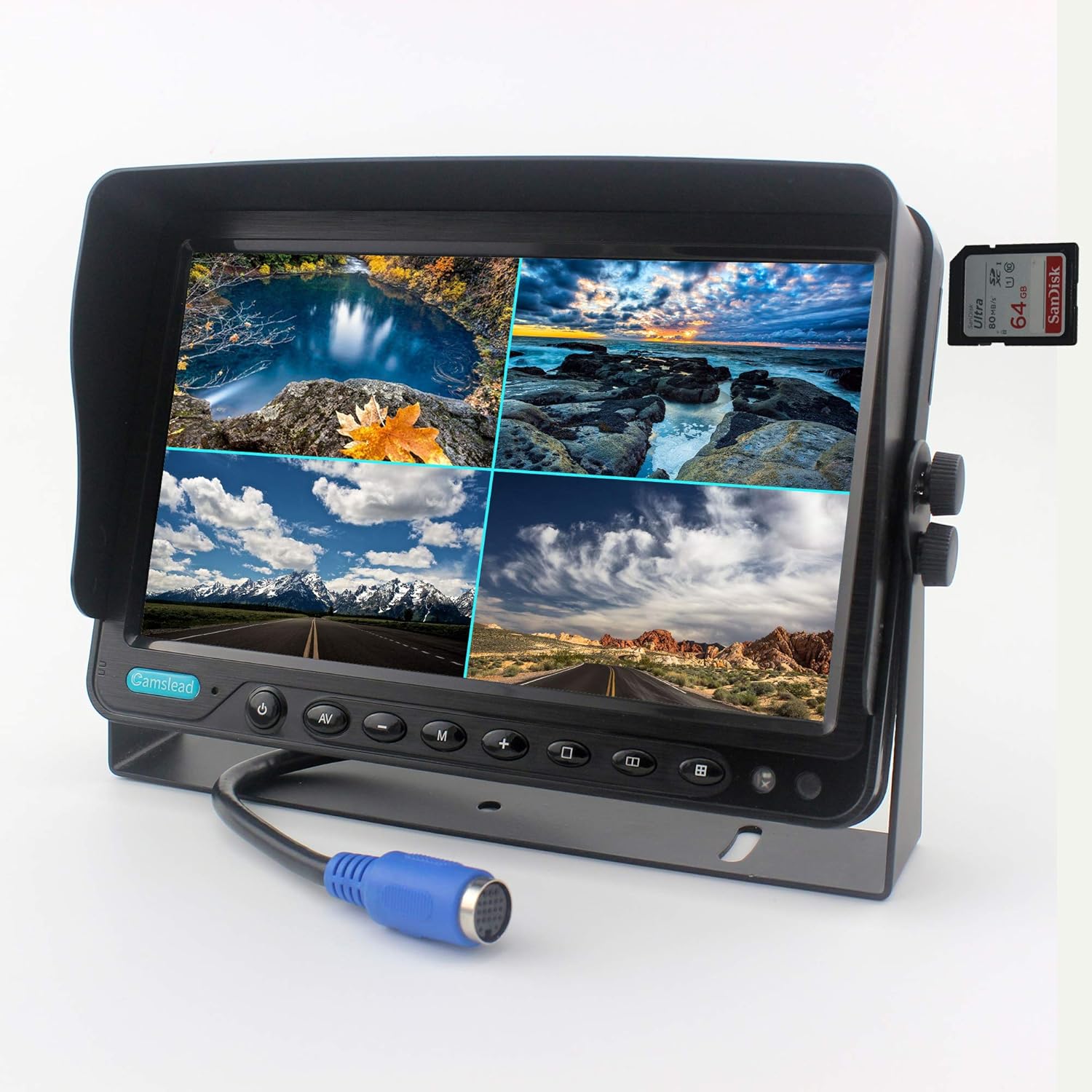

【9' TFT LCD Digital Monitor】High Definition Digital Color LCD wide screen video monitor, 800 x 480 pixels. Built-in quad / Split screen, able to show 4 camera views at one time. Connect up to 5 cameras. 12V-32V DC power input range to fit most of the medium to large vehicles in production.
【Monitor Built-in DVR Video Recording 】 High-definition Video Record Function. The record files been stored in SD card, maximum 64G, support date & time setting of the video. AV1/AV2/AV3/AV4 with trigger wire, once trigger wire activated, image automatically switchover to corresponding camera.

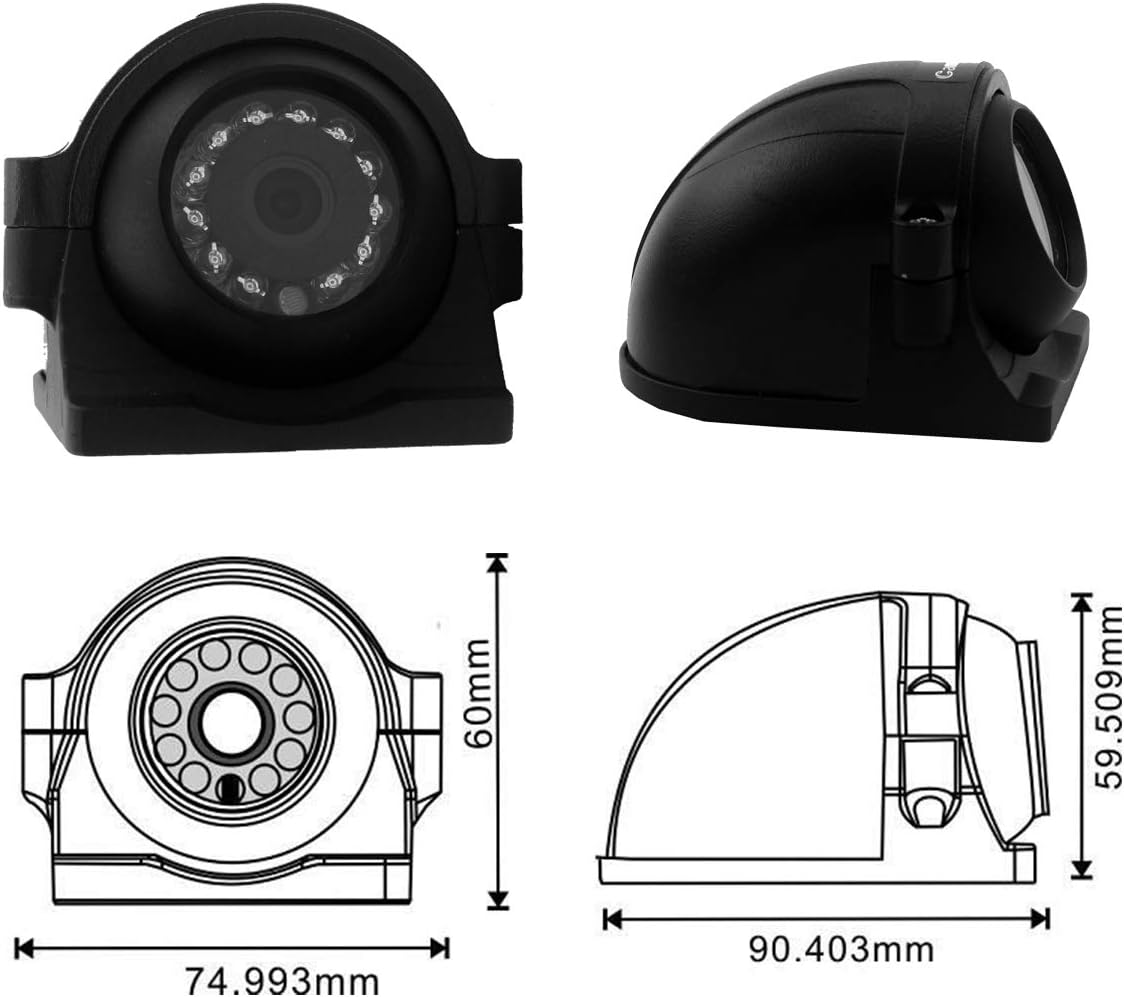

【1/3' Image Sensor & High Hardness Aluminum Shell】Color CCD Camera. Horizontal Resolution 700TV Lines IR Night Vision, backup camera built-in 18 IR LED. Side camera has 10 IR LED. Ultra Bright Wavelength 850nm IR LEDs for Night Vision. All cameras' shell are made from high hardness aluminum, 100% Waterproof IP69K Rating and 10G Vibration. Cameras are perfect for heavy trucks and agricultural machinery.

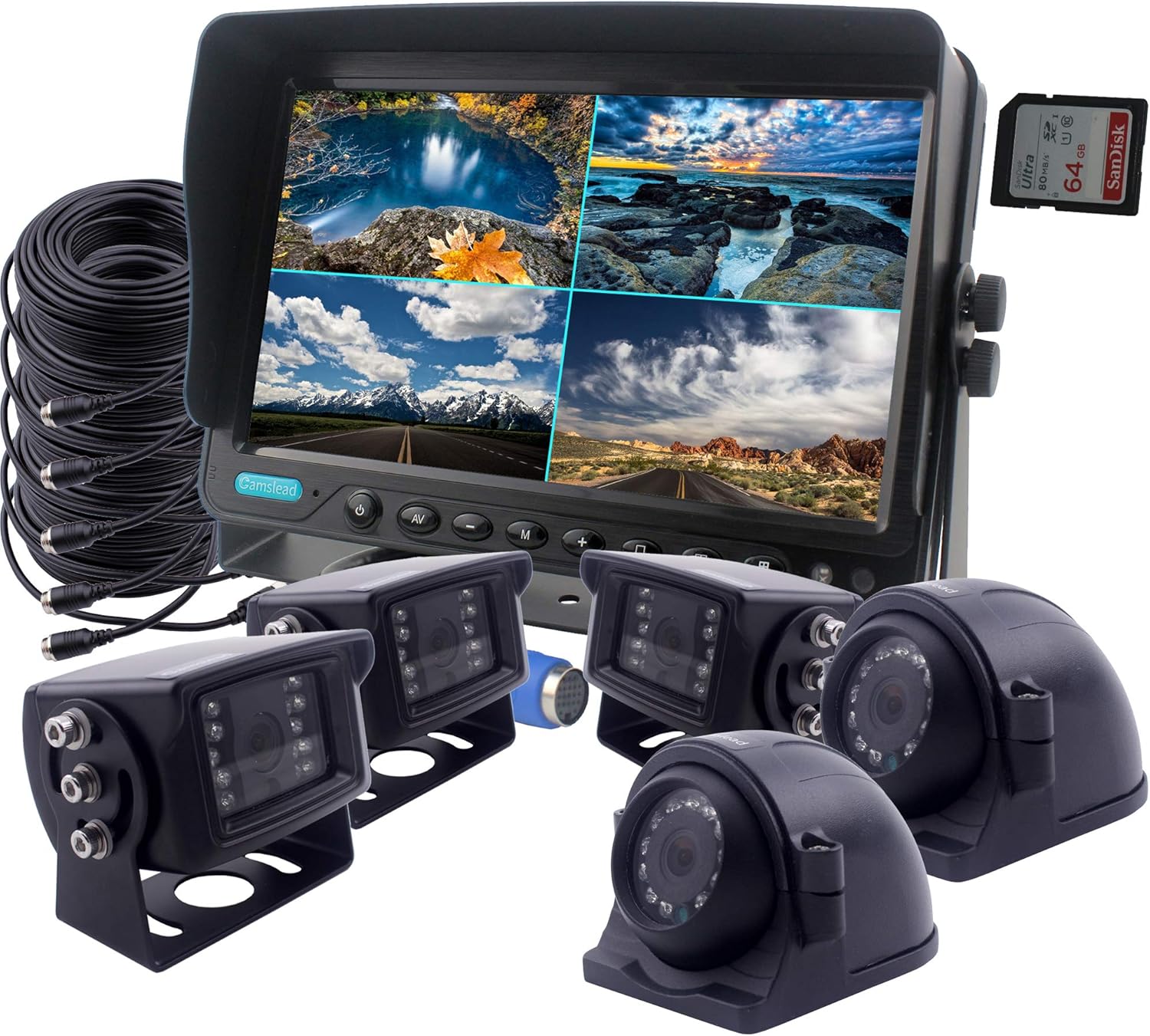

【Package List】9 inch Monitor with DVR (CL9D)x 1pcs; Backup Camera (CL504) x 3pcs; Side Camera (CL8033) x 2pcs; 4PIN 15m Cable x 5 pcs ; SD Card Is Not Included.
|
| | | | | |
| Model Number | CL9D98B | CL9F53B | CL9D91 | CL7D41 | CL9F56B |
| DVR Function | ✓ | x | ✓ | ✓ | x |
| Screen Type | 9 inch TFT LCD | 9 inch TFT LCD | 9 inch TFT LCD | 7 inch TFT LCD | 9 inch TFT LCD |
| Camera Type | Heavy Camera:Front + Side + Rear | Heavy Camera:Front + Side + Rear | Front + Side + Rear | Front + Rear | Heavy Camera:Front + Rear |
| Number of cameras | 5 | 4 | 4 | 4 | 4 |
