[Practical] - Car View Monitoring System applicable for almost all types of vehicle, such as touring car, fire truck, bus, truck, engineering vehicle, school bus, ambulance, police car, etc.

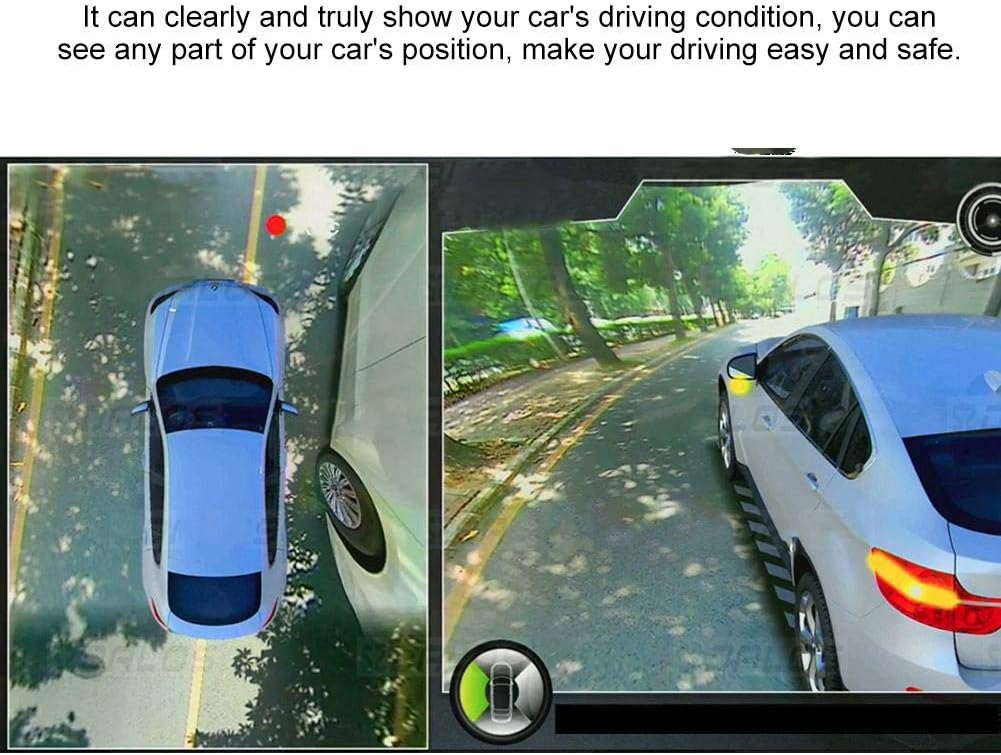

[Good Performance] Adopts high speed digital signal processor, smooth picture, no frame delay, correct picture and realize seamless image.
[Practical] - Car View Monitoring System applicable for almost all types of vehicle, such as touring car, fire truck, bus, truck, engineering vehicle, school bus, ambulance, police car, etc.
[Practical] - Car View Monitoring System applicable for almost all types of vehicle, such as touring car, fire truck, bus, truck, engineering vehicle, school bus, ambulance, police car, etc.
[Practical] - Car View Monitoring System applicable for almost all types of vehicle, such as touring car, fire truck, bus, truck, engineering vehicle, school bus, ambulance, police car, etc.
[Practical] - Car View Monitoring System applicable for almost all types of vehicle, such as touring car, fire truck, bus, truck, engineering vehicle, school bus, ambulance, police car, etc.
[Practical] - Car View Monitoring System applicable for almost all types of vehicle, such as touring car, fire truck, bus, truck, engineering vehicle, school bus, ambulance, police car, etc.
Specification:
Condition: 100% Brand New
Material: Aluminum alloy + plastic
Color: As Pictures Shown
Product chip: CMOS A0130
Angle: 180 degrees
Video signal: AHD
Maximum pixel: 1920 * 1080 pixels
Photosensitive area: 4.83mm * 3.63mm
Scanning system: progressive scan
Synchronization system: internal synchronization
Clarity: 1080P
Input clock range: 6-50MHz
Maximum output clock: 74.25MHz
Minimum illumination: 6.5 V/LM-sec (monochrome), 5.6 V/LM-sec (green)
Video output: 1.0Vp-p, 75Ω
Shutter type: Electronic rolling shutter
AGC: Automatic
Signal to noise ratio: ≥44dB
White balance: Automatic black level calibration
Dynamic range: 82dB
Backlight compensation: Automatic
Power supply: DC 3.3V
Working temperature: -30℃ ~ 70℃
Storage temperature: -40℃ ~ 80℃
Working current: 140±5mA
#Camera
Memory card: TF card
Shooting angle: 170°
Pixel: 3MP
Data storage capacity: Maximum 128G
Data transmission interface: USB/HDMI, USB
Transmission rate: Fast
Installation position: Inside and around the car
Power supply: car power
Voltage: 24V
Rated current: 600mA

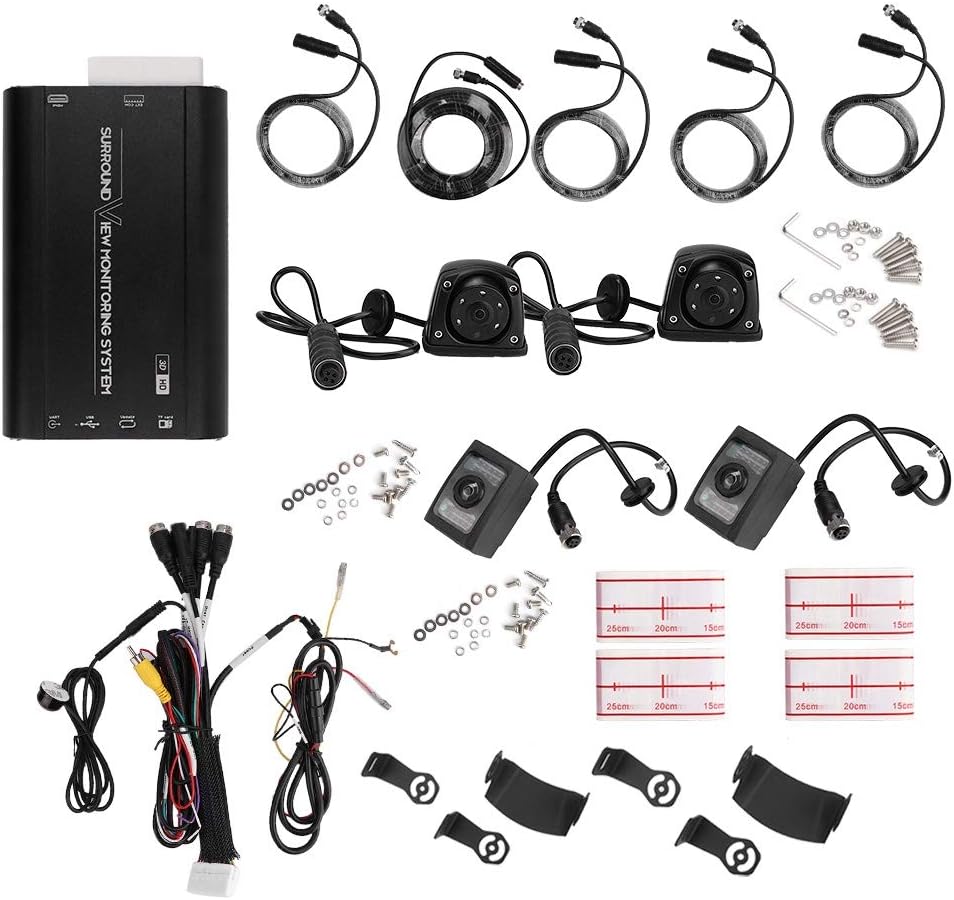

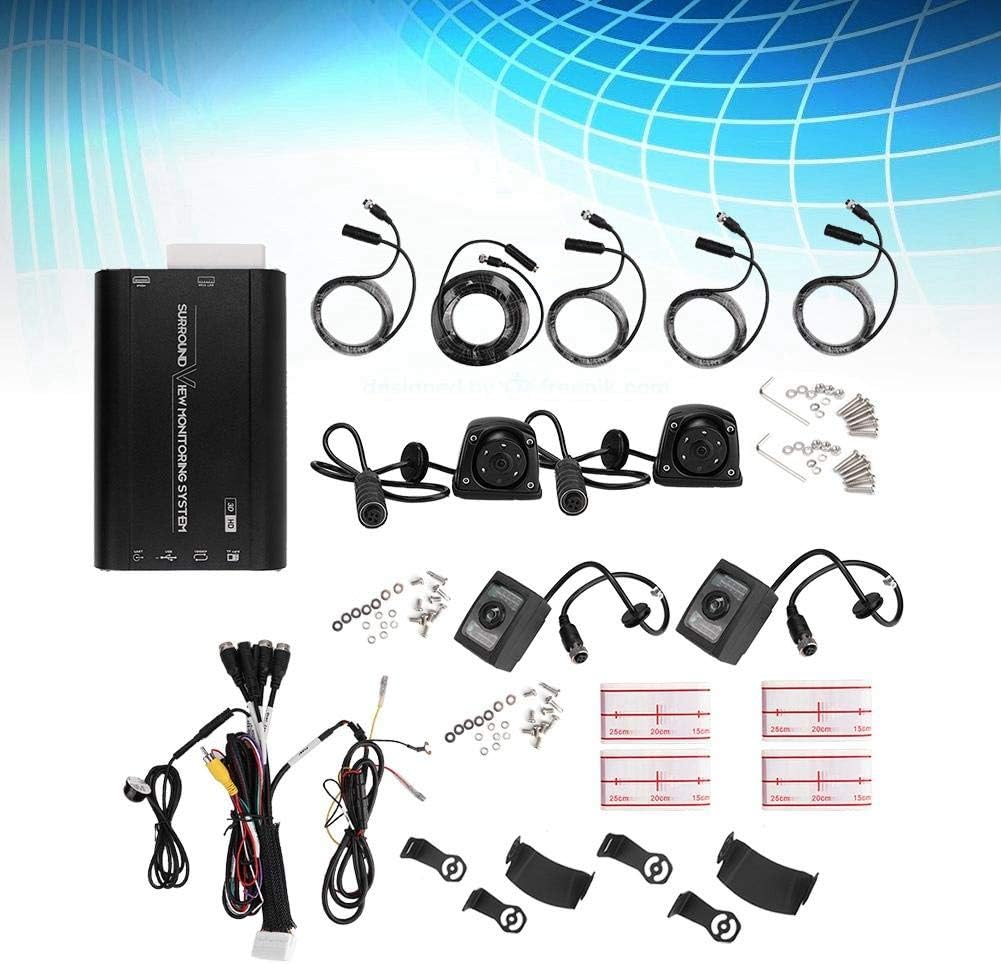

Package List:
1 * Host
4 * Camera (Front, Rear, Left, Right)
4 * Connecting Cable for Camera
1 * Video Wiring Harness
1 * Computer Cable
1 * Manual
4 * Tape
4 * Screws Pack
Note:
The product does not include decoder panel and wire.
