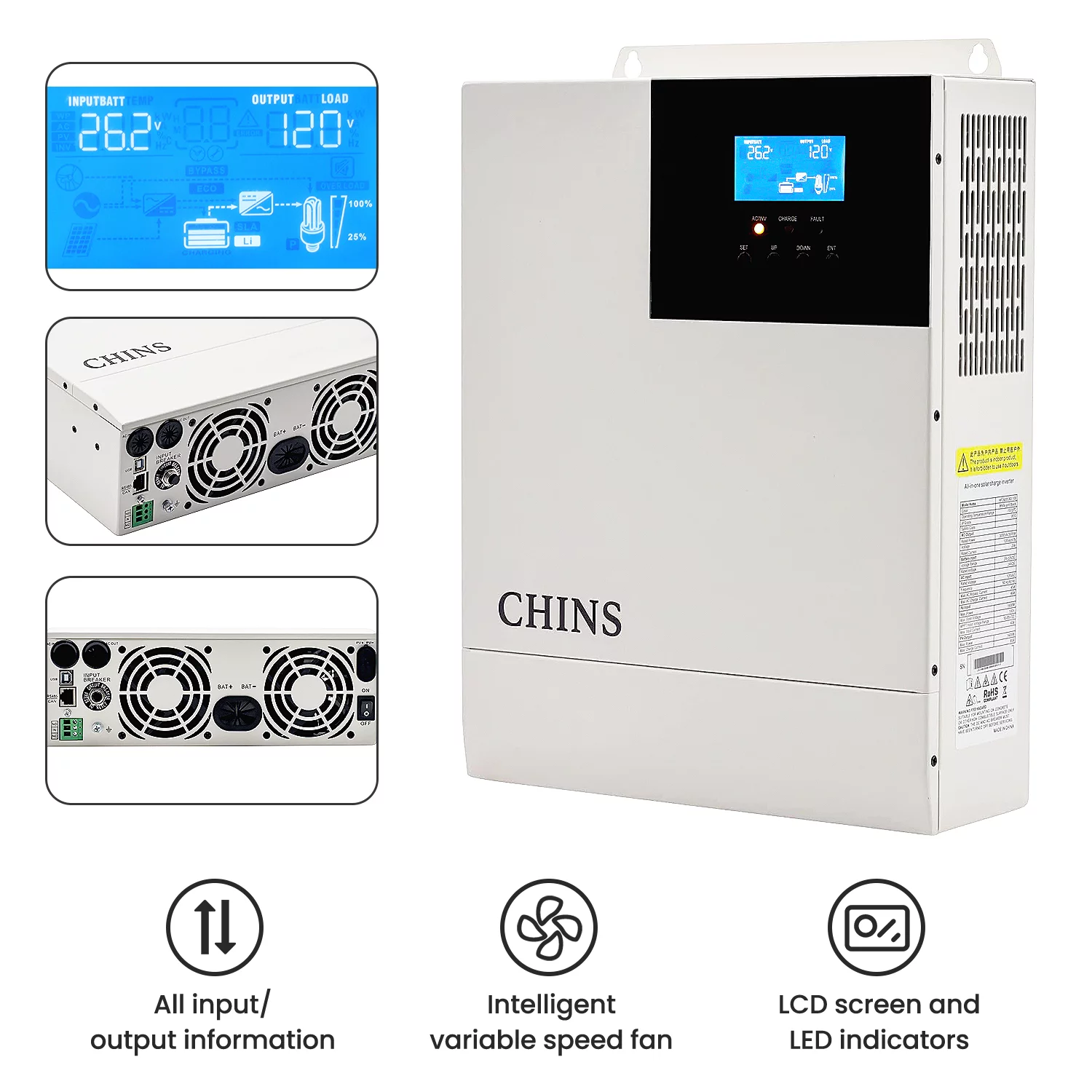

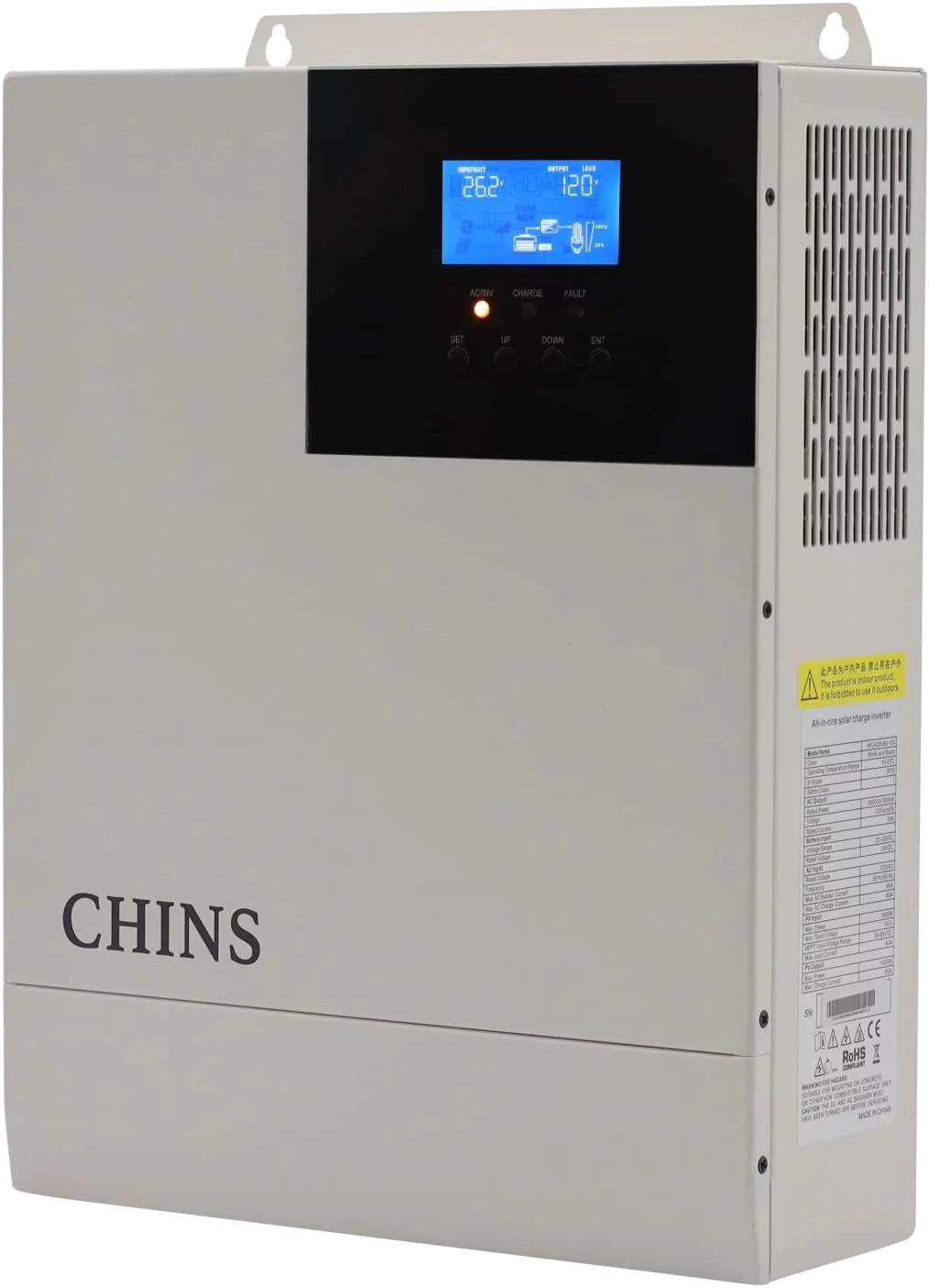

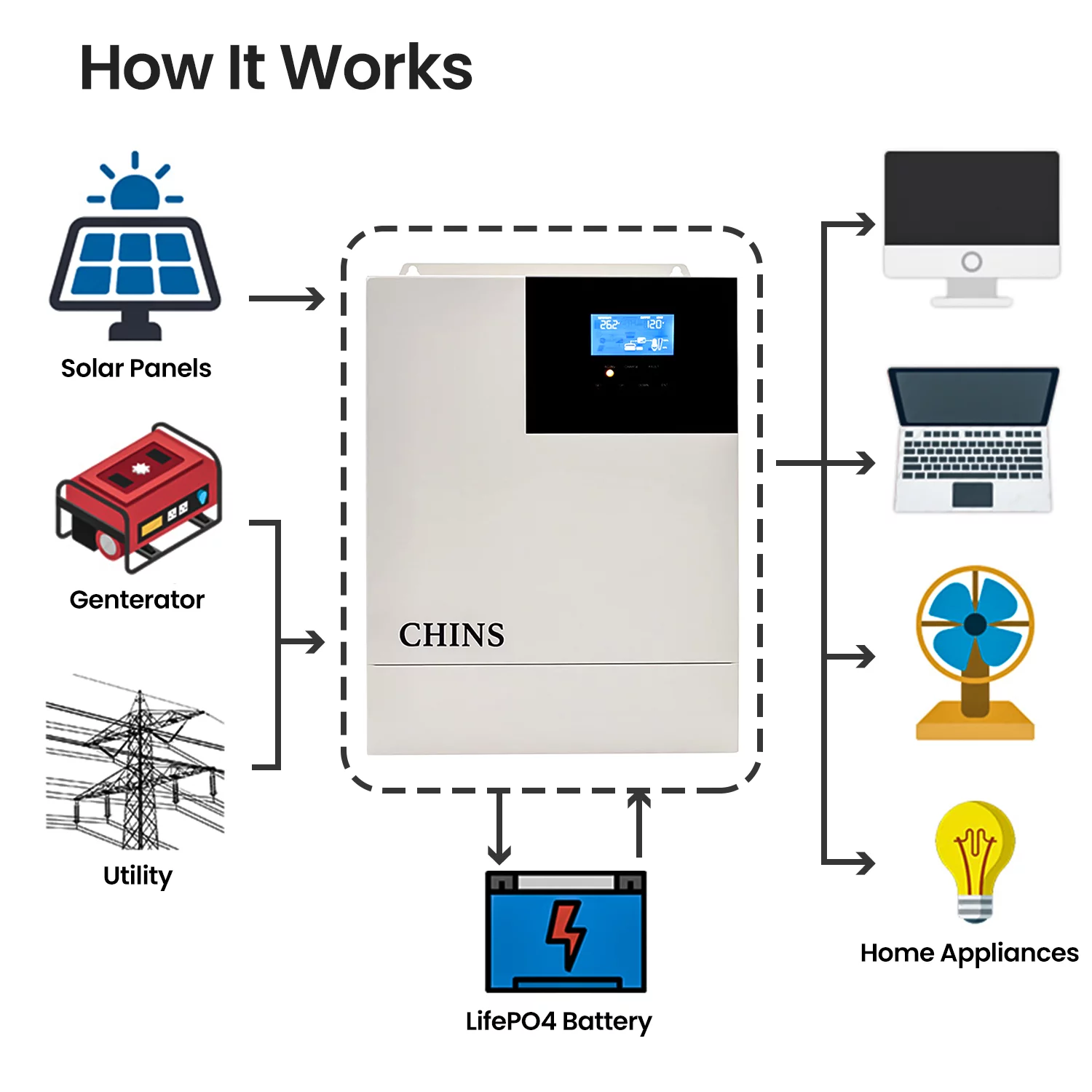

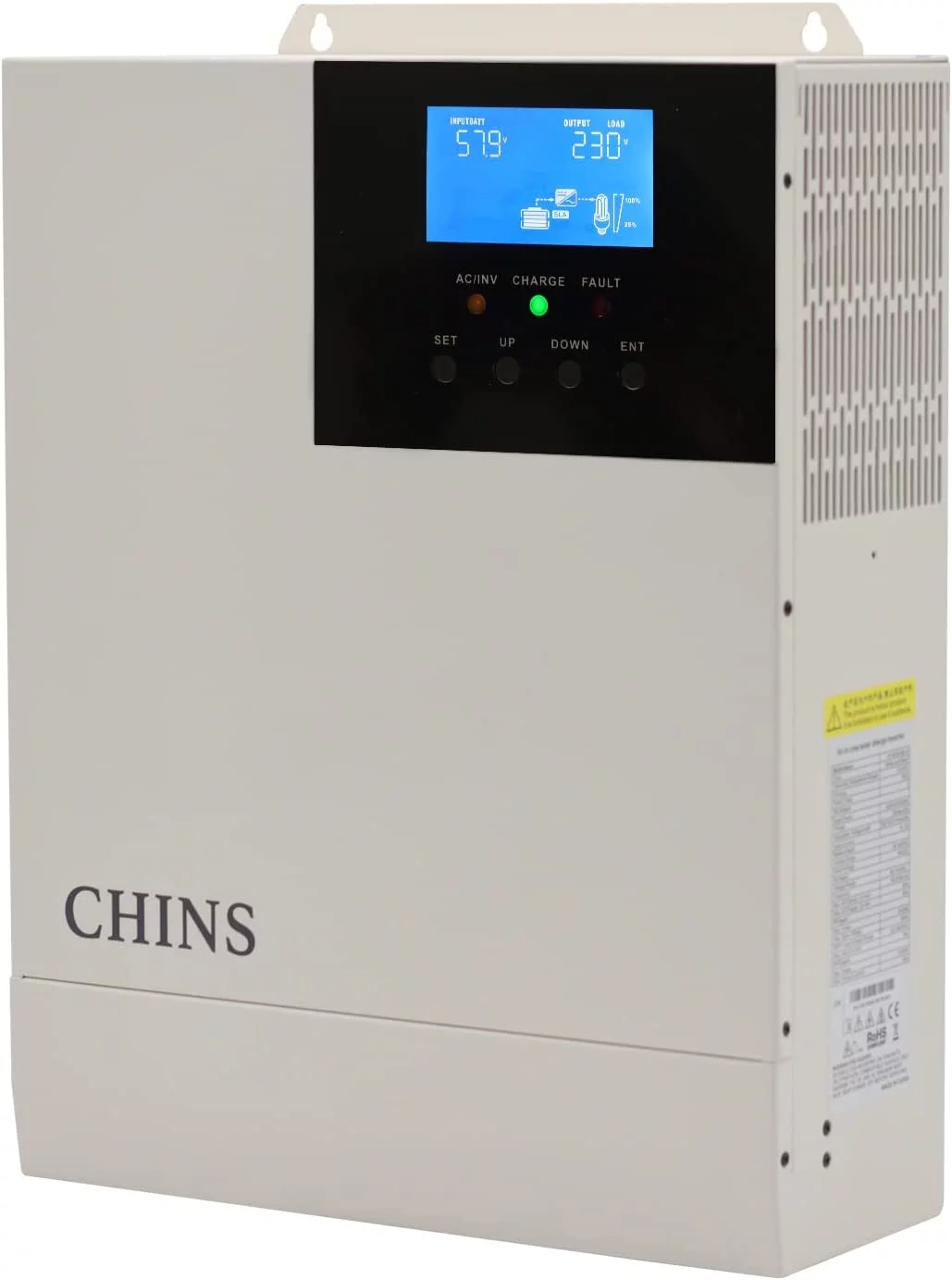

A new type of multi-function solar energy storage inverter control integrated machine . integrating solar energy storage & mains charging energy storage . AC sine wave output . using DSP control . through advanced control algorithms . with high response speed . highreliability and high industrial standards features.
AC mode Rated input voltage: 110/120Vac Input voltage range: (90Vac-140Vac)±2% Frequency: 50Hz/ 60Hz (Auto detection) Frequency Range: 47±0.3Hz ~ 55±0.3Hz (50Hz)/57±0.3Hz ~ 65±0.3Hz (60Hz) Overload/short circuit protection: Circuit breaker Efficiency: >95% Conversion time (bypass and inverter): 10ms (typical) AC reverse protection: Available Maximum bypass overload current: 40A

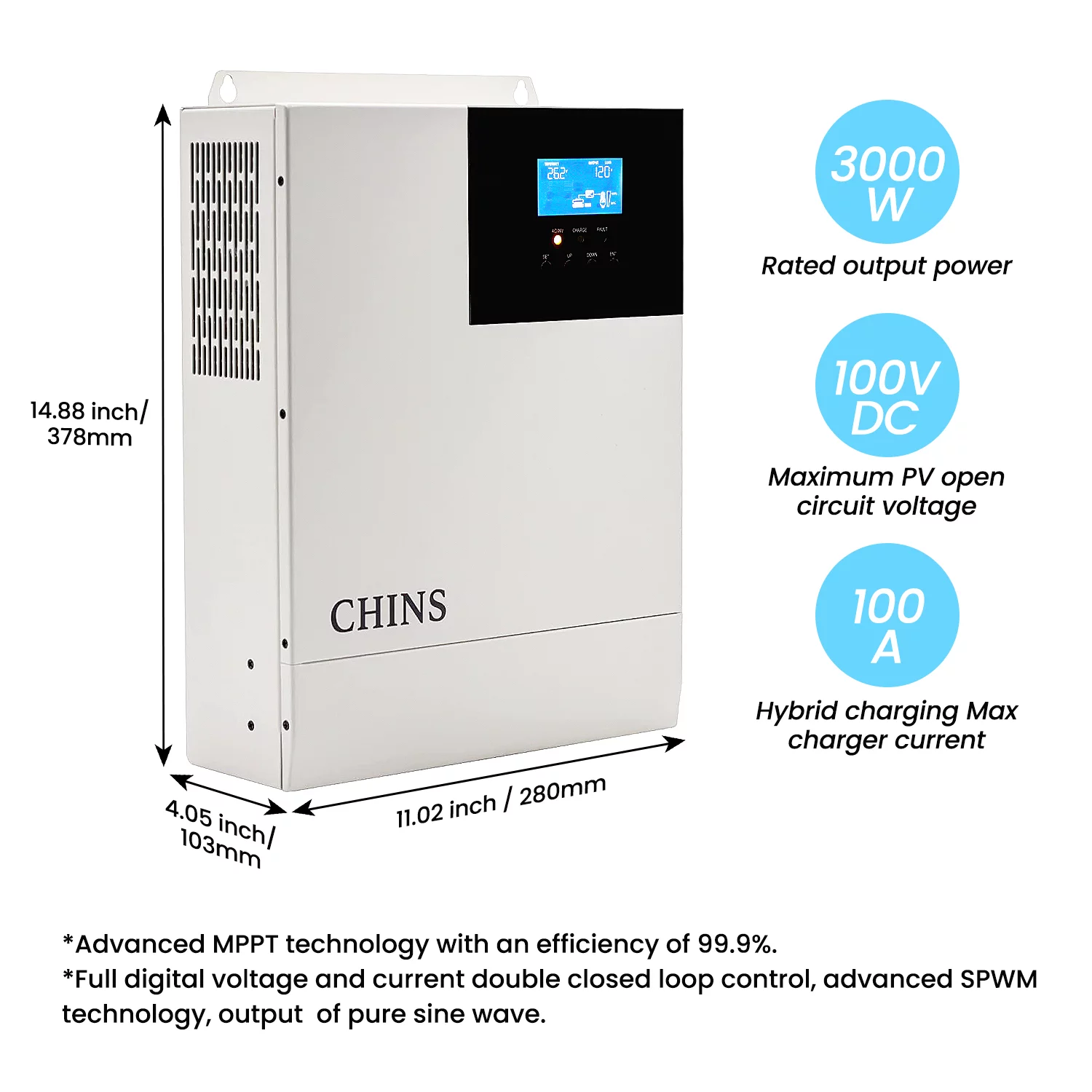

Inverter mode Output voltage waveform: Pure sine wave Rated output power (VA): 3000 Rated output power (W): 3000W Power factor: 1 Rated output voltage (Vac): 120Vac Output voltage error: ±5% Output frequency range (Hz): 50Hz ± 0.3Hz/60Hz ± 0.3Hz Efficiency: >92%
Overload protection (102% (110% Load >125% ±10%: report error and turn off the output after 5 seconds; Peak power: 4500 Loaded motor capability: 2HP Output short circuit protection: Circuit breaker Bypass breaker specifications: 40A Rated battery input voltage: 24V (Minimum starting voltage 22V) Battery voltage range: 20.0Vdc~33Vdc ± 0.6Vdc (Under-voltage alarm/shutdown voltage/over-voltage alarm /over-voltage recovery... settable on LCD screen) Power saving mode: Load ≤50W

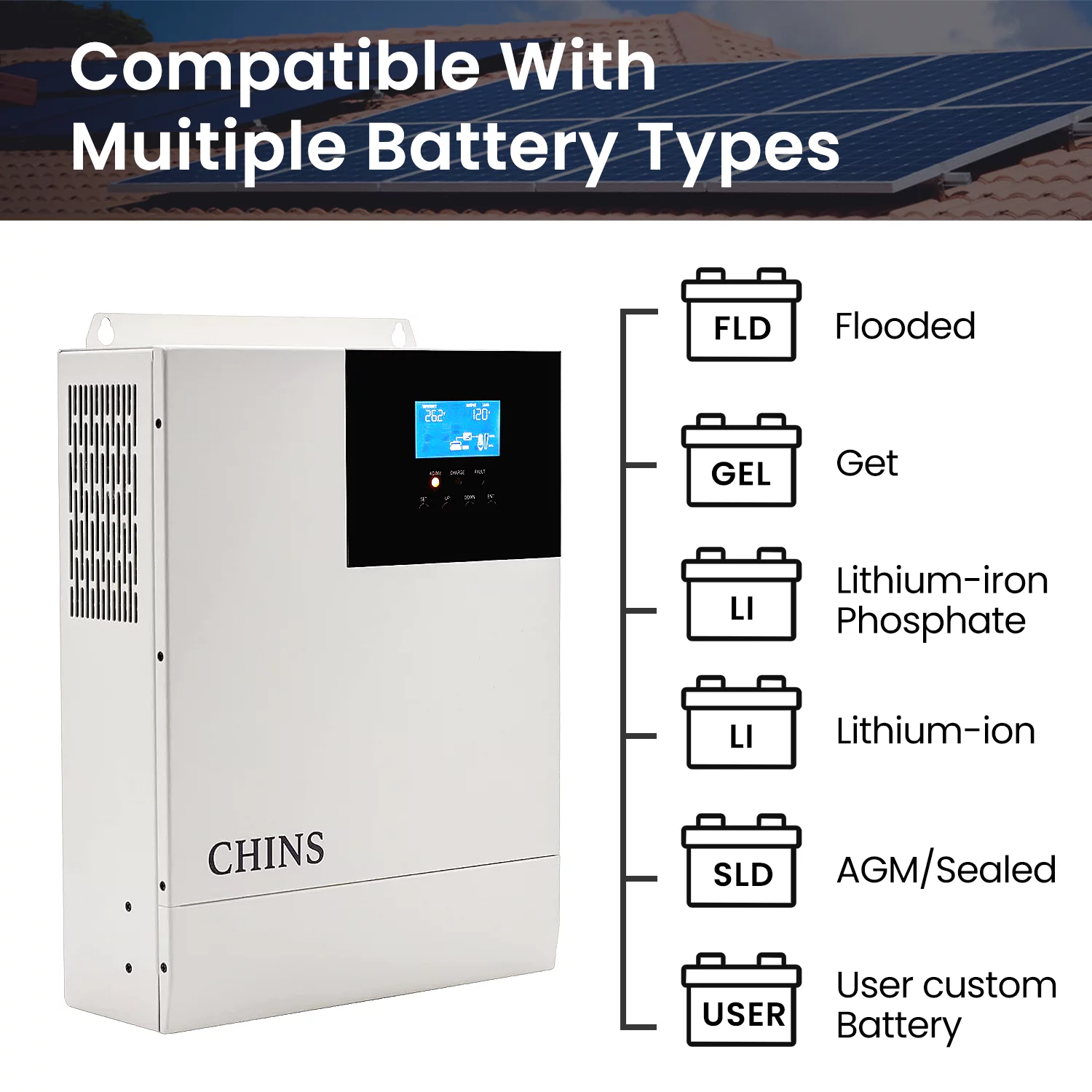

AC charging Battery type: Lead acid or lithium battery Maximum charge current: 40A Charge current error: ± 5Adc Charge voltage range: 20.0Vdc~33Vdc
