3040 is suitble for Industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes.The Computerized Engraving and Cutting Machine is suitable for various materials, such as wood,pmmaor other plastic, MDF board, native wood, PVC, Acrylic, wood, composite board plywood
3040 is a desktop machine and designd for processing Industrial or Hobby Prototype Building, Building Model Making, PCB, Adverstising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, etc.So, you can do engraving work at office or home
Exquisite 3040 is a miniature version of mobile longmen structure of carving machine, put on you computer is like puting a printer or scanner that coordination, and can completely as a compute peripherals tools, anywhere, anytime, help you to design intent fast real appear. Nonmetal materials on the milling, and it can also be used to carving simple PCB
Application:This 3040 engraer is a user-friendly desktop engraving machine for those with limited space and /or a limited budget.It can be used widely to process or make adverstising signs, PCB, nameplates, badges, seals, bronzing plate, aluminium alloy, acryplates, ABS resin double color plate, PVC foaming board, indentation plates, signs, construction models, instrument panels, wooden products, etc
Service:If your item arrived damaged or defective or if you received the wrong product or the item is not working according to its technical spec ,you can contact us to deal with it

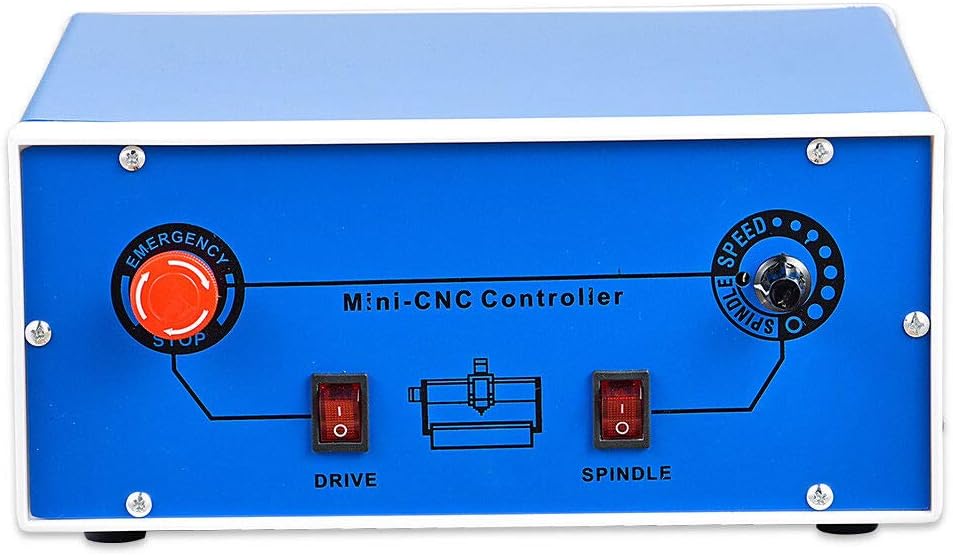

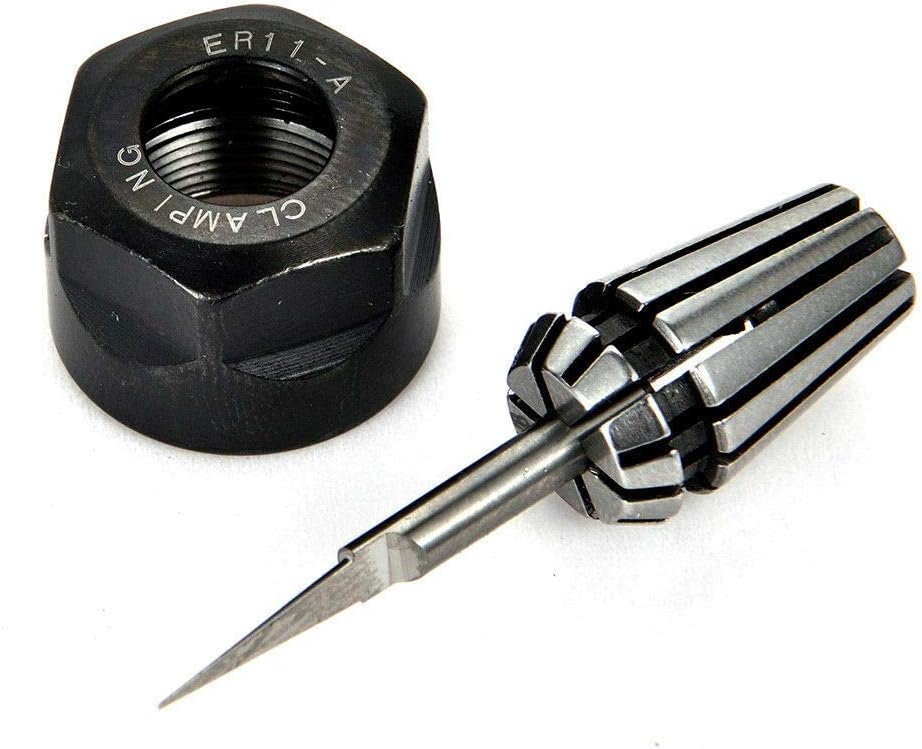

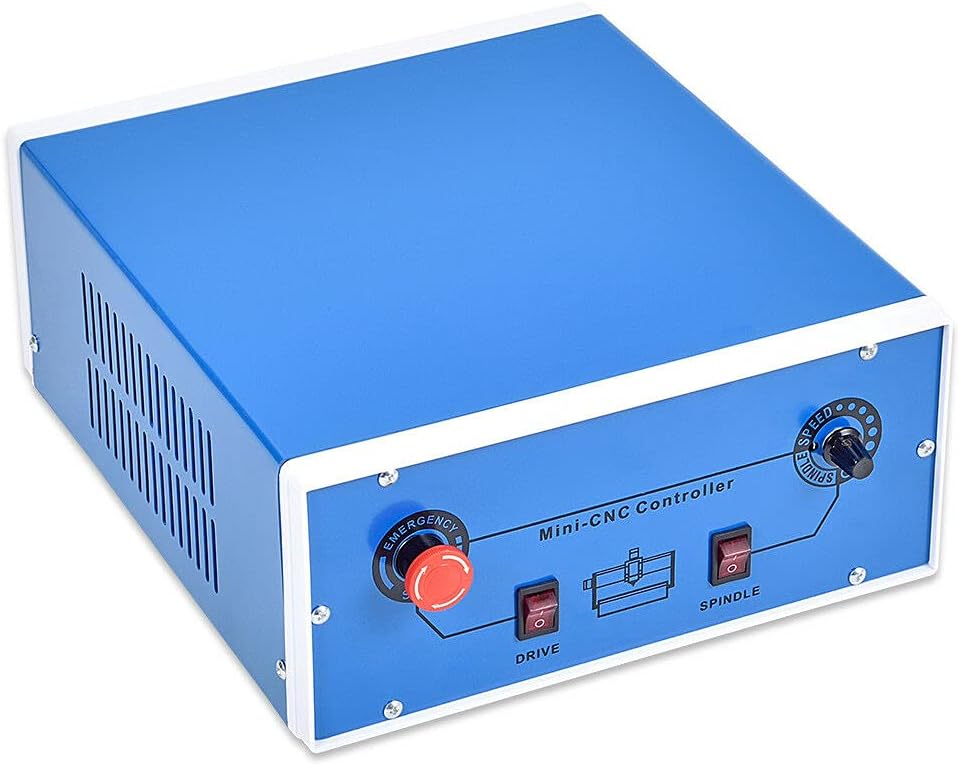

3040T triaxial engraving machine part parameters: Effective working travel:300(X)mm*400(Y)mm*60(Z)mm Shape dimension:610x480*400mm Max.workpiece dimension70mm Work table dimension:320mm*530mm Frame materials:aluminum alloy 6063 and 6061 Leadscrew: 1204 double thread Trapezoidal screws Driving units: X axis---1204 trapezoidal screws Y axis---1204 trapezoidal screws Z axis---1204 trapezoidal screws Sliding units: X axis---Dia.16mm chrome plate shafts Y axis----Dia.16mm chrome plate shafts Z axis---Dia.12mm chrome plate shafts Stepping motor type: 57 two-phase 1.8A Spindle motor: 400w dc motor 500~8000PRM/Min Principal axis collet: ER11 / 3.175 mm Repeat accuracy: 0.05mm Spindle precision: radial beat acuities 0.03 mm Control unit:triaxial one-piece drive + ring variable power + PWM speed Carving Instructions:G-code/.tab /.nc / .ncc/.txt Communication interface: through USB Port connection with computer environmentwindows XP / win7, 32bits system Maximum Idle speed:1500mm/min Working Speed :50-1500mm / min (different material with different speed settings) Machine weight:28KG Control box parameters: Operating Voltage: AC110V Control unit: 2.5A stepping motor driver plus adjustable spindle speed controller Computer connection: on board USB port Command code: G code Protection: Emergency stop button Simple operation and installation More steady and strong equiped with aluminum alloy frame materials Can be controlled by computer simple and intellgent Can control the engraving more precise Emergency stop button enhance security Package:1× Engraving machine;1× Control box;1× Parallel cable;1× Power cable;1× Tool box and tools;3× Axis motors
