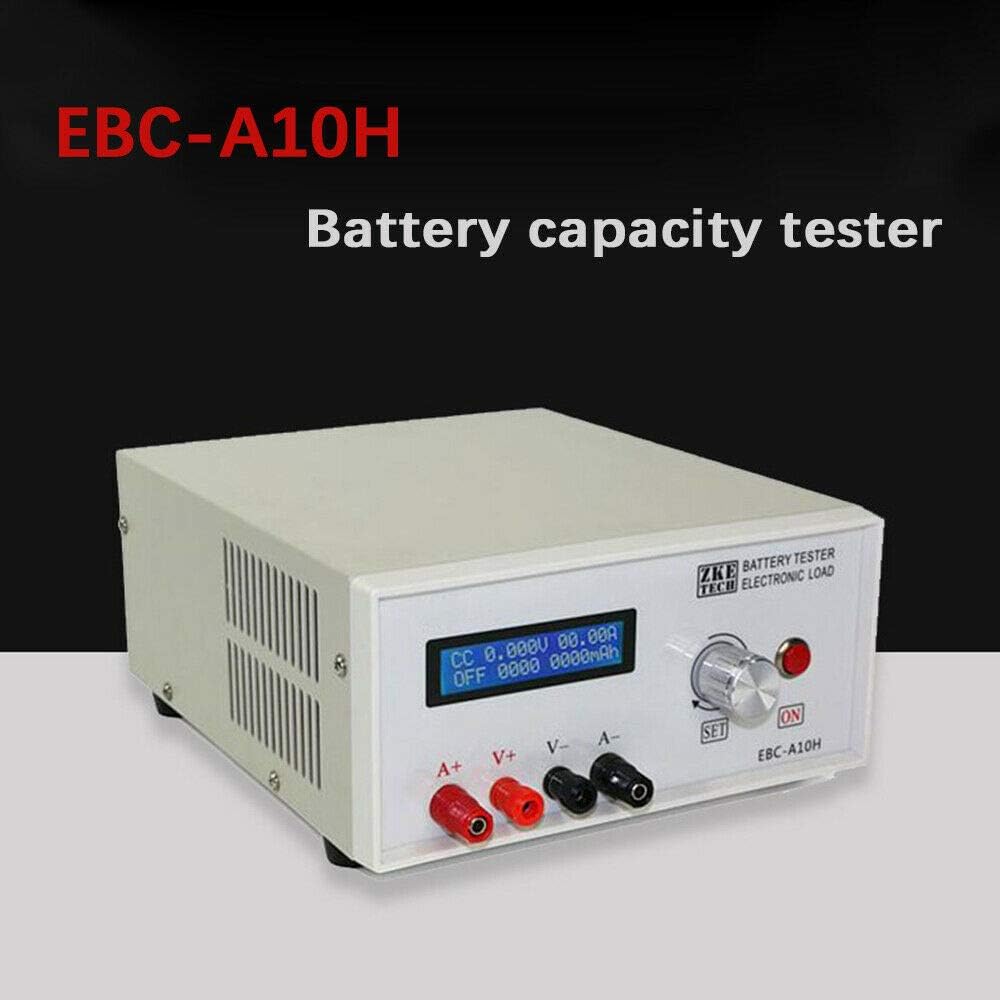

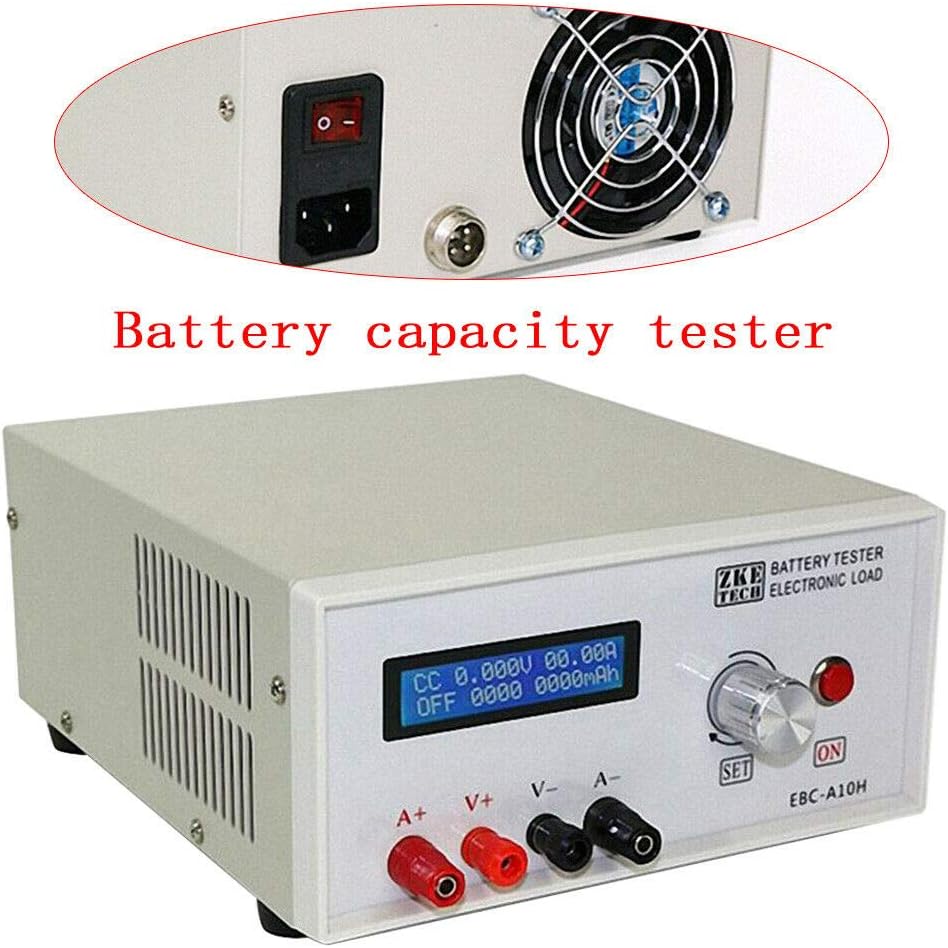

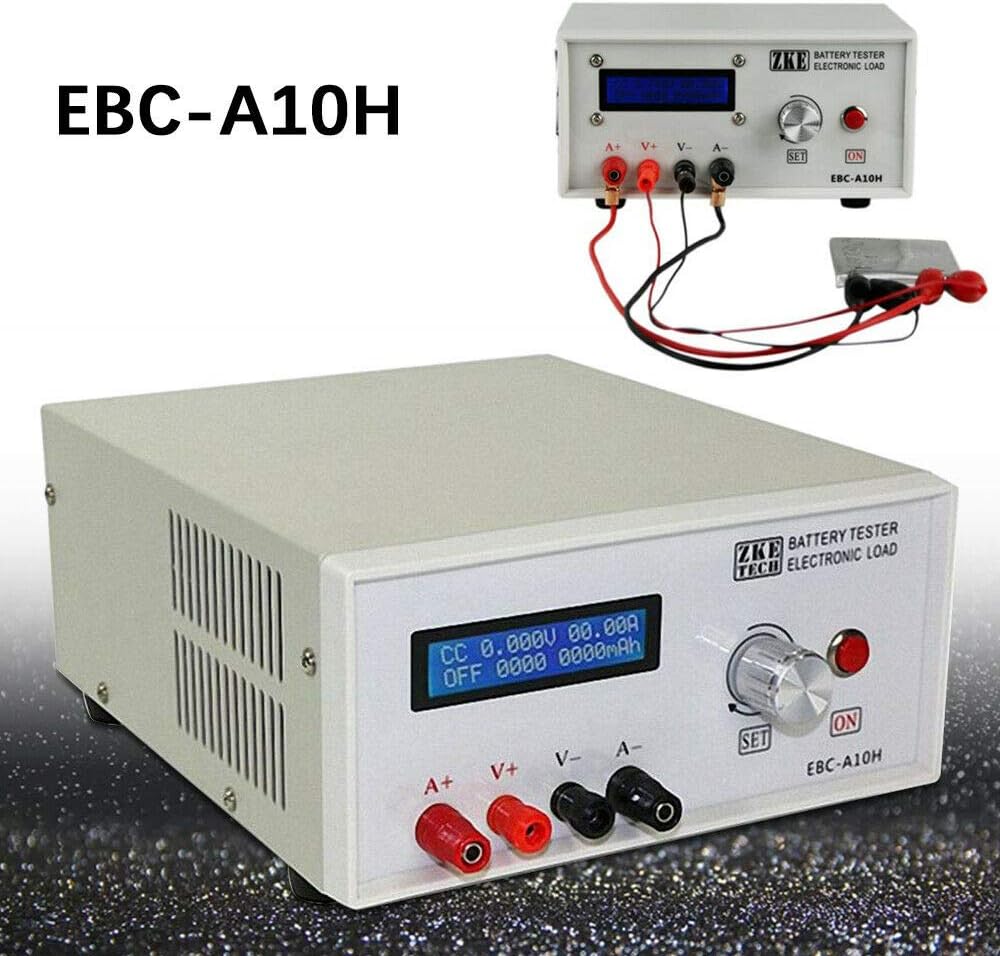

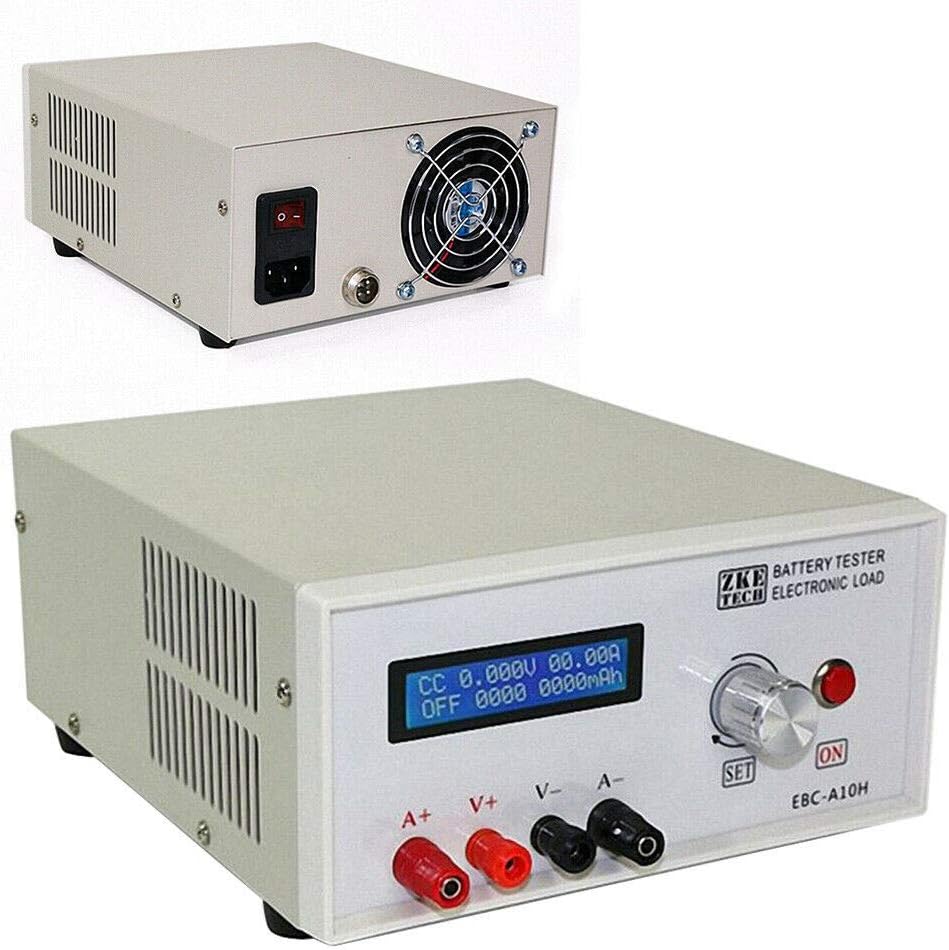

【BATTERY CAPACITY TESTER】EBC-A10H is an electronic load with charging function. It is suitable for charging and discharging capacitance test of various batteries, mobile power discharge test, charging head power performance test, support for connecting to computers, and more extended functions through online software.
【AUTOMATIC CHARGING & DISCHERGE】Charging method is standard charging, support nickel hydrogen, nickel chromium, lithium, iron lithium, lead acid. Support automatic charging - discharge - charging mode for testing battery capacity. LCD display: voltage, current, capacity, time, power, energy test data.
【VOLTAGE & CURRENT & CAPACITY TEST】Voltage test: 0.002V-4.5V (low voltage), accuracy is 0.003V, error ± 0.5%; 4.5V-30V (high voltage), accuracy to 0.01V, error ± 0.5%. Current test: 0.05-10.000A, accuracy 0.005A, error ±0.5%. Capacity test: 10Ah, resolution is 0.001Ah; 10AH-100Ah, resolution is 0.01Ah; Above 100Ah, resolution 0.1Ah. (Connection method: four-wire detection, separate wiring of voltage and current channels to ensure measurement accuracy.)
【COMPUTER ONLINE】dedicated USB to TTL serial port (Mini USB interface, non-ordinary USB cable) computer control, curve drawing, calibration benchmark test, firmware upgrade, cycle charge and discharge. (Tip: A + V + is connected to the positive battery, A_V_ is connected to the negative battery)
【PACKAGE CONTENTS】1 x Tester, 1 x On-Line Line, 2 x 1 Pairs Test Clip, 1 x Power Cord. (Note: Built-in 24V power module.)
Specifications:
Power: AC110V

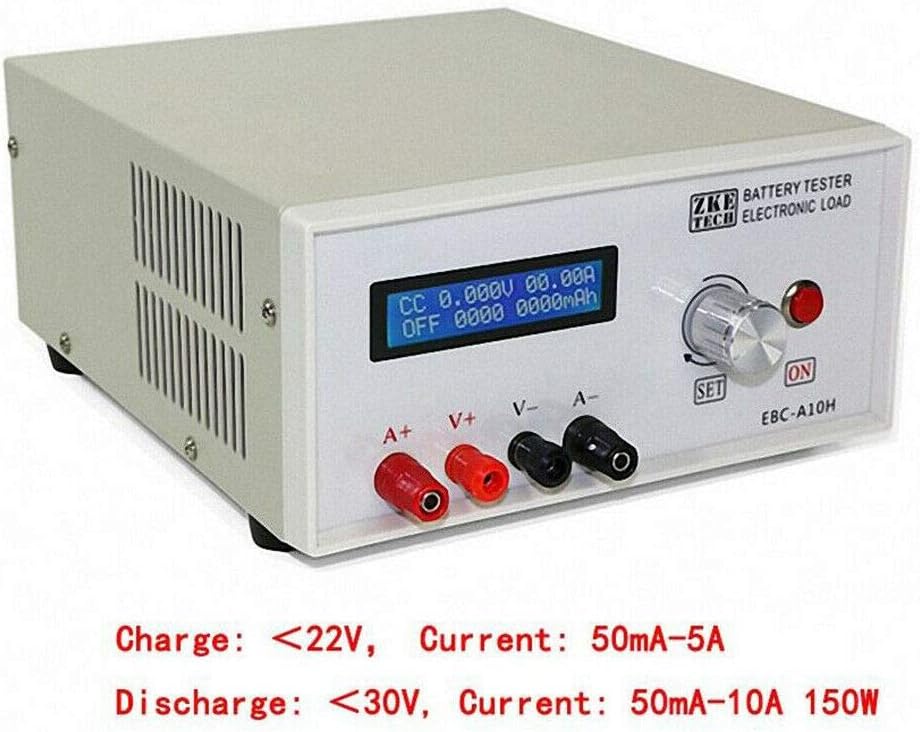

Voltage setting: Discharge: 0.00-30.00V, minimum step size 0.01V
Charging: 0.00-22.00V, minimum step size 0.01V
Current setting: Discharge: 0.05-10.00A, minimum step size 0.01A (automatic current limit when power exceeds limit)
Charging: 0.05-5.00A, minimum step size 0.01A (maximum current limited by supply current)
Discharge mode: DSC-CC: constant discharge current for testing battery capacity or supply current
DSC-CP: Constant discharge power for simulating constant power equipment or testing power supply
Charging method: standard charging (Support nickel hydrogen, nickel chromium, lithium, iron lithium, lead acid)
CHG-CV: Custom constant current constant voltage charging, only for batteries
Automatic charge and discharge: support automatic charging - discharge - charging mode for testing battery capacity
Voltage test:
0.002V-4.5V (low voltage), accuracy is 0.003V, error ± 0.5%
4.5V-30V (high voltage), accuracy to 0.01V, error ± 0.5%
Current test: 0.05-10.000A, accuracy 0.005A, error ±0.5%
Capacity test: 10Ah, resolution is 0.001Ah
10AH-100Ah, resolution is 0.01Ah
Above 100Ah, resolution 0.1Ah
Connection method: four-wire detection, separate wiring of voltage and current channels to ensure measurement accuracy
LCD display: voltage, current, capacity, time, power, energy test data
Computer online: dedicated USB to TTL serial port (Mini USB interface, non-ordinary USB cable) computer control, curve drawing, calibration benchmark test, firmware upgrade, cycle charge and discharge.

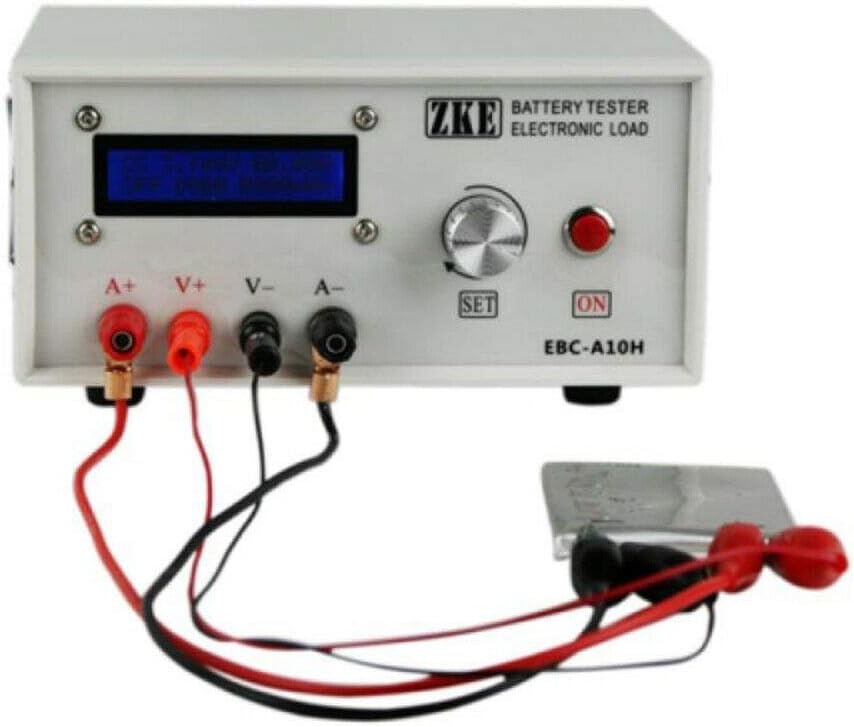

Tip: A + V + is connected to the positive battery, A_V_ is connected to the negative battery
Package size: 36cm x 30cm x 16cm (14'' x 11.5'' x 6'')
Shipping weight: 2.4kg/5lbs
Note:
Built-in 24V power module
