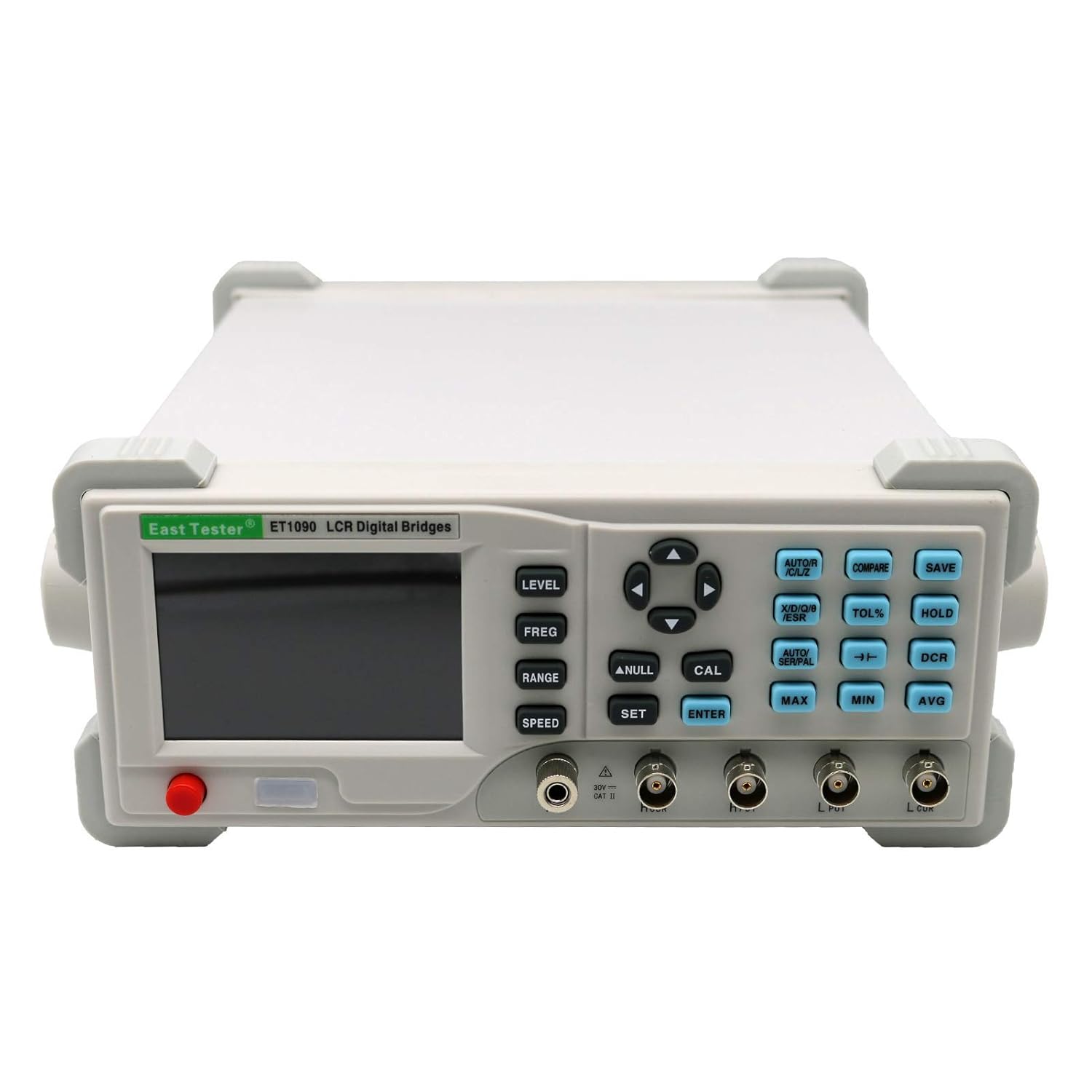

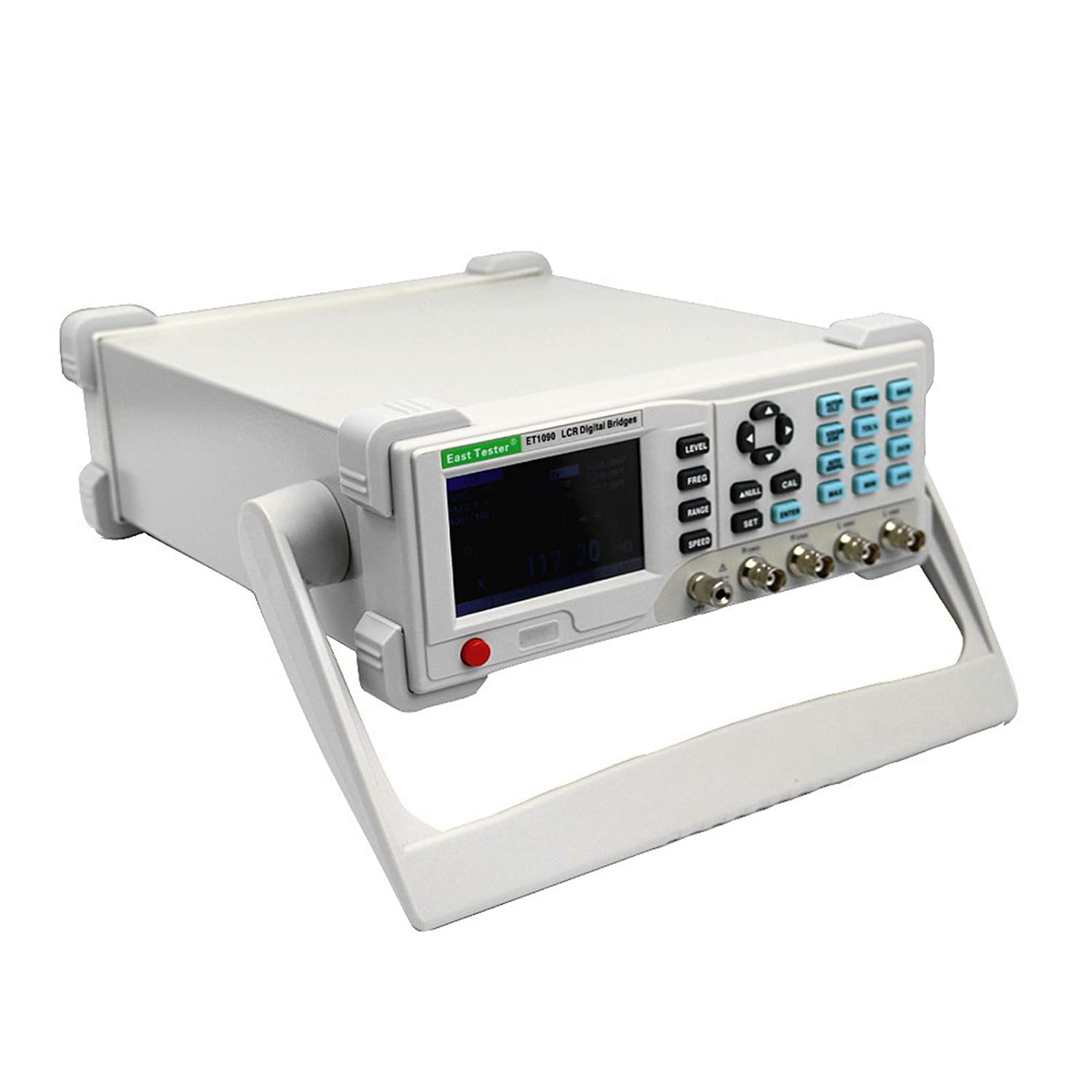

East Tester Digital Bench LCR Meter ET1090A Capacitance Resistance Inductance Measure LCR Digital Bridge Accuracy 0.1% 100hz~10KHZ Bandwidth Desktop

Test frequency: 100Hz, 120Hz, 200Hz, 400Hz, 800Hz, 1KHz, 2KHz, 4KHz, 8KHz, 10KHz; Testing level: Six fixed level(0.1V, 0.3V, 0.6V, 1V, 1.5V, 2V);
Signal source output impedance: 30Ω , 100Ω; Test Parameter: Principal parameter: L/C/R/Z, Secondary parameter: X/D/Q/θ/ESR
Supporting DC Resistance (DCR) and Electrolytic Capacitance Measurement; Data recording function (maximum, minimum, average);

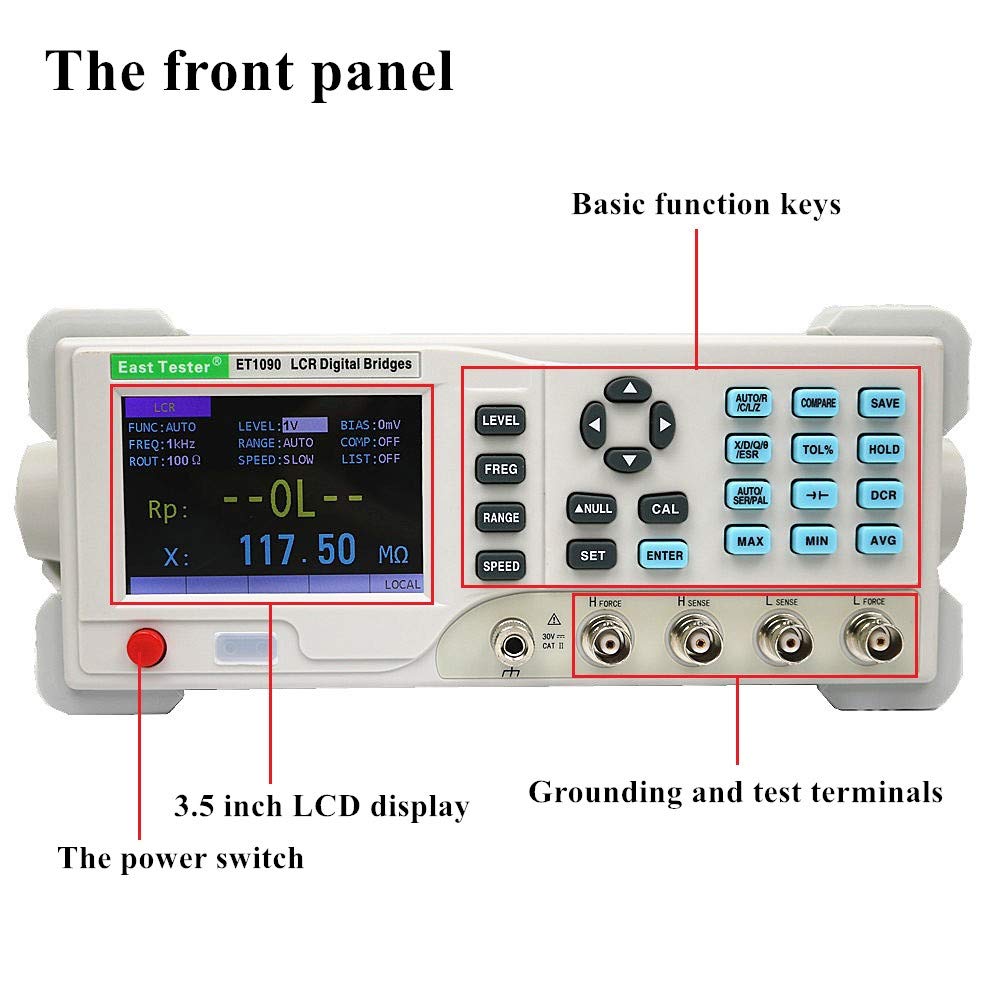

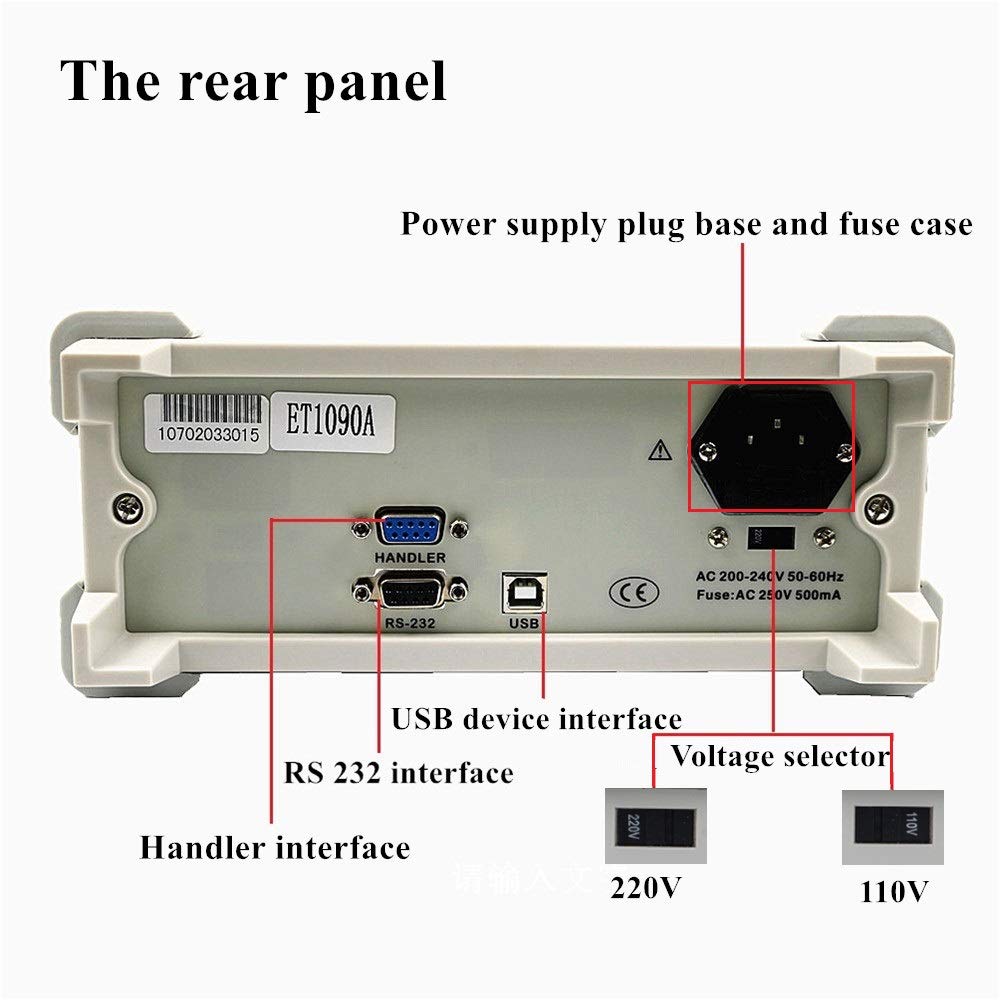

3.5-inch TFT display, 5-bit display; The basic measurement accuracy is 0.1%; Supporting SCPI Communication Protocol;
Manual and automatic range; With open circuit and short circuit calibration function; Comparator sorting (5 gears), alarm function.
