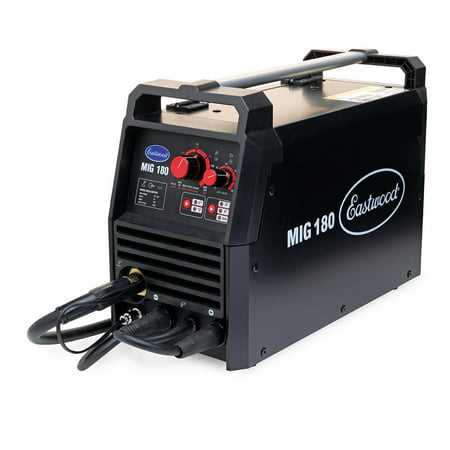

Whether you re a professional or enthusiast you can now get even more industrial-quality features like inverter technology 2T/4T modes and a tack weld setting in this hard-working affordable MIG welder. Our R&D guys have been constantly improving our welders since 2009 and are proud of this newly designed Eastwood MIG 180 that s great for steel aluminum and all-around metal fab and auto restoration. Specifications Rated Electrical Input: 120 VAC; 24 AMP – 240 VAC; 29.6 AMP Required Breaker Size: 30 amp Power Voltage: 1 Phase 120VAC / 240VAC 60 Hz Power Cord Receptacle Plug: NEMA 6-50R Max Voltage at No Load: 61 V DC Rated Duty Cycle 120V: 30% @ 90A 60% @ 65A 100% @ 50A Rated Duty Cycle 240V: 30% @ 180A 60% @ 130A 100% @ 100A Torch Consumables: Tweco style nozzle and contact tips Wire Feed Rate (IPM/Inches Per Minute): 120V: 80 – 314 IPM/240V: 80 – 551 IPM Wire Sizes: 0.023”(0.6mm) – 0.035”(0.9mm) mig wire 0.030”(0.8mm) – 0.035”(0.9mm) flux core wire Welding Wire Spool: 4” and 8” spool up to 11 lbs Maximum Welding Thickness – Steel: 5/16 Output Current Range: 120V: 30 – 140 Amps/240V: 30 – 180 Amps Weight: 25.3 lbs (11.5 kg) Overall Dimensions: 18” X 8.5 X 13.25” Contents MIG 180 Welder MIG Wire Spool 0.023 (0.7mm) 4 inch (2 lbs) Gas Regulator with hose 9.5 Ground Clamp NEMA 5-15P to NEMA 6-50R Adapter Cord (240v to 120v) 2 MIG Torch Nozzle 0.030 (0.8mm) Contact Tip and 8.5 Cable Face shield with lens and handle Welding brush/hammer Contact tip wrench Additional contact tips (.030 and.035 ) Instruction Manual.
