Eastwood Motorized Bead Roller Forming Dies 21284
- Create offset flanges, contours, deep channels, and style lines
- Manufactured of CR12 steel with a Rockwell hardness of 35 HRC
- Use with any 3/4″ shaft bead roller
- Motorized Bead Roller Forming Dies CR12 Steel Create Offset Flanges

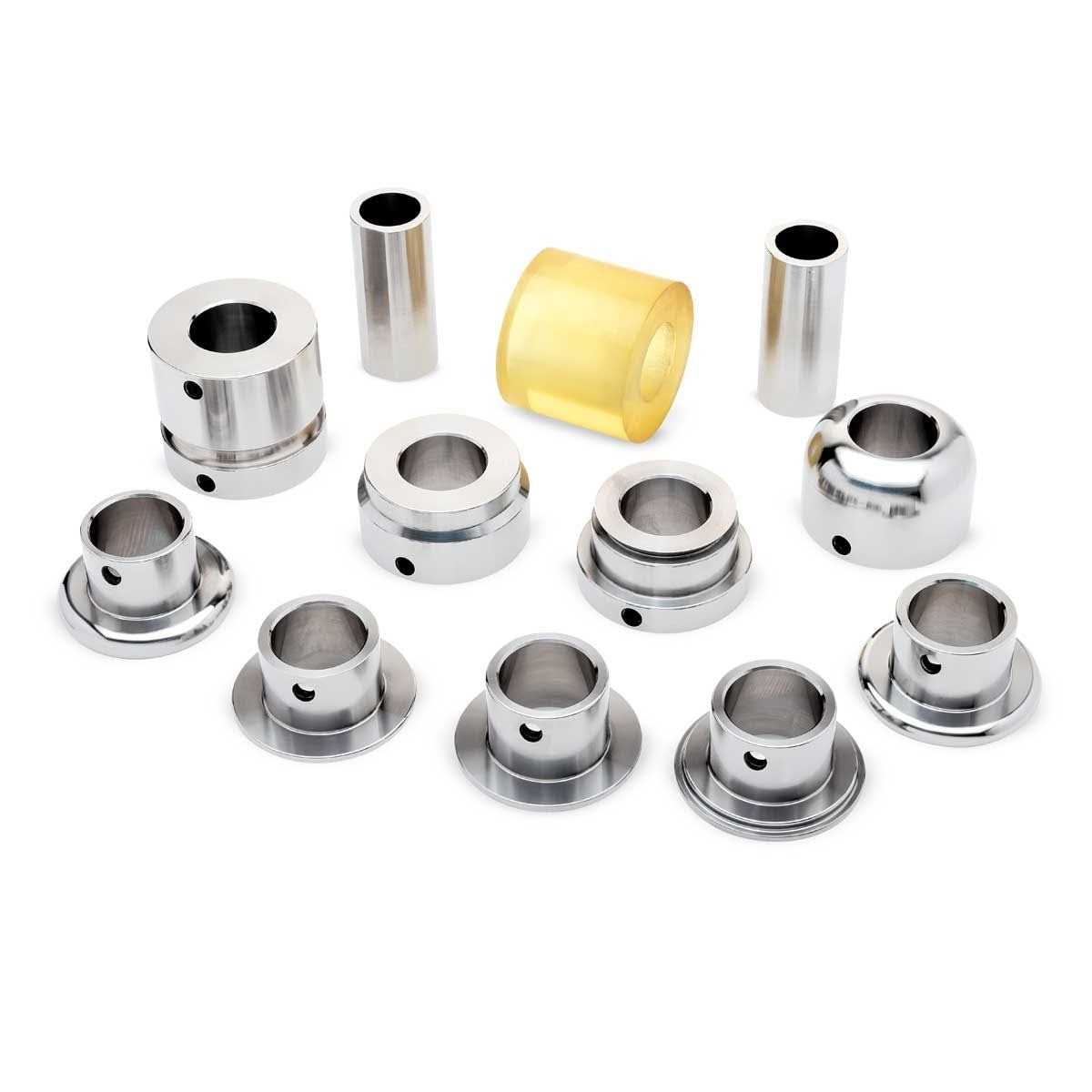

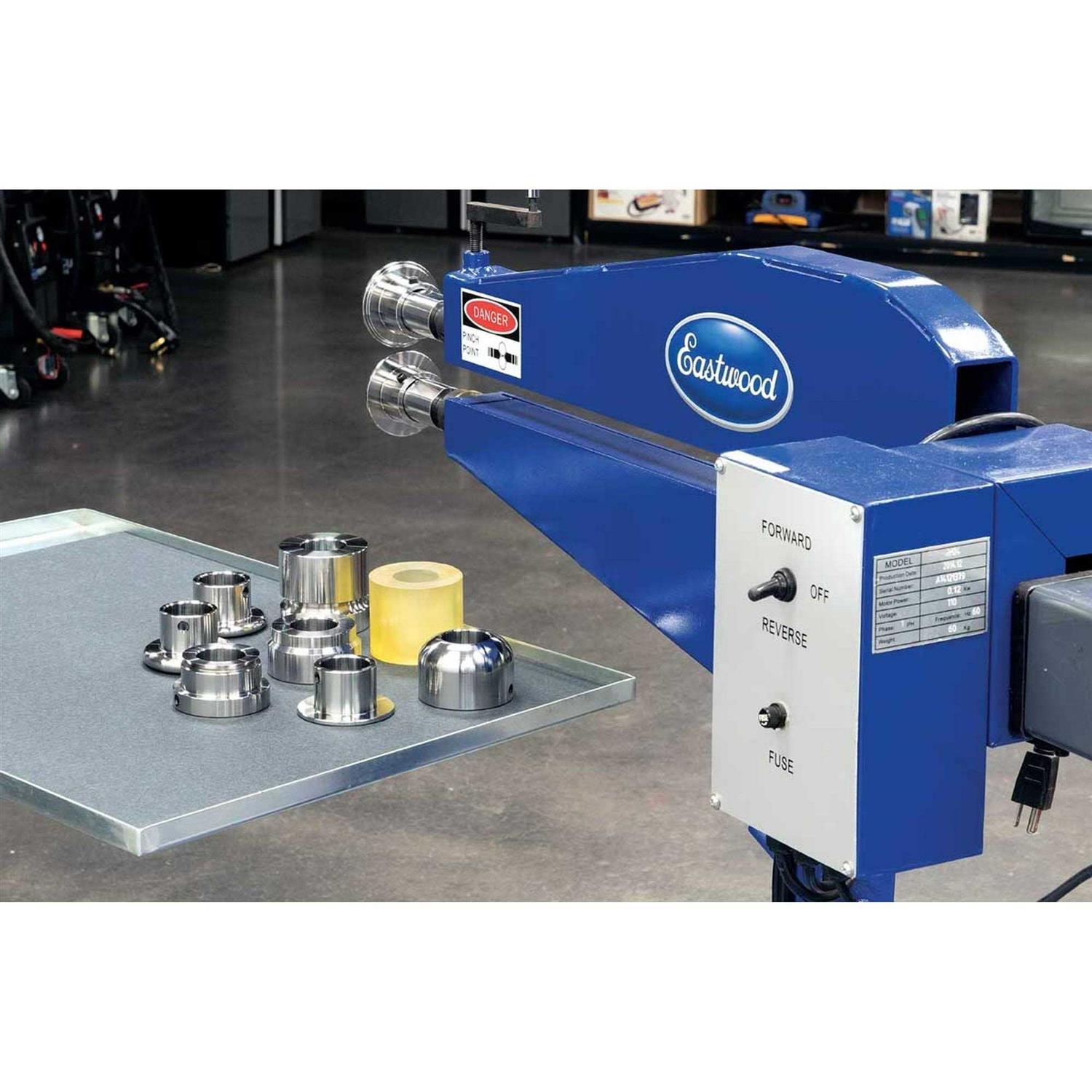

With these additional dies on your bead roller you can create offset flanges, contours, deep channels, and style lines. This kit also includes a polyurethane lower skate board wheel, which can be used with a variety of upper dies. The dies included in this kit are inside and outside offset dies, 3/8 and 1/2 inch tipping dies, round and knife edge tipping dies, 180 degree lower die, lower edge forming die and a lower forming die. All are made of CR12 steel with a Rockwell hardness of 35 HRC. Specifications Material = CR12 Hardness = 30-40 HRC Will fit Bead Rollers with 3/4 shafts and 2-3/4 shaft spacing Includes (1) Polyurethane Lower Wheel (1) 180 Degree Lower Die (1) Inside Offset Die (1) Outside Offset Die (1) Knife Edge Tipping Die (1) Lower Edge Forming Die (1) 3/8 Tipping Die (1) 1/2 Tipping Die (1) Round Tipping Die (1) Lower Forming Die (2) 1.375 O.D. x 1.025 I.D. Shaft Adapter Sleeves
