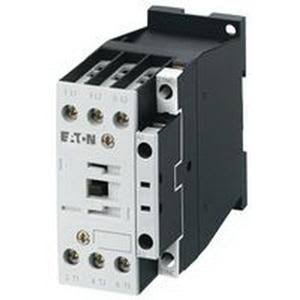

Eaton / Cutler Hammer XTCE032C10A Non-Reversing IEC Contactor; 3 Pole, 1 or 3 Phase, 32 Amp, 120 Volt AC

Eaton 3-Pole Frame C non-reversing IEC contactor has a compact and space saving design that allows easy install XT line of contactor. It measures 3.35 Inch x 1.77 Inch x 3.82 Inch and has a frame size of 45 mm. It has a full load inductive and resistive current rating of 32/45 Amps. It has a one-phase power rating of 3 Hp at 115 Volts, 5 Hp at 200/230 Volts. It also has three-phase power rating of 10 Hp at 200/230 Volts, 20 Hp at 460 Volts and 25 Hp at 575 Volts. It has a built-in 1NO form auxiliary contact with open enclosure. Coil has a full voltage rating of 110/120 VAC at 50/60 Hz. It is mounted on a panel/DIN rail up to current rating of 65 Amps. Contactor is suitable in to switch motor load applications. It has a NEMA rating that attains IP20 deg of protection to finger/back-of-hand. It has an operating temperature rating from 25 - 50 deg C. Contactor is UL listed, CE/CSA/CCC/ATEX certified and meets IEC EN 60947 standards.
