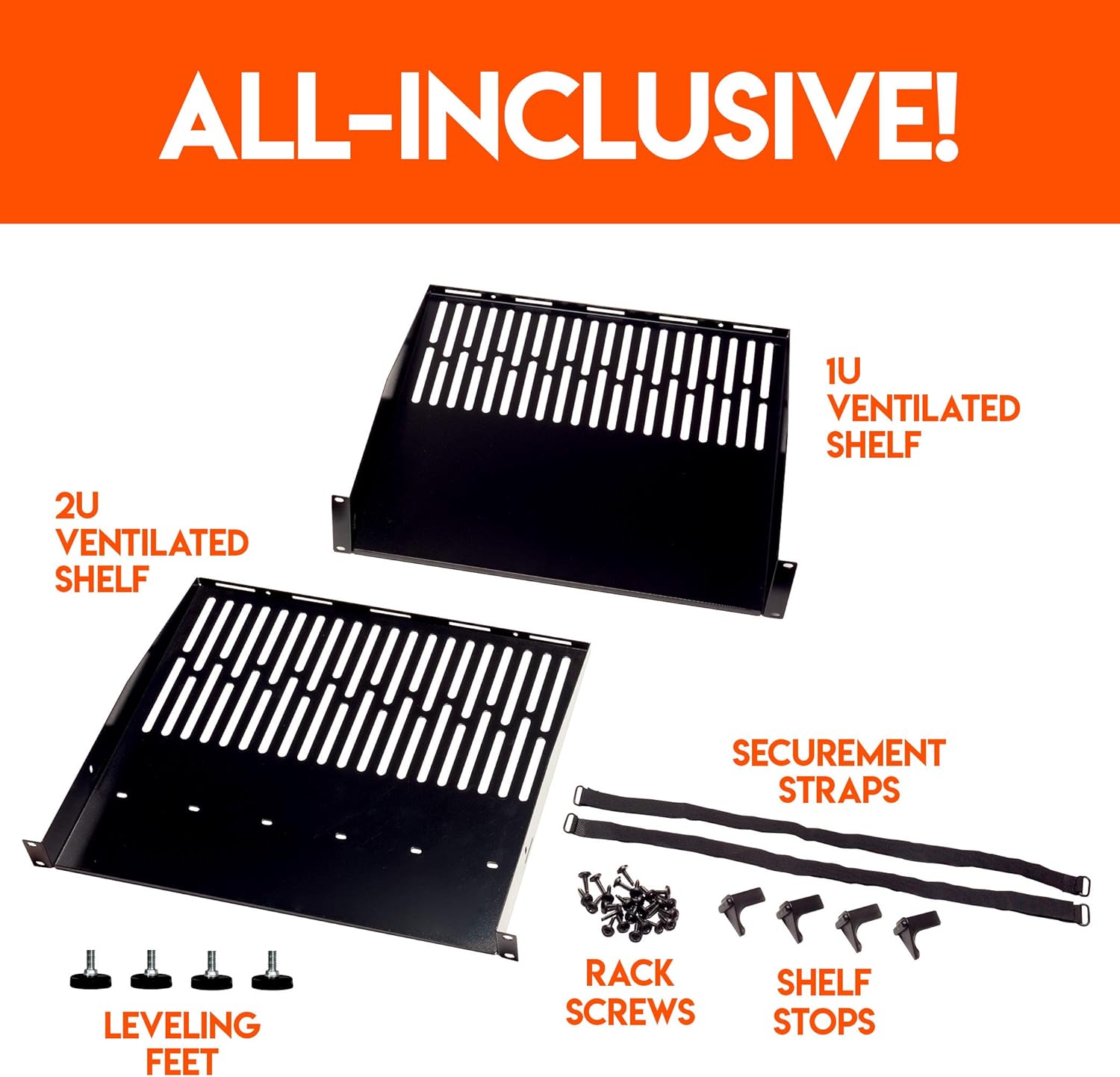

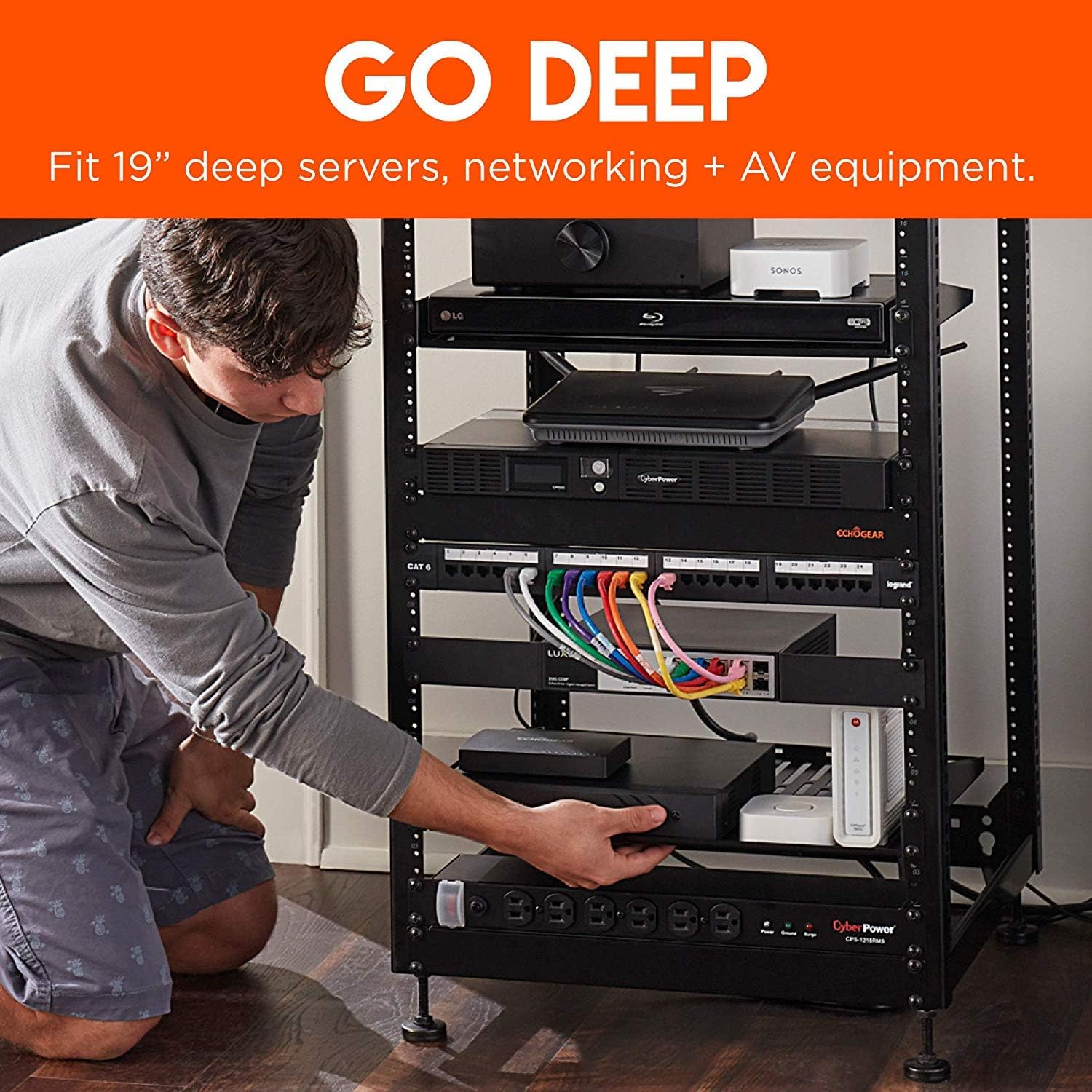

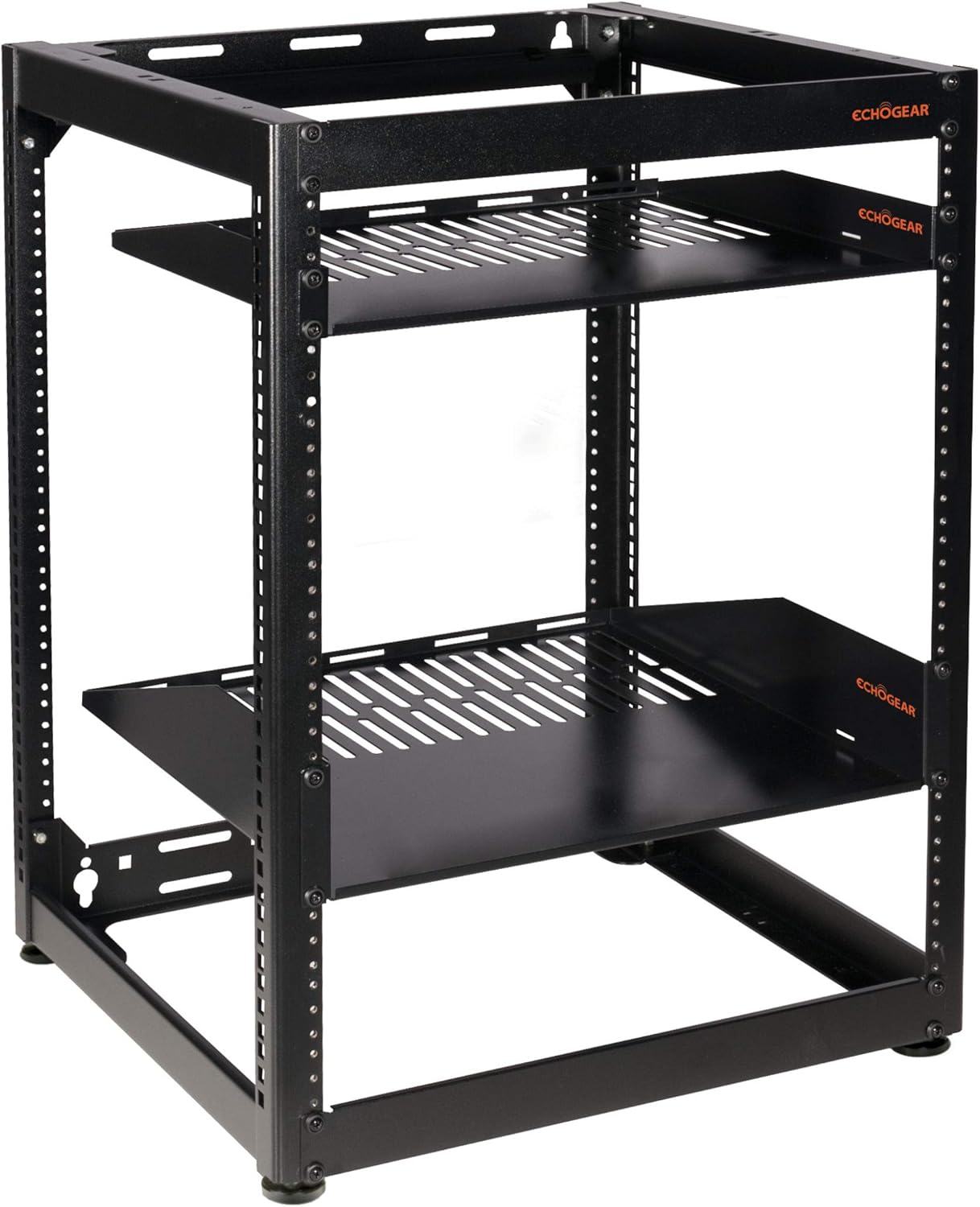

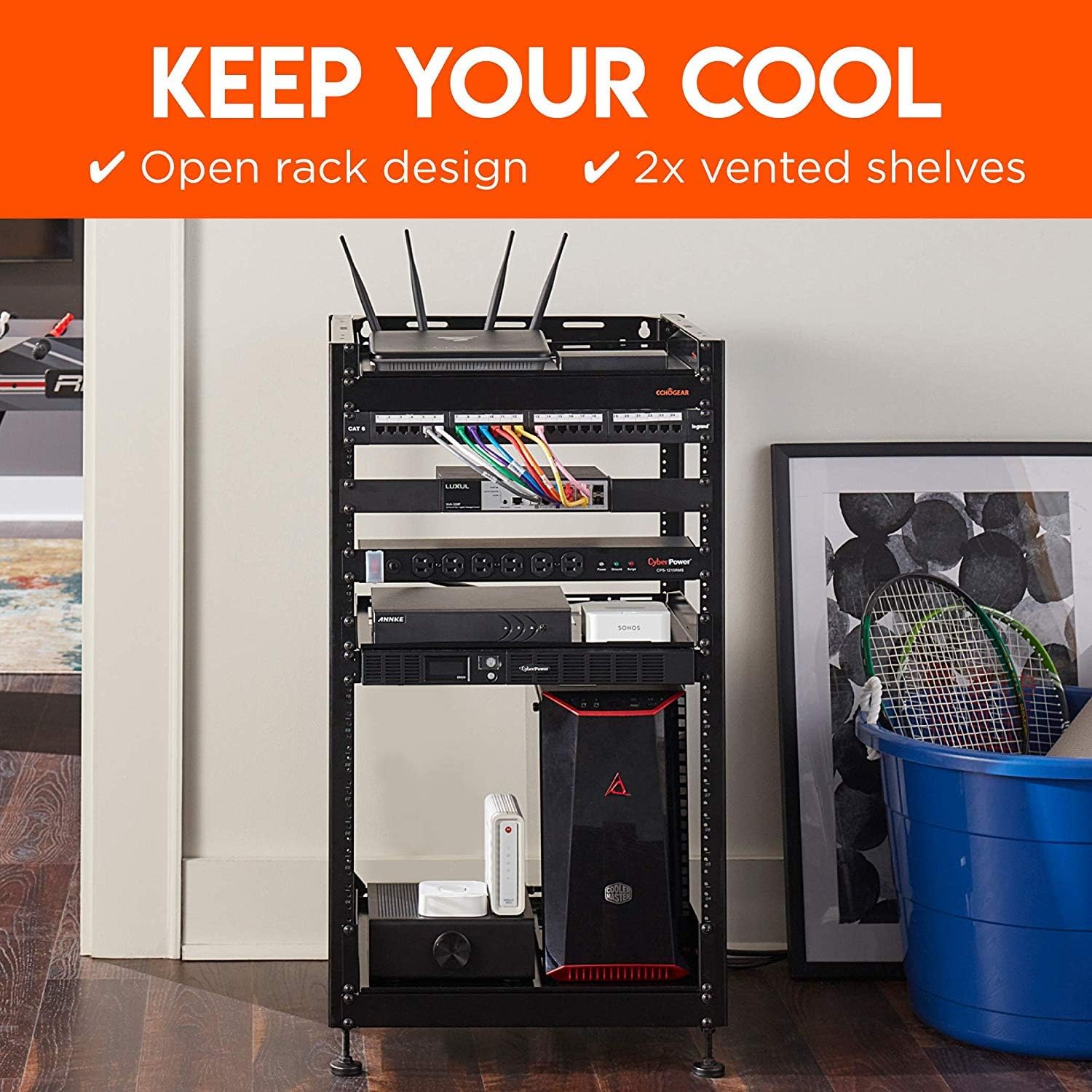

Includes all the goodies you need to rack 'em up: Entire 15U open frame rack structure, 4x leveling feet, 1x 1U vented shelf (15.12" deep), 1x 2U vented shelf (18" deep), and 25x rack mounting screws. Is it Christmas in here or is that just me?This rack's 20.24" deep design means it's perfect (and practically begging) for your networking, AV and rackmounted components up to 19" deep.This rack is ready to hang. (On the wall, we mean.) Wall-mounted or standing strong on included leveling feet, this rack's versatile design is ready to take on your setupOpen design and included vented shelves optimize air flow, keeping even today's hottest, high-end networking and AV components cool.Assembly is required, but it's simple. With all the included hardware & witty instructions, you'll have your rack ready for servers & networking gear in under 20 minutes.
|
| | | |
| Rack Units | 10 | 15 | 20 |

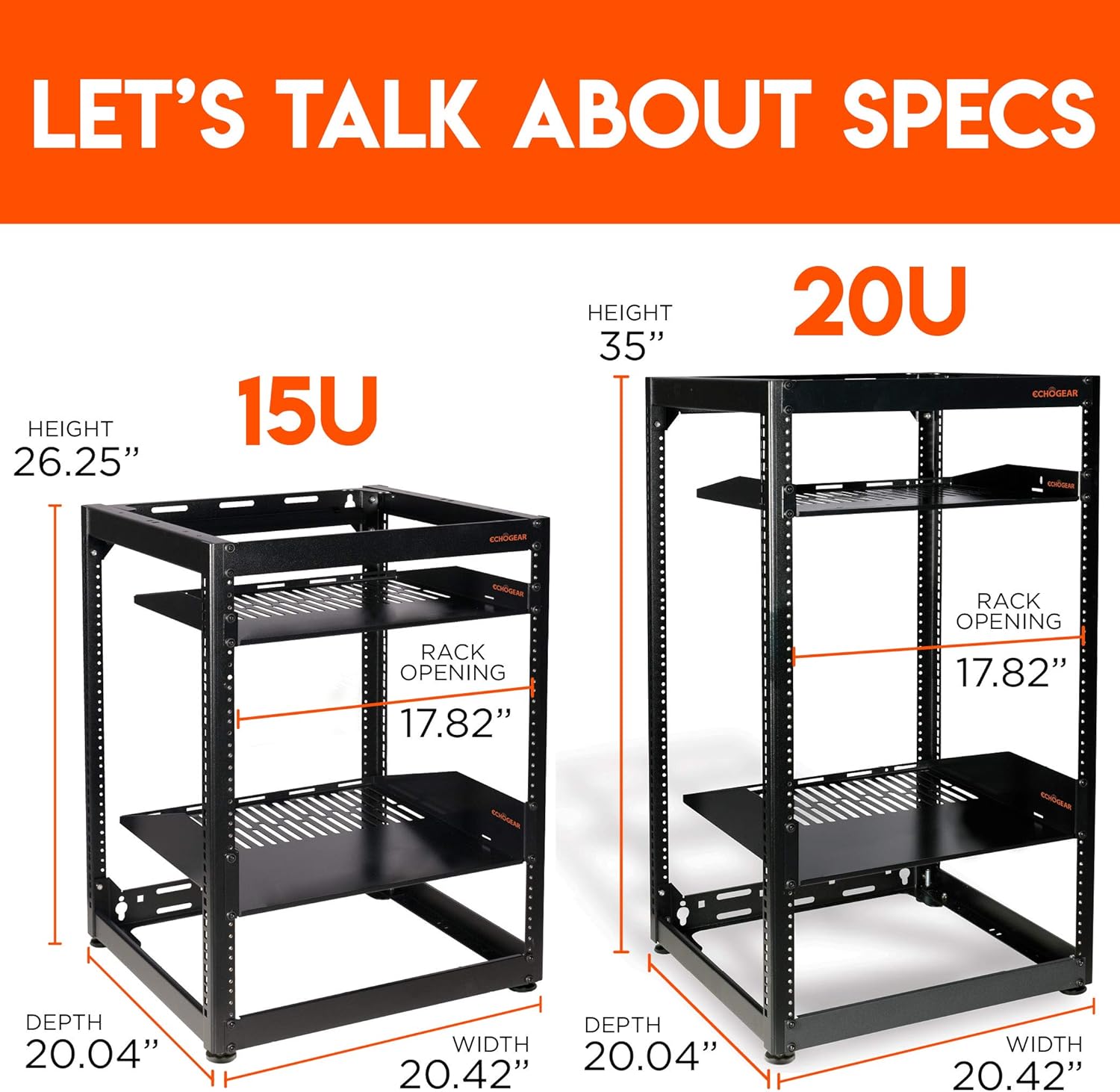

| Dimensions | 17.5" x 20.24" | 26.25" x 20.24" | 35" x 20.24" |
| Included Shelves | 2x 1U shelf | 1x 1U shelf & 1x 2U shelf | 1x 1U shelf & 1x 2U shelf |

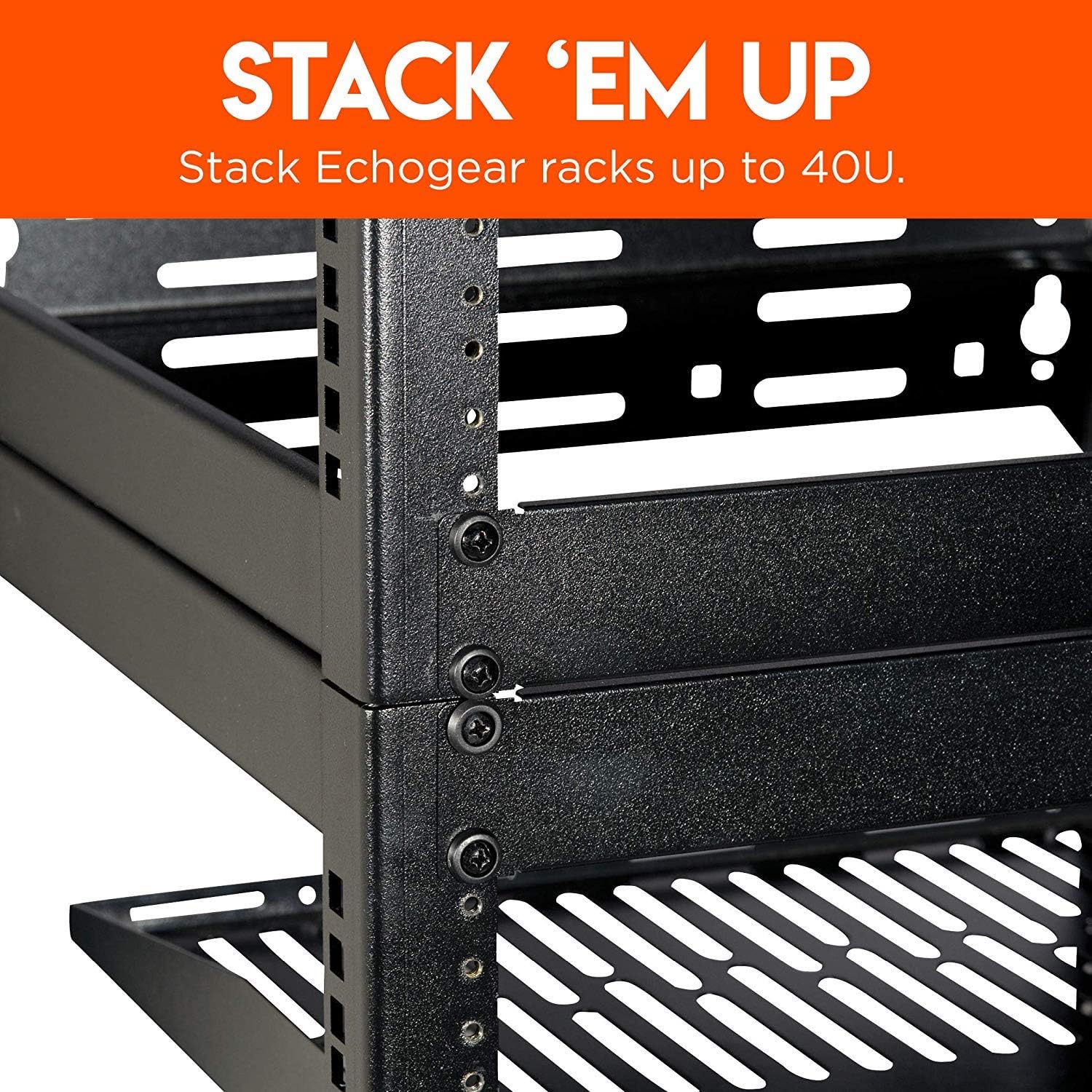

| Stackable | Up to 30U | Up to 35U | Up to 40U |
| Extras | 25 rack mounting screws, 2 securement straps, 4 shelf stops, & wall mount hardware | 25 rack mounting screws, 4 leveling feet, 2 securement straps, 4 shelf stops, & wall mount hardware | 25 rack mounting screws, 4 leveling feet, 2 securement straps, 4 shelf stops, & wall mount hardware |
| Wall Mountable | ✓ | ✓ | ✓ |
| Compatbile Echogear Accessories | Swing-out arm, caster kit, 1U shelves | Swing-out arm, caster kit, 1U shelves | Swing-out arm, caster kit, 1U shelves |
| Weight Capacity | 400lbs on the floor, 150lbs wall mounted | 600lbs on the floor, 200lbs wall mounted | 600lbs on the floor, 200lbs wall mounted |
