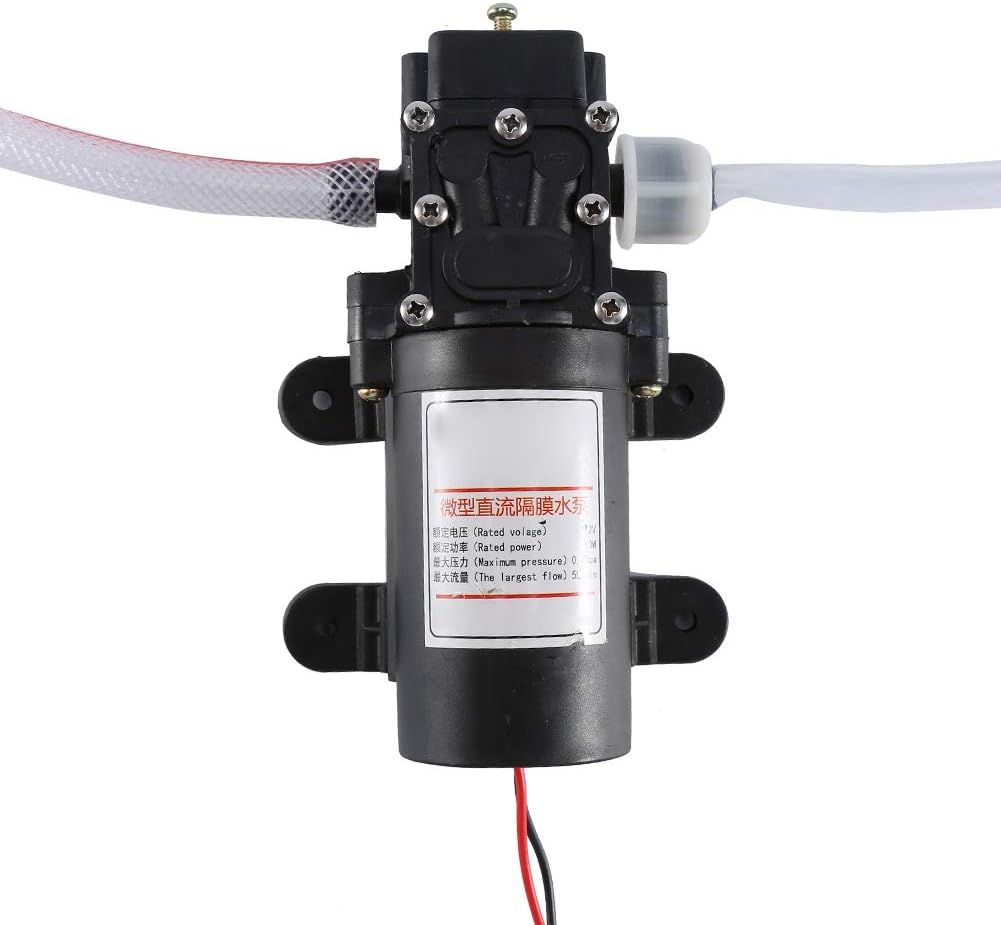

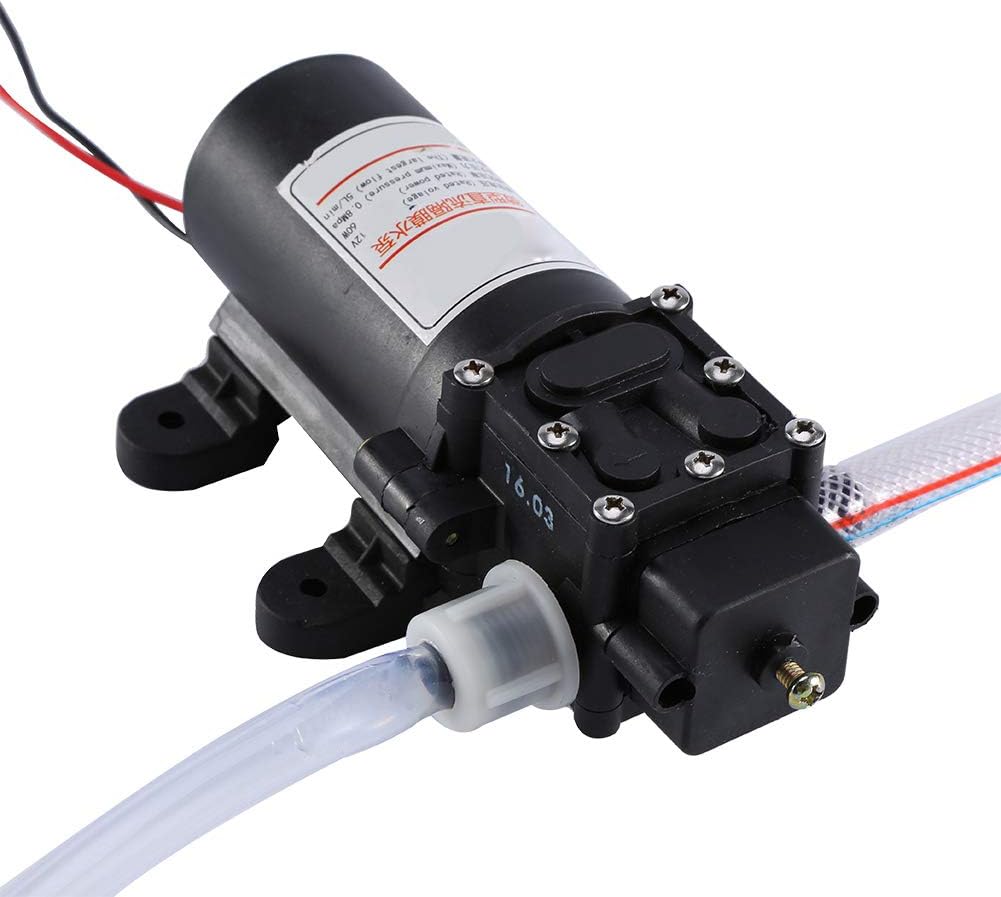

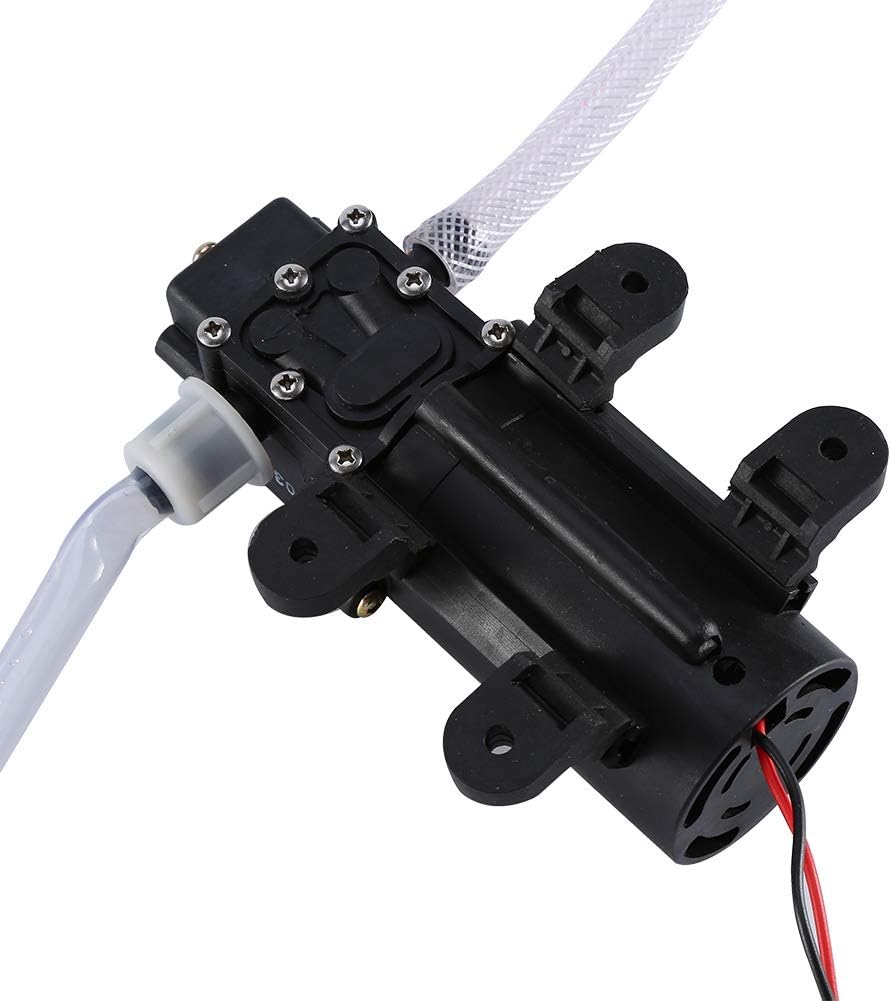

[12V Electric Oil Extractor Pump]: This electric oil extractor pump works by connecting the clamps to the 12V car-battery; Rated Power: 60W, maximum Pressure: maximum. 0.8MPA
[Powerful Motor]: The fluid oil extractor is equipped with the strong motor and adopting a continuous working principle, it will do a good help when you pump, the flew rate can up to 5L/min
[Easy to Use]: This electric oil change pump kit is with on/off power switch, very easy to use; The electric oil extractor pump comes with 11mm/8mm/6mm pipe, which allows this pump to be used in different environments conveniently
[Wide Application]: This oil pump extractor is widely used in general industrial equipment, chemical equipment, shipbuilding, drinks, carpet and floor cleaning, water purification and water treatment equipment, vehicle cleaning, agricultural spraying, etc
[Warm Prompt]: If you want to connect this pump to AC power, you will need a power converter; Please use when the engine is warm, the engine oil is warm and viscosity is lower, this will be easier and faster to pump
Features:
1. Widely used in general industrial equipment.

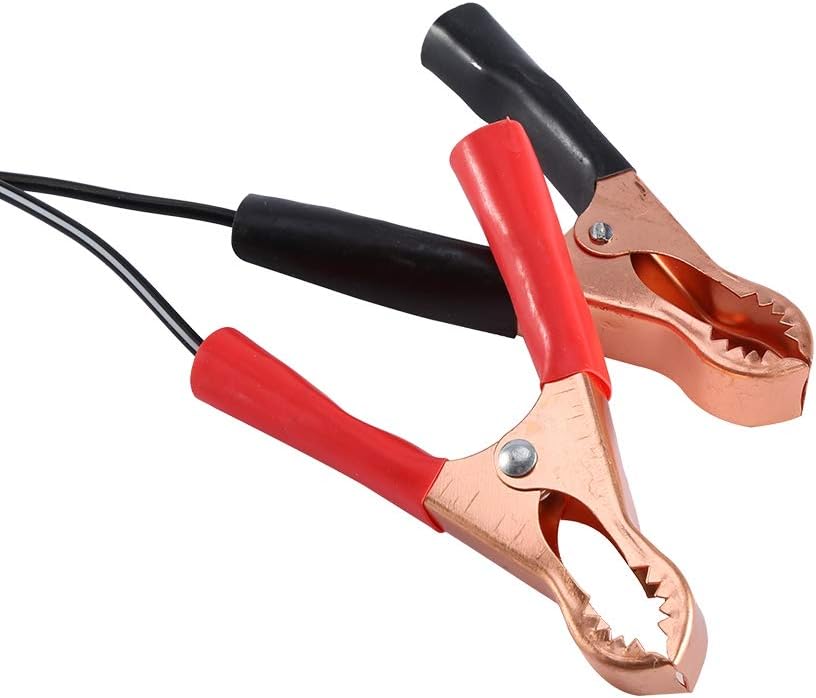

2. It works by connecting the clamps to the 12V car-battery.
3. An ideal equipment for quick and clean oil-changes.
4. Simple on/off power switch, easy to use.
Specifications:
Rated Voltage: DC 12V
Rated Power: 60W
maximum Pressure: maximum. 0.8MPA
maximum Flow: 5L/min
Pump Diameter: Approx. 4.8cm / 1.89'
Length: Approx. 14.5cm / 5.7'
Outlet Pipe Size(Dia.*L): Approx. 11mm*140cm / 0.43' * 55'
Inlet Pipe Diameter: Approx. 8mm & 6 mm / 0.31' & 0.24'
Inlet Pipe Length: Approx. 100cm / 39.37'
Cable Length: Approx. 30cm / 11.8'
Clips Length: Approx. 8cm / 3.15'
Main Color: Black
How to use:
1. Start to run the car engine for a while, when oil temperature turns to be about 50 degrees, start pumping oil.
2. Connect the pump to the power, run it for a while, and observe whether the inlet and outlet is normal.
3. Open the filler ,get dipstick out, force the tube into the bottom of the joint, until the tube does not move;
then put the inlet pipe from the oil dipstick into in end (the tube into the bottom of the tank, the bottom concave place, in order to pump the oil completely);
as no oil or pumping up very slowly or intermittently, it is generally caused by loose pipes and fittings.
You have to install the pipes and fittings again.)
4. After oil pumping, remove the tube, and then run the pump for a while, pump the remaining oil inside the pumping clean,
or pump water for a while until the pump head gets clean.
5. If you have not used it for a long time, it may have no suction, then just pour the water in the pump,
and run the pump for a few minutes until the air is all out.

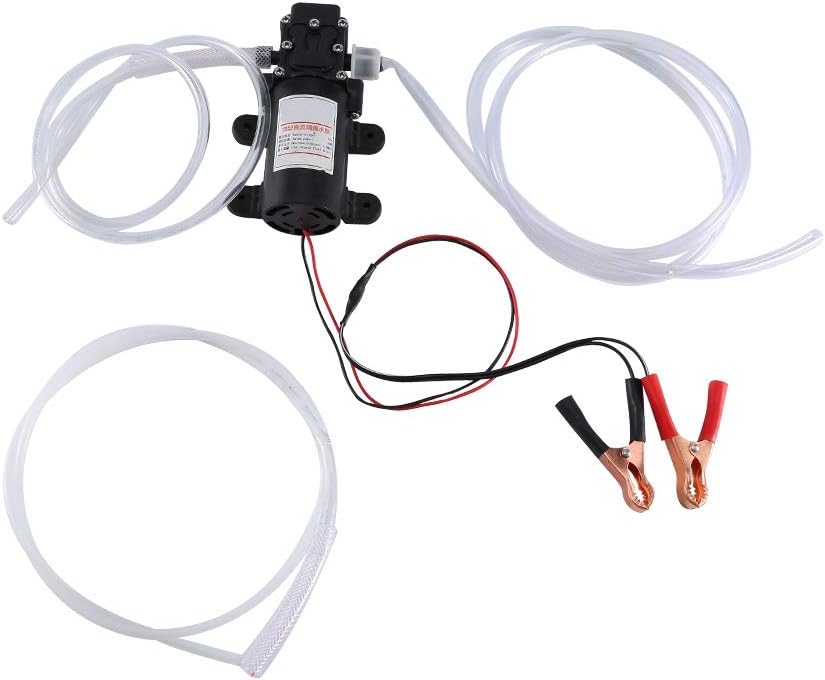

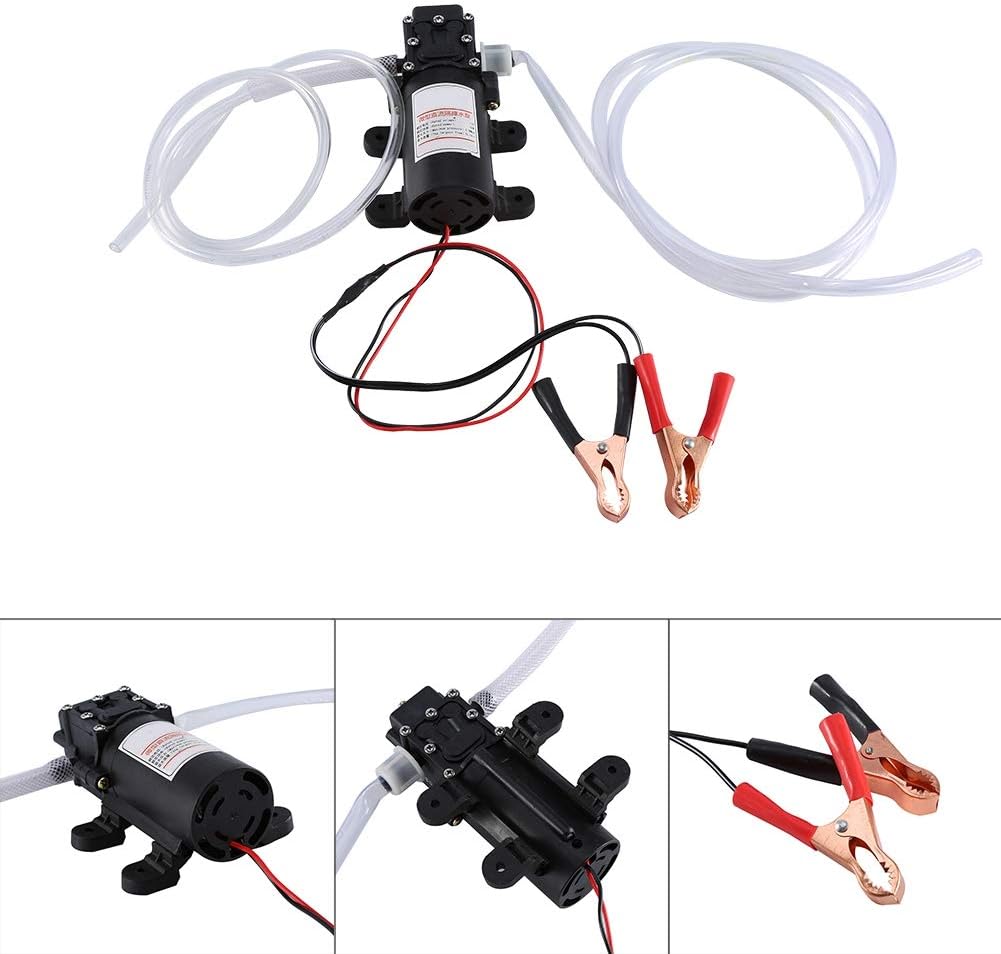

Package Inculded:
1 x oil pump
1 x 11mm outlet pipe
1 x 8mm inlet pipe
1 x 6mm inlet pipe
2 x clips
Note:
1. Please allow 1-3mm error due to manual
