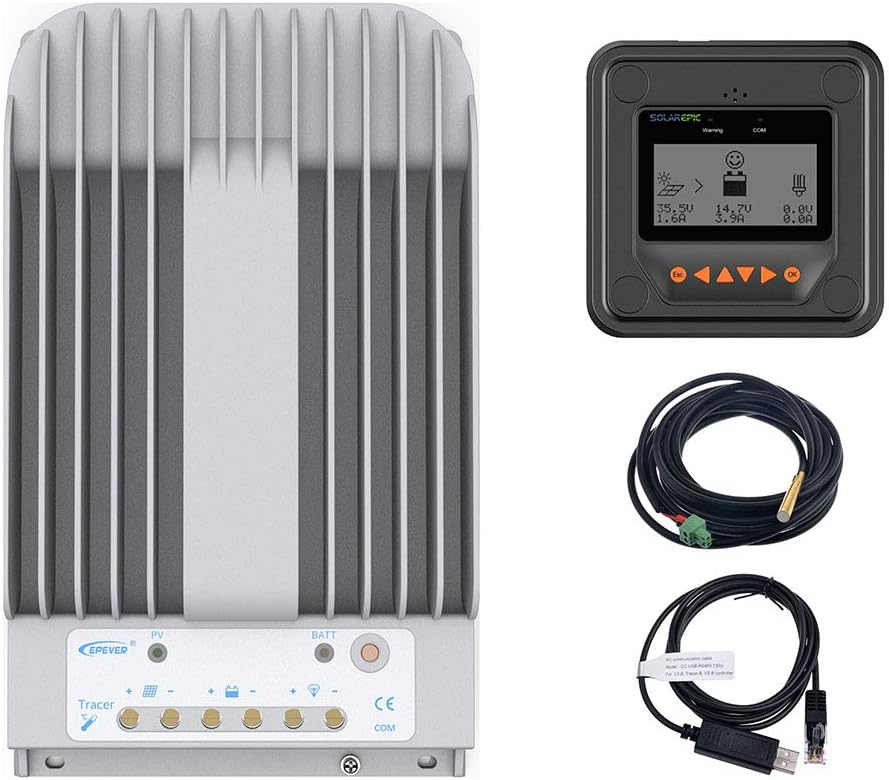

Negative Grounding MPPT Solar Charge Controller Tracer3215BN, The Advanced MPPT Control Algorithm makes this 30 Amp MPPT Controller Tracking Efficiency higher than 99.5%
150V Max PV Input Allow this Charge Controller Handles More Solar Panels Wiring in Series to minimize PV current, 5 x 12V Solar Panel Connecting in Series will be applicable
Work with all Lead Acid Batteries, Sealed AGM GEL and Flooded Battery, User mode allows buyer setting their own charging parameters

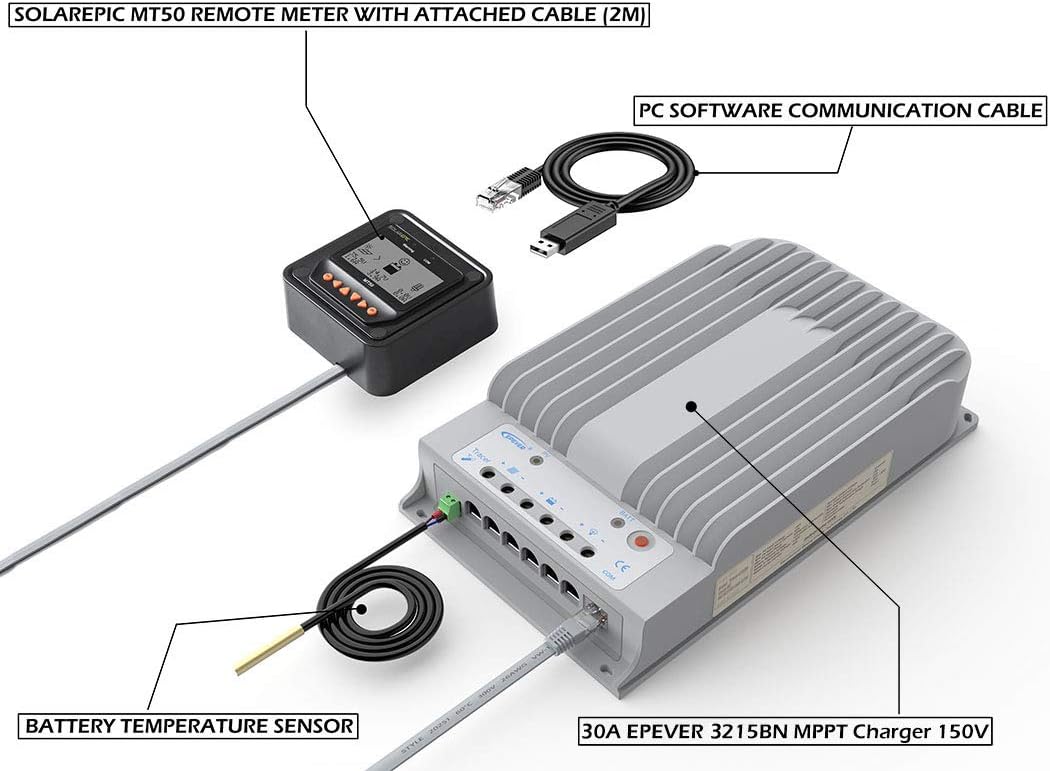

RS-485 communication bus interface and Standard MODBUS interface available to meet various communication requirements, Temperature Sensor and PC monitoring Cable Attached
This 30 amp MPPT Solar Panel Charger works with 390W Solar Panel on 12V Battery System and 780W on 24V Battery. Max Solar Panel 1170W, multiple load mode allow you set the load on/off in different situation. A Solid State Relay is recommended if you are using a Power Inverter
| |
| | 4215BN with MT50 Meter | 3210AN with MT50 Meter | Tracer 3210AN MPPT | Tracer 4215BN MPPT 40A | XTRA 3210N MPPT 30A | XTRA 3210N with MT50 Meter |
| Max PV Input Volt. | 150V/138V(At 25℃ temperature) | 100V/92V(At 25℃ temperature) | 100V/92V(At 25℃ temperature) | 150V/138V(At 25℃ temperature) | 100V/92V(At 25℃ temperature) | 100V/92V(At 25℃ temperature) |
| Grounding | Negative Ground | Negative Ground | Negative Ground | Negative Ground | Negative Ground | Negative Ground |
| Upper Case Material | Metal | Plastic | Plastic | Metal | Plastic | Plastic |
| Battery Type | Sealed, Gel and Flooded, User | Sealed, Gel and Flooded, User and Lithium | Sealed, Gel and Flooded, User and Lithium | Sealed, Gel and Flooded, User | Sealed, Gel and Flooded, User and Lithium | Sealed, Gel and Flooded, User and Lithium |
| Rated Input Power | 520W@12V / 1040W@24V | 390W@12V / 780W@24V | 390W@12V / 780W@24V | 520W@12V / 1040W@24V | 390W@12V / 780W@24V | 390W@12V / 780W@24V |
| Max Input Power | 1560W@12V/3120W@24V (12V or 24V refers to battery voltage) | 585W@12V / 1170W@24V (12V or 24V refers to battery voltage) | 585W@12V / 1170W@24V (12V or 24V refers to battery voltage) | 1560W@12V/3120W@24V(12V or 24V refers to battery voltage) | 580W@12V/1170W@24V(12V or 24V refers to battery voltage) | 580W@12V/1170W@24V(12V or 24V refers to battery voltage) |
