FEELWORLD F5 5 Inch DSLR On Camera Field Monitor Small Full HD 1920x1080 IPS Video Peaking Focus Assist with 4K HDMI 8.4V DC Input Output Include

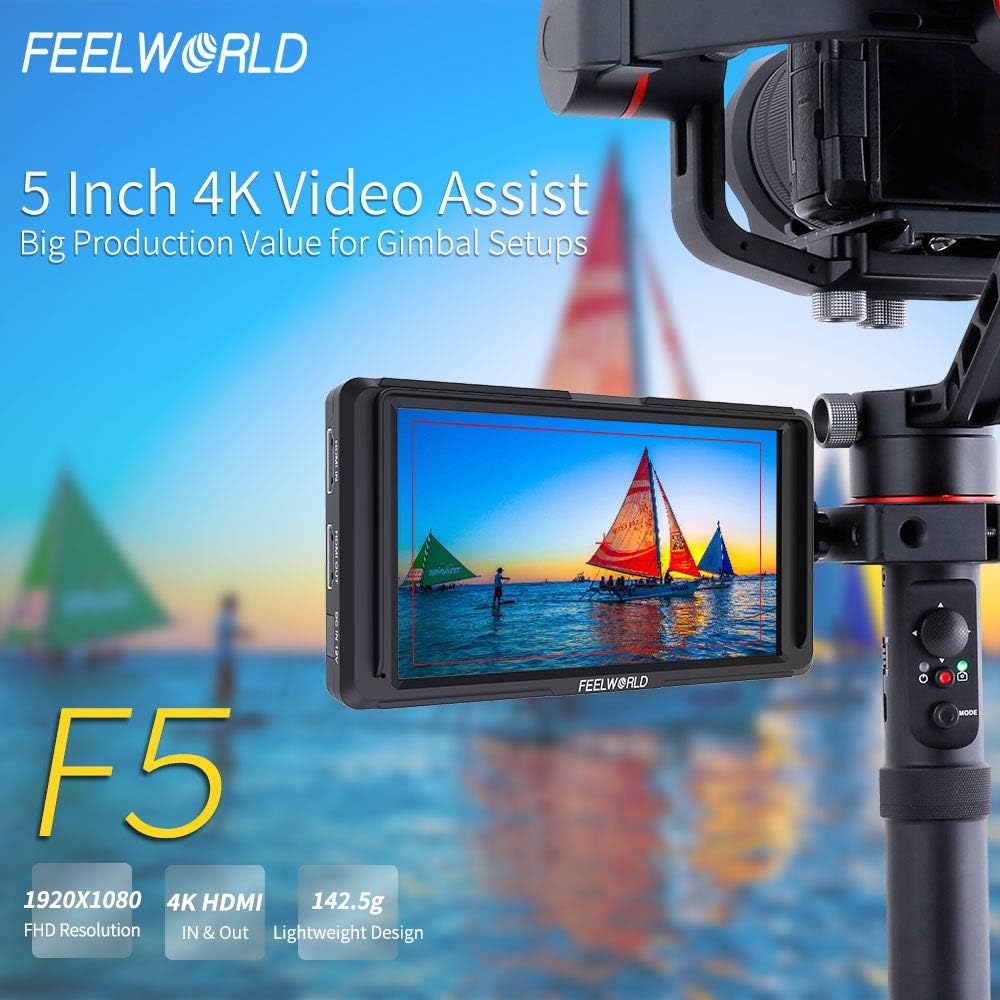

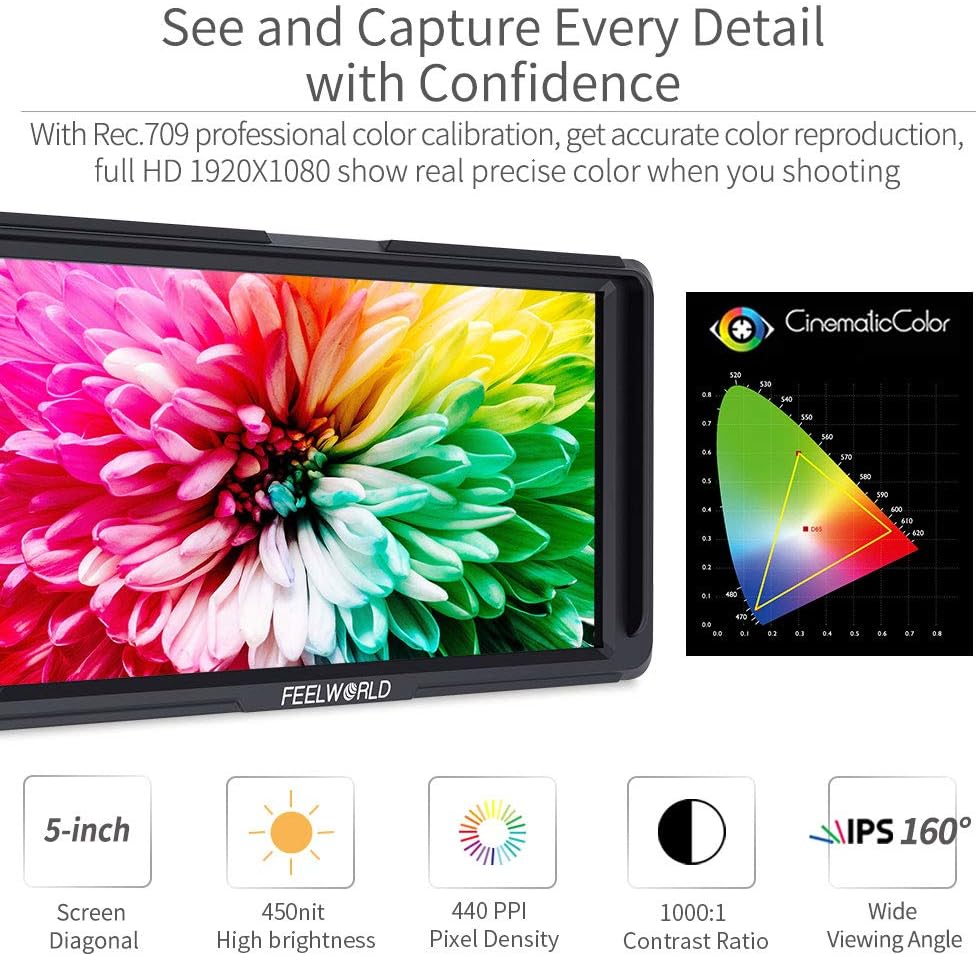

【Newest Improve User Experience Design】FEELWORLD F5 is 5 inch full HD 1920X1080 Full HD resolution, with Rec.709 professional color calibration, accurate color reproduction, small size light weight only 0.31lb, big production value for camera and gimbal setups.

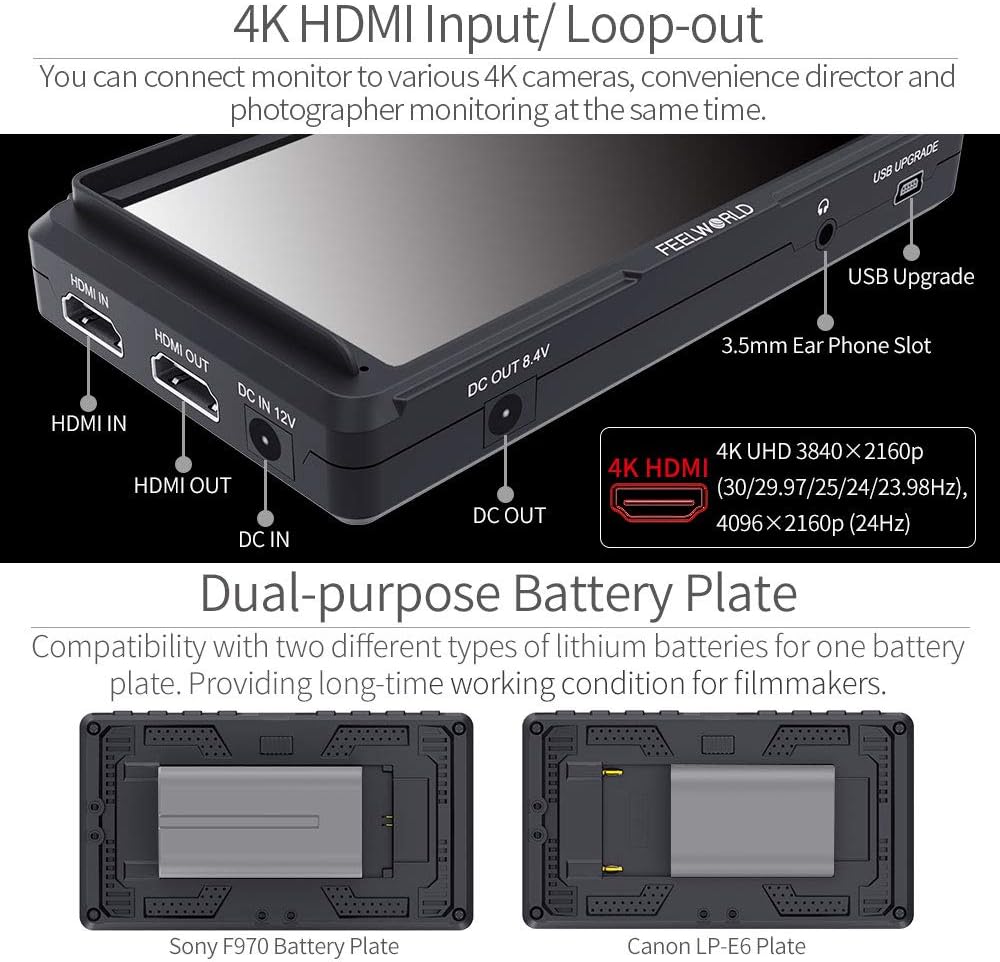

【4K HDMI Input/ Output Without Delay】Support 4K format: 4K UHD 3840×2160p (30/29.97/25/24/23.98Hz), 4096×2160p (24Hz). The HDMI output can transmission to broadcast monitor, convenience director and photographer monitoring at the same time.

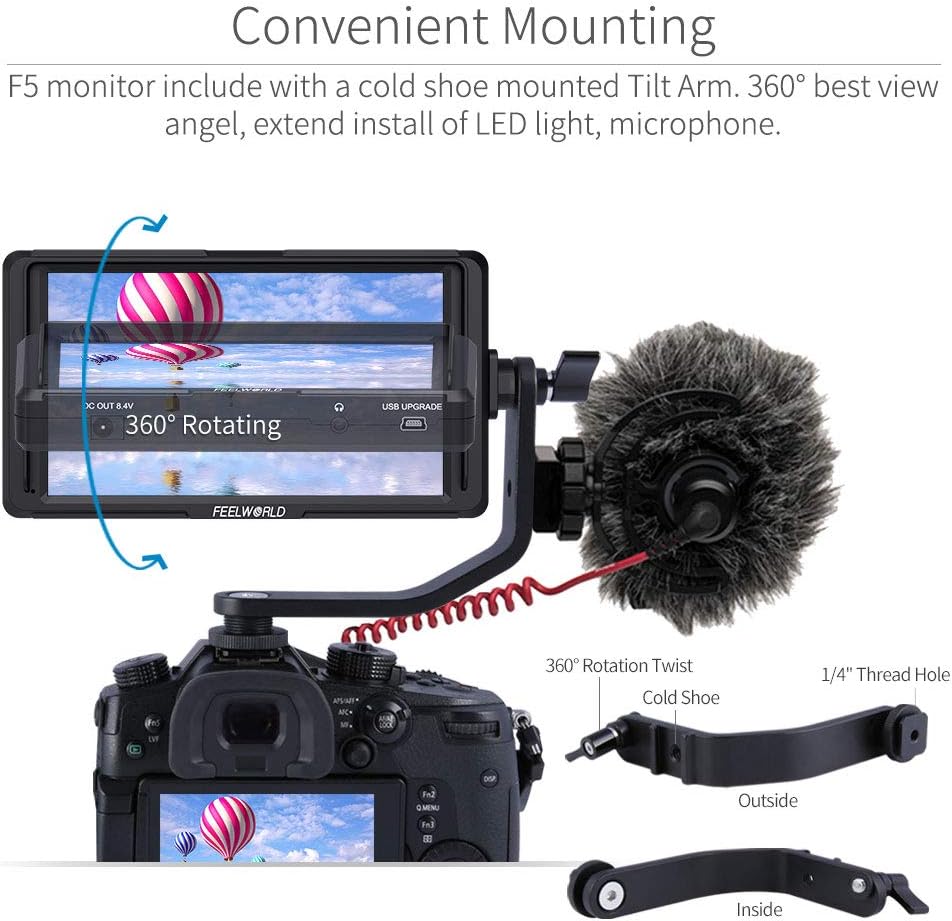

【360° Tilt Arm Better Monitoring Angel】F5 monitor include a cold shoe mounted tilt arm. 360 degrees better view angel, extend the application of LED light, microphone install.

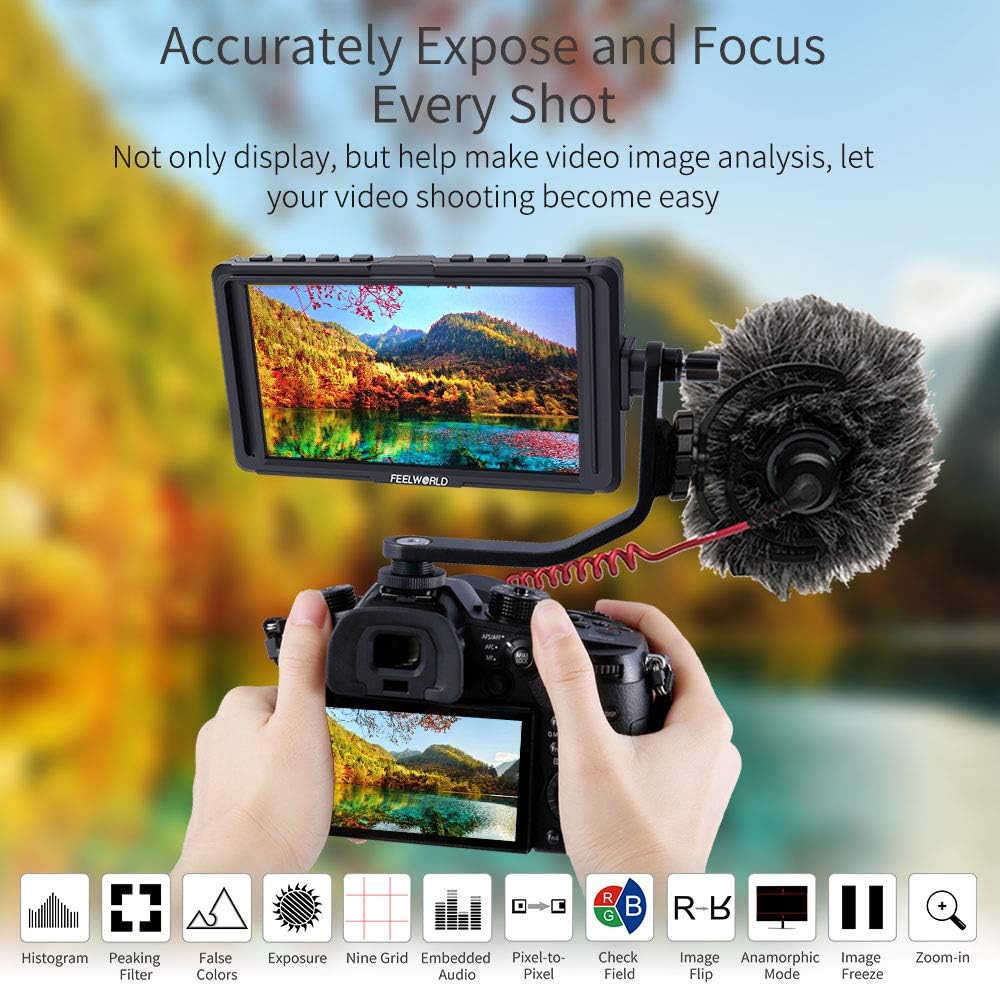

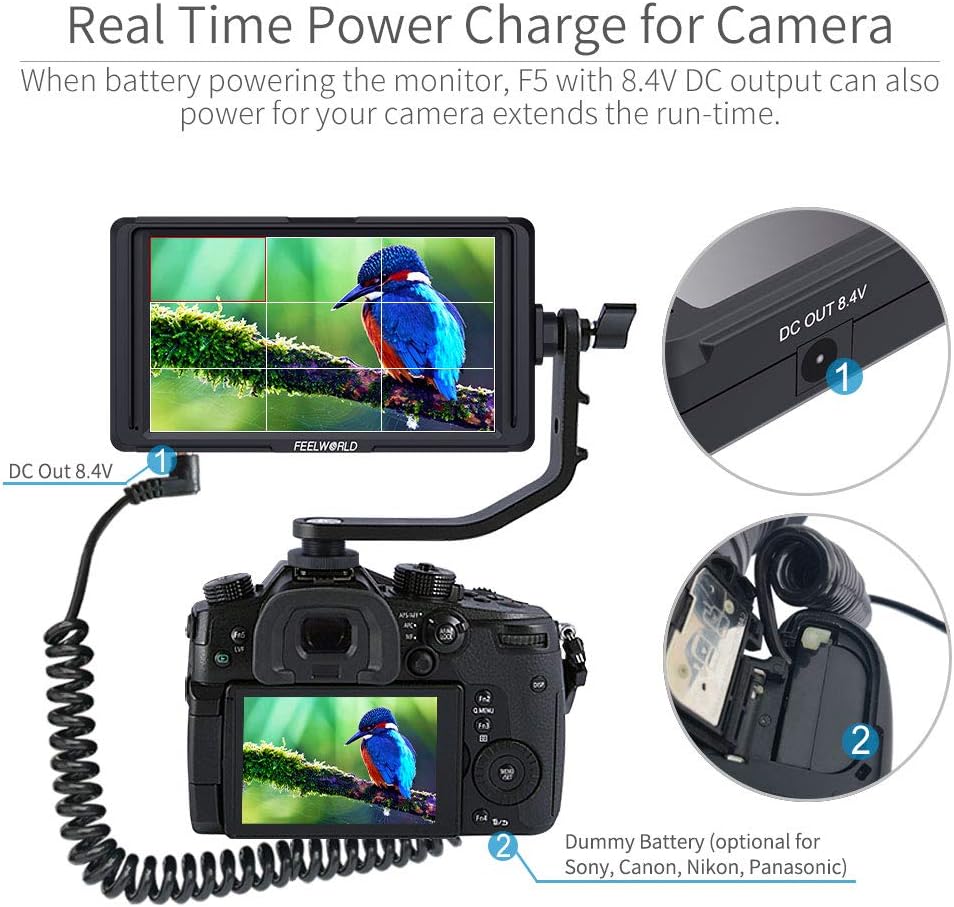

【8.4V DC Out for Power Camera】Real Time Power Charge for Camera When battery powering the monitor, Dummy Battery (optional for Sony, Canon, Nikon, Panasonic). Integrates with two battery plate: Sony F970, Canon LP-E6 【2 Fast Key for Quick Operation】F5 not only display, but also intergrates video image analysis function, like Focus Assist ,Histogram, False Colors, Zebra Exposure etc.

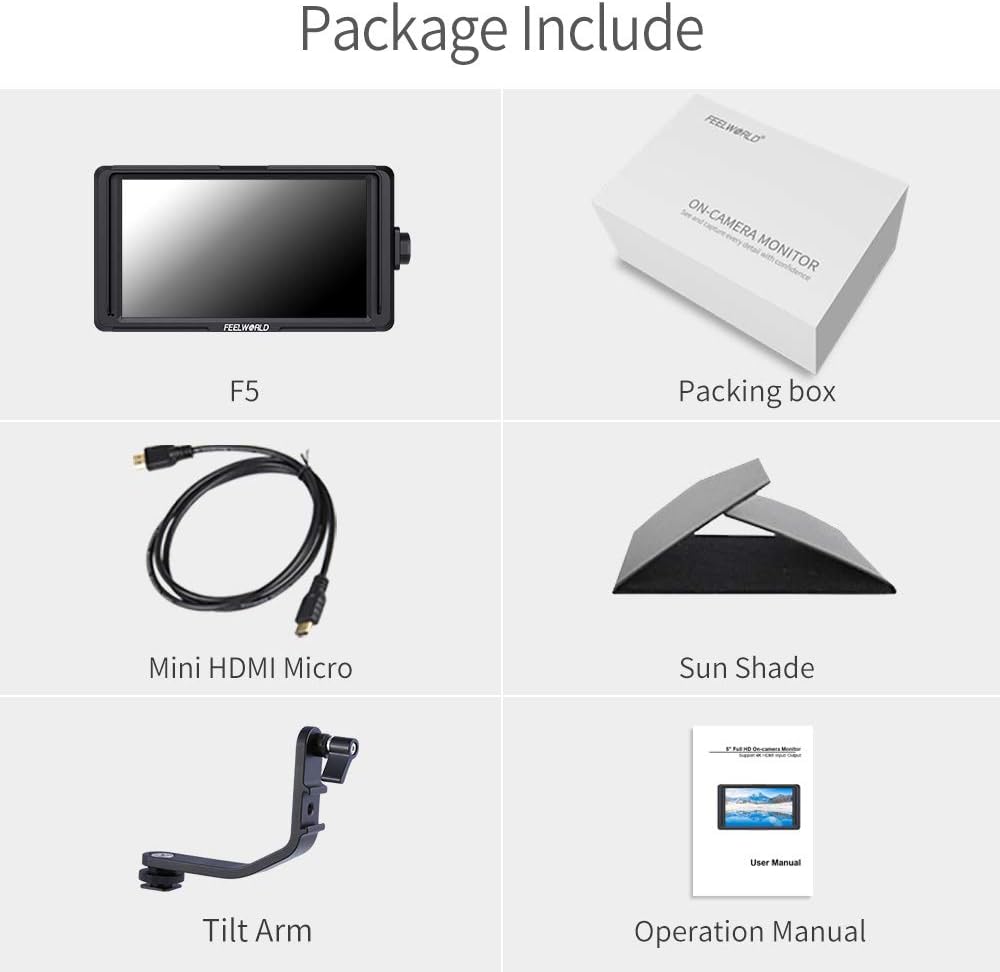

【Package Include】1× F5 Monitor, 1× Micro HDMI Cable, 1× Sunshade, 1× Tilt Arm, 1× Manual【Note: battery not include】【One year warranty】We are the FEELWORLD Official Store, if you have any question, just feel free to contact us, we will do our best to help you solve the problem.

	FEELWORLD FW568 V2 5.5 inch DSLR Camera Field Monitor with Waveform LUTs 4K HDMI	FEELWORLD F5 Pro 5.5 Inch Touchscreen Monitor with F970 External Kit Install	FEELWORLD LUT5 5.5 Inch 3000nits Ultra Bright DSLR Camera Field Monitor	FEELWORLD FT6 FR6 5.5 Inch Wireless Video Transmission DSLR Camera Field Monitor	SEETEC P133-9HSD 13.3 Inch SDI Broadcast LCD Director Studio Production Monitor	LAIZESKE W1000S Wireless Video Transmission System SDI Dual HDMI 1000FT 0.08S
Screen Size	5.5" IPS	5.5" Touch Screen	5.5" Touch Screen	5.5" Touch Screen	13.3" IPS	OLED Screen
Resolution	1920x1152 pixels	1920 x 1080 pixels	1920x1080 pixels	1920x1080 pixels	1920x1080 pixels
Aspect Ratio	16:9	16:9	16:9	16:9	16:9
Brightness	500cd/m²	500cd/m²	3000cd/m²	500cd/m²	400cd/m²
Contrast	1000:1	1000:1	1000:1	1000:1	1000:1
Inputs	HDMI	4K HDMI, Type-C 5V In	HDMI	HDMI	3G-SDI, HDMI, YPbPr, DVI-I, Video, Audio(L/R)	3G-SDI HDMI
Outputs	HDMI, Stereo Headphone, DC OUT 8.4V, Barrel (5.5mm outer, 2.1mm inner; Power DSLR or mirrorless camera)	4K HDMI, Stereo Headphone, DC OUT 8.4V, Barrel (5.5mm outer, 2.1mm inner; Power DSLR or mirrorless camera)	HDMI, DC OUT 8V, Stereo Headphone	HDMI, Stereo Headphone, DC OUT 8V, Barrel (5.5mm outer, 2.1mm inner; Power DSLR or mirrorless camera)	3G-SDI, HDMI, YPbPr, Video, Stereo Headphone, Speaker(built-in)	3G-SDI, HDMI
Features	3D LUT, Waveform, Histogram, Peaking Focus Assist, False Colors, Zebra Exposure, Nine Grid, Scan Mode, Zoom, Anamorphic Mode, Pixel to Pixel, Center Marker, Safe Area, Ratio marker, Marker Color, Check Field, Image Flip, Image Freeze, Zoom All	3D LUT, Histogram, Peaking Focus Assist, False Colors, Zebra Exposure, Nine Grid, Scan Mode, Zoom, Anamorphic Mode, Pixel to Pixel, Center Marker, Safe Area, Ratio marker, Marker Color, Check Field, Image Flip	3D LUT, HDR, Waveform, Vector Scope, RGB Histogram, Peaking Focus Assist, False Colors, Zebra Exposure, Scan Mode, Zoom, Anamorphic Mode, Pixel to Pixel, Nine Grid, Center Marker, Safety Marker, Ratio Marker, Check Field, Image Flip	3D LUT, HDR, All Waves display, Parada, Vector, Histogram, Focus assist, False color	Peaking Focus Assist, Check Field, Camera Mode, Pixel to Pixel, Center Marker, Safe Marker, Image Flip, Image Freeze, Zoom All, U/D & L/R Zoom	1000ft transmission range, 0.08S low latency, support 1080P@60Hz, Wireless full-duplex talkback, transmitter can be switched as a receiver, One TX to multiple RX, APP monitoring for Android/iOS, 13 frequency channels, AUTO channel scan
Unit Size	142Lx87.2Hx27.5D (mm)	148Lx93Hx20D (mm)	142Lx86Hx28D(mm)	148Lx103.5Hx41W (mm)	315.5L×231H×26.4D mm (W/O Bracket)	67L*24W*118H (excluding antenna）
Unit Weight	175g	245g	270g	370g	1.64kg (W/O Bracket)/ 1.96kg (W/Bracket)	128g (One Unit)
