Durable cast iron pump housing built to withstand the wear and tear of rough operating environments
Removable junction box allows for easier installation
Thermal overload protection prevents motor from overheating during abnormal usage
Pump is capable of pumping fluid out of an 8' deep storage tank at sea level
Rugged switch lever is designed to endure heavy abuse

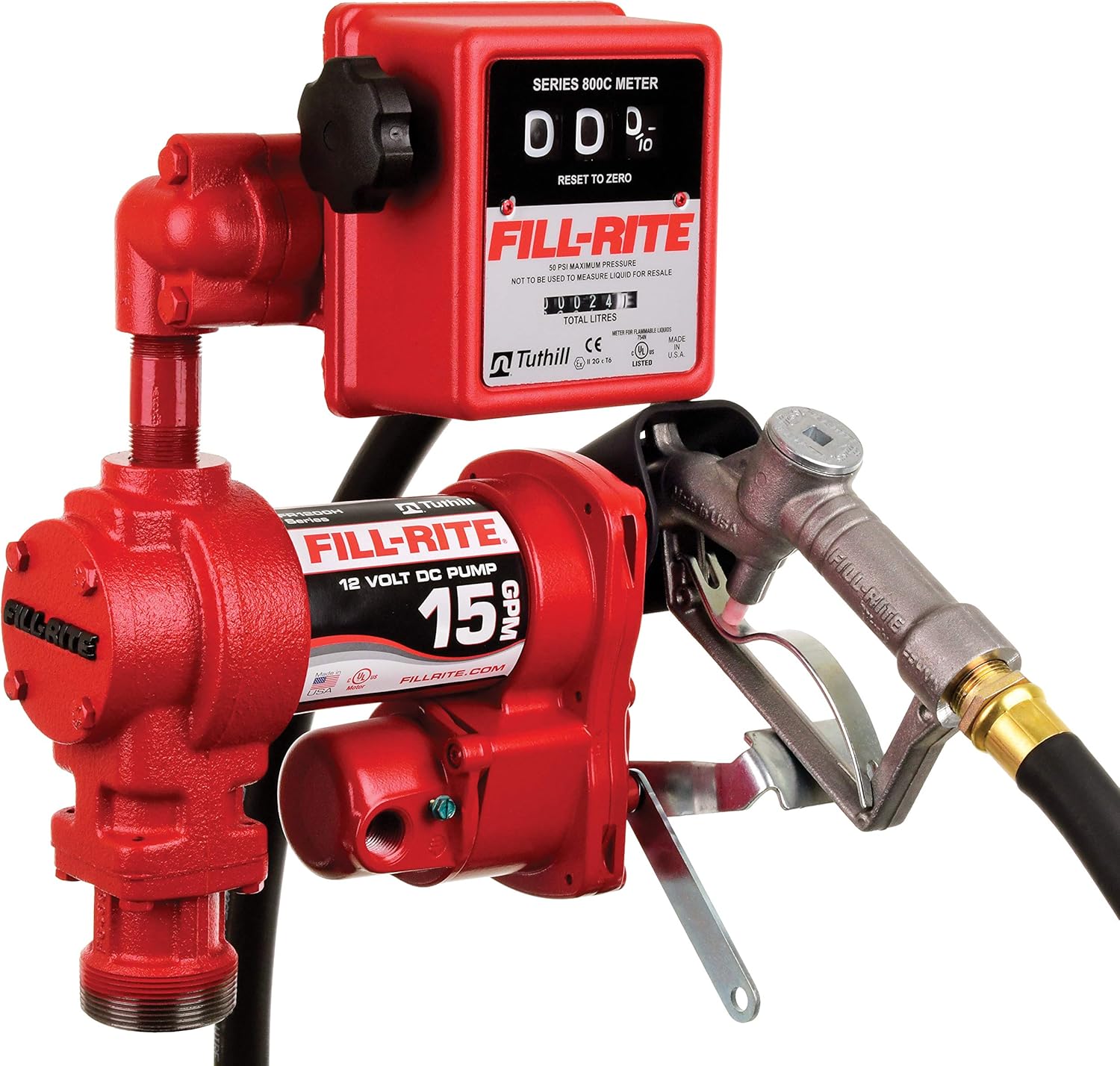

The FR1211H is a 12V 15 GPM fuel transfer pump that comes with a 807C mechanical meter (liters), 3/4' x 12' discharge hose, 3/4' manual nozzle, 34' steel telescoping suction pipe, 18' 12 GA power cable, 3/4' x3' pipe nipple, ground wire, (2) wire nuts, and (2) rolls of PTFE tape. It can be used to pump gasoline, diesel, kerosene, ethanol blends up to 15%, methanol blends up to 15%, and bio-diesel up to B20.
|
| FR1210H | FR1210HARC | FR1220HDSQ | FR1220HDSFQ | FR1211H | FR1219H |
| Nozzle | 3/4' Manual | 3/4' Auto (Blue) | 3/4' Auto (Green) | 3/4' Auto (Green) | 3/4' Manual | 3/4' Manual |
| Discharge Hose | 3/4' x 12' | 3/4' x 15' | 3/4' x 18' | 3/4' x 18' | 3/4' x 12' | 3/4' x 12' |
| Meter | --- | --- | --- | --- | 807C | TT10AN |
| Suction Pipe | 1' x 34' Steel Telescoping | 1' x 34' Steel Telescoping | 1' x 34' Steel Telescoping | 1' x 34' Steel Telescoping | 1' x 34' Steel Telescoping | 1' x 34' Steel Telescoping |
| Battery Cable | 18' (12G) | 18' (12 AWG) | 20' (12 AWG) | 20' (12 AWG) | 18' (12 AWG) | 18' (12 AWG) |
| Filter | --- | --- | --- | Particulate 10 Micron | --- | --- |
| Swivel | --- | 3/4' Swivel | 3/4' Swivel | 3/4' Swivel | --- | --- |
