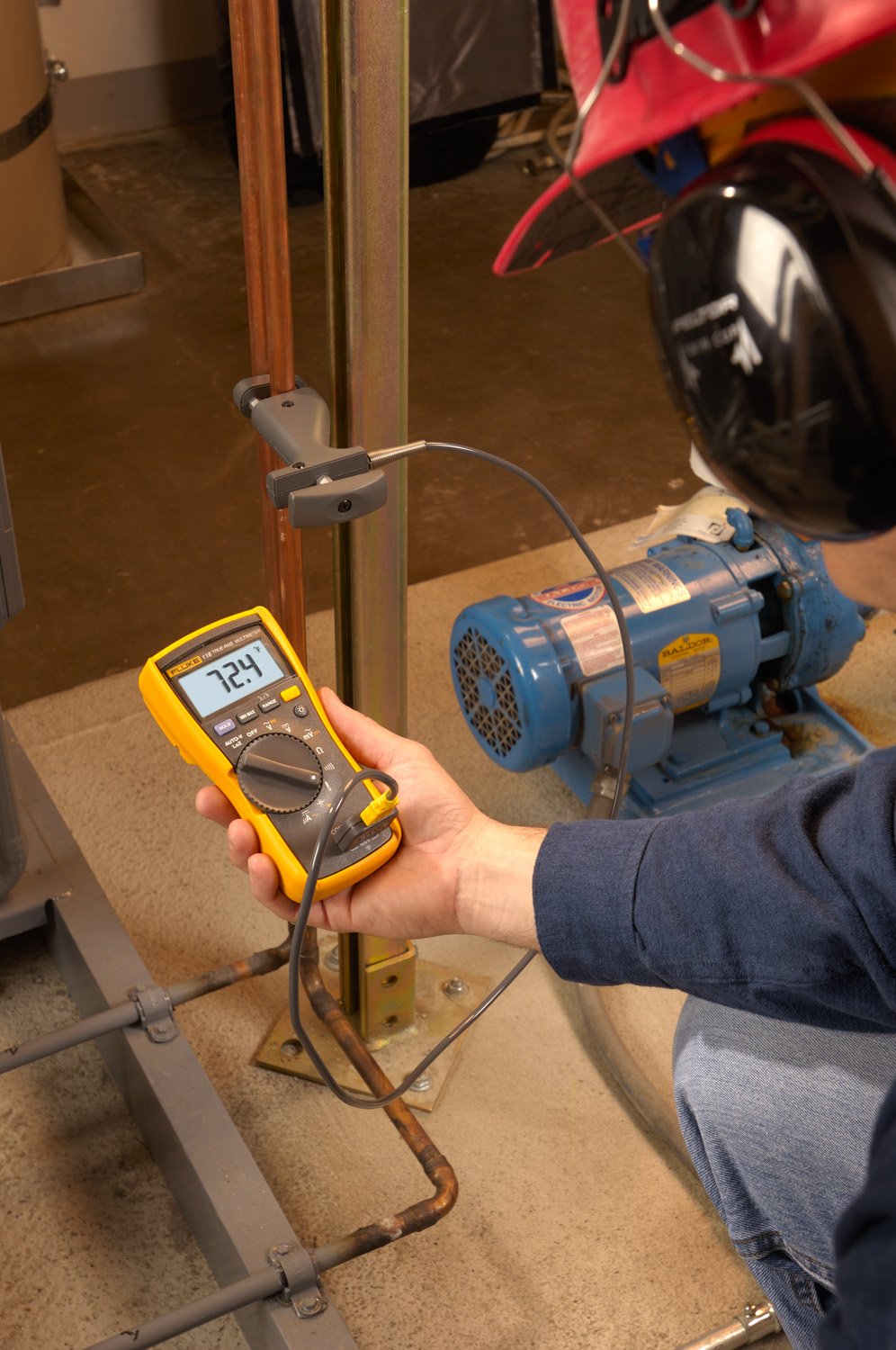

The fluke 116 digital multimeter features a built-in thermometer for HVAC applications
Fluke 116 digital multimeter features micro amps to test flame sensors
Fluke 116 digital multimeter low input impedance helps prevent false readings due to ghost voltage

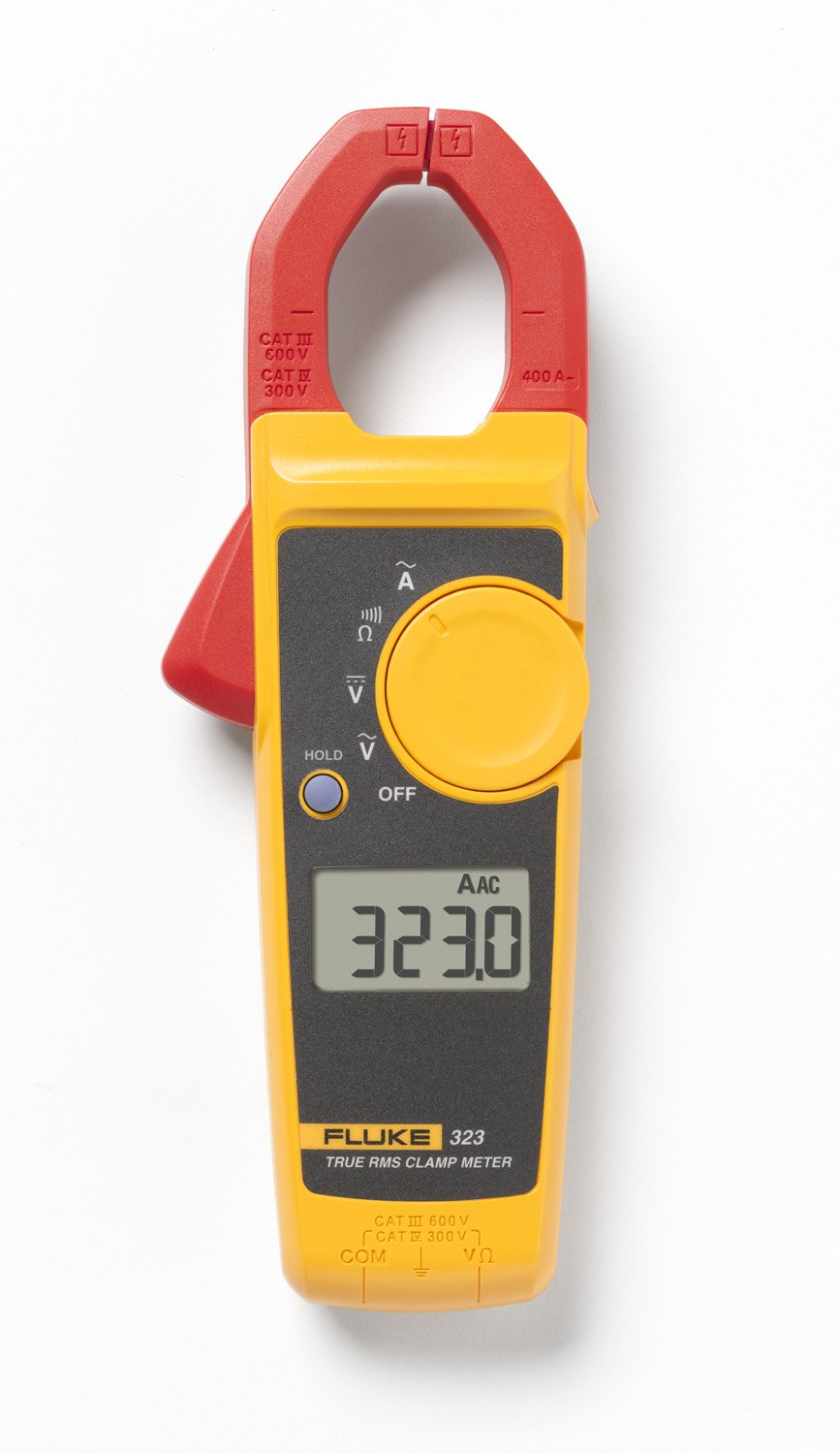

Fluke 323 true RMS clamp meter measures 400 A AC current and 600 VAC and DC voltage
Fluke 323 true rms clamp meter features true RMS AC voltage and current for accurate measurements on non linear signals

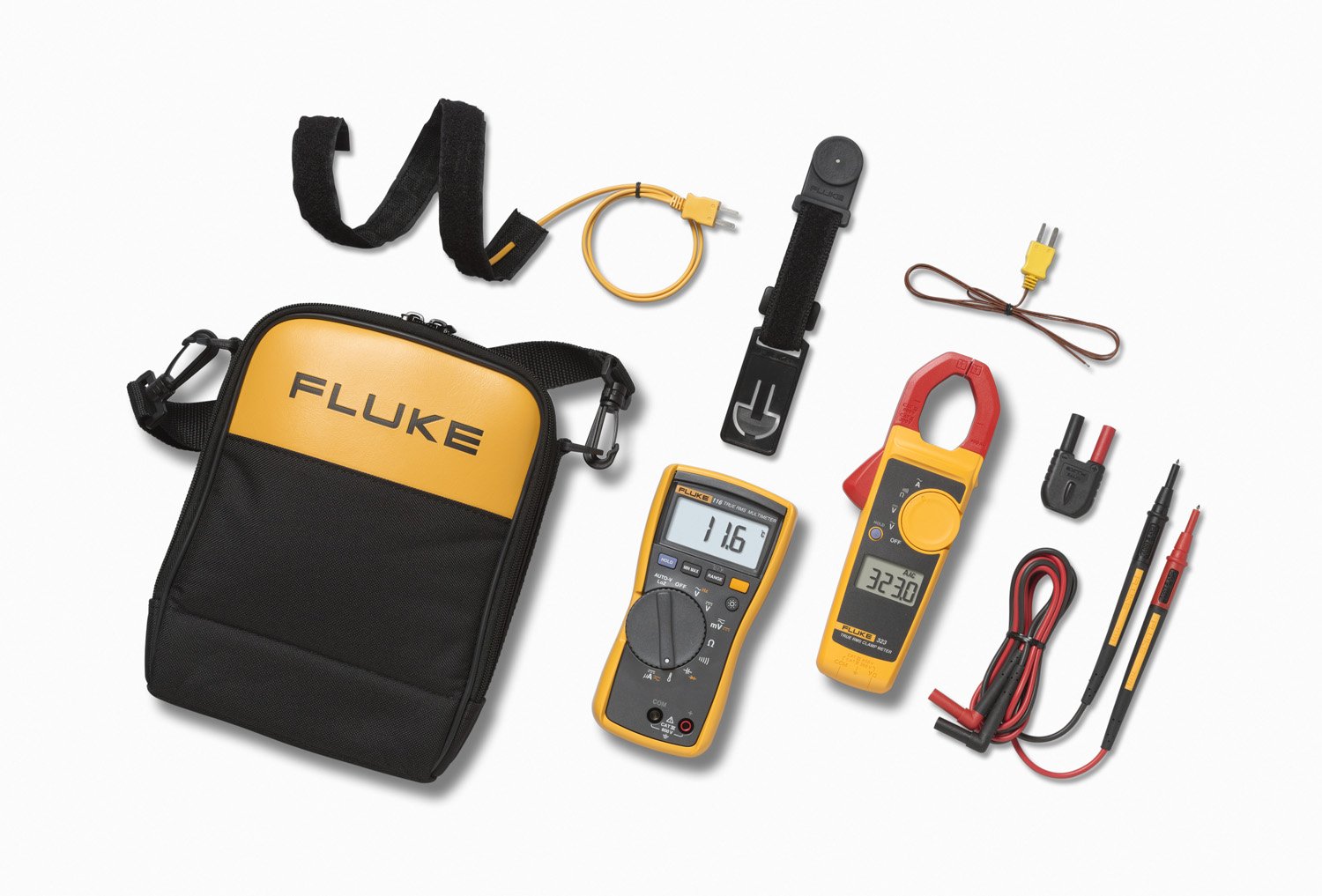

For the complete solution to HVAC troubleshooting the extra value packed HVAC Technician's Combo Kit, provides the ability to troubleshoot and solve problems more efficiently by providing all the needed accessories an HVAC professional would need in a compact carry case.
|
| Fluke 116 | Fluke 87-V Multimeter | Fluke 3000FC Multimeter | Fluke 1587FC Insulation Multimeter | Fluke 279FC Thermal Multimer |
| CAT Rating | CAT III 600V | CAT III 1000V / CAT IV 600V | CAT II 1000v / CAT IV 600V | CAT III 1000V/ CAT IV 600V | CAT III 1000V / CAT IV 600V |
| True-rms Readings | | | | | |
| Voltage AC/DC | 600 V | 1000V | 1000V | 1000V | 1000V |
| Current AC/DC | 600 μA | 10A | 400mA | 400mA | 2500A AC (With iFlex) |
| Resistance | 40 MΩ | 50 MΩ | 50 MΩ | 50 MΩ | 50 MΩ |
| Capacitance | 10,000 μF | 10,000 μF | 10,000 μF | 10,000 μF | 10,000 μF |
| Temperature | (+) 400 °C | (+) 1090 °C | (with t3000 FC) | (+) 537 °C | Infrared camera -10 °C to 200 °C |
| Infrared Camera | | | | | |
| Additional Measurement Capabilities | Frequency, Continuity/diode test, Low input impedance, Microamps, Analog bar graph | Frequency, Continuity/diode test, Motor drive (ASD) measurement, Duty cycle, Microamps, Analong bar graph, Relative reference | Frequency, Continuity/diode test | Frequency, Pi/DAR timed ratio tests, Continuity/diode test, Motor drive (ASD) measurements, Microamps, Relative reference | Frequency, Continuity/diode test, Motor drive (ASD) measurements |
