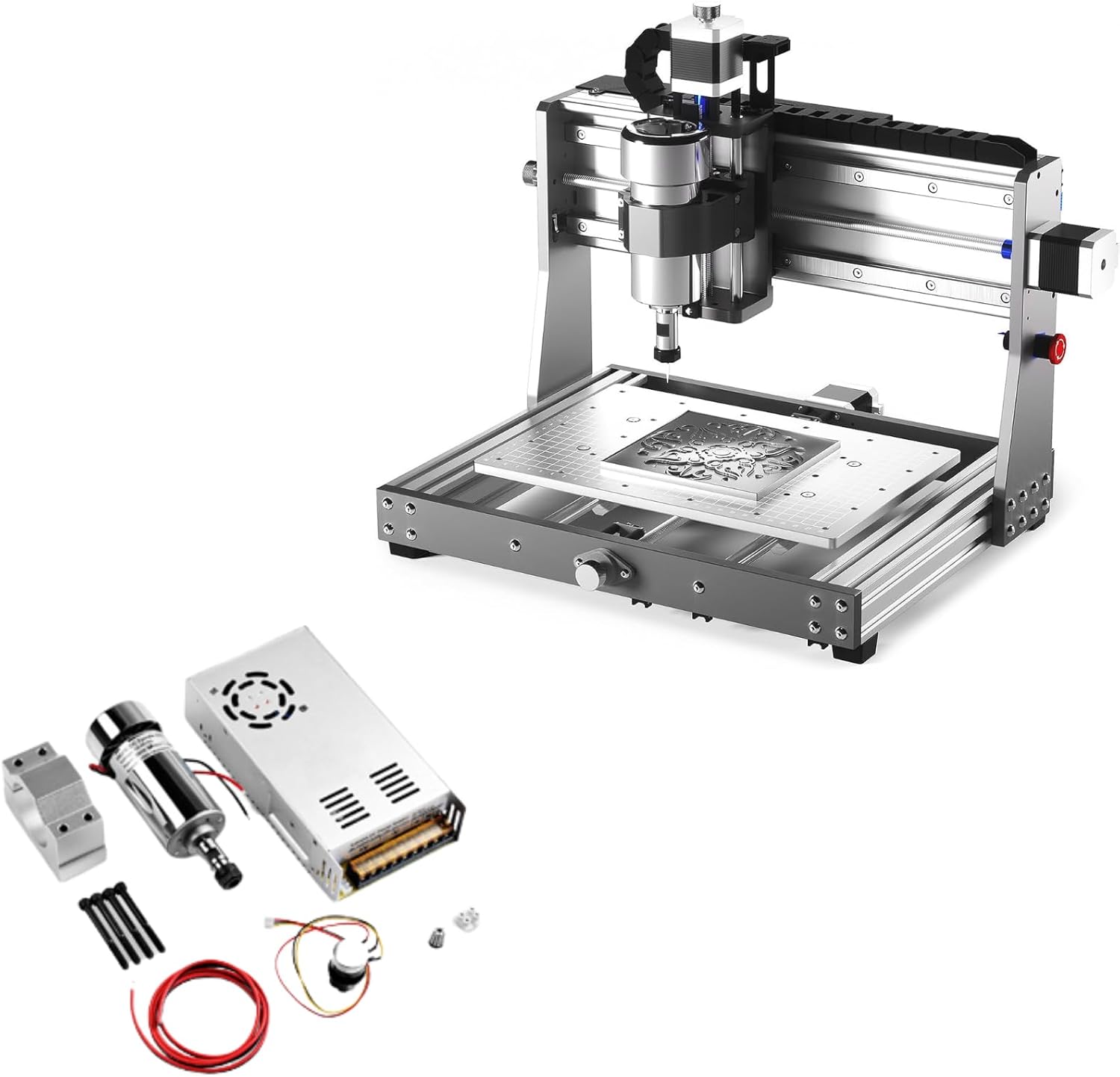

          Genmitsu 3020-PRO MAX V2 CNC Router Machine + Air-Cooled 300W Brush DC Spindle Motor
          • Genmitsu 3020-PRO MAX V2 CNC Router Machine + Air-Cooled 300W Brush DC Spindle Motor
          1 / 9

          Genmitsu 3020-PRO MAX V2 CNC Router Machine + Air-Cooled 300W Brush DC Spindle Motor

          $94.69 USD
          Shipping fees will be calculated at checkout.

          • Free worldwide shipping

          • Free returns

          • Carbon neutral

          • Secure payments

          • Upgraded Structure: The 3020-PRO MAX V2 builds upon the solid foundation of its original frame with its robust 4040 Y-axis profile and one-piece machined and molded aluminum spoilboard with measurement scale. Now featuring an upgraded dual steel X-axis guide rail with an enclosed mold material and a new X-axis back plate, resulting in a significantly more stable design.
          • New Z Axis Assembly: The integrated molded Z-axis C-mount significantly improves stability compared to the previous design.The new Z-axis structure makes upgrading the spindle easier than before.
          • Convenient Setup: Optimized layout with the power supply conveniently installed on the backplate of the X-axis, maximizing workspace utilization. A pre-assembled XZ Axis Gantry module and Base Assembly dramatically saves you time. Pre-organized wiring and a pre-assembled drag chain save time and effort, requiring only final connections to the ports for a hassle-free CNC experience.

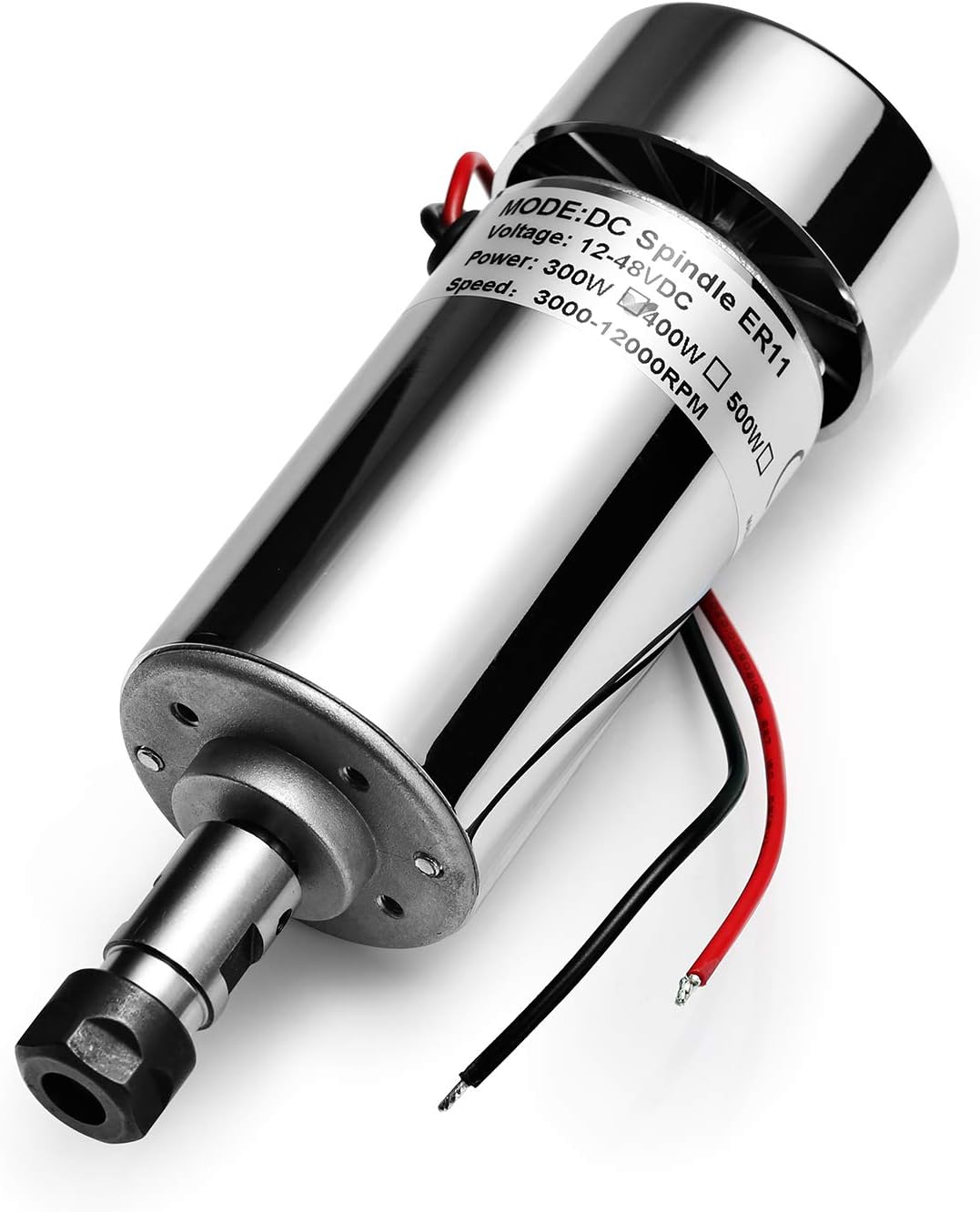

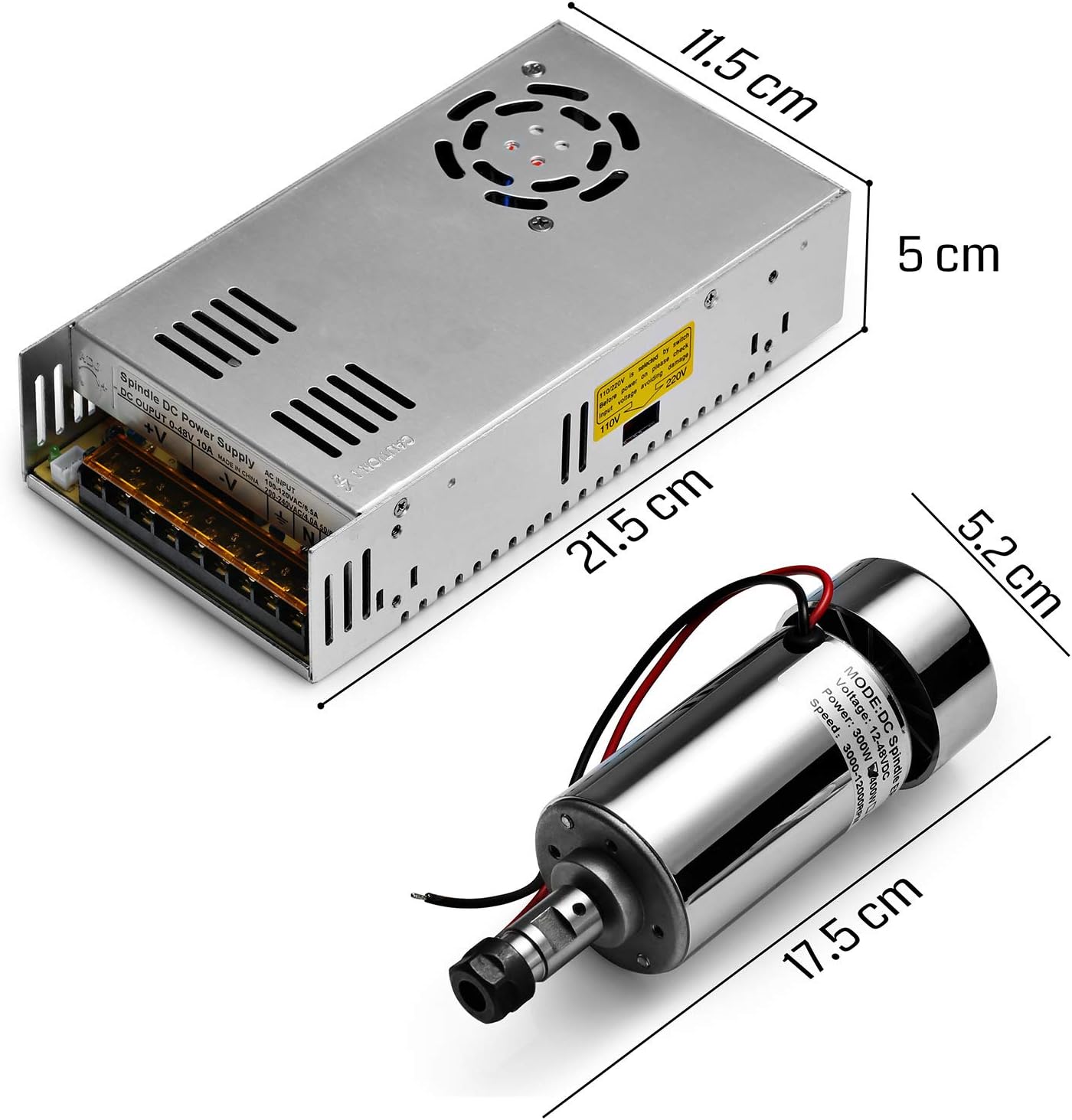

          • Spindle Motor: New chrome-plated Brush DC motor; This spindle comes equipped with air-cooled function, which can work for a long time.
          • Radial run out of spindle: 0.01-0.04; Speed: 3000-12000 r/min (12V-3000r/min, 24V-6000r/min, 36V-9000r/min, 48V-12000r/min)
