Gigabit Ethernet port input and PoE+ Gigabit Ethernet port output offer full 1Gbps Ethernet speeds.
Auto-sensing technology delivers up to 802.3at 30W to a PoE+ device with backwards compatibility for 802.3af PoE (15.4W) devices. Not support 802.3 bt/PoE++ or any passive PoE devices.
Converts a non-PoE Gigabit port to a PoE+ Gigabit port and Network a PoE device located up to 100 meters (328 ft.) away.

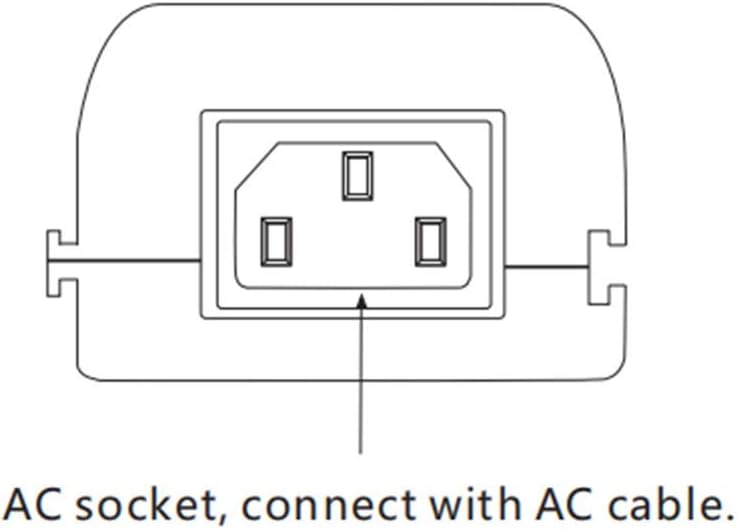

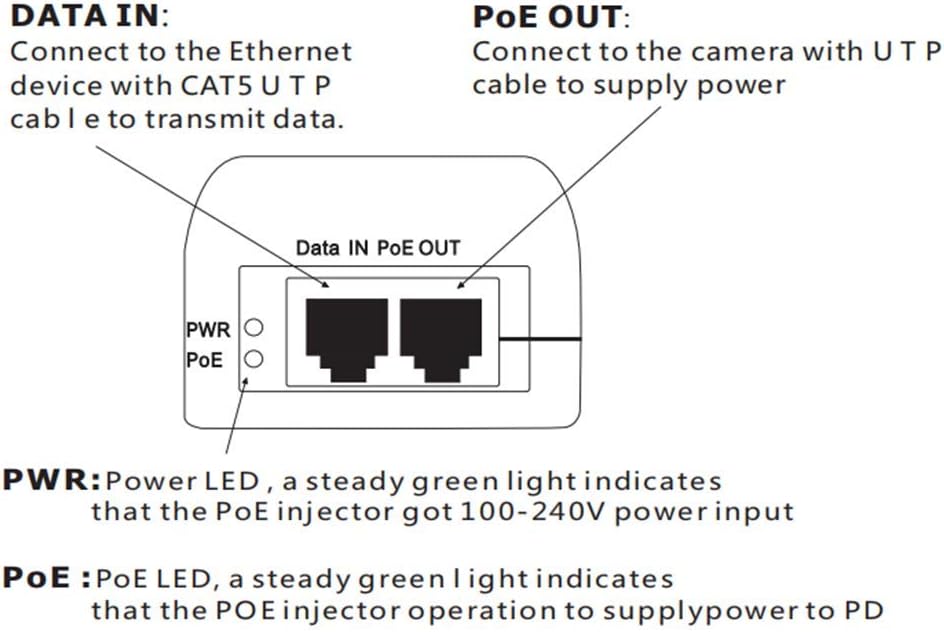

Internal AC/DC converter no need for external power brick ,Easy plug-and-play installation.LED power input indicators for and PoE output.
30W :When the output power is 0 to 30W, led lights up.AC Input Voltage: 100 to 240 Vac
Pass Through Data Rates: 10/100/1000 Mbps
Output Power Voltage: 50VDC
Port Power: 30W
AC Input Voltage: 100 to 240 VAC
AC Input Current: 0.5A 100-240 VAC
AC Frequency: 50 to 60 Hz

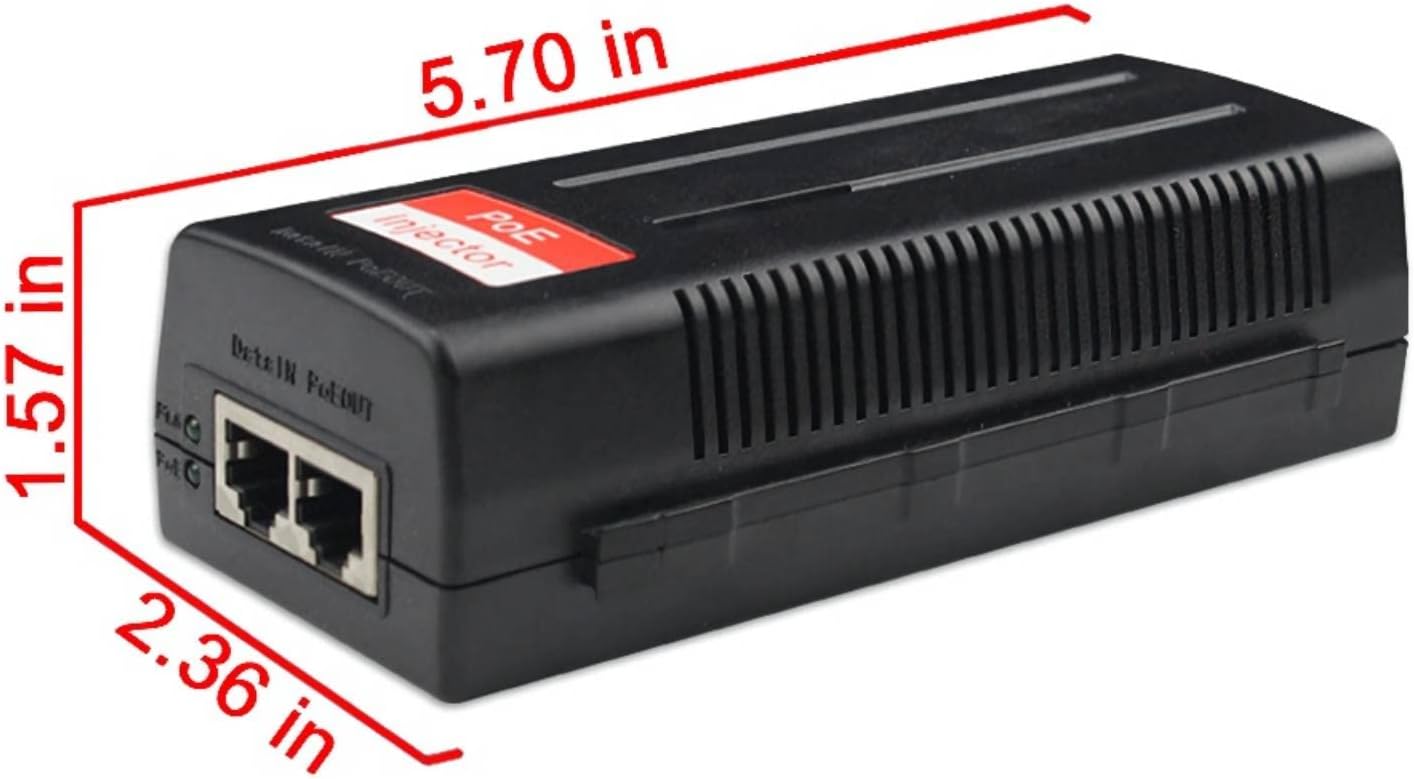

Dimensions: 5.7x2.36x1.57(in)
System Indicator: AC Power
Connectors: Shielded RJ-45, EIA 568A and 568B
Operating Ambient Temperature: -10 to 40℃
Operating Humidity: Maximum 85%, Non-condensing
Storage Temperature: - 10 to 60℃
Storage Humidity: Maximum 90%, Non-condensing
The PoE Injector is a single port passive POE injector offer a compact and cost effective, It can convert standard 100~240V / AC power into lowvoltage DC that runs over existing LAN cable to power up IEEE 802. 3af compliant network accessories. Remote powering of wireless LAN (WAN) access points, IP Securitycameras, VoIP telephone and other low port density installations.
The PoE Injector passive PoE Mid-spans no need for external power Supply and its associated AC/DC power cabling, providing a compact, affordable, safe and reliable power solution over existing Ethernet infrastructure.

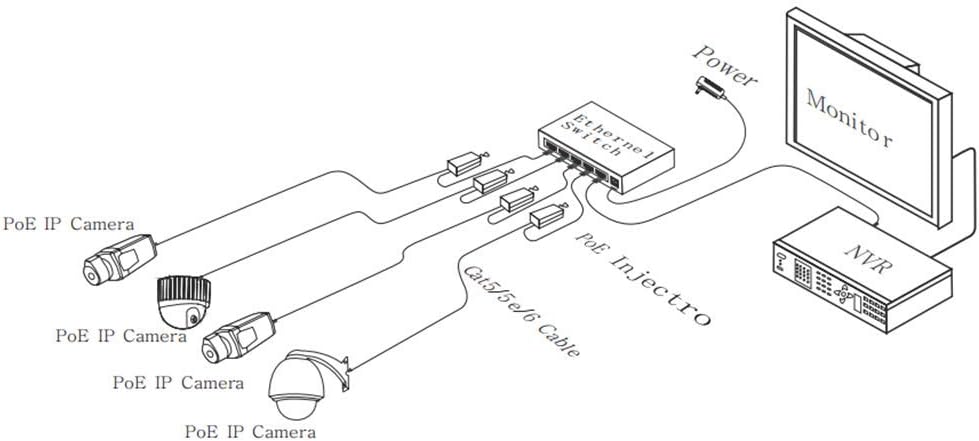

Use PoE Injector with PD to expand your network to where there are no power lines or Outlets, where you wish to fx devices such as APs, IP Cameras or IP Phones, etc.
