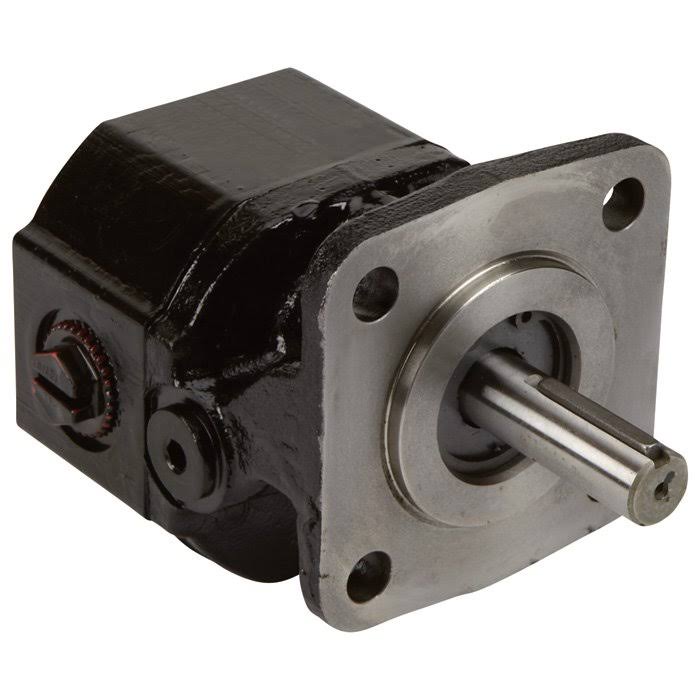

Haldex 1002965 Concentric High Pressure Hydraulic Gear Pump - 0.194 Cu. inch, Model G1212C5A300N00

Use this Concentric High Pressure Hydraulic Gear Pump on mobile equipment, construction and agricultural equipment, machine tools, material handling and mining equipment, PTO pumps, refuse haulers, compaction and baling equipment. Standard 4-bolt mount. 1.78in. diameter pilot with 1/2in. x 1 1/2in. shaft, 1/8in. square key. Heavy duty cast iron pump turns at 4,000 RPM max. in CW or CCW direction. Use as a fluid pump or fluid motor. Similar to Parker D Series, Webster YB Series, Rexroth S12, MTED Series. Flexible coupling or belt pulley drive. 90 efficient. , Usage Fluid pump, fluid motor, Max. PSI 3,000, Rotations Per Minute 4,000, Material Cast iron, GPM 1 1/2, 3, Shaft Diameter 1/2 x 1 1/2. Cubic Inch Size 194 Flow at 1,800 RPM 1.5 GPM Flow at 3,600 RPM 3.0 GPM Maximum PSI Cont. 3,000 Maximum PSI Intmt. 4,000 O-Ring Port Size, SAE 3/4in.-16 Model Number: 1002965. Age Group: adult.
