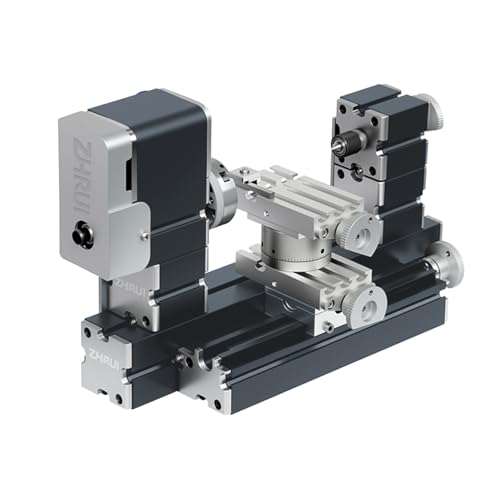

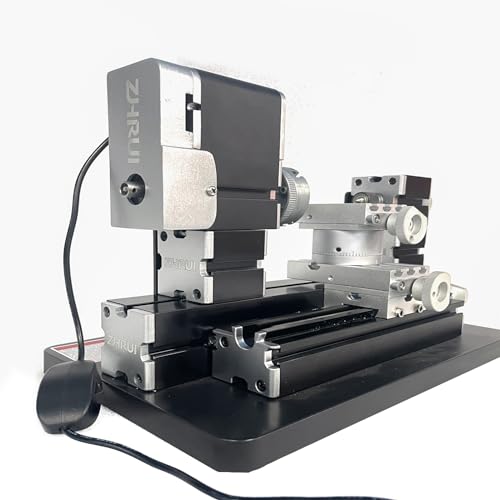

          High Power 60W Powerful Mini Metal DIY 4-axis Rotating Lathe Lathes Machine Tools With Base 12000 rpm for Wood Soft Metals Plexiglass Plastic
          • High Power 60W Powerful Mini Metal DIY 4-axis Rotating Lathe Lathes Machine Tools With Base 12000 rpm for Wood Soft Metals Plexiglass Plastic
          1 / 8

          High Power 60W Powerful Mini Metal DIY 4-axis Rotating Lathe Lathes Machine Tools With Base 12000 rpm for Wood Soft Metals Plexiglass Plastic

          $58.52 USD
          Shipping fees will be calculated at checkout.

          • Free worldwide shipping

          • Free returns

          • Carbon neutral

          • Secure payments

          • Hi-power motor is adopted with all drive axes, maximum speed up to 12000 rpm, motor power supply is 144W;Input voltage/Current /Power: 12V/5A/60W;Input Voltage of Switch Power Supply:110V-240V
          • The largest diameter of processed material: 50 mm. The length of processed material: 150mm;The chuck and collets is 1 to 6mm;X-axis slider travels: 150mm;Center height-75mm,center distance-150mm.
          • Machine size:330mm*130mm*200mm;Bottom plate size:315mm*200mm*17mm;Machine Weight:4.22KG
          • The motor case and headstock of all-metal machine tools is jointed completely. Main parts configure with metal structure and no plastic components in the whole machine body, such as motor box, headstock, hand wheels, slider, 3-jaw chunk/4-jaw chunk, turning tools clamping jaw, machine bed, gear, side cover, working table, connection piece, tailstock, countershaft, drive belt cover etc.
          • Fan built-in motor is featured with Ultra-quiet & high rotary speed. That's special customized option for motor cooling & effective work.The most parts of machine tools are dealt with two surface treatment methods of electroplating and ink-jet anodized to make appearance more cleaning & glorious, lasting rust-proof. Machine bed is made of Europe standard T-type aluminum material, moving more precisely &smoothly.
          • 3C quality assured transformers have the function of over-current, over-voltage and over-heat protection.To improve the stability and service life, the connection block be fixed by square nuts, which avoid screw loosing after long time vibration.The connection piece adopts dovetail structure, which matches with each slot of the machine tools parts to enhance its performance and accuracy.
          • Versatile application: The turning tools of mini metal lathe are made of steel material, which can be perfectly used to process the soft metal (gold, silver, copper & aluminum), acrylic and engineering plastics etc.The chuck is fixed by a hexagon nut to increase the tightness of the clamping tools (such as drill bits, cutters, wood-turning lathe driver).

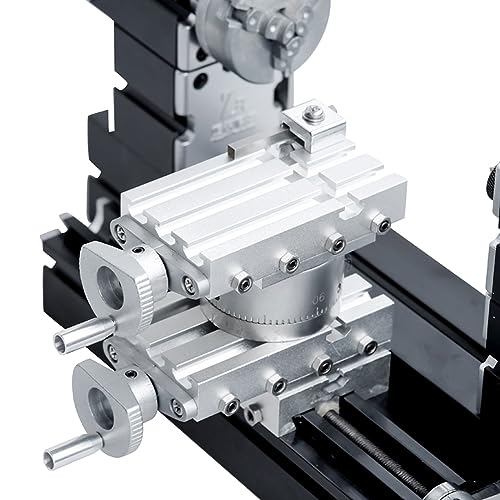

          • There are three parallel dovetail slots available on the big slider, which facilitate the movement of mini lathe tools and installment of the holders and the cutlery.Adding intermediate blocks under motor box, tailstock and lathe tools clamping jaw, which enlarge the machining rotary diameter & practical usage.

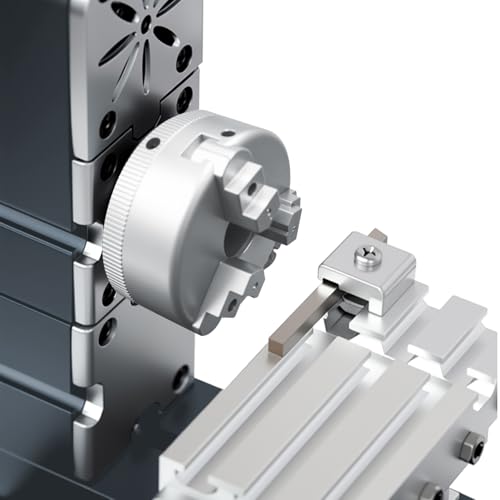

          • Adding intermediate blocks under motor box, tailstock and lathe tools clamping jaw, which enlarge the machining rotary diameter & practical usage.3-jaw chuck can be used to clamp the material at a maximum diameter of 50mm, single-action 4-jaw chucks is available, maximum diameter is expanded to 60 mm. It is perfect optional choice for irregular shape (such as square, elliptical, hexagonal material), also expand the effective work area.
          • With fast angle positioning processing function, the A rotating axis of 4-axis (X axis, Z axis, Z1 axis, A axis) Rotary Miniature lathe could rotates from -90 degrees to +90 degrees and the positioning accuracy is 2.5 degrees. Under coordination with A-axis, the Z1 axis could realize the machining of Angle feed
