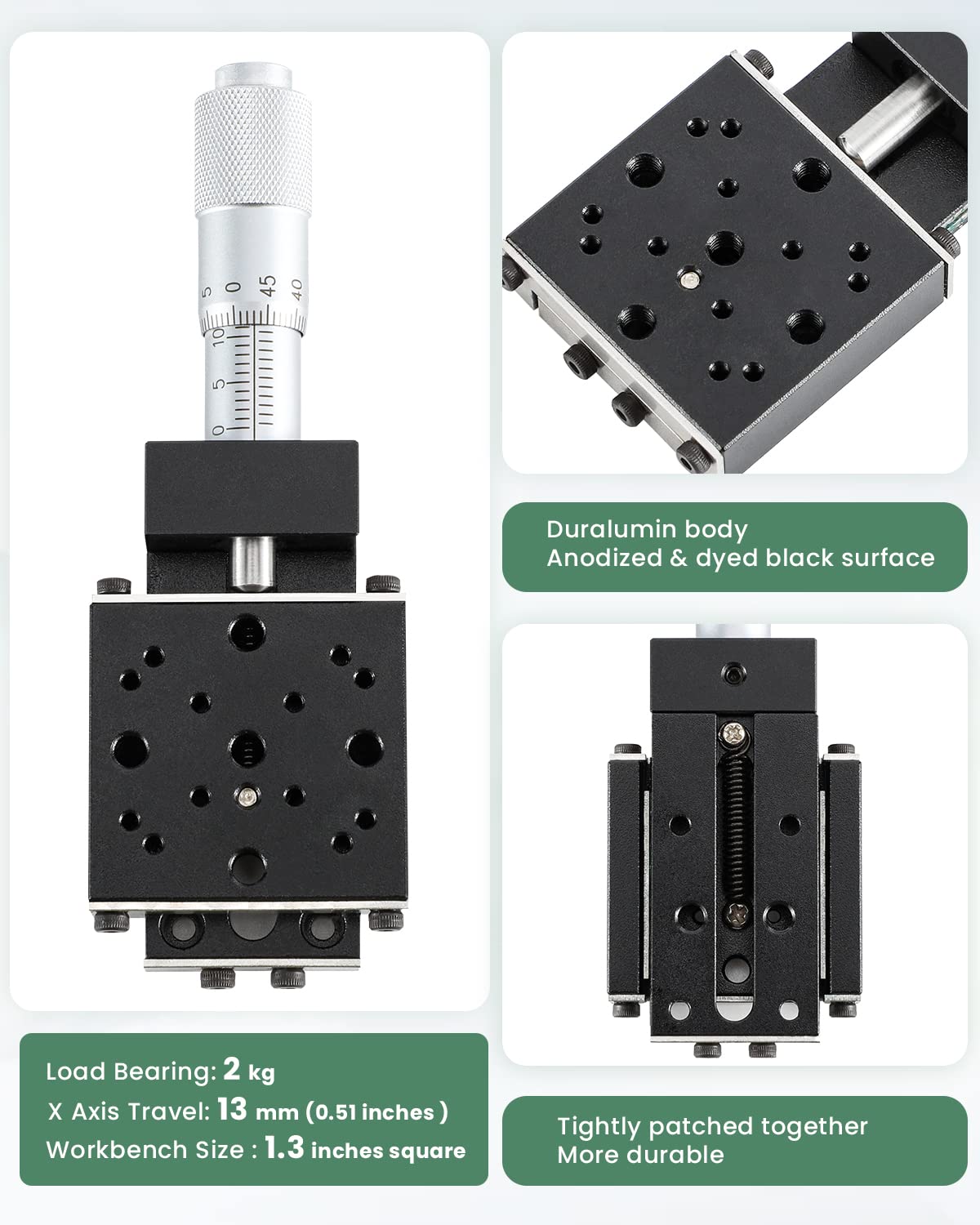

[Parameter] Workbench size: 1.3 inches square, X axis travel: 13mm, load bearing: 2kg

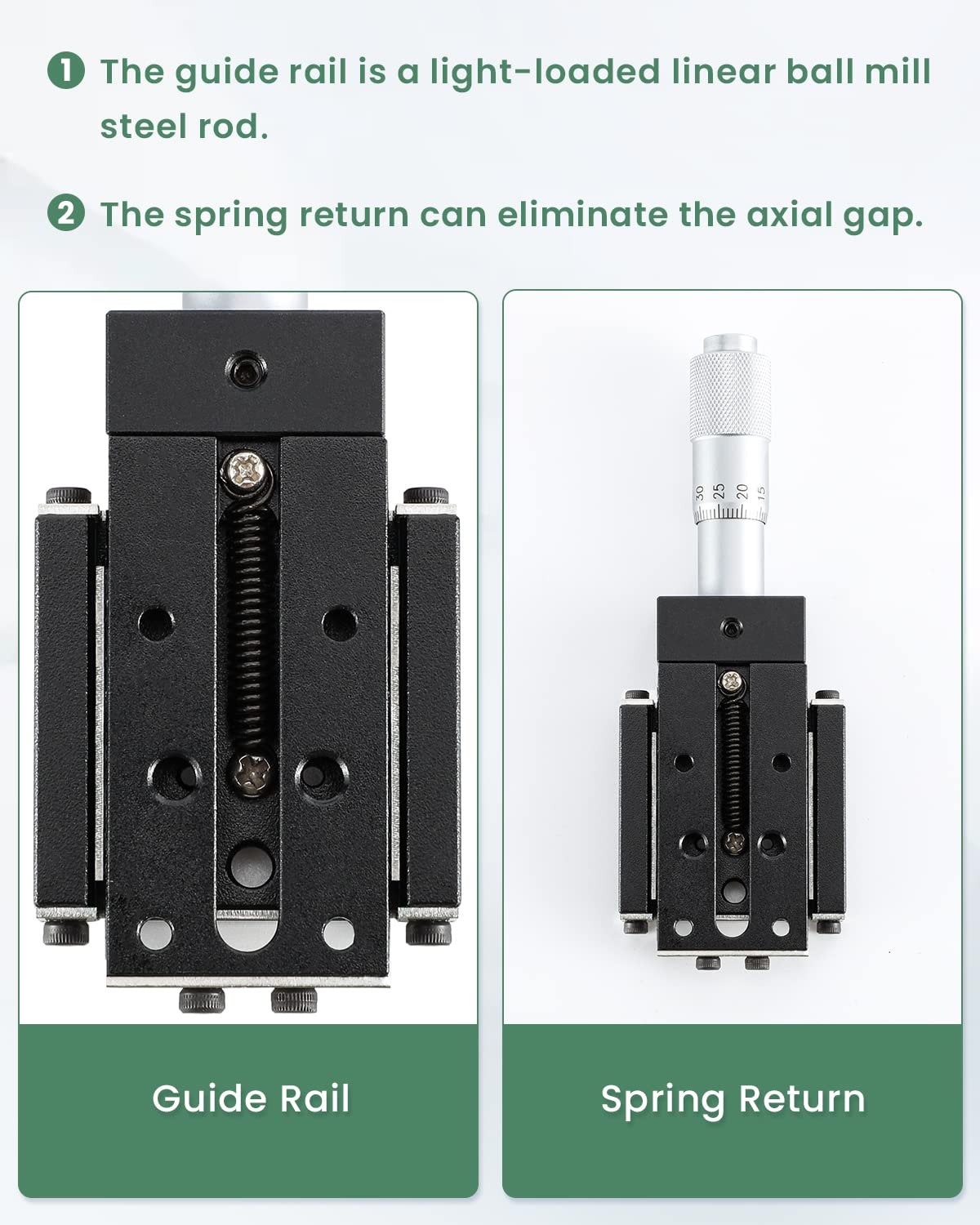

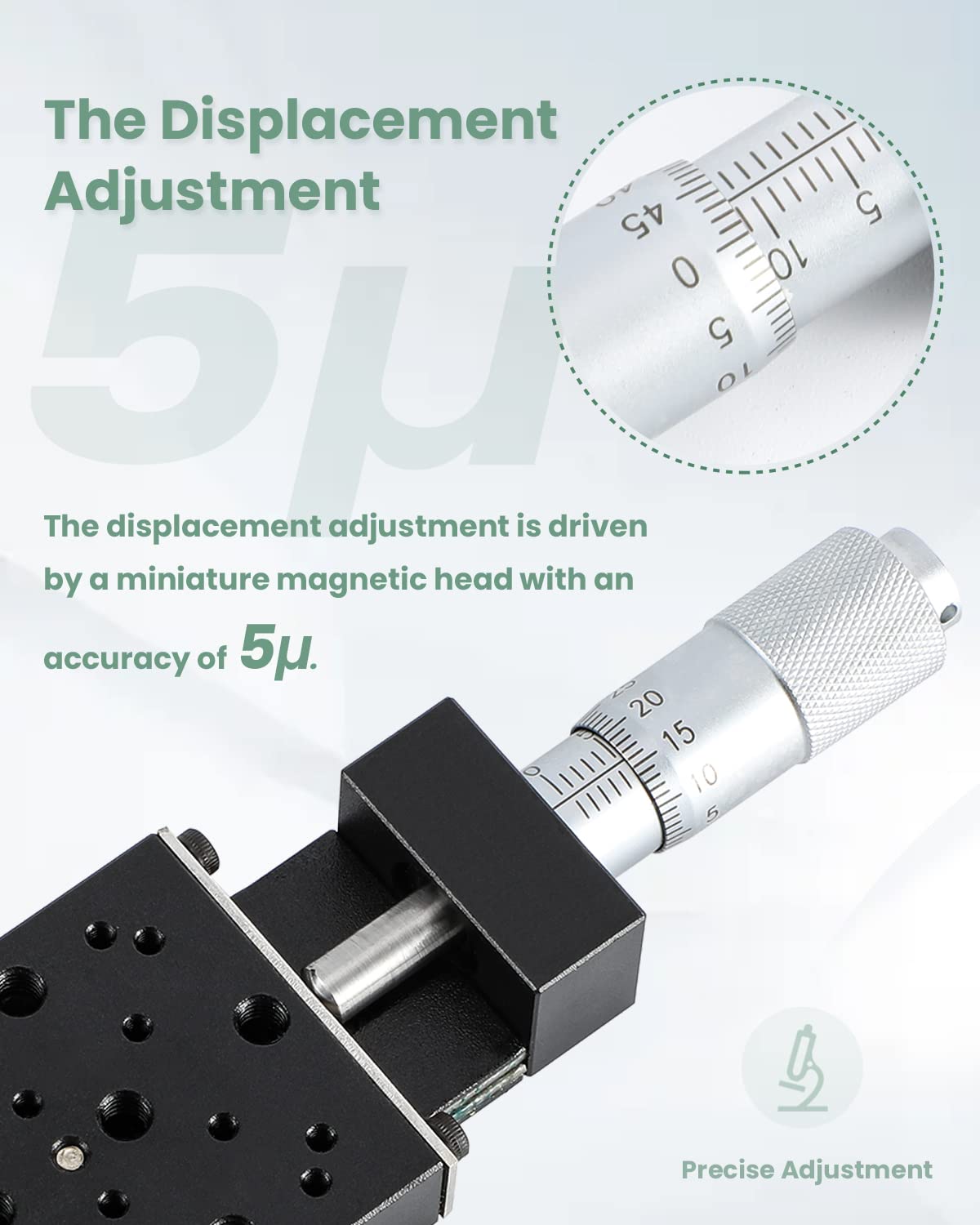

[Precision] The guide rail is a light-loaded linear ball-milled steel bar, and the displacement adjustment is driven by a miniature magnetic head with an accuracy of 5��. At the same time, the spring return can eliminate the axial gap.

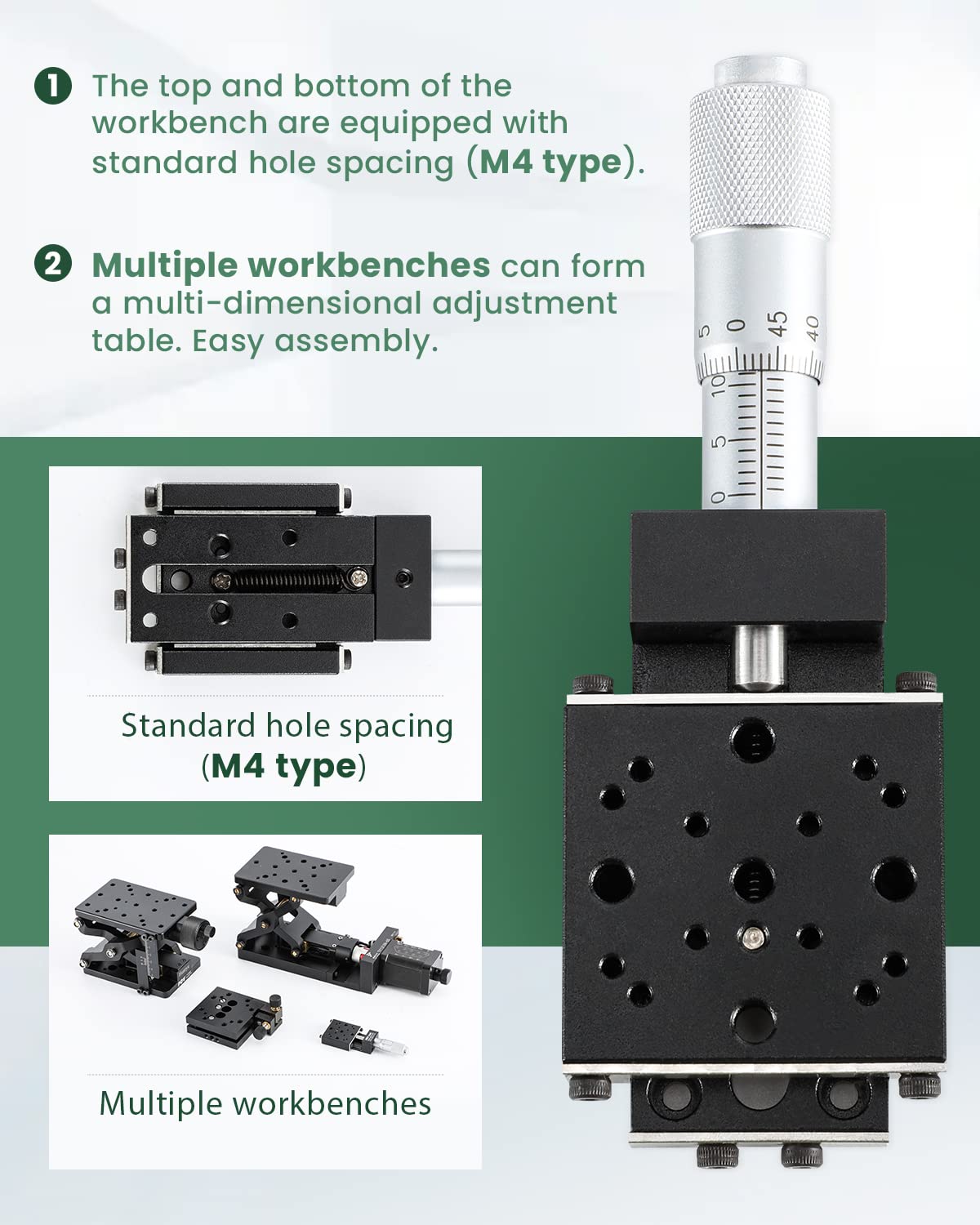

[Convenient] The top and bottom of the workbench are equipped with standard hole spacing (M4 type), it is very convenient to assemble the machine to fix objects, and multiple workbenches can form a multi-dimensional adjustment table.
[Material] Duralumin body, the surface is anodized and dyed black, tightly patched together, durable.
[Application] Suitable for production machinery, testing equipment, optical instruments, optical experiments, microscopic observation, fine-tuning displacement, precise positioning, quantitative movement, etc.
|
| Optical Tilt and Rotation Stage | Precise Manual Goniometer Stage | Z-Axis Manual Lift Platform | Electric Precise Lifting Platform Z-axis | Optical Rotating Platform ��60mm |
| Model | Manual | Manual | Manual | Electric | Electric |
| Function | Two-dimensional 3��Tilt Table | ��10��Angle Adjustment | z axis lift | z axis lift | Plane rotation |
| Table size | 65mm��65mm | 65mm��65mm | 120 mm��80mm | 120 mm��80mm | ��60mm |
| Journey | ��3�� tilt | ��10�� | 60 mm | 60 mm | 360�� |
| Load-bearing | 2kg | 8kg | 20kg | 15kg | 30kg |
