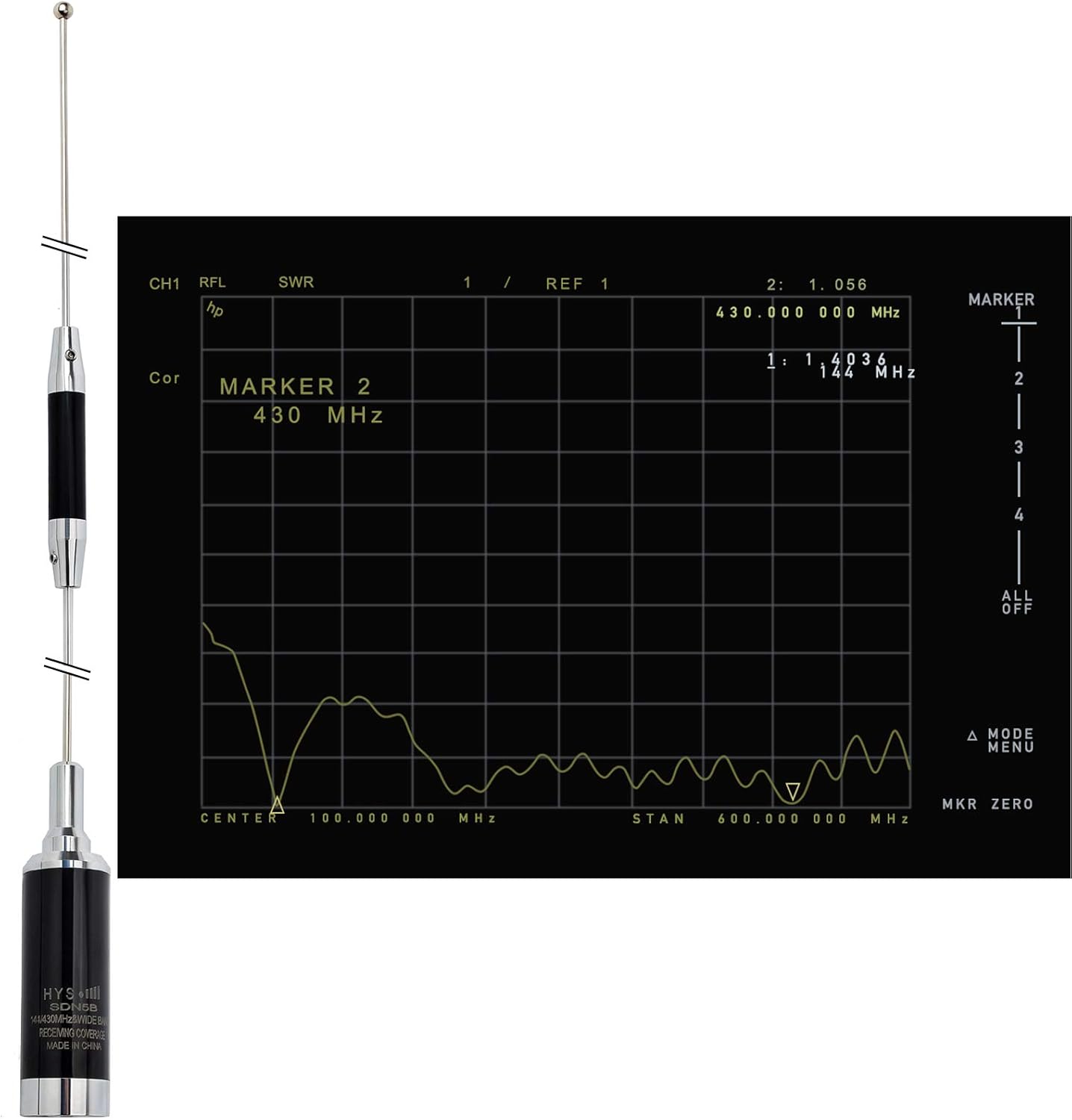

Centre Frequency: 144/430(136-174Mhz&400-470Mhz); VSWR:< 1.5; Gain: 144MHz (3.0dBi),430MHz(5.5dBi);

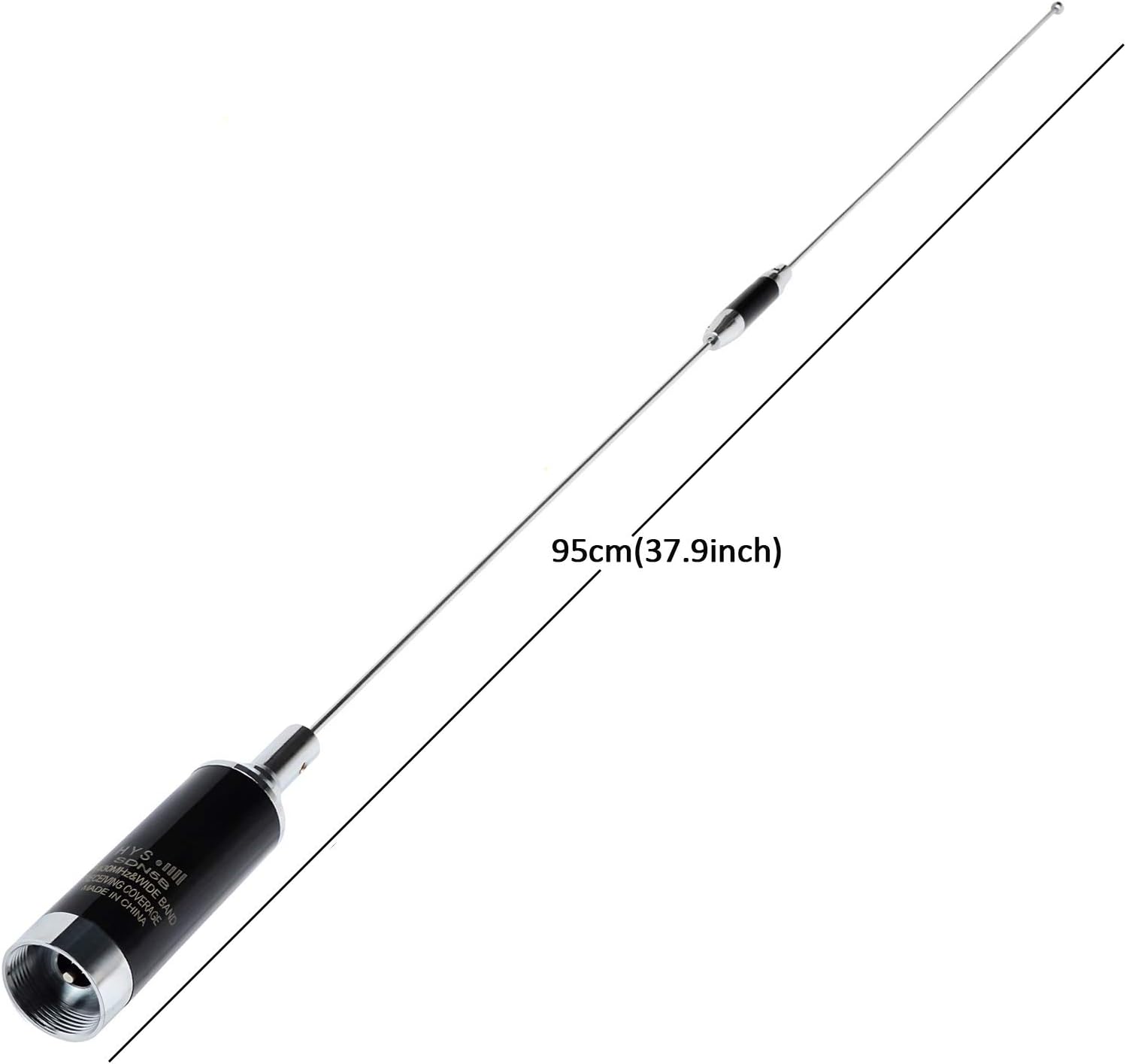

Maximum Power Input-watts:100W; Antenna length :37.9inch; The flexible whip is stainless steel;

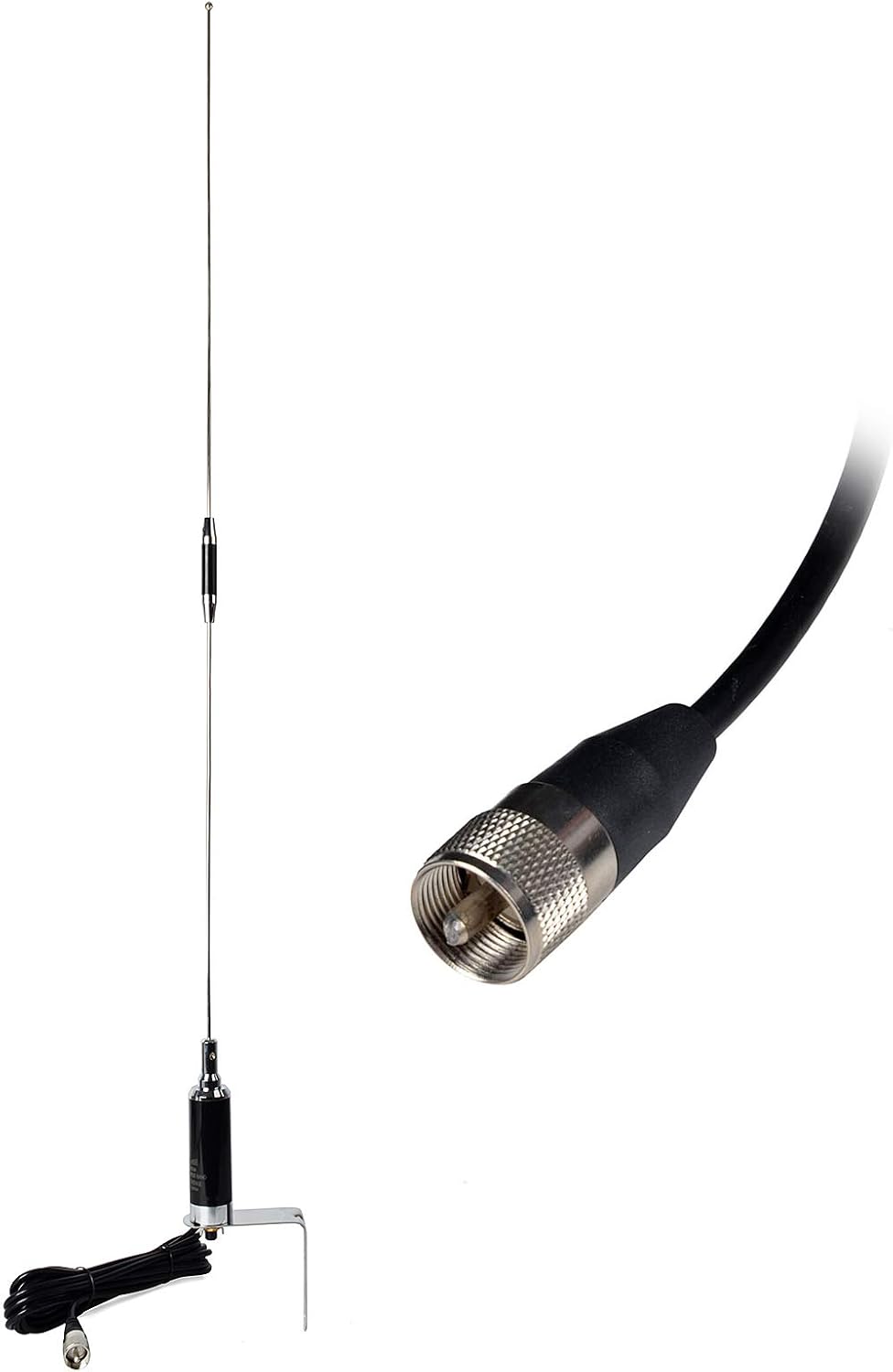

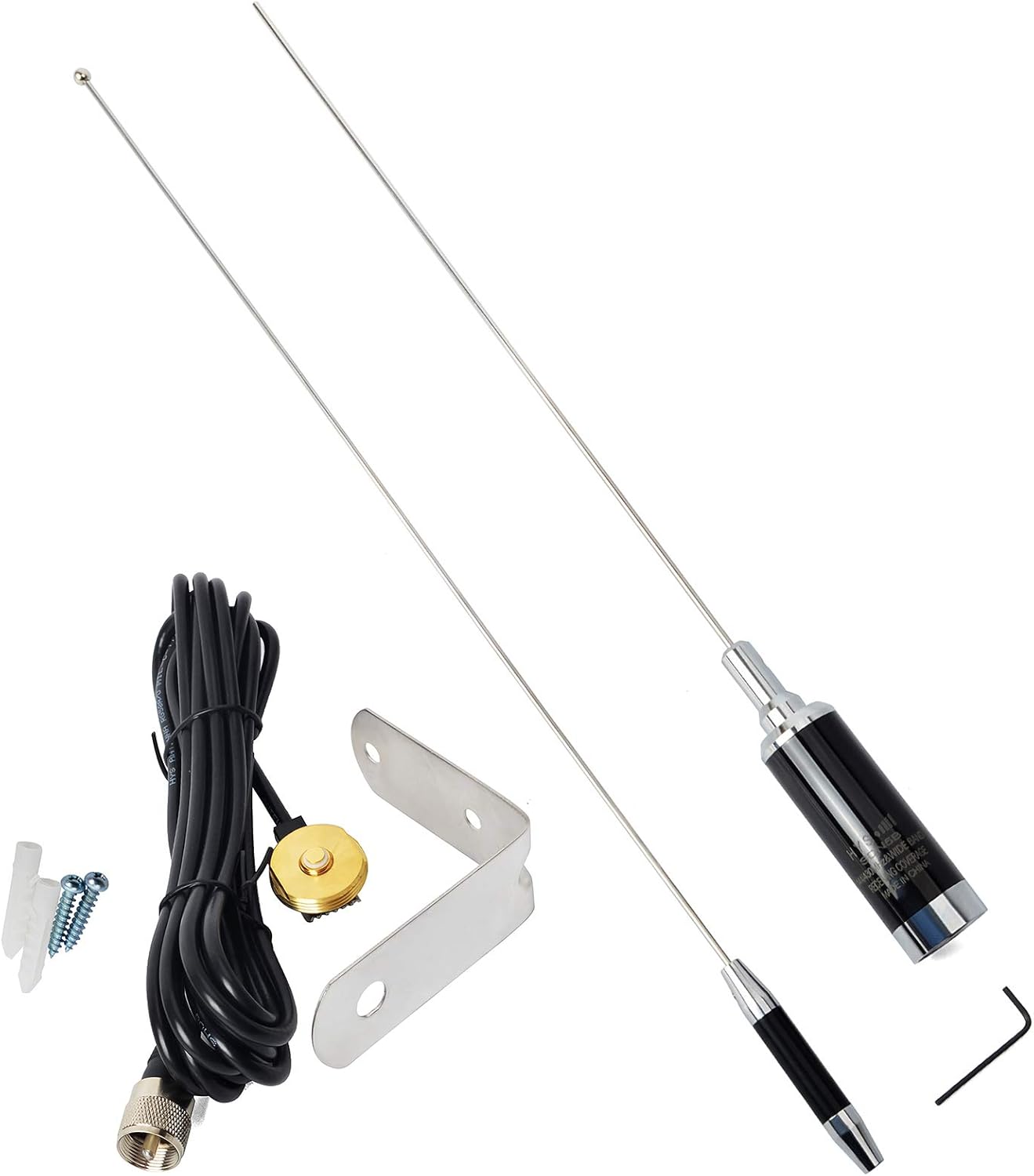

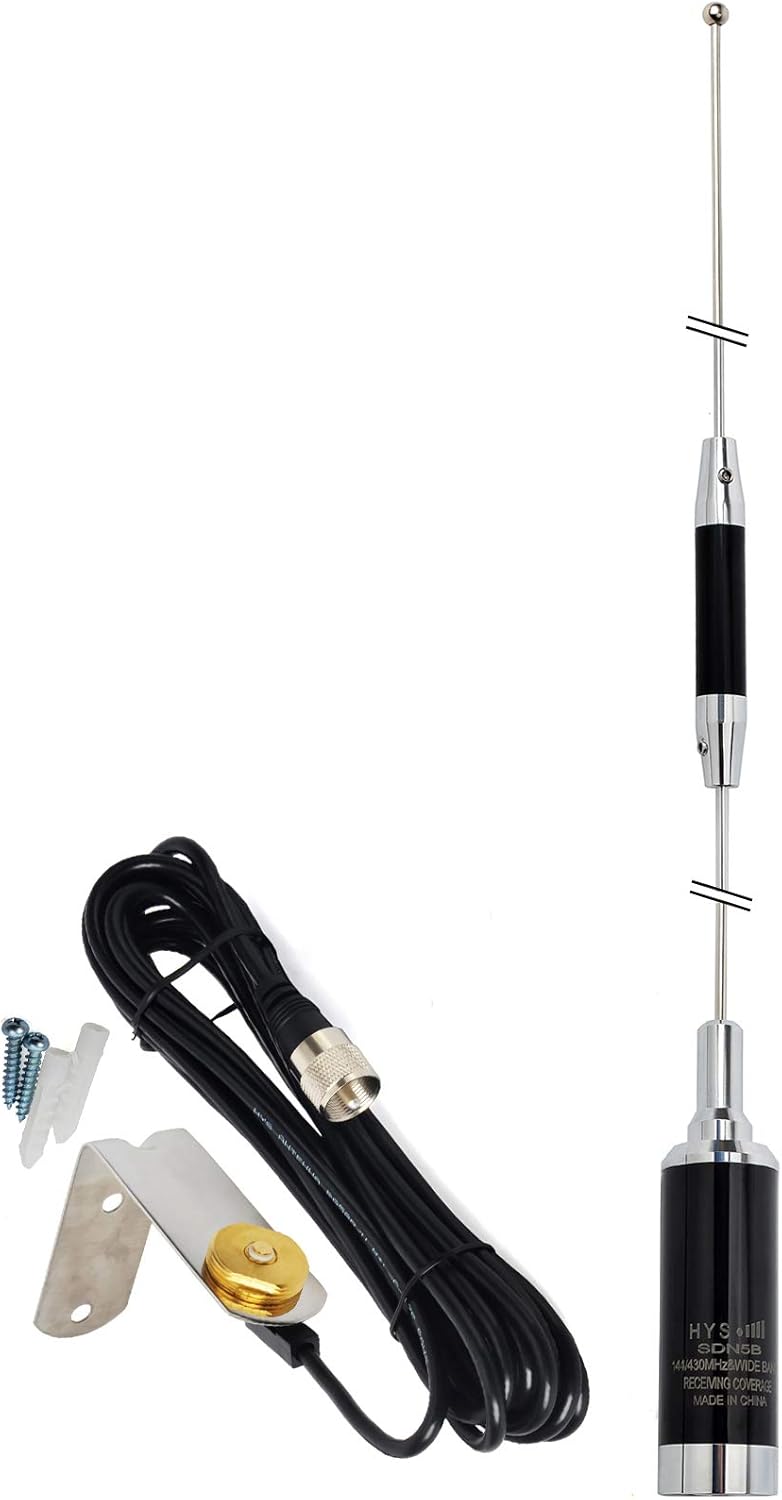

144/430Mhz NMO Antenna Work for Motorola Kenwood Icom Vertex Blackbox HYT Hytera Mobile Radios. NMO to PL259 working for so239/uhf female Dual Band Radio.

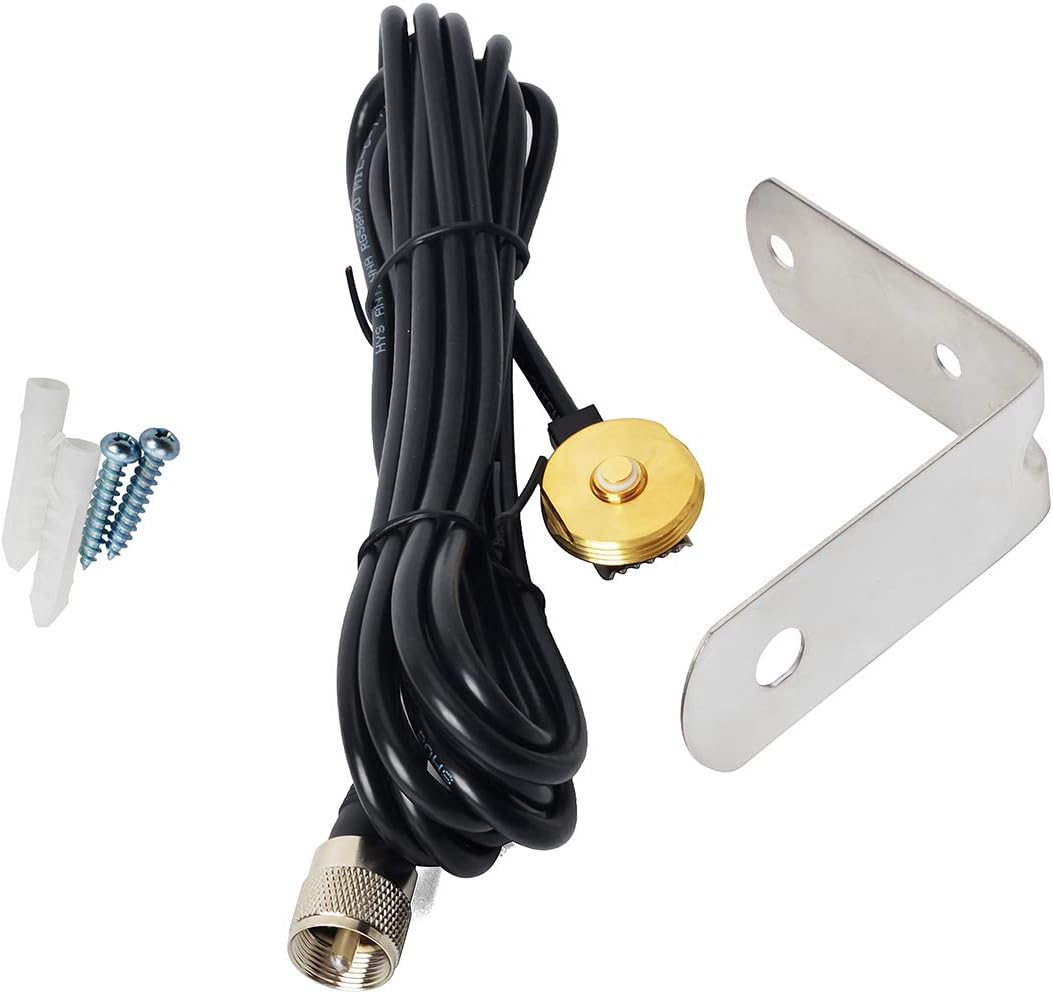

The mount is a "trunk lid" mount with 13'/about 4m RG-58U cable. This requires a small (typically 3/8" to 3/4" ) hole be drilled through the surface hosting the mount, and is the best choice for an extremely rugged installation.

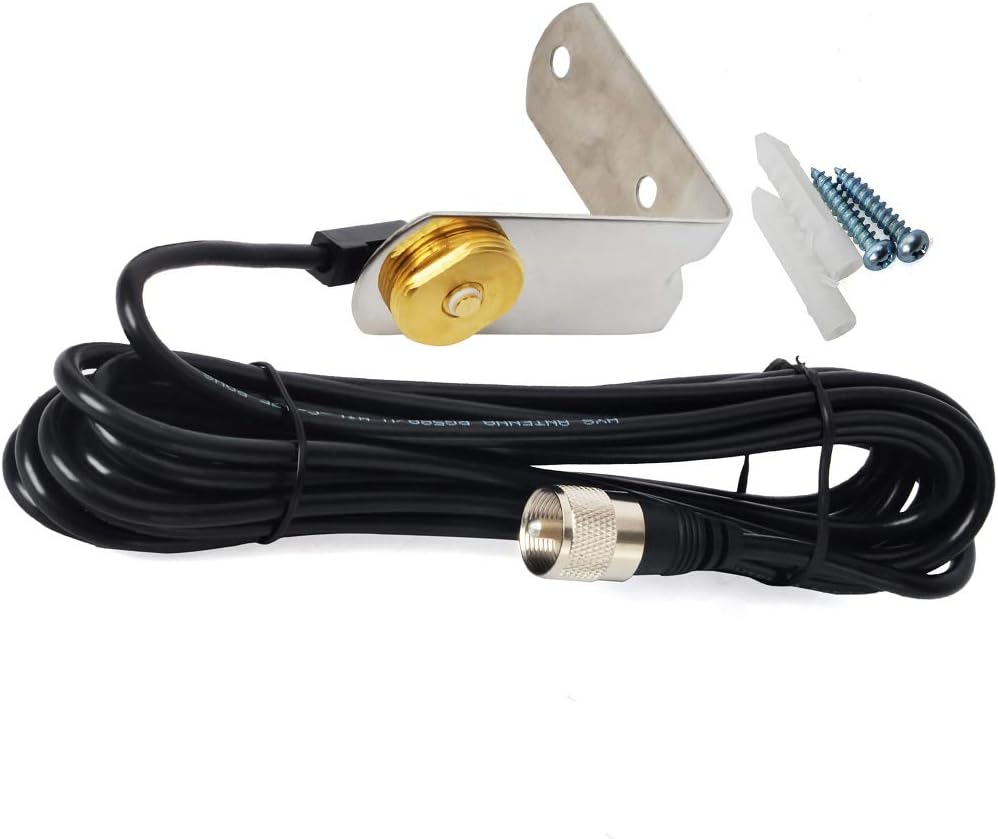

L-Bracket Hole Stainless Steel 3/4" NMO Hole Mount, L Bracket for HYS TCJ-N1 Coax NMO Mount Cable Mobile Antennas Car Truck Hood install. Stainless Steel L-bracket for Trunk Groove Or Side Mounting.
| |
| | UHF NMO Antenna | VHF NMO Antenna | Dual Band NMO Antenna | HYS TCJ-N2 NMO Clip | HYS NMO Magnetic Base |
| VSWR | < 1.5 | < 1.5 | < 1.5 | | |
| Gain | 2.5dBi | 2.5dBi | 144MHz (3.0dBi),430MHz(5.0dBi) | | |
| Frequency | 400-470Mhz | 136-174Mhz | 144/430Mhz | | |
| Maximum Power Input-watts | 150W | 150W | 100W | | |
| Connector | NMO | NMO | NMO | NMO to PL259 | NMO to PL259 |
| Antenna length | 6.4" | 17.8" | 20" | | |
| Cable Length | | | | 13'/about 4m RG-58 cable | 16.4'/about 4m RG-58 cable |
