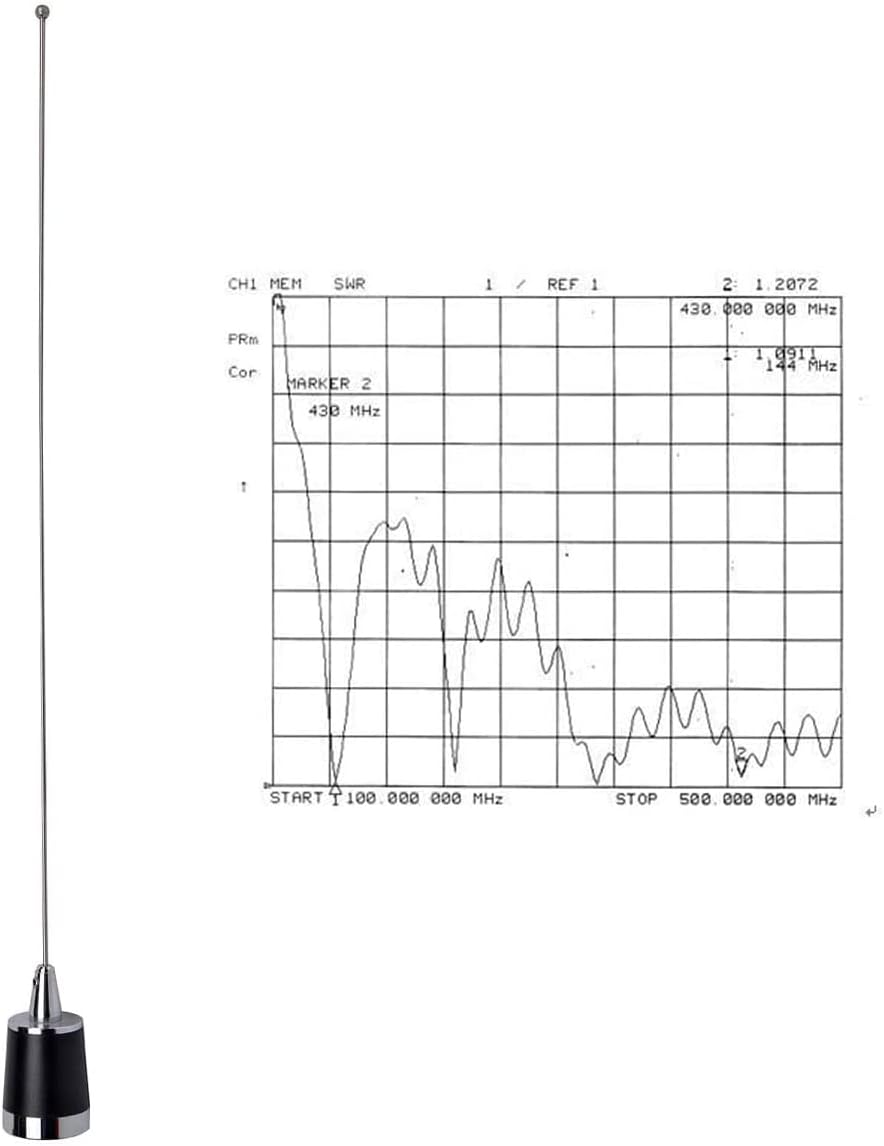

Centre Frequency: 144/430;VSWR:< 1.5; Gain: 144MHz (3.0dBi),430MHz(5.0dBi);
Maximum Power Input-watts:100W; Antenna length :20inch; The flexible whip is stainless steel;

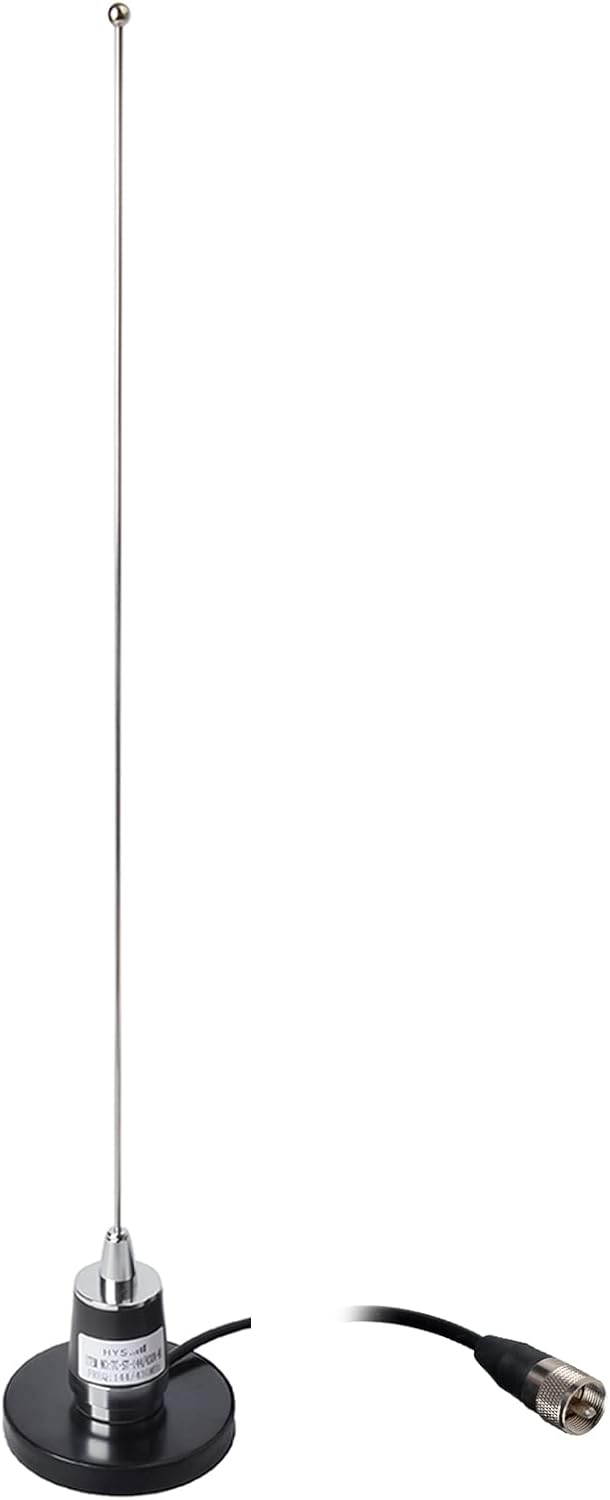

144/430Mhz NMO Antenna Work for Motorola Kenwood Icom Vertex Blackbox HYT Hytera Mobile Radios. NMO to PL259 working for so239/uhf female Dual Band Radio.

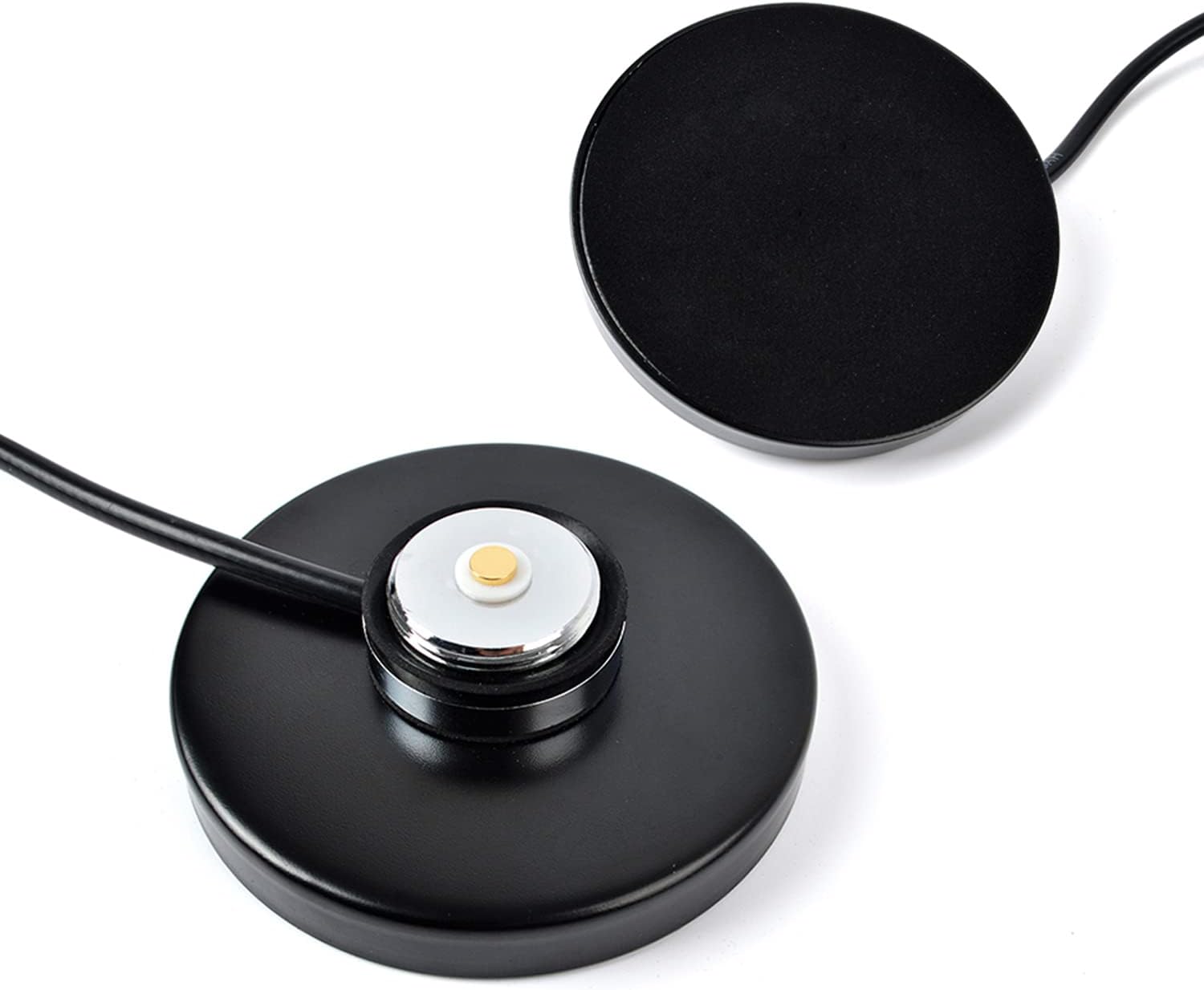

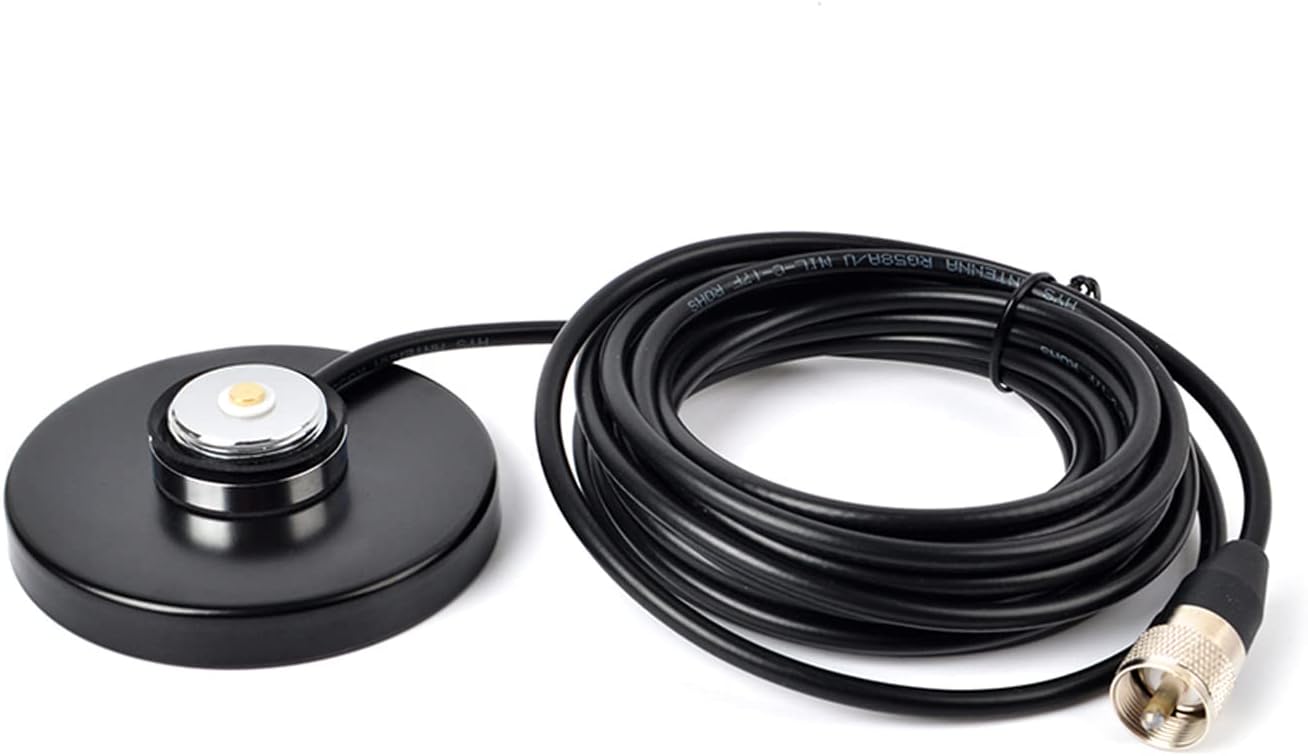

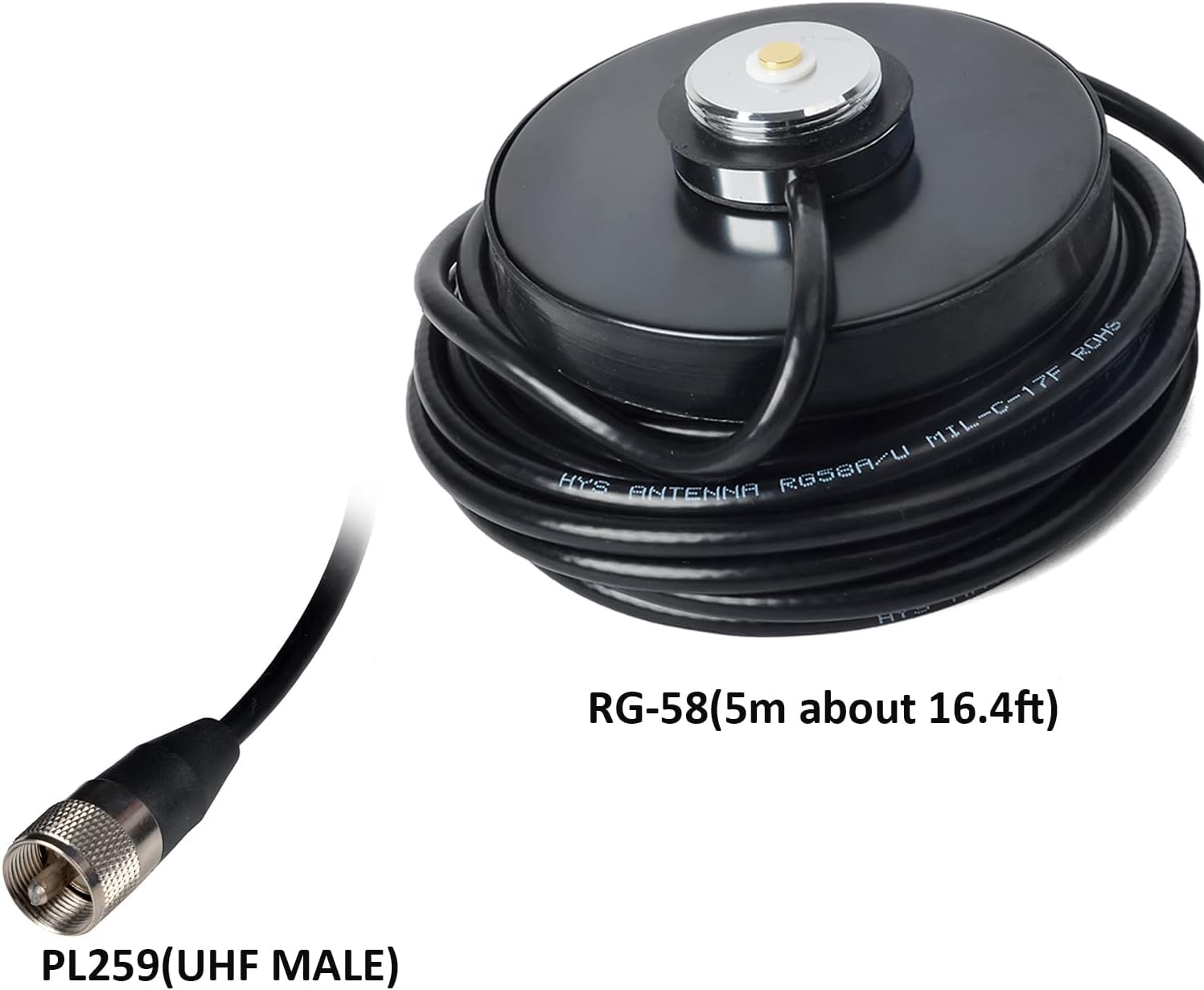

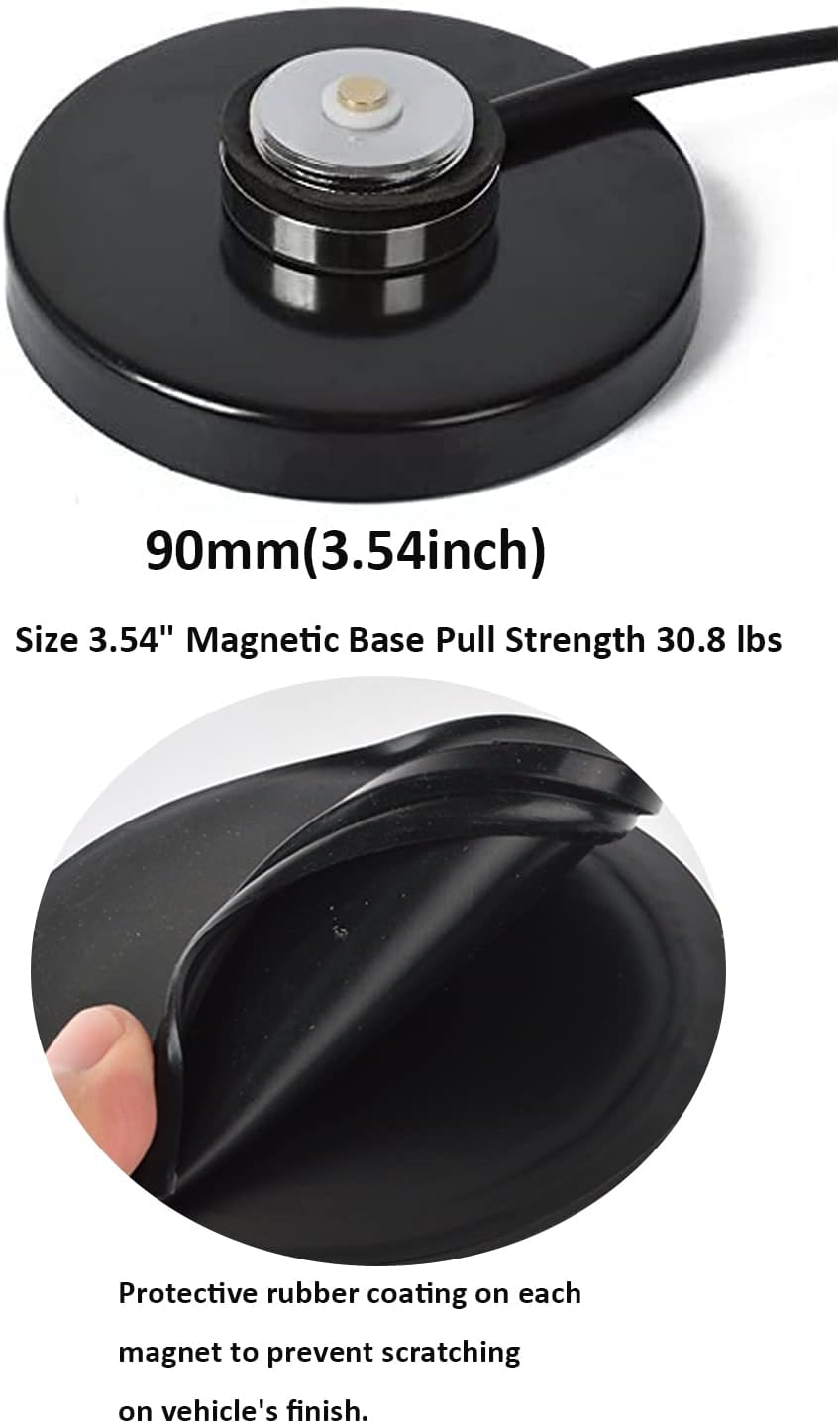

NMO Mount Magnetic base:Height: 30mm/1.18";Base Diameter: 90mm/ 3.54"; Size 3.54" Magnetic Base Pull Strength 30.8 lbs, NMO Connection Style W/5M(16.4ft) RG58 Coaxial Cable PL-259 Plug.
HYS ANTENNAS are individually Tested to insure proper compatibility with your Radio and Frequencies! The magnetic base Easy to install, plug and play installation.
| |
| | UHF NMO Antenna | VHF NMO Antenna | Dual Band NMO Antenna | HYS TCJ-N2 NMO Clip | HYS NMO Magnetic Base | HYS TCJ-N1 NMO Clip |
| VSWR | < 1.5 | < 1.5 | < 1.5 | | | |
| Gain | 2.5dBi | 2.5dBi | 144MHz (3.0dBi),430MHz(5.0dBi) | | | |
| Frequency | 400-470Mhz | 136-174Mhz | 144/430Mhz | | | |
| Maximum Power Input-watts | 150W | 150W | 100W | | | |
| Connector | NMO | NMO | NMO | NMO to PL259 | NMO to PL259 | NMO to PL259 |
| Antenna length | 6.4" | 17.8" | 20" | | | |
| Cable Length | | | 13'/about 4m RG-58 cable | 13'/about 4m RG-58 cable | 16.4'/about 4m RG-58 cable | 16.4'/about 4m RG-58 cable |
