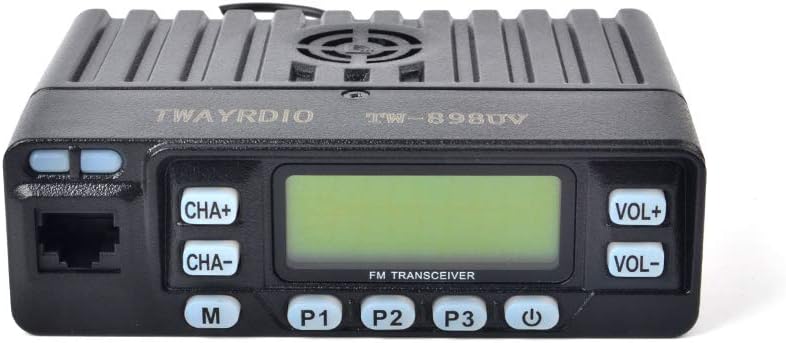

TW-898UV can work on both VHF/UHF band.
11-14miles long communication range. Suitable for long time trip.
The dimension of TW-898UV is 120x90x40mm.Compact body with the use of bracket mounting, you can easily install it in your car.
DCS CTCSS, DTMF,199CH,TOT,VOX,FM mode.

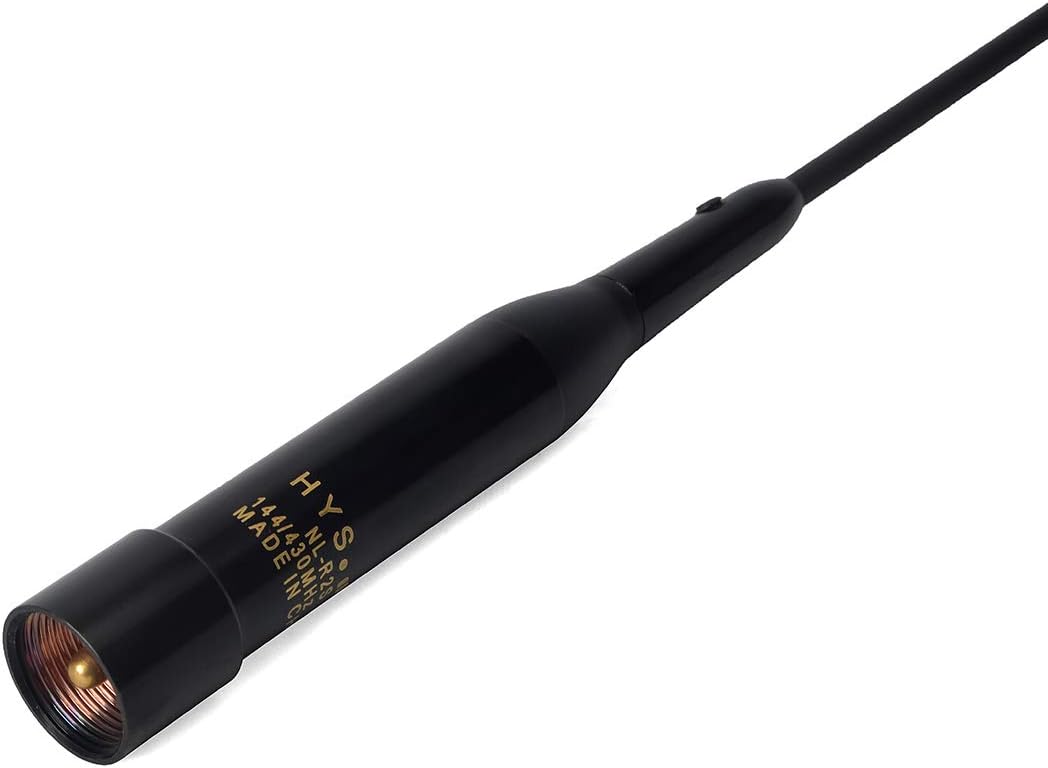

What you get:1PCS TW-898UV Mini Mobile Radio,1PCS Handheld Speaker Microphone ,1PCS Microphone Bracket,1PCS Mobile Radio Mounting,1PCS Bracket Screw,1PCS User Manual,1PCS Program Cable & Software(Free)+1PCS HYS Tri Band Telescopic Antenna
Specification :
Band:Dual Band
TX RX Frequency:136-174MHz / 400-470MHz
Channel Capacity:198CH
Operation Mode:Simplex
Dimension:120x90x40mm
Modulation Limitation:≤±5KHz
Spurious Radiation:60dB
TX Current:1A/1.8A
Frequency Stability:±2.5PPm
Rx Sensitivity:＜0.18μV
Modulation Type:F3E
Audio Power:≥ 400mW
Standby Current:78mA（Power Saving mode is 30mA）
Rated Voltage:13.8V

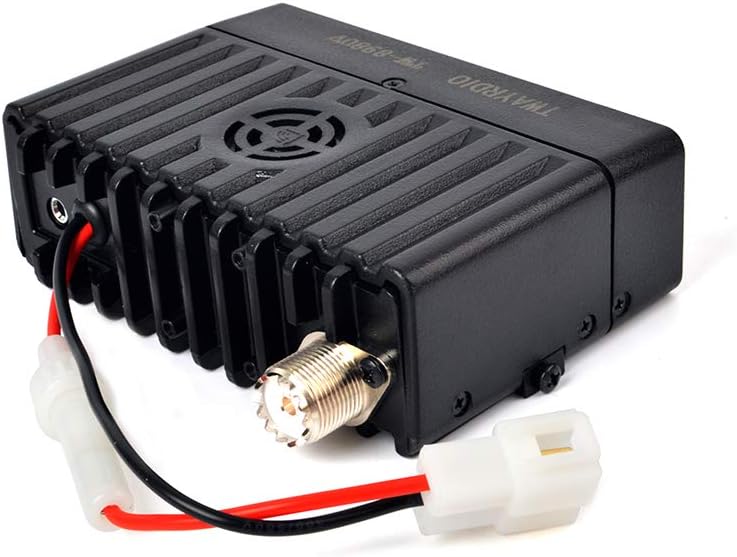

Antenna connector type:SO-239
Features:
1.Dual Reception/Dual Display
2.Voice Companding and Scrambler
3.Multi silent mode (QT/QTADT/QTXDT)
4.107 groups DCS/58 groups CTCSS(PL) Tones
5.DTMF encoding and DTMF decoding
6.PTT ID（Voice broadcast PTT ID）
7.All calls, group calls and selective calls
8.Monitor, RX Inhibit, RXTX Inhibit and Emergency Alarm
9.FM Radio
10.Scan/Scan add
11.Channel name edit available
12.198 memory channels
13.High/Low power
14.APO(Auto Power Off)
15.TOT(Time-out timer)
16.Font Set(Big/Small)
17.VOX(Level adjustable)
18.Busy channel lockout
19.Keyboard lock (Auto/Manual)
20.Multi scan mode (TO/CO)
21.Channel steps (2.5K/5K/6.25K/10K/12.5K/25K)
22.Wide/Narrow band selection (25KHz/12.5KHz)
23.TX Stop
24.Talk Around
25.Beat frequency
26.Reverse frequency function
27.1750Hz burst tone
28.Four key programmable
29.Lease Function(can program lease time of the radio at a exact time
30.Input frequency by using Keypad
31.Wired changing frequency
32.Timepiece
33.PC software disable frequency input
34.Passwords for menu functions Set
35.PTT Times per Minutes Set
36.All/Function reset

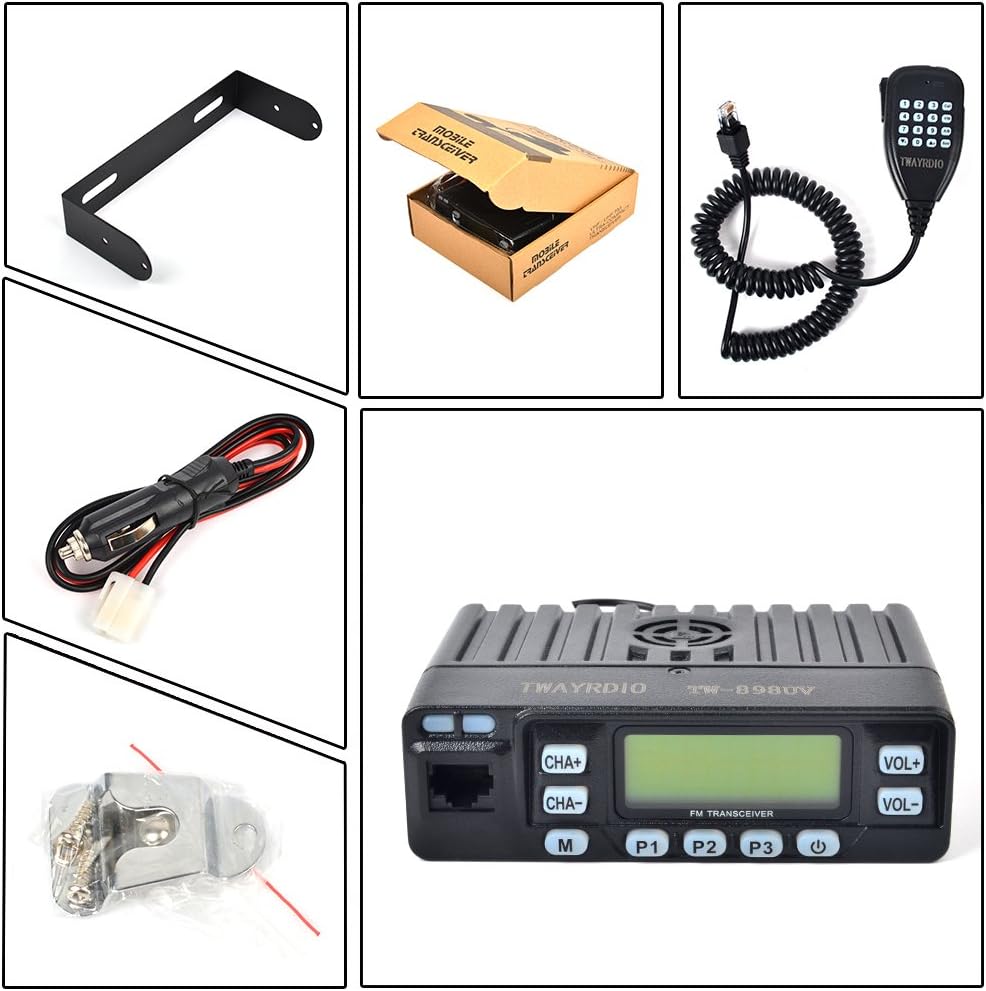

Package includes :
1PCS TW-898UV Mini Mobile Radio

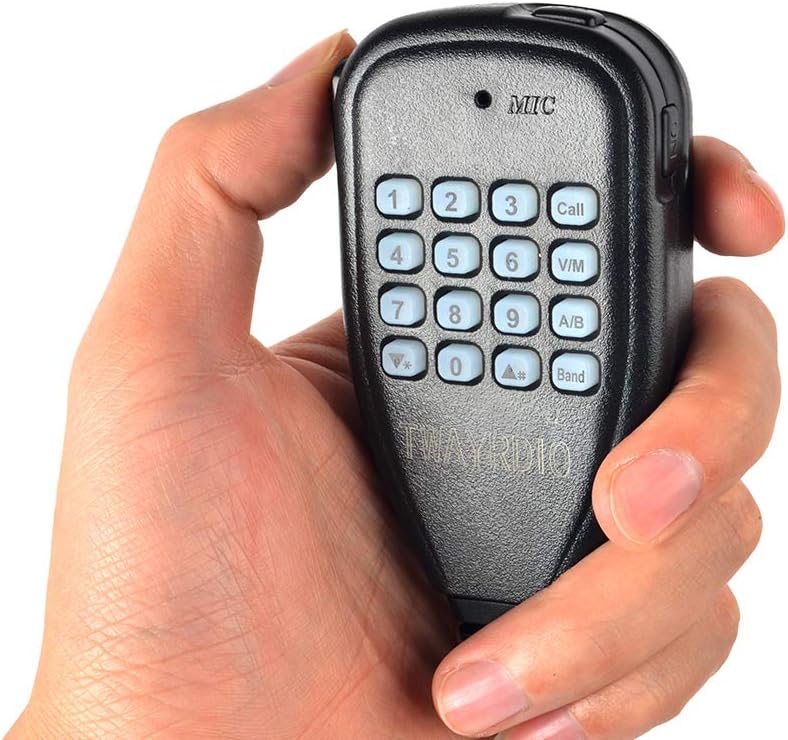

1PCS Handheld Speaker Microphone

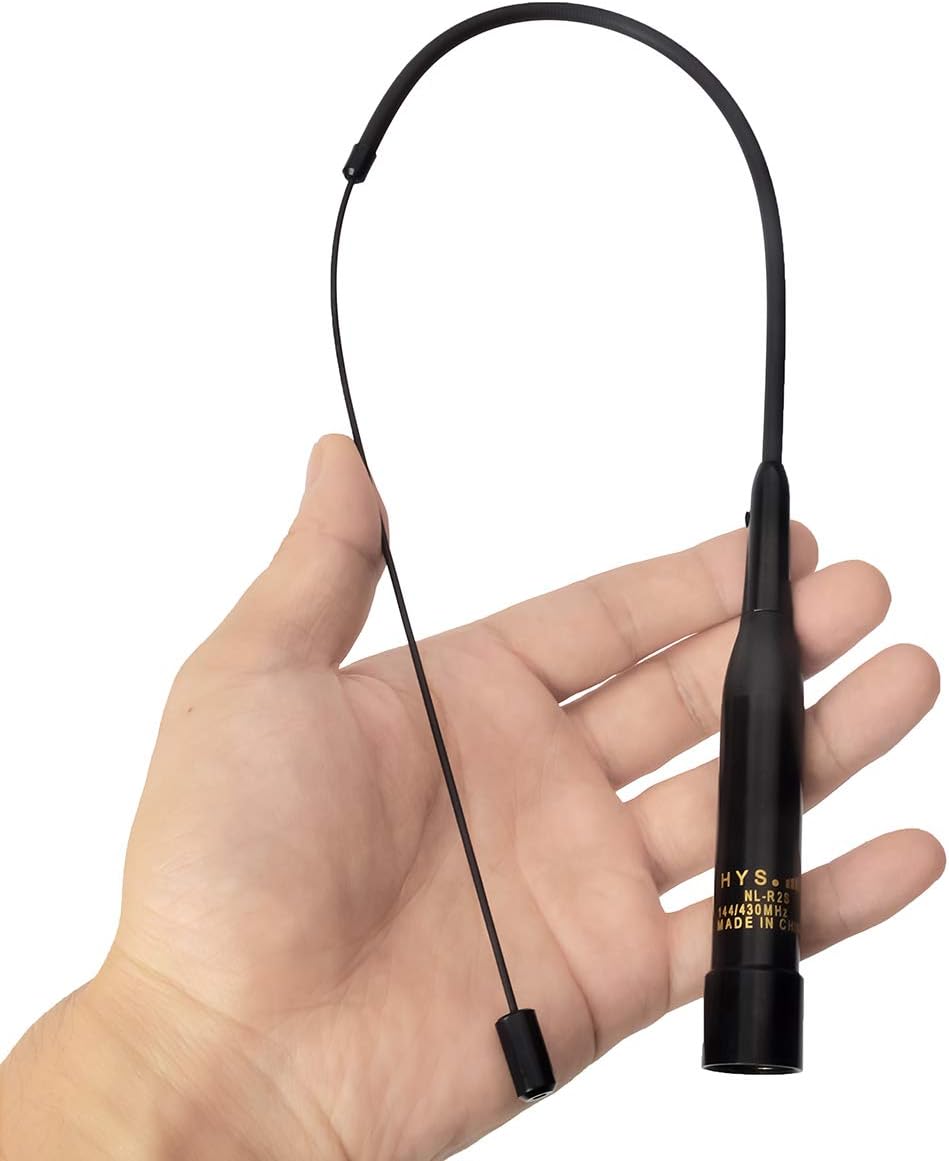

1PCS Antenna
1PCS Software and cable
