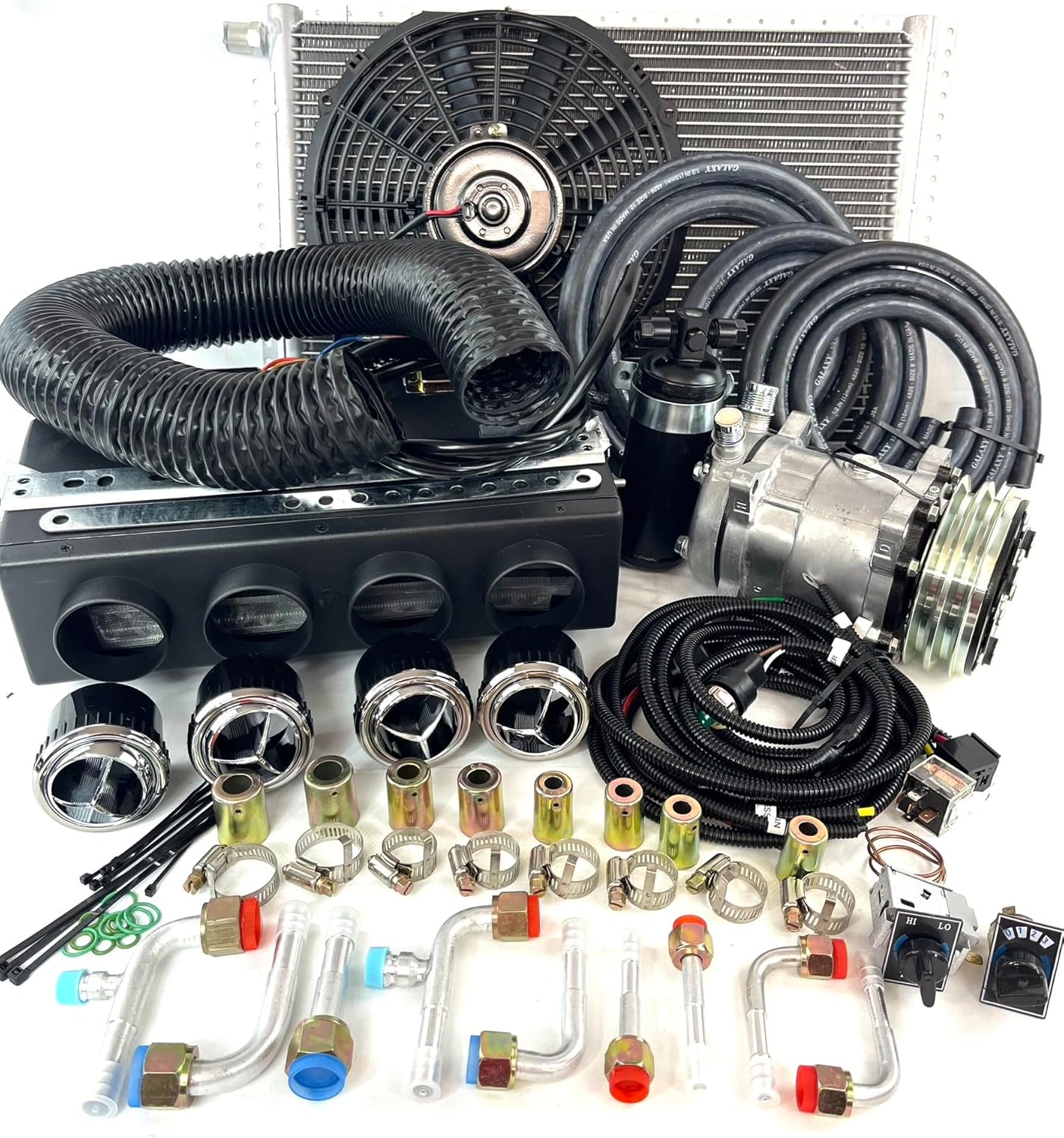

          KIT Universal A/C KIT Universal UNDERDASH Evaporator Heat Cool 404-000 DCSL Electrical Harness
          • KIT Universal A/C KIT Universal UNDERDASH Evaporator Heat Cool 404-000 DCSL Electrical Harness
          1 / 6

          KIT Universal A/C KIT Universal UNDERDASH Evaporator Heat Cool 404-000 DCSL Electrical Harness

          $97.89 USD
          Shipping fees will be calculated at checkout.

          • Free worldwide shipping

          • Free returns

          • Carbon neutral

          • Secure payments

          About this item

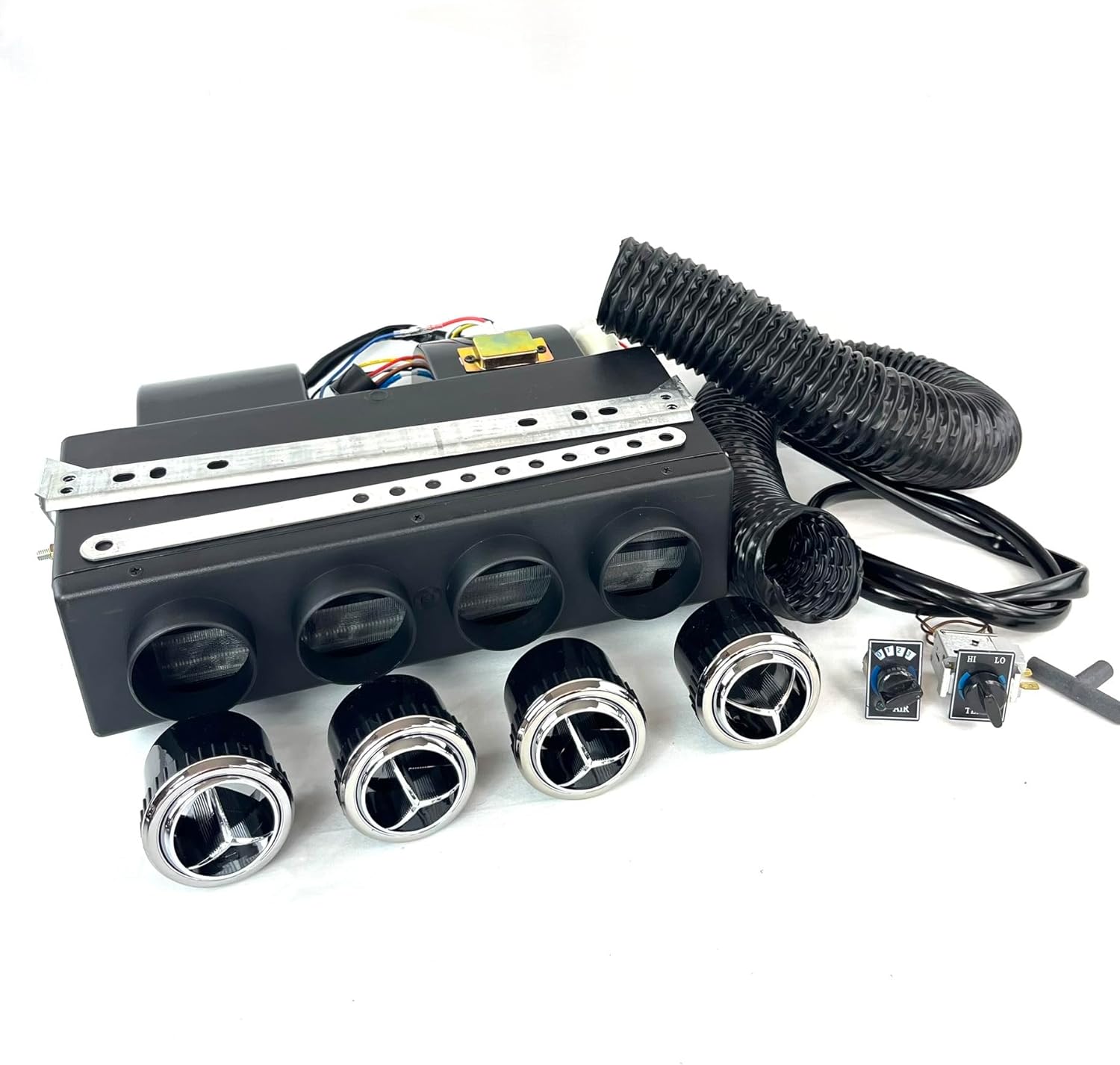

          • Evaporator Model: E-404-000CSL H/C. (4 CHROME Star Louvers) Universal Evaporator UNDER-DASH Heat & Cool 32 pass 4way all Aluminum coil Expansion valve 1.5 Ton Thermostat and rotative 3-speed blower switch Mounting bracket drain hose and T included 12,700BTU capacity 359 CFM DIMENSIONS: L15¾" X D12½" X H6" 10' FLEX DUCT 2½" DIAMETER 4 CHROME STAR LOUVERS
          • Compressor Model: C5H142A12V SD508 5H14 Sanden Style 2A Groove Pulley 12v coil also available 8PK Pulley
          • Condenser Model: CPF142018 PARALLEL FLOW (micro-tube technology) 14"H X 20"L .70"(18mm)W 4 Rails Aluminum #8 O-ring IN #6 O-ring OUT
          • Hoses Set Model: H6516,H81332, H1012 A/C HOSE #6 5/16 = 6'feet #8 13/32 = 4'feet #10 1/2 = 5' feet (NOTE: if you need extra hose JUST LET US KNOW, extra charges maybe apply).

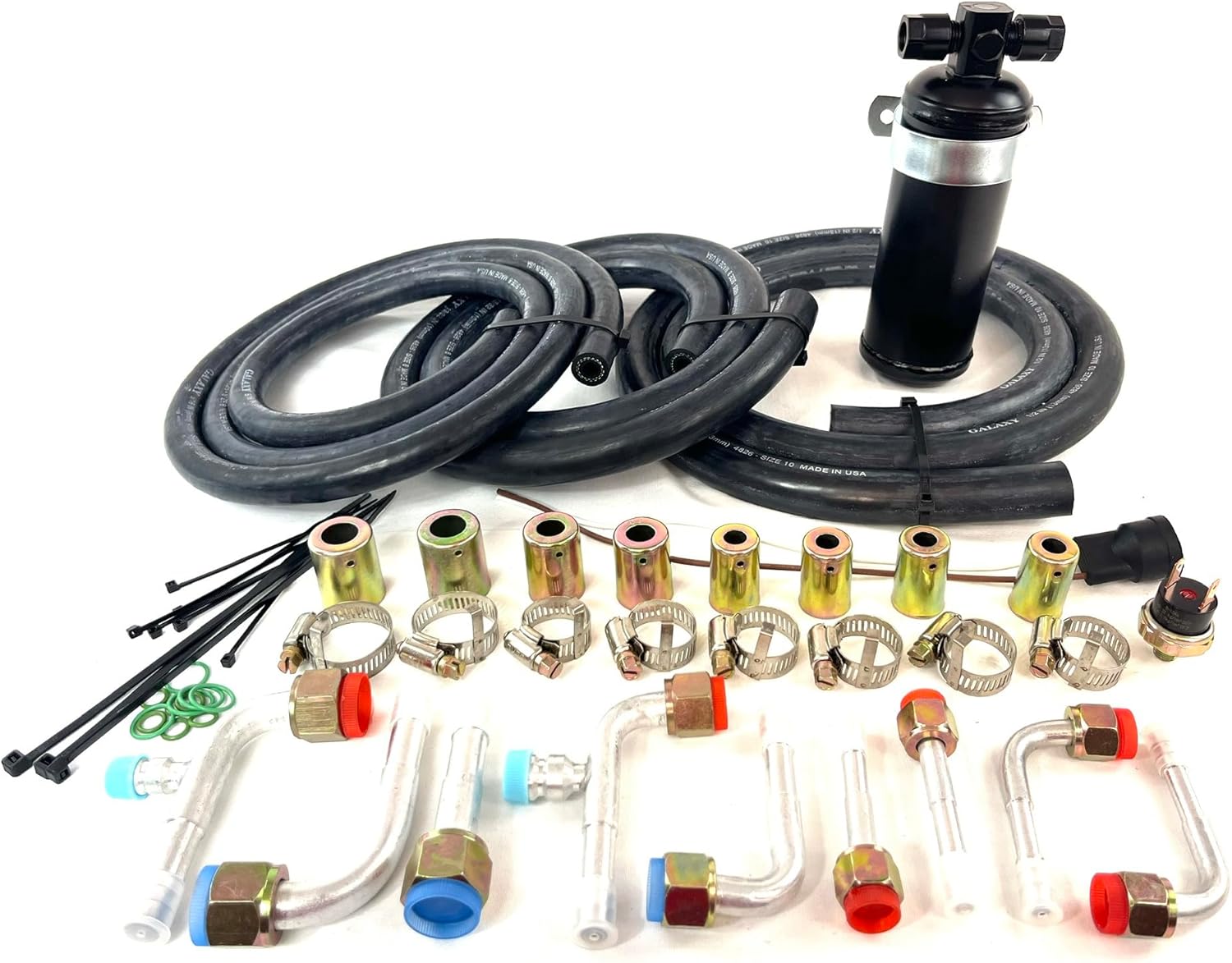

          • Fitting Set Model: FTSET404 1- N° 10 90° O-ring Fitting w/R134a Serv Port 1- N° 8 90° O-ring Fitting w/R134a Serv Port 1- N° 10 Straight O-ring Fitting 1- N° 10 90° O-ring Fitting 2- N° 6 90° O-ring Fitting 1- N° 8 90° O-ring Fitting 2- N° 6 Straight O-ring Fitting Set include metal FERRULES and CLAMPS If you decided use a/c clamps you don't need special crimper tool (YES... We include both systems) O-ring set is included
          • Filter Drier Model: FD100A ALUMINUM Model: FD100B BLACK 2.5"Diameter 7.5"Hight Sight Glass #6 3/8 x 3/8 O-ring connections both sides (HI/LOW BINARY PRESSURE SWITCH AND HARNESS CONNECTOR INCLUDED) (NOTE: Aluminum or Black) if you have a preference let us know leaving a message

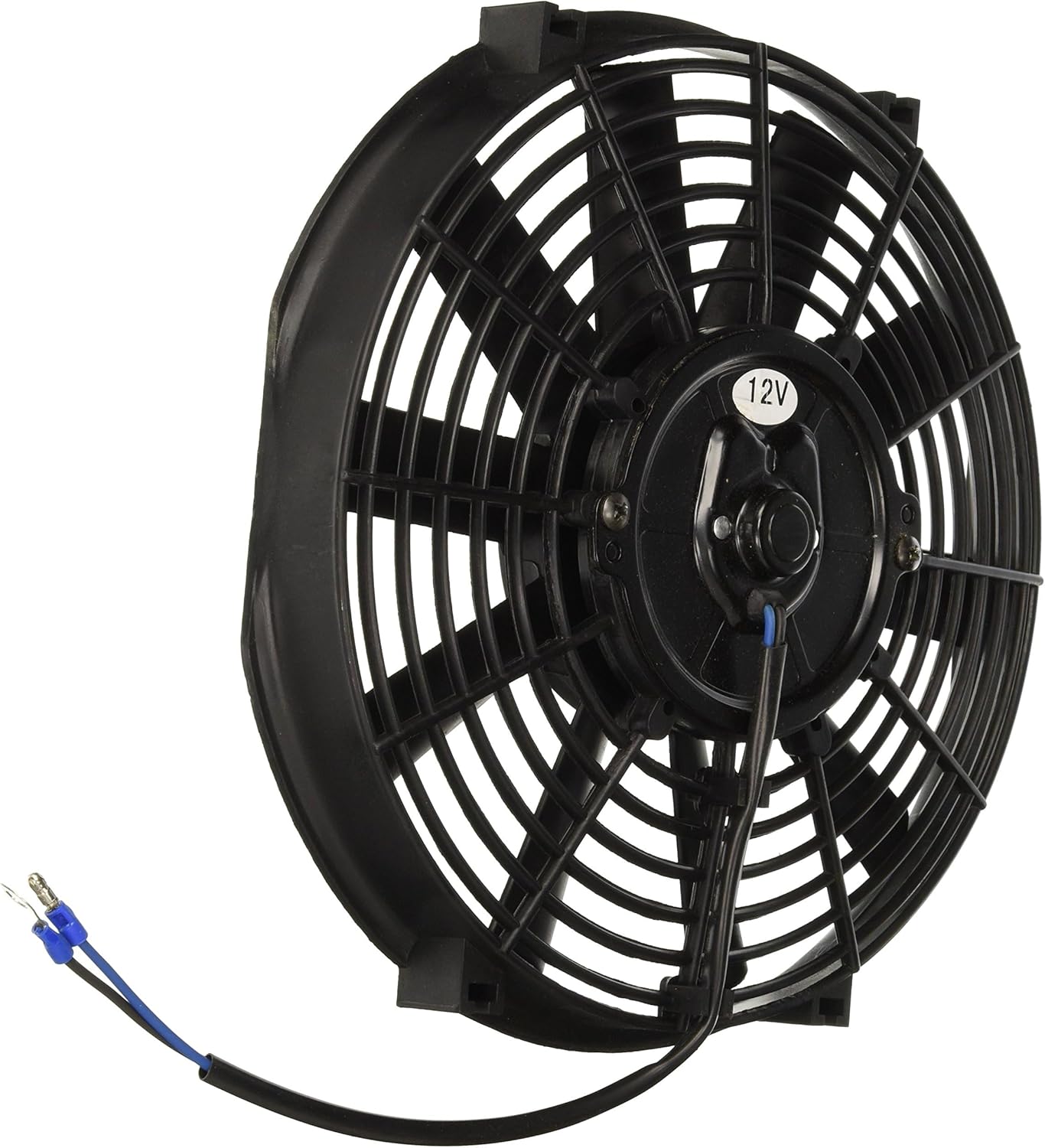

          • Condenser Fan Model: CF1212 12" Diameter 12 Volts 80W 6 AMP Reversible Puller or Pusher 4 Mounting Brackets included
          • 1 YEAR WARRANTY FULL CUSTOMER SERVICE
