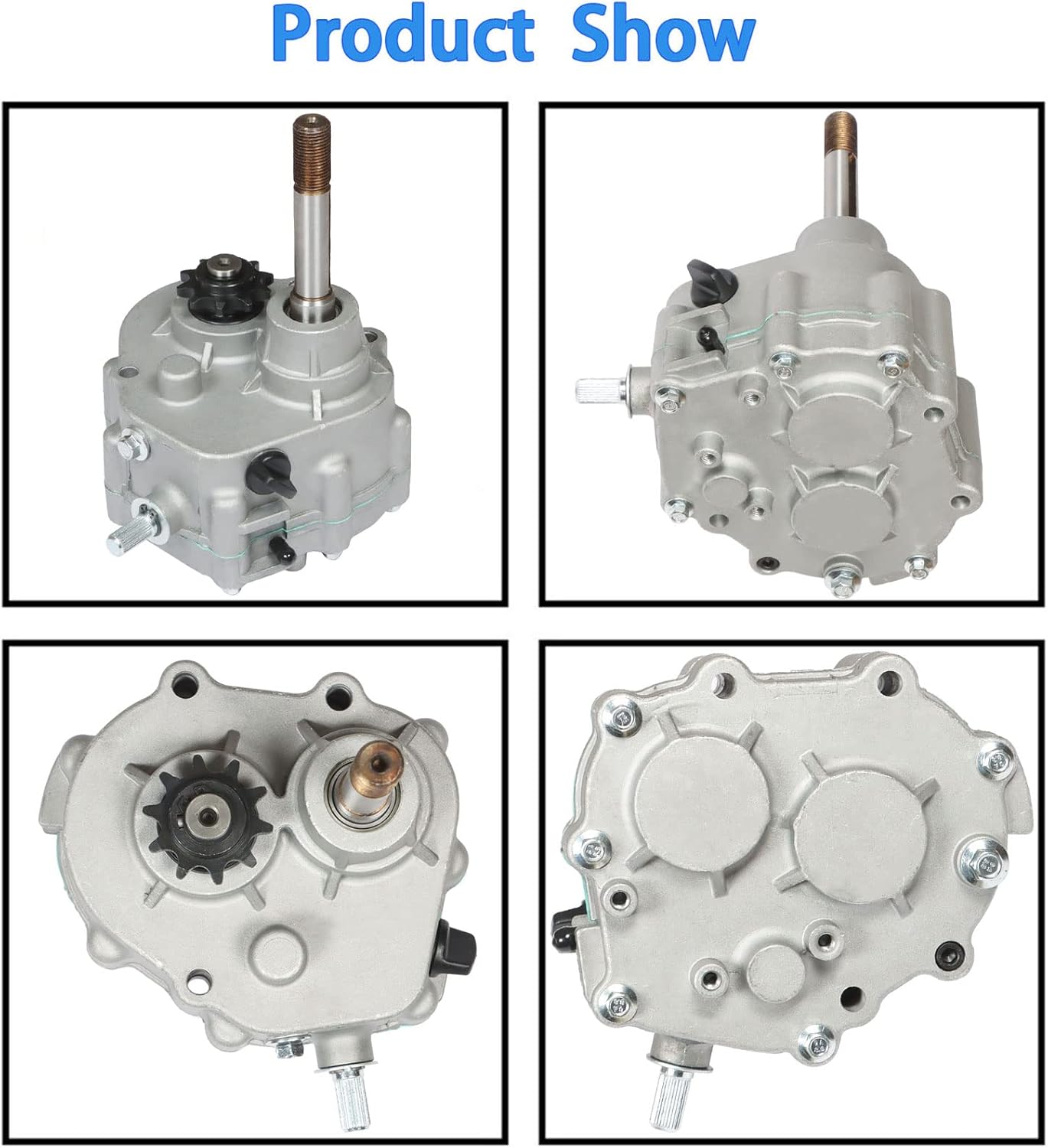

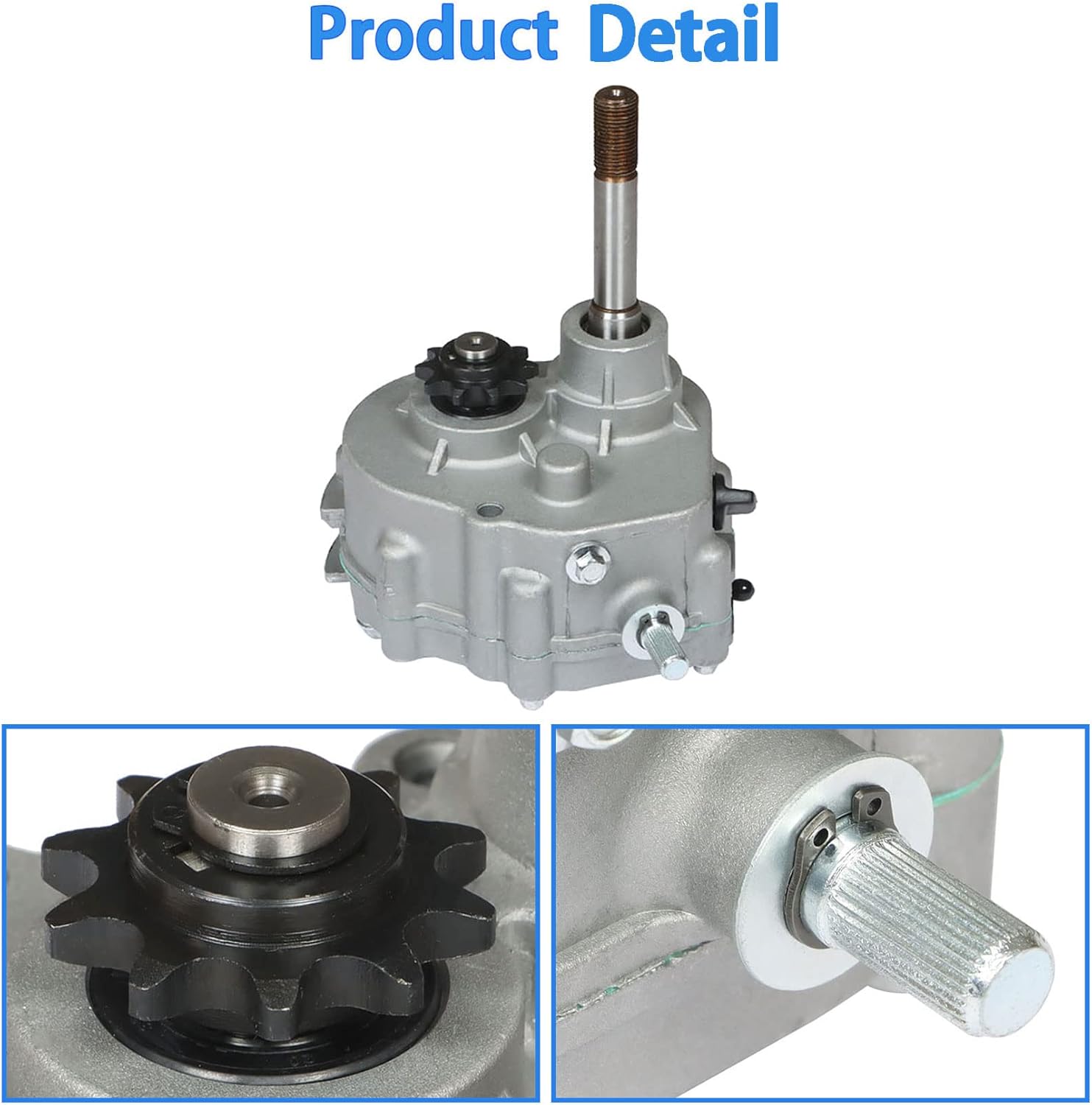

Go Kart Forward Reverse Gearbox Kit Replacement for 2HP-13HP Engine Local 30 Series 2300rpm.
Replacement for 2HP-13HP Engine 4 Stroke Forward Reverse Gearbox 30 Series Torque Converter 35 Chain Go Karts Accessories 212cc Gearbox.
Easy to install: This go-kart forward reverse gearbox is easy to install, suitable for people who like DIY assembly of karts, just follow the operation to complete the installation and use.
This go-kart reverse kit is made of high-quality metal with guaranteed quality.

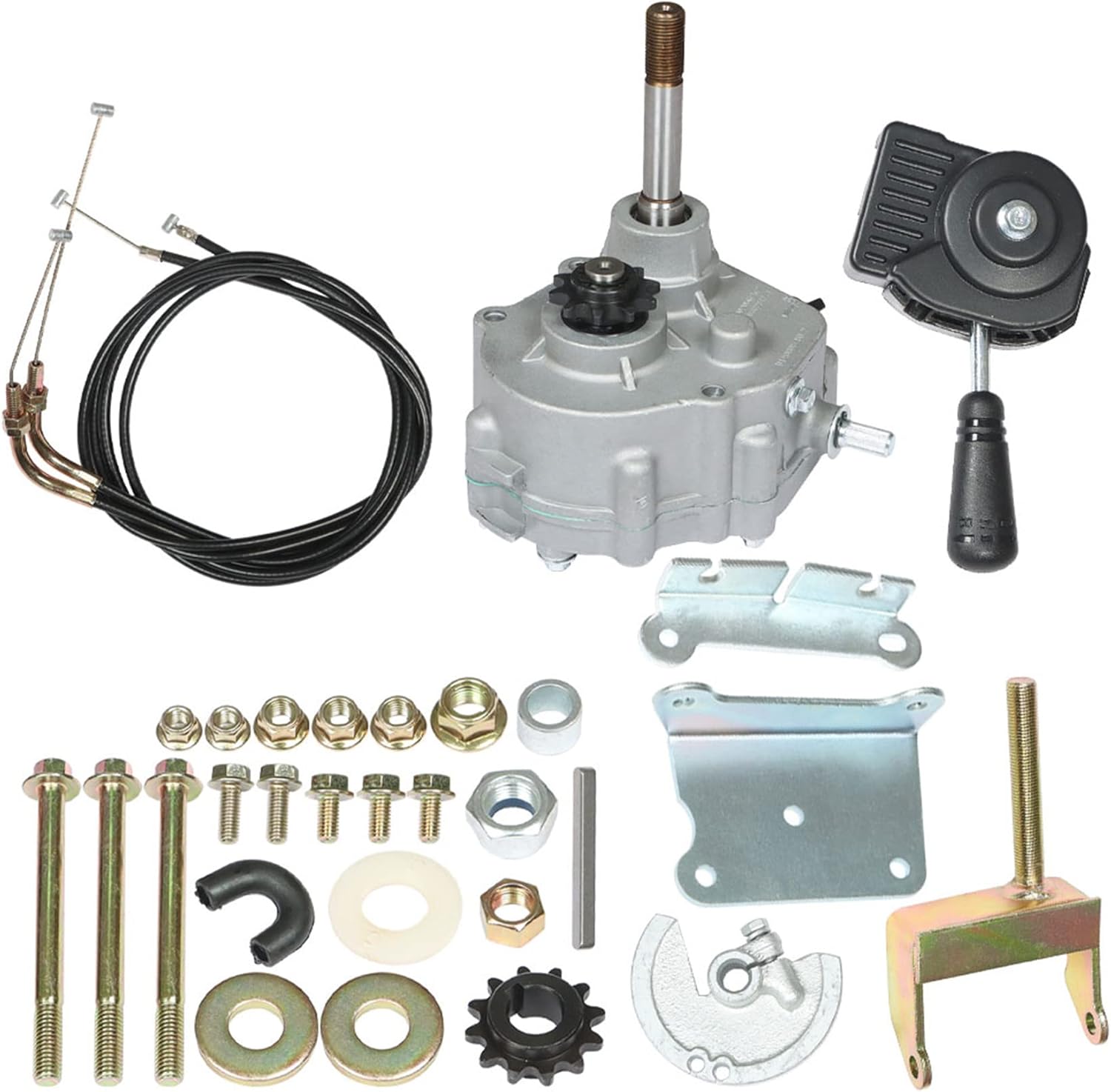

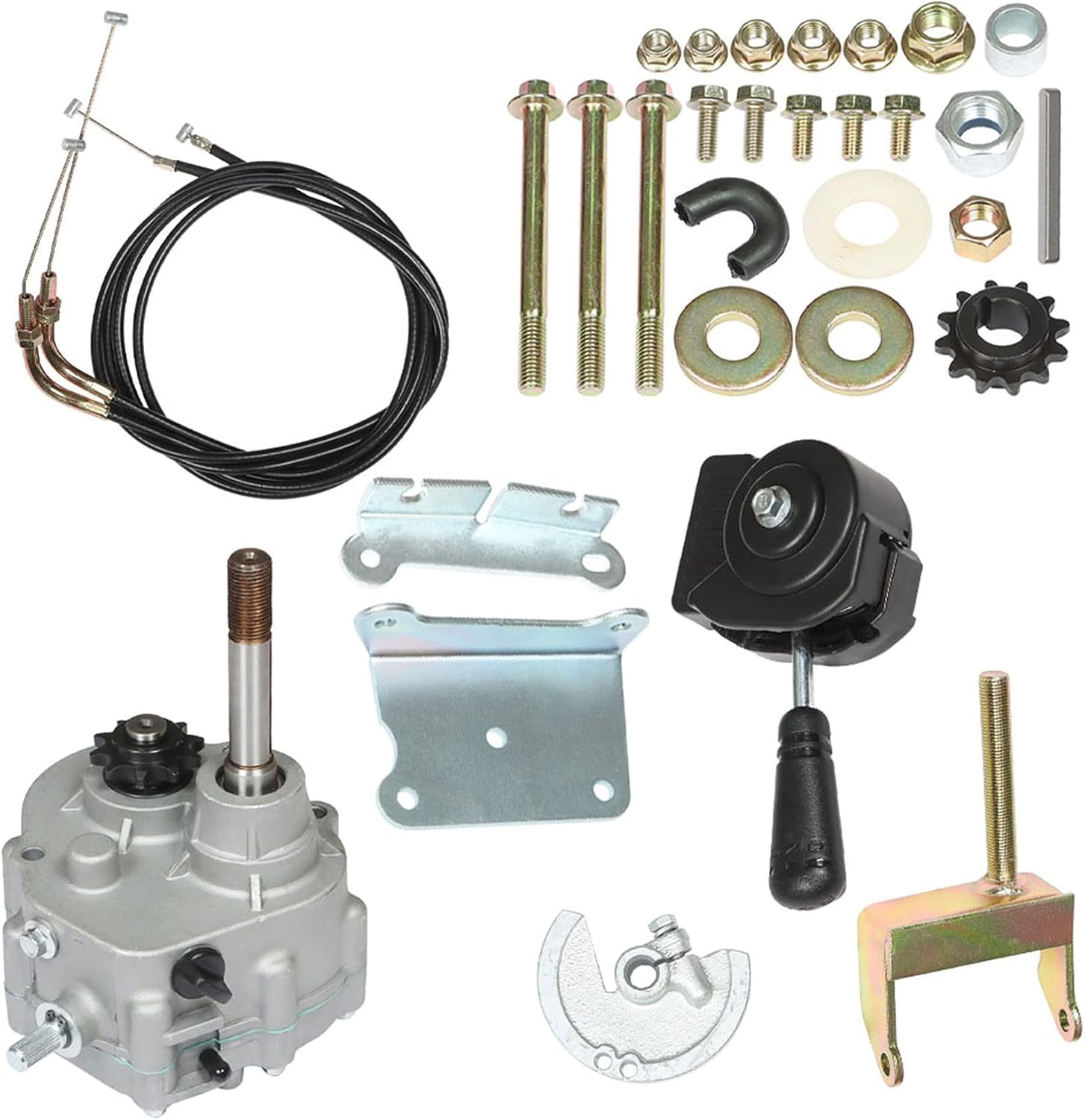

Package includes: 1 x gearbox with 3/16 keyway, 1 x gear lever assembly, 1 x gearshift disc, 2 x transmission lines, 2 x sprocket wheels, and 2 x mounting plates.
Go Kart Forward Reverse Gearbox Kit Replacement for 2HP-13HP Engine Local 30 Series 2300rpm.
Specification:
Forward Ratio: 1:1:3,
Reverse Ratio: 1:2:6,
Shaft Size: 5/8' with 3/16' keyway;
Gearbox Speed: 5/13 of the Clutch speed;

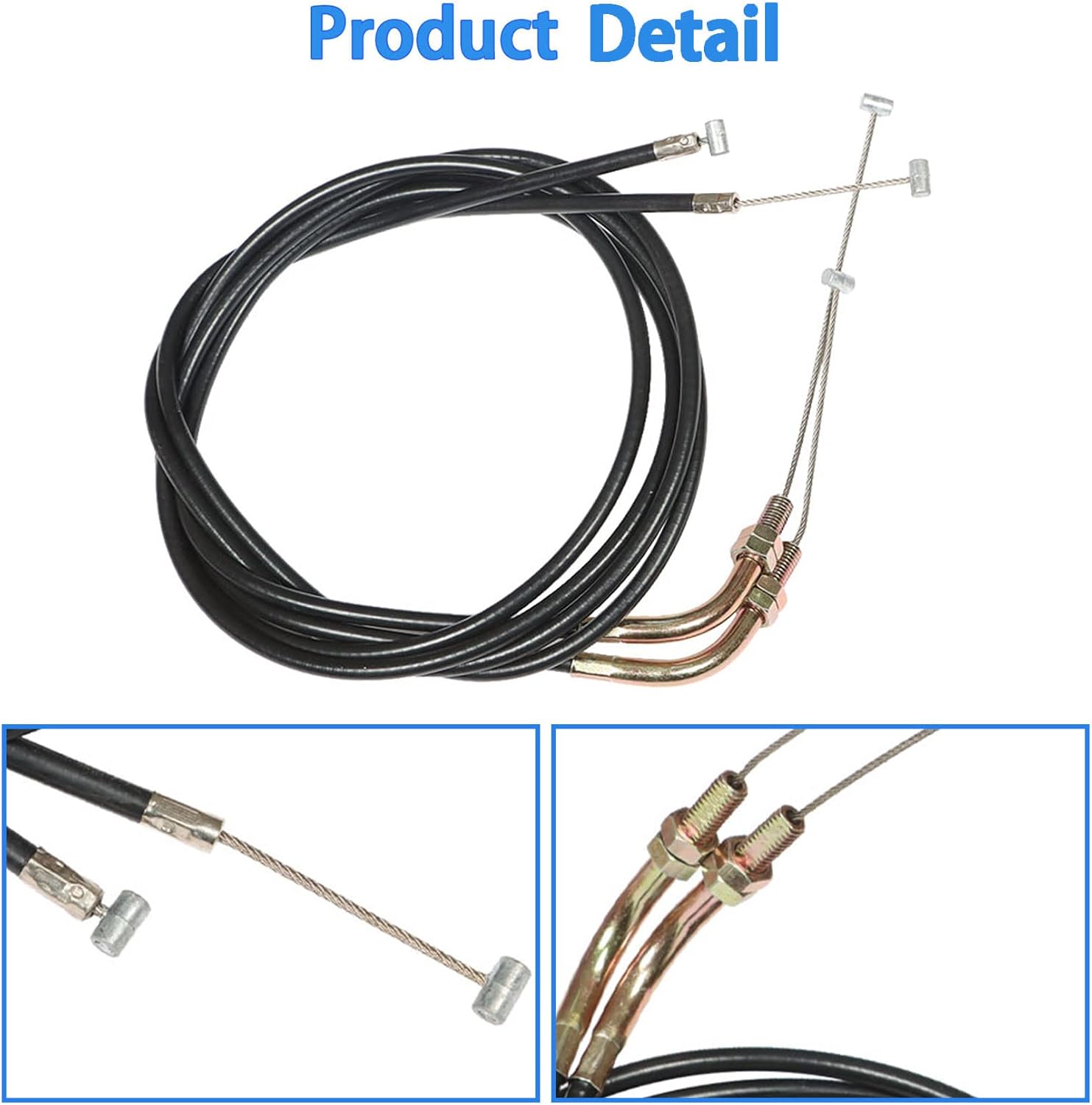

Shifter Cable Length: 1540mm ( 5' ) ( 60'' ).
Compatibility:
Replacement for 2HP-13HP Engine 4 Stroke Forward Reverse Gearbox 30 Series Torque Converter 35 Chain Go Karts Accessories 212cc Gearbox.
Replacement for 10T 40 41 and 12T 35 sprockets.
Note:
This go-kart gearbox is use GL-5 gear oil.
When the oil is used up, it needs to be filled to half of the box.
Professional installation is recommended

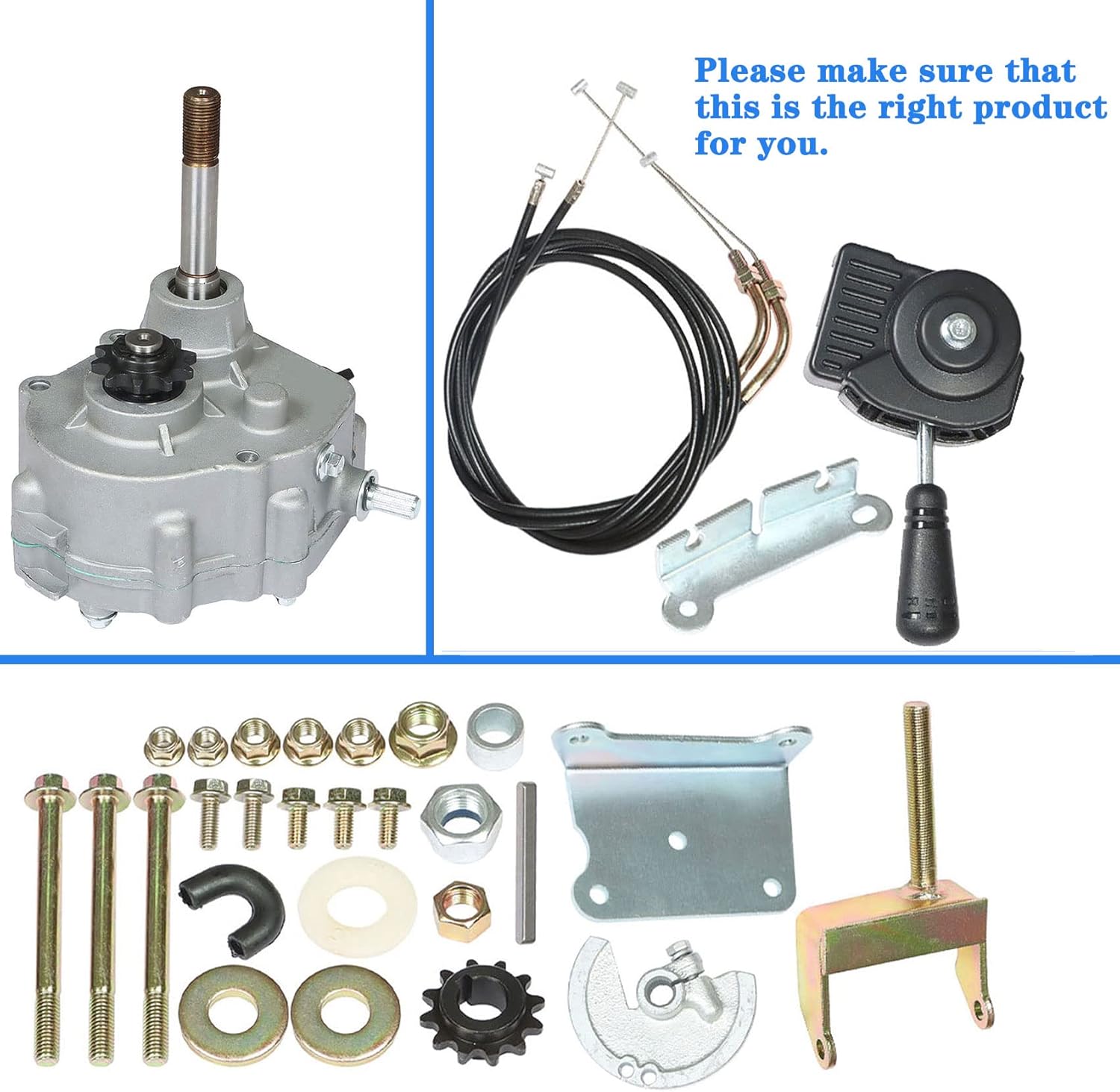

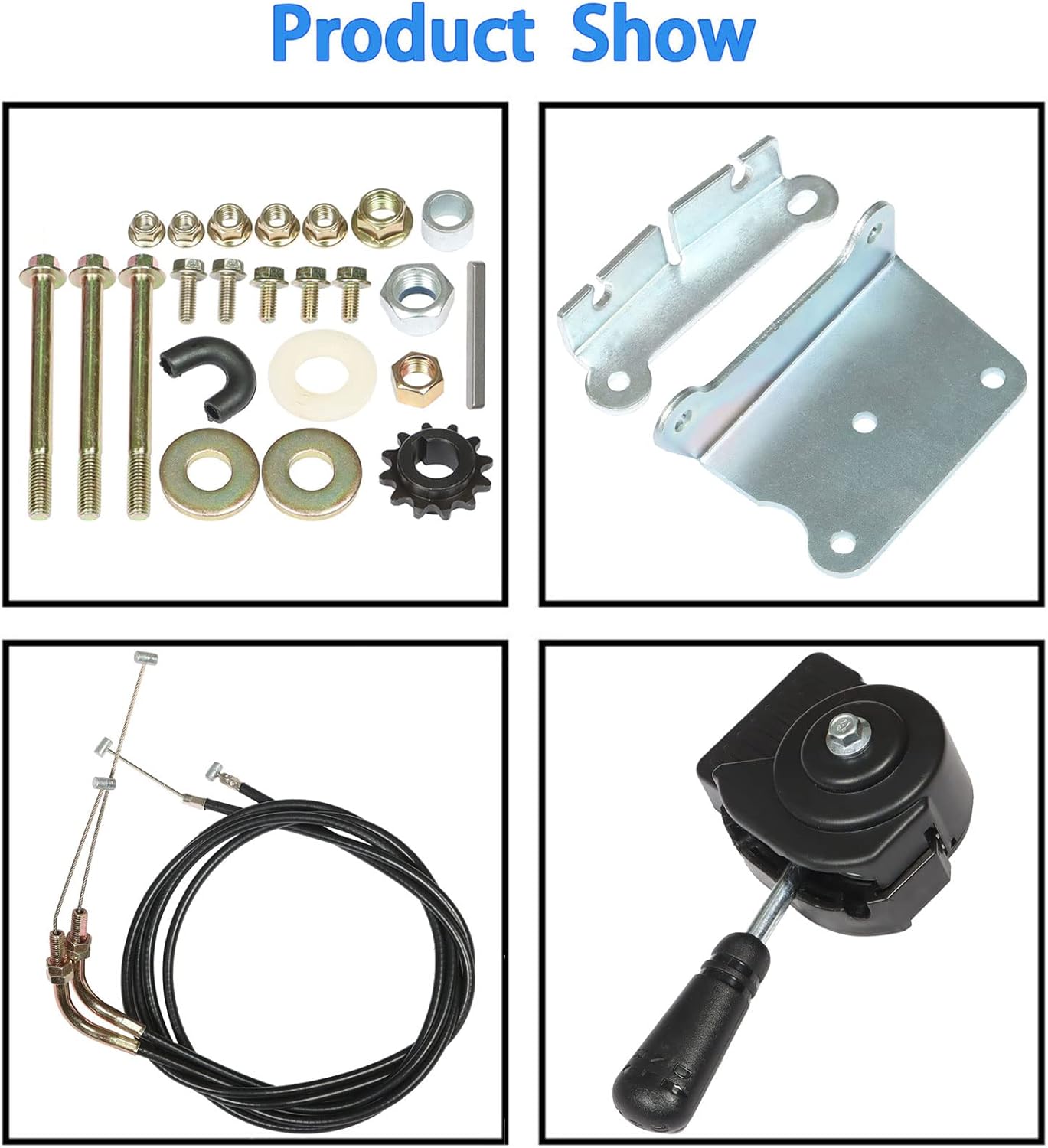

Package Including
1 x gearbox with 3/16' keyway,
1 x gear lever assembly,
1 x gearshift disc,
2 x transmission lines,
2 x sprocket wheels,
2 x mounting plates.
