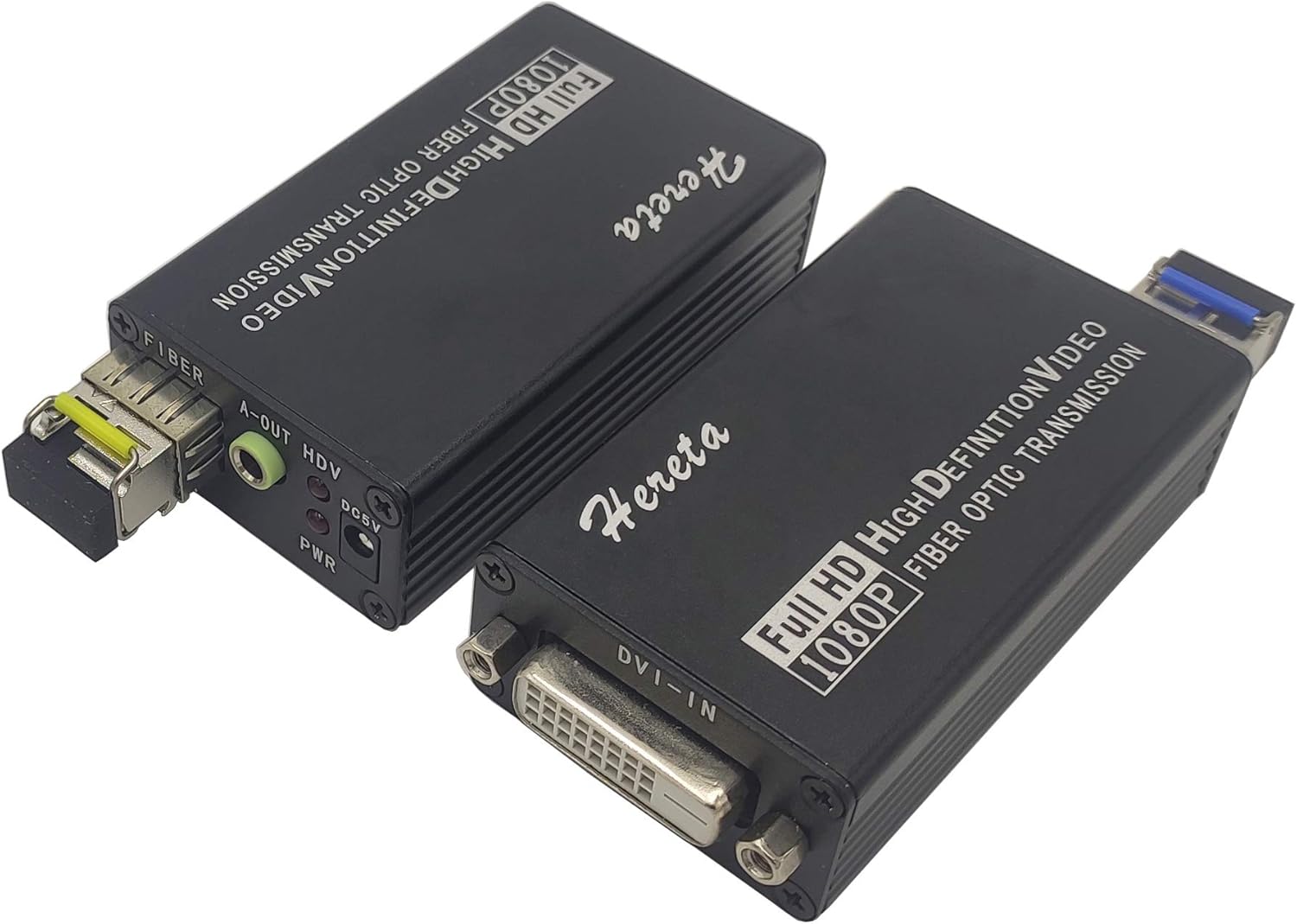

Mini DVI Fiber Converter 1080P HD Video Extender Optical Transceiver Extension of Distances Up to 20km Over Single-Mode with External Stereo Audio

DVI Optical Transceiver can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security
DVI Fiber Converter with external stereo audio, transmits DVI video signals and audio up to 20km over a single fiber optic cable
Compliant with DVI 1.0 specifications, Support 1920*1200 1080P@60Hz, Special support 1600*1200 @60Hz
High Compatibility, can auto-match source and display device, DTV resolutions: 480i, 576i, 480p, 576p, 720p, 1080i up to 1080p; PC resolutions: VGA, SVGA, XGA, SXGA up to UXGA
Built-in automatic adjustment system, make the image smooth, clear and stable. And built-in ESD protection system

The Mini-type DVI Fiber optic extender provides extension of DVI signals long distances over one fiber optic cable, it supports DVI 1.0 specifications, high resolution up to 1920*1200@60Hz. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

Features
Transmits DVI video signals and audio up to 20km over a single fiber optic cable;
Compliant with DVI 1.0 specifications ;
Support 1920*1200 1080P@60Hz
Special support 1600*1200 @60Hz
Supporting pixel rates from 25MHz to 165MHz
DTV resolutions: 480i, 576i, 480p, 576p, 720p, 1080i up to 1080p
PC resolutions: VGA, SVGA, XGA, SXGA up to UXGA
High compatibility, can auto-match source and display device;
Built-in automatic adjustment system, make the image smooth, clear and stable;
Built-in ESD protection system;
Simple to install, plug and play;

Specifications:
Standards: DVI1.0 3D; HDCP1.4
Maximum Pixel Clock: 165MHz
Maximum Data Rate: 6.75Gbps
Connector: Female DVI-D
Audio Interface: 3.5MM external stereo audio
Fiber Type: Single-mode
Interface: SFP model – LC connector
Interface bandwidth: 3Gbps
Power Input: 5V DC
Operating Temperature: -20℃ ~ +70℃
Dimensions (LxWxH): 1.65*0.87*2.83 inches

Package list
 DVI optical fiber transmitter ………. ……1 pcs
 DVI optical fiber receiver ……………... …1 pcs
 Fiber optic module …………………………1 set
 Power adapter ……………………………….2 pcs
 User manual ………………………………….1 pcs
