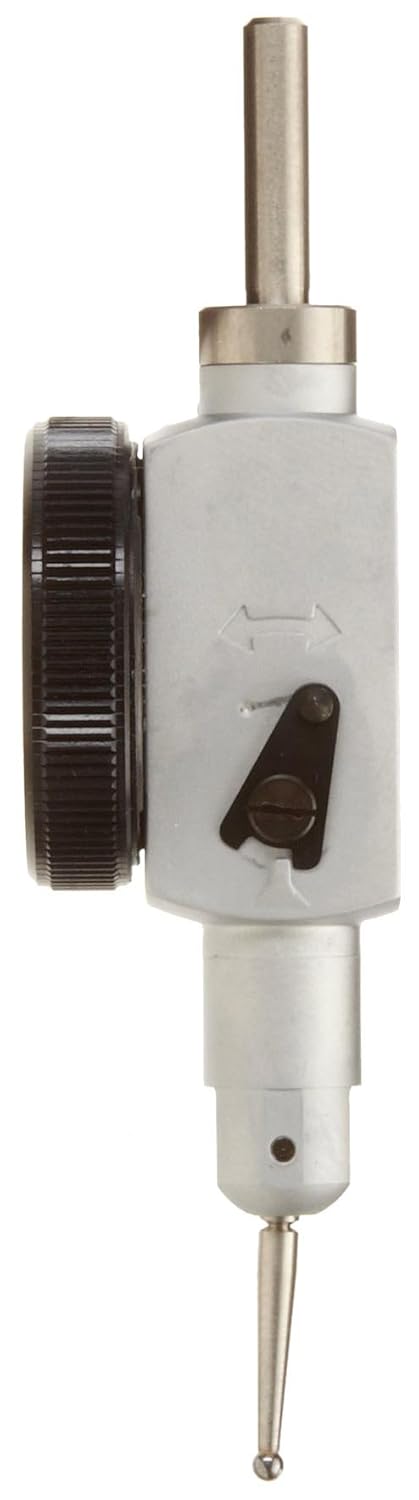

          Mitutoyo 513-528T Pocket Type Dial Test Indicator, Full Set, Horizontal Type, 0.375 Stem Dia., White Dial, 0-20-0 Reading, 1.3 Dial Dia.
          • Mitutoyo 513-528T Pocket Type Dial Test Indicator, Full Set, Horizontal Type, 0.375 Stem Dia., White Dial, 0-20-0 Reading, 1.3 Dial Dia.
          1 / 3

          Mitutoyo 513-528T Pocket Type Dial Test Indicator, Full Set, Horizontal Type, 0.375 Stem Dia., White Dial, 0-20-0 Reading, 1.3 Dial Dia.

          $59.69 USD
          Shipping fees will be calculated at checkout.

          • Free worldwide shipping

          • Free returns

          • Carbon neutral

          • Secure payments


          Jeweled bearings assure higher sensitivity and accuracy. reversible measuring direction
          Two holding bars are supplied (full sets only)
          Fully adjustable bezel/dial face
          Contact point is adjustable within 220 degree
          Bezel is sealed with on o-ring to keep out water/oil

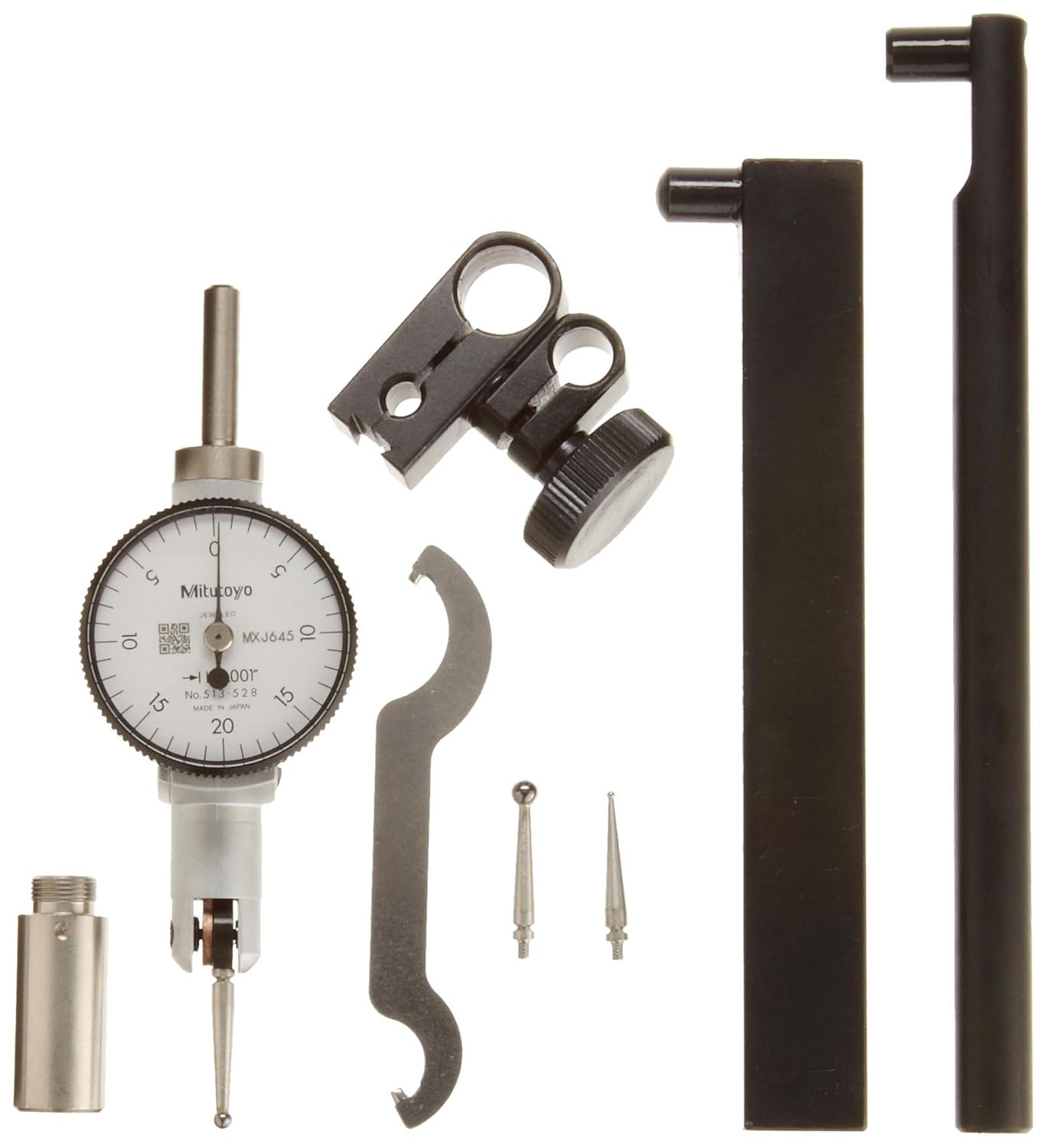

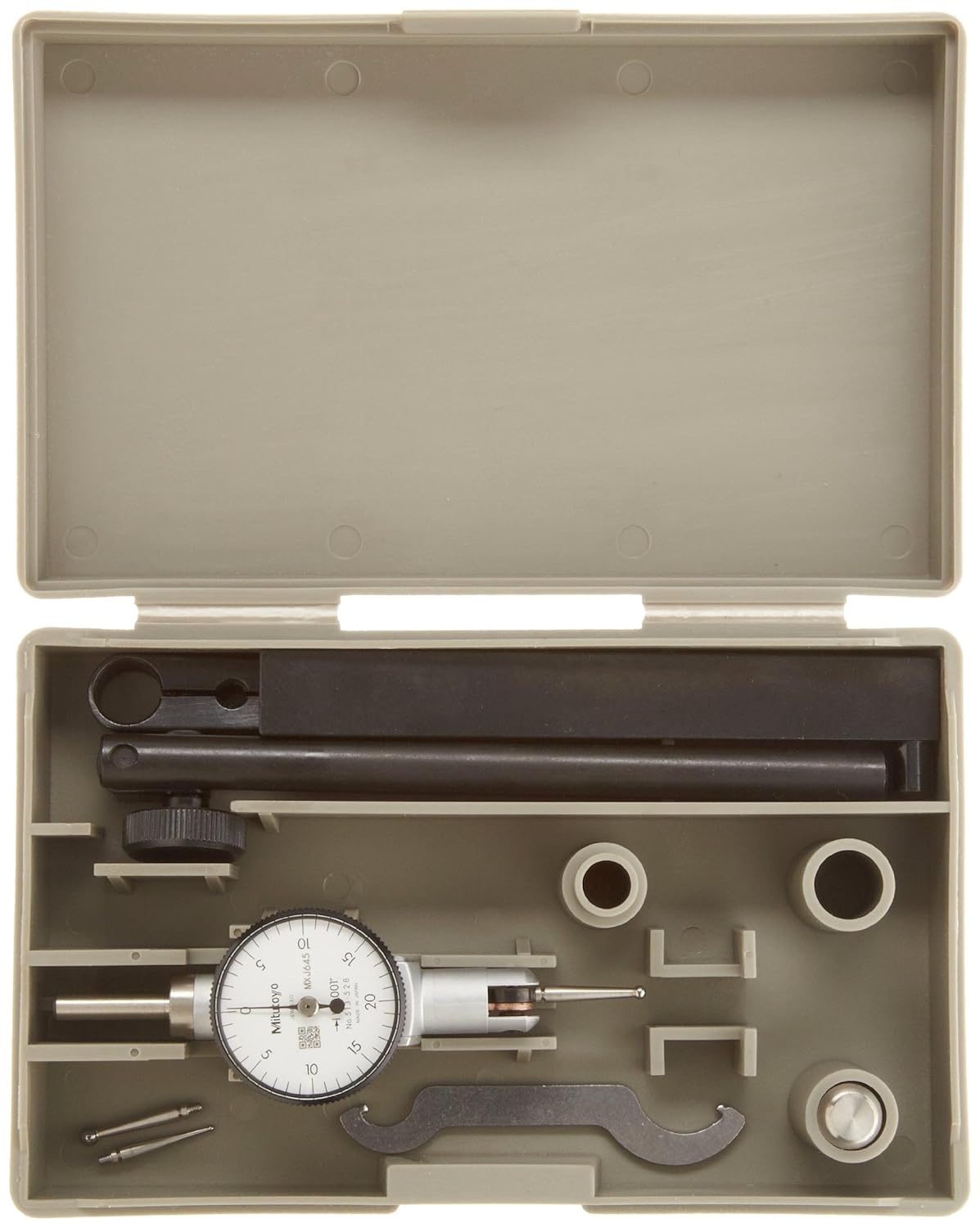

          Measuring force: 0.3N or less. It is Jeweled bearing type and Compact, Length: 18.7mm. Full Set includes Indicator, Spanner (part number 301336), 3/8' Diameter Stem (part number 102081) and .079' Diameter Carbide Contact Point, as well as .039' Diameter Carbide Contact Point and .118' Diameter Carbide Contact Point, .157' Diameter Stem (part number 102036), .315' Diameter Holding Rod (part number 900211), 4' Length Holding Bar and Swivel Clamp for .157' Diameter, 3/8' Diameter, Dovetail (part number 900322).
