MPPT Technology: Precise maximum power point tracking. MPPT algorithm can optimize the power collection from solar panels. It accurately captures and collects sunlight, and locks in the maximum output power points, significantly increasing over 25% of the power generation. With the monitoring system, it can help you monitor the power generation efficiency of the power station and reduce workforce expenses.
High Performance: Reverse power transmission. With efficient reverse power transmission technology, the power transmission rate up to 99.9%. Full digital control can be achieved by using intelligent soft switching technology and built-in MCU for charging modules; Introducing high-frequency switching power supply and SPWM control technology. It features strong anti-interference ability, fast calculation speed, a high degree of intelligence, high control precision, and excellent output waveform.

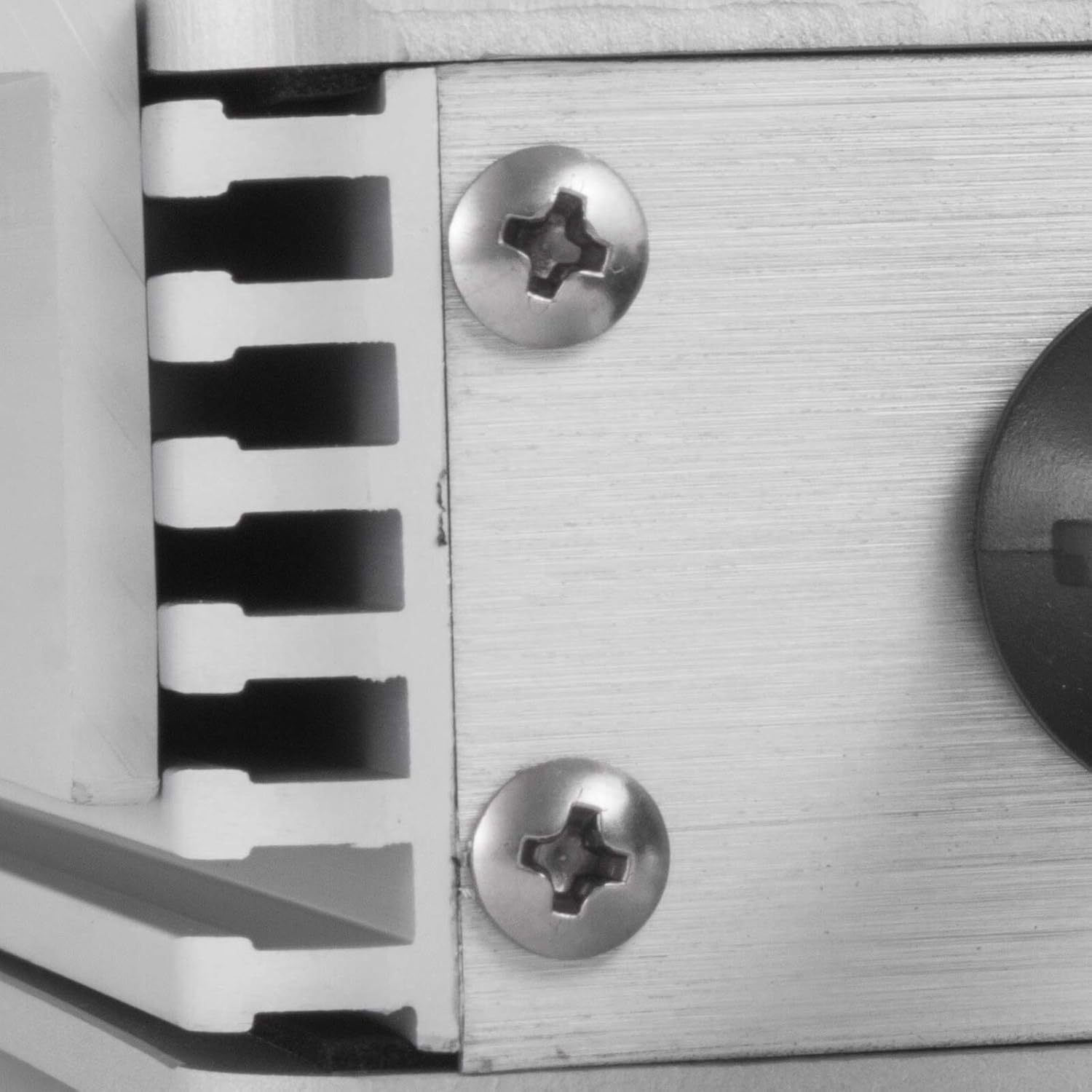

Protective & Reliable: IP65 waterproof design and aluminum alloy material can effectively prevent rainwater erosion on the surface. It provides electrical isolation, more reliable to use. It offers multiple protection functions, such as over-current protection, short circuit protection, low-voltage protection, over high voltage protection.
Easy Operation: Lightweight and easy to install, many inverters can be stacked arbitrarily to form a single-phase parallel stacking system. Almost no maintenance work is required, clean the dust on the photovoltaic panel occasionally.
Sustainable Use: This grid-tie micro-inverter can convert DC power generated by solar panels into AC power. Our solar inverter provides sustainable energy and brings excellent environmental benefits.
| |

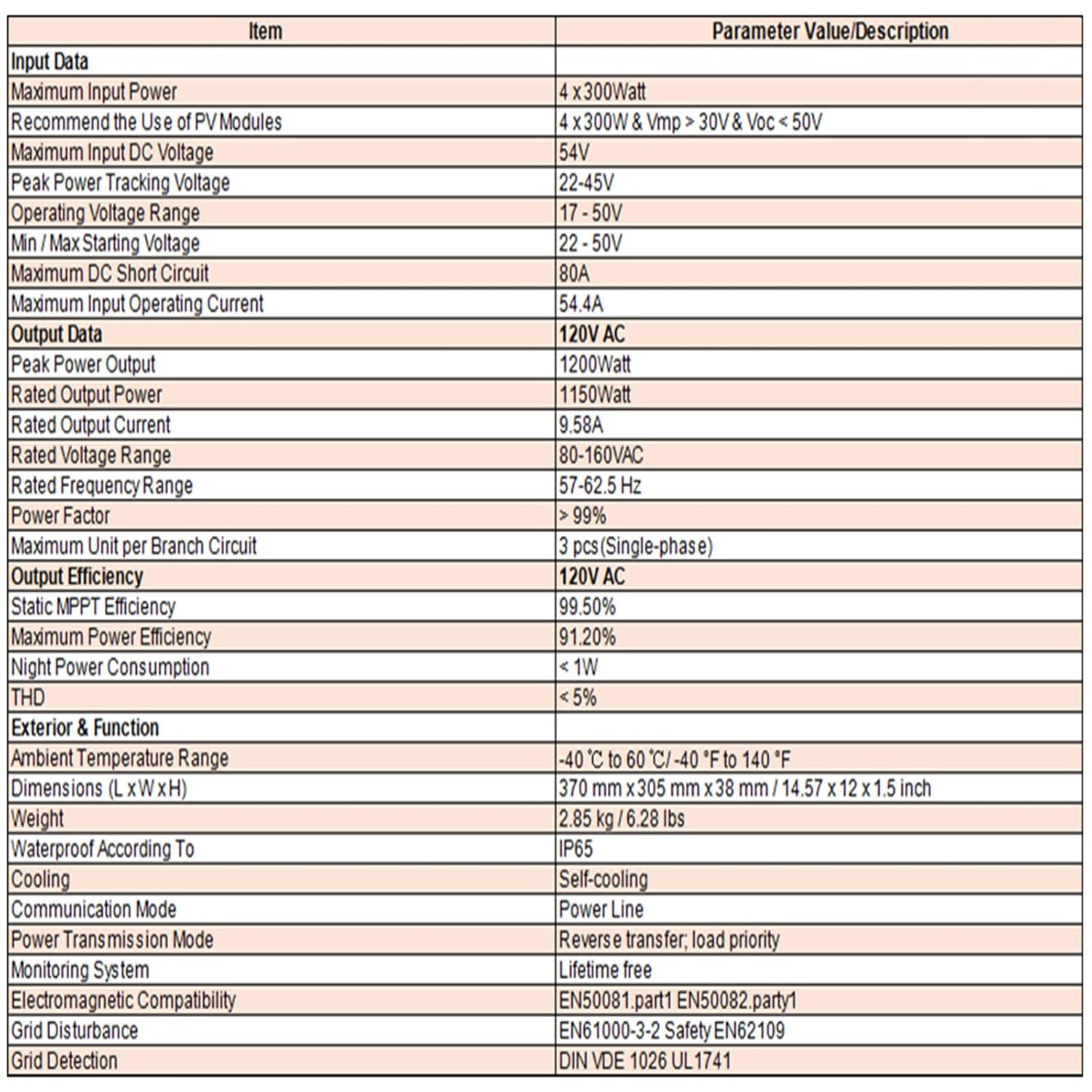

| | 1200W 220V Waterproof solar grid tie inverter | 600W 220V Waterproof solar grid tie inverter | 1200W 110V Waterproof solar grid tie inverter | 600W 110V Waterproof solar grid tie inverter | 2400W 50A Solar Pure Sine Wave Power Inverter | 5000W 50A Solar Pure Sine Wave Power Inverter |
| Recommended input power | 1200W | 500-600W | 1200W | 500-600W | 2400W | 5000W |
| Recommend the use of PV modules | 4*300W/Vmp>34V/Voc<50V | 2*300W/Vmp>34V/Voc<50V | 4*300W/Vmp>34V/Voc<50V | 2*300W/Vmp>34V/Voc<50V | Low noise and vibration | Low noise and vibration |
| Operating voltage range | 17-50V | 17-50V | 17-50V | 17-50V | High quality bearings | High quality bearings |
| Min/Max start voltage | 22-50V | 22-50V | 22-50V | 22-50V | 24-80V | 36-105V |
| Maximum DC short current | 80A | 40A | 80A | 40A | 50A | 50A |
