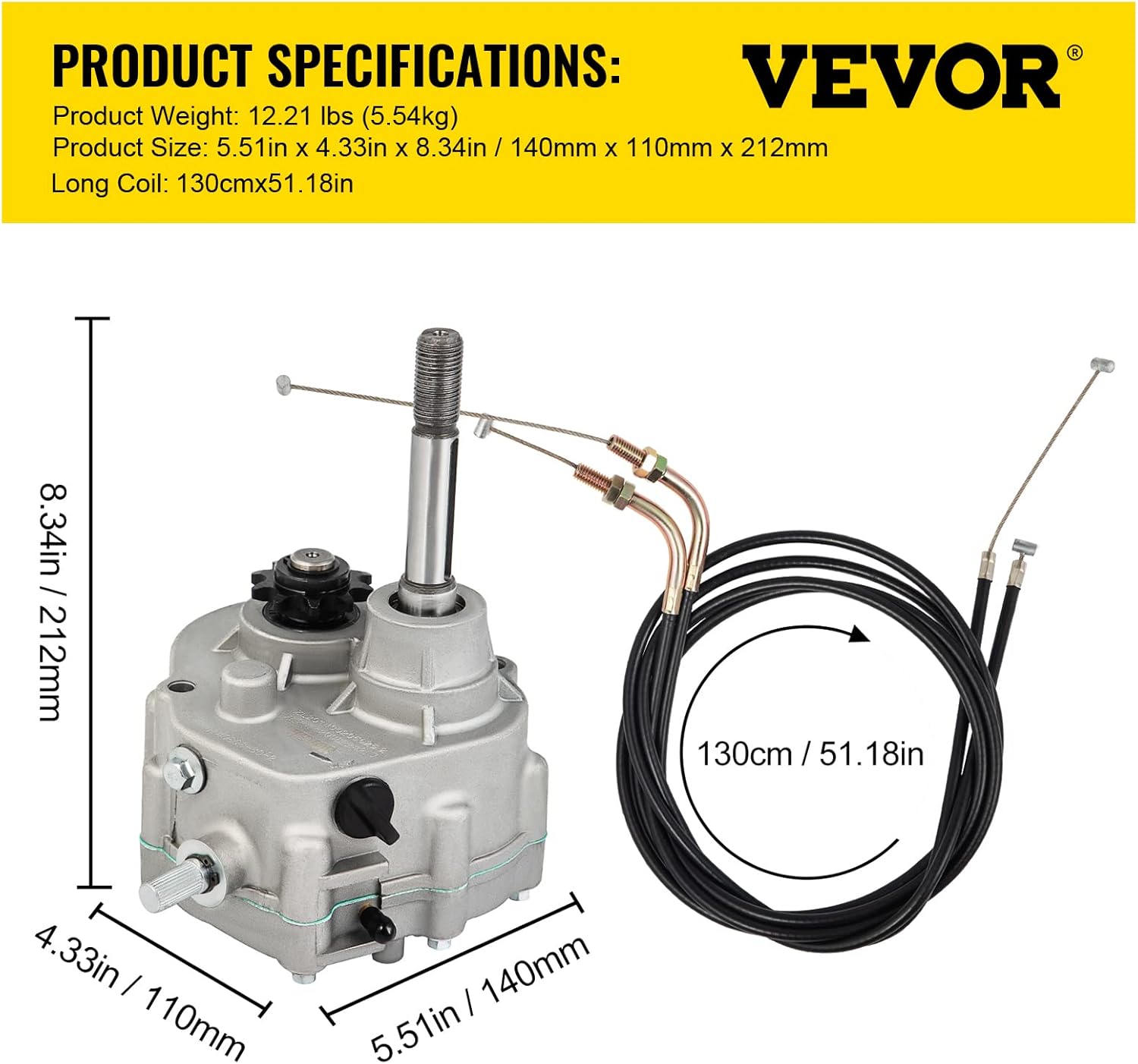

Structural Parameters: Gearbox Shaft Size: 5/8'; Keyway : 3/16'; Forward Ratio: 1: 1.3; Reverse Ratio: 1: 2.6; RPM: 2300; Shifter Cable Length: 51.18'/130 cm.

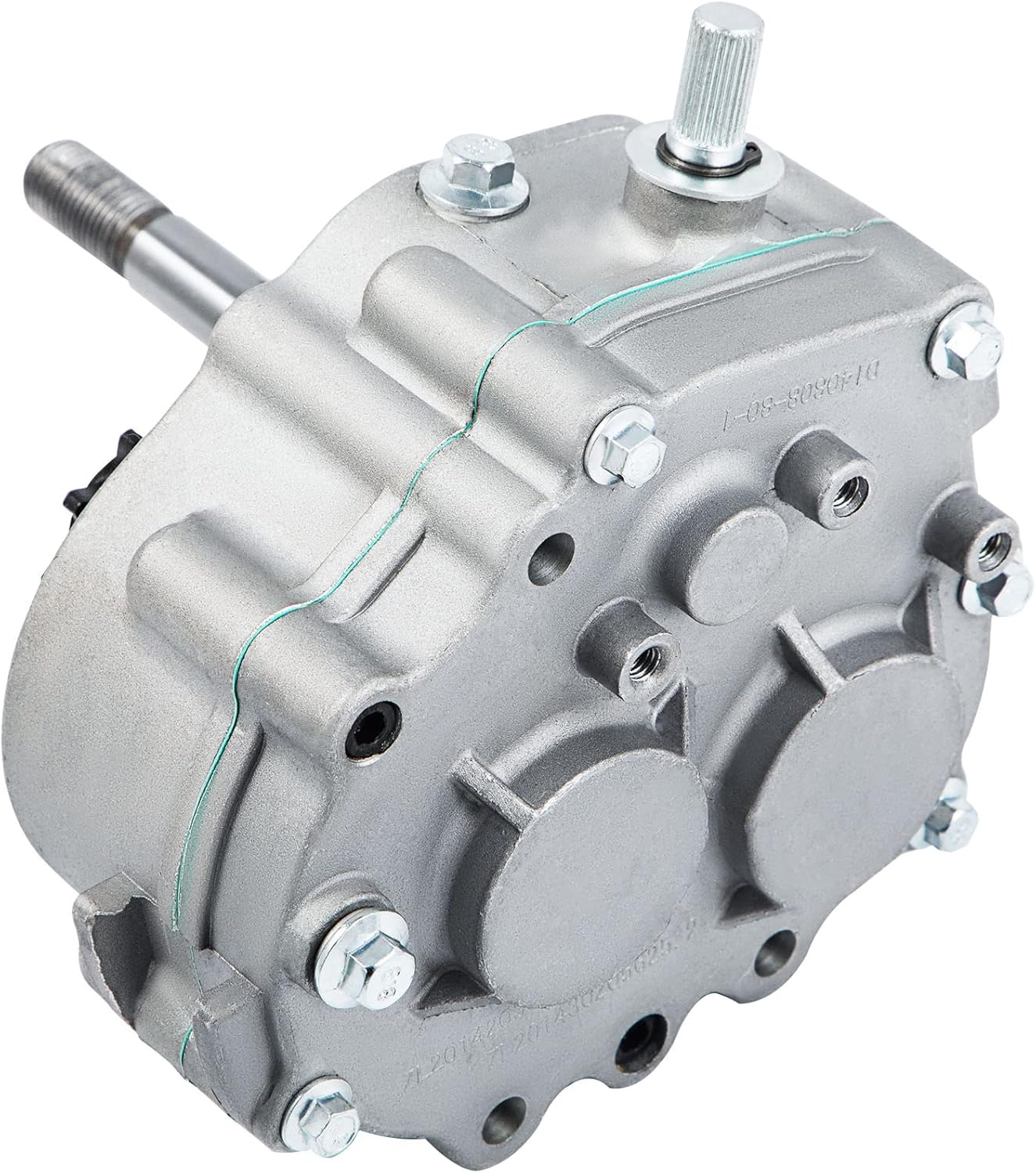

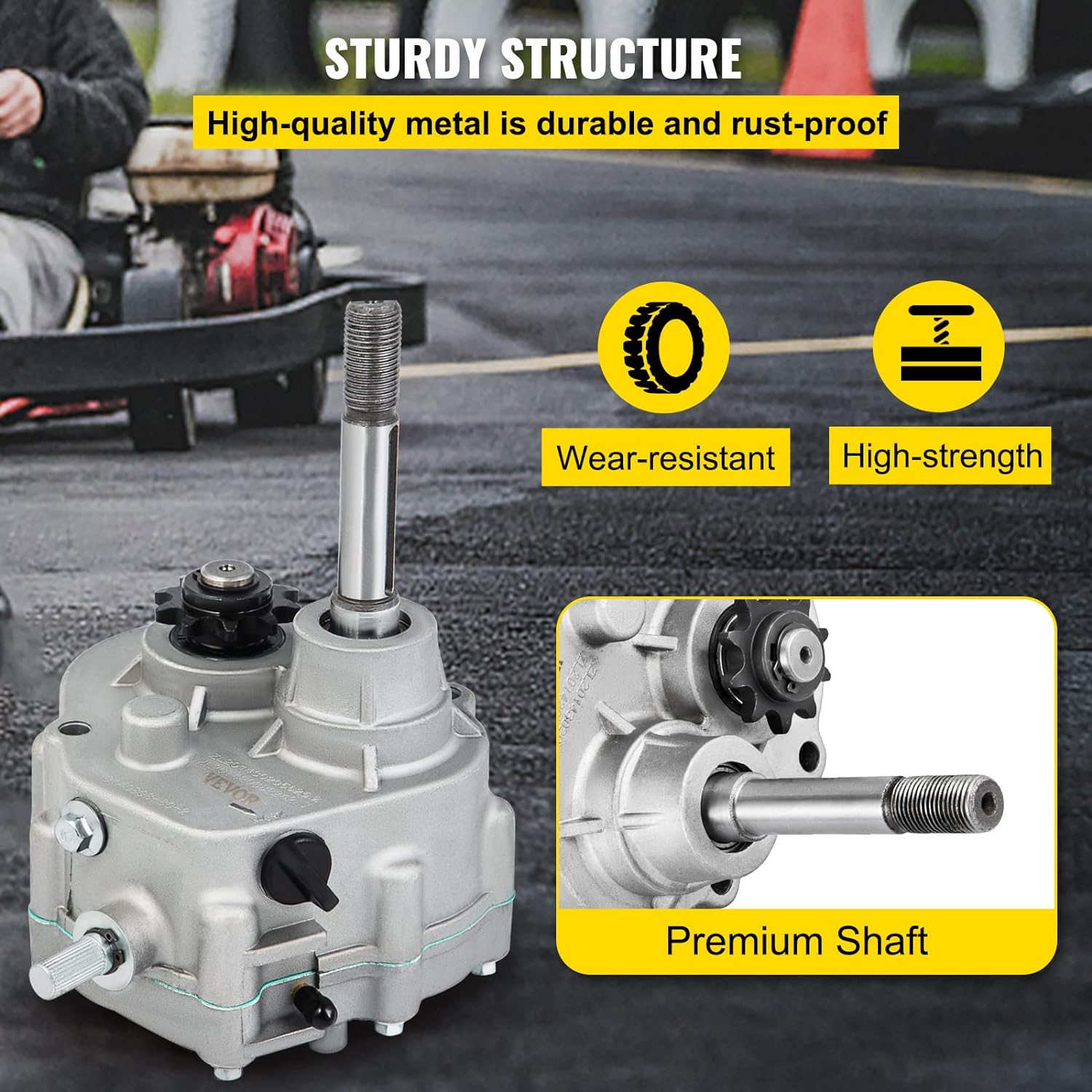

Quality Metal: This go-kart gearbox is made of high-quality metal, wear-resistant and lightweight. It provides precise torque and a long lifetime.

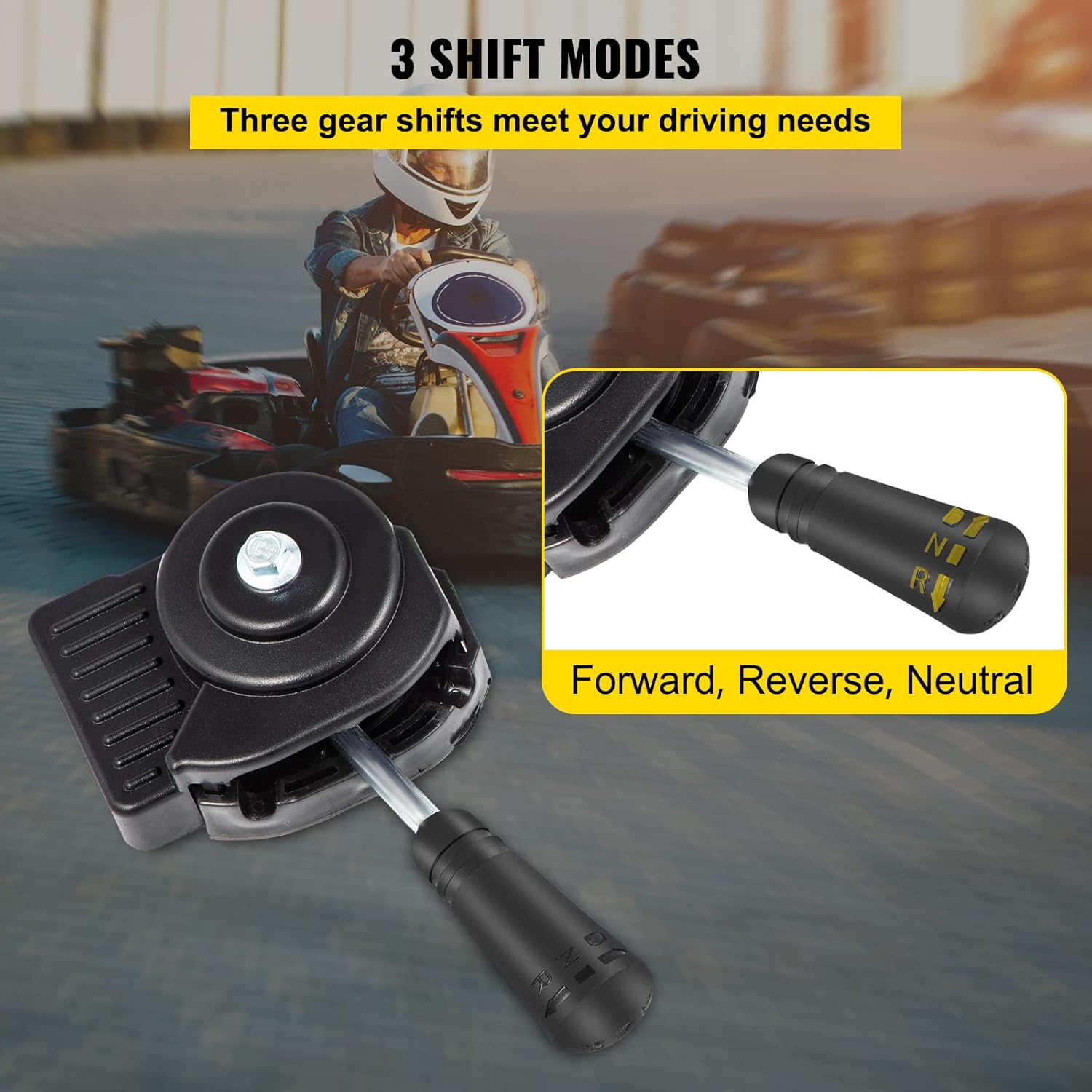

Three Shift Modes: Our go-kart gearbox kit has three shift modes: forward, reverse, and neutral. It allows for convenient and easy operation.

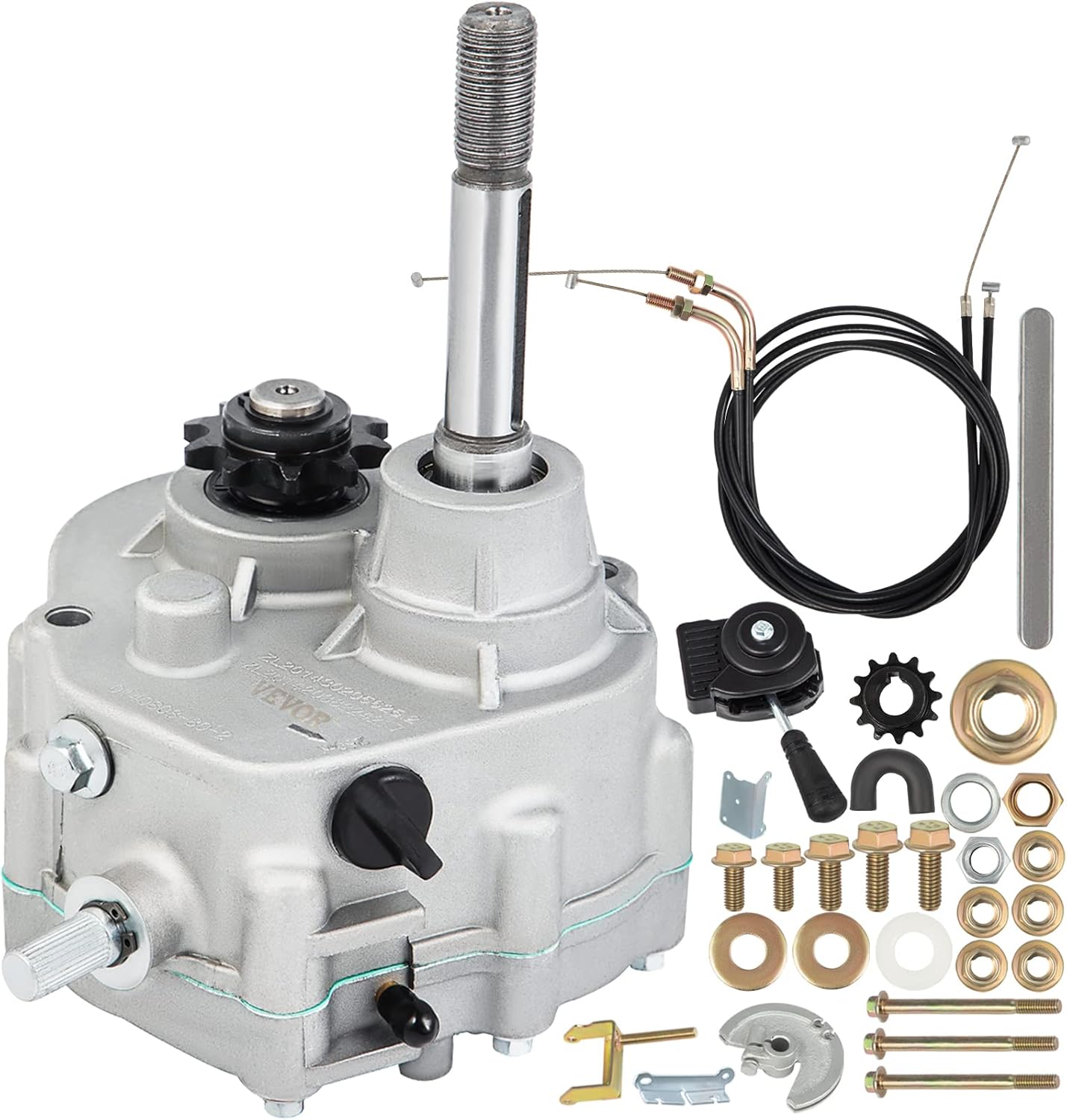

Complete Accessories: This go-kart transmission kit includes 1 x forward / reverse gearbox with 3/16' keyway, 1 x gear lever assembly, 1 x gearshift disc, 1 x 10T and 12T sprocket, 2 x transmission lines, and 2 x mounting plates, etc. It is complete in accessories and easy to install.

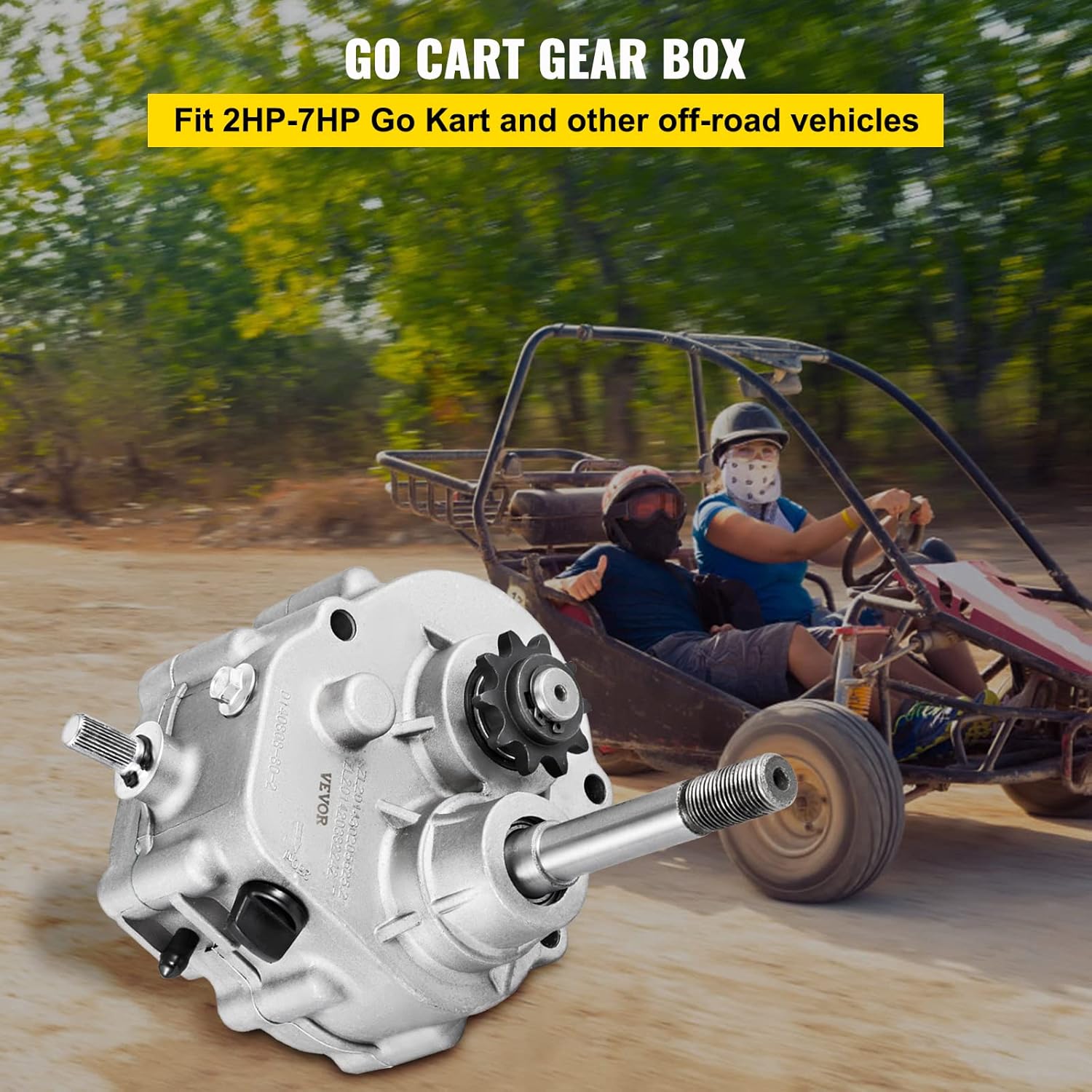

High Adaptability: This 30 Series forward reverse gearbox is suitable for # 35 chain 12T and #40/41/420 chain 10T go-karts, dune buggies, UTV, and other off-road vehicles. Perfect fit engines 2-7 HP.
|
| Torque Converter Comet Clutch | Torque Converter Comet Clutch | Torque Converter Comet Clutch | Torque Converter Comet Clutch | Torque Converter Comet Clutch |
| Drive Clutch Bore | 3/4'(19MM) | 3/4'(19MM) | 3/4'(19MM) | 1'(25.4MM) | 3/4'(19MM) |
| Driven Unit | Diameter 6' (5/8' Driven Pulley) | Diameter 6' (5/8' Driven Pulley) | Diameter 6' (5/8' Driven Pulley) | Diameter 6' (5/8' Driven Pulley) | Diameter 6' (5/8' Driven Pulley) |
| Sprocket Teeth: | 12 Tooth #35 Chain | 12 Tooth #35 Chain | 10 Tooth #40/41Chain and 12 Tooth #35 Chain | 10 Teeth #40/41Chain and 12 teeth #35 chain | 10 Tooth #40/41Chain |
| Engagement Range | 2350±200 RPM | 2350±200 RPM | 2350±200 RPM | 2350±200 RPM | 2350±200 RPM |
| Recommended Engine | 2HP-7HP | 2HP-7HP | 2HP-7HP | 8HP-13HP | 2HP-7HP |
| Belt | Asymmetrical Type | Asymmetrical Type | Asymmetrical Type | Asymmetrical Type | Asymmetrical Type |
