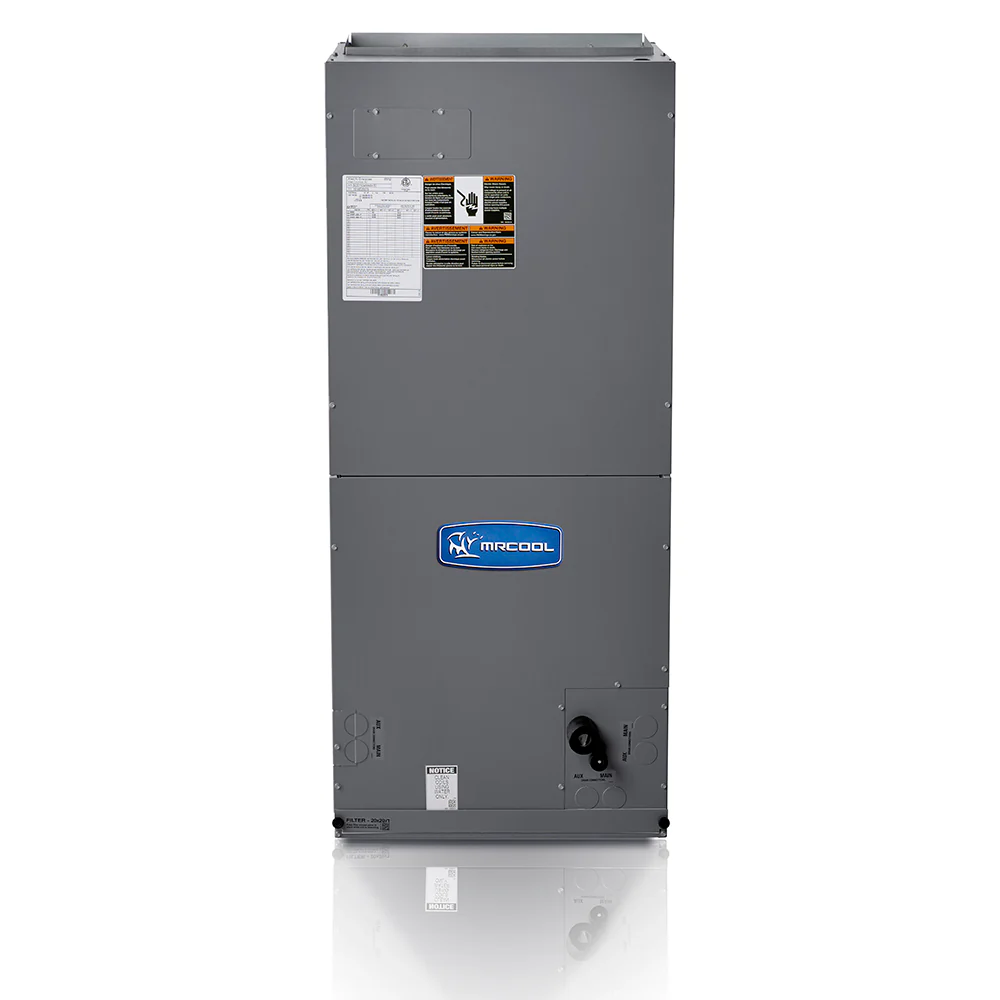

The MRCOOL Multi-Position Air Handler is designed to deliver dependable comfort, and is built for reliability. The electronically commutated motor (ECM) delivers consistent airflow throughout the seasons, allowing you to remain relaxed at all times. When choosing a MRCOOL Multi-Position Air Handler, you can always know that you are being energy and time efficient.
Key Features
- Smaller profile for closet applications
- Optional auxiliary heat kits are available
- Baked polyester paint finished over galvanized steel for maximum durability
- Antimicrobial treated drain pan to resist mold and mildew growth
- Factory tested for leakproof construction
- Foil faced insulation for enhanced indoor air quality
- CoolGuard total corrosion protection technology designed coil
- Built-in indoor time delay for increased efficiency and comfort
- One piece design
- High-strength/heat resistant/corrosion resistance SMC drain pans
- Multi-position = Upflow/ Horizontal Left/ Horizontal Right/ Counter Flow (with kit)
- AHRI certified and ETL listed
PRODUCT SPECIFICATIONS:
| Product Dimensions | 18.5'W x 16.5'D x 45.5'H |
| Product Weight | 127 lbs |
| SEER | Up to 16 |
| CFM | 800 |
| Tonnage | 2 |
| Cooling Capacity | 24,000 |
| Voltage | Requires a minimum of 208V-230V/60HZ/15A (please check your home meets this electrical requirement prior to purchase) |
| Phase | 1 |
| Cycle | 60 |
| Max Fuse Breaker | 15 |
| Min Circuit Ampacity | 5 |
| Color | Gray |
| Color Family | Gray |
| Max Coverage Area | 1,000 square feet |
| Refrigerant Type | R-410A |
| Number of Speeds | 5 |
| Inverter | No |
| Lineset Included | No |
| Lineset Length | 15ft, 25ft, 35ft, 50ft |
| Max Lineset Length | 50ft |
| Lineset Fitting Type | Sweat |
| Liquid Line Size | 3/8 |
| Suction Line Size | 3/4 |
| Blower Motor Type | ECM |
| Blower Motor HP | 1/2 |
| Blower Motor Speeds | 5 Speed |
| Blower Motor RPM | 430-1050 |
| Filter Type | Replacement |
| Filter Size | 15x20 |
| Auxiliary Heater Included | No |
| Auxiliary Heater Available | Yes |
| Auxilary Heater Sizes | 10kw |
| Certifications | ETL
AHRI |
| Warranty | Registered 10 Year Parts Warranty
Base 5 Years Parts Warranty |
| Contains Electronics | Yes |
| Contains Chemicals | Yes |
| Contains Aerosol | Yes |
| Contains Compressed Gas | Yes |
| Proposition 65 Warning | Yes |
