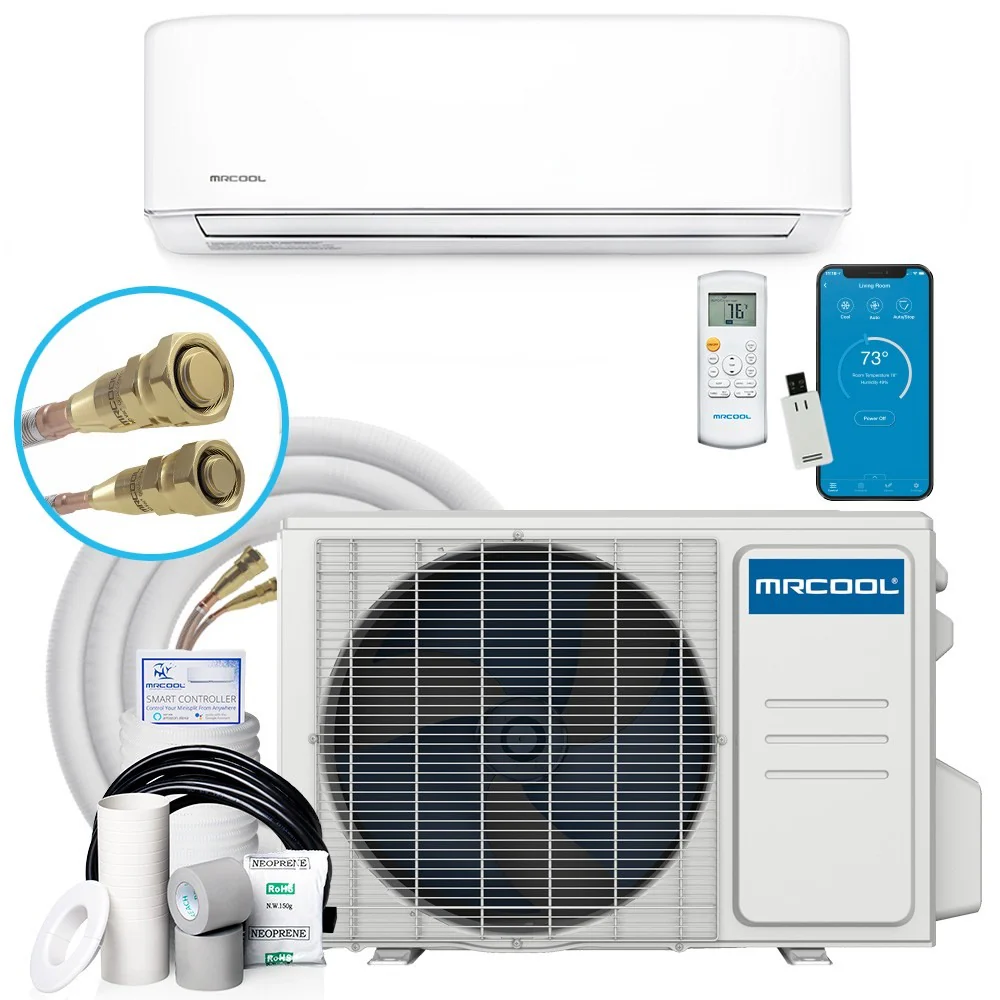

MRCOOL DIY Easy Pro® 18K BTU Ductless Mini Split Heat Pump Complete System, EZPRO-18-HP-23016
-
Free worldwide shipping
-
Free returns
-
Carbon neutral
-
Secure payments
Meet the easiest (and most affordable!) installation HVAC technology you can buy from MRCOOL!
Not only is it reliable, but the MRCOOL® Easy Pro® 18k BTU Ductless Mini-Split Heat Pump System is easy to install as well. With the capability of effectively heating and cooling a space of 750 square feet, this easy-to-install unit also includes the convenient 16 foot pre-charged line set, with Fast Connection® fittings. The features are numerous with this system such as the Follow Me® feature can make sure that the temperature you want is designated to wherever you are in the space, as well as the anti-mildew feature that provides the cleanest air for you and your family to breathe. Maintaining the system is as easy as the installation, as the air filters only require rinsing and replacing, and the LED display provides useful troubleshooting codes for you to solve any issue that arises on your own.
This system can be operated with your Apple or Android device via the SmartHVAC app, the included remote control, or your Amazon Alexa or Google Assistant. Feel confident in your purchase with the 1-year compressor warranty and 2-year parts warranty. This is an easy-to-install system that can provide exceptional heating and cooling for your home or office!
Key Features
- Up to 18.5 SEER
- Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
- Energy Efficient DC Inverter
- ow ambient cooling: cooling down to 5F exterior temperatures, the ideal system for computer server rooms, greenhouses, and any other applications that require cooling all year
- Includes features such as timer mode, refrigerant leakage detection, and more
- Systems include our SmartHVAC WiFi Control Module with improved setup and enhanced functionality for Apple and Android smart devices. Works with Amazon Alexa. Works with Google Assistant
PRODUCT SPECIFICATIONS:
| Condenser Dimensions | 30.12'W x 11.93'D x 21.85'H |
| Condenser Weight | 63.49 lbs |
| Air Handler Dimensions | 38.23'W x 8.98'D x 12.64'H |
| Air Handler Weight | 29.98 lbs |
| SEER | 18.5 |
| EER | 9.8 |
| COP 47 | 3.1 |
| HSPF | hspf4/hspf5 : 9.7/8 |
| CFM | 382.35 / 300.00 / 264.71 |
| Cooling Capacity | 17,000 BTU |
| Heating Capacity | 18,000 BTU |
| Voltage | Requires a minimum of 208-230V/60HZ/15.5 - 25A (please check your home meets this electrical requirement prior to purchase) |
| Phase | 1 |
| Cycle | 60 Hz |
| Max Fuse Breaker | 25 A |
| Min Circuit Ampacity | 15.5 A |
| Color | White |
| Rate Load | 10 A |
| Max Coverage Area | Up to 750 sqft |
| Zone Capacity | 1 |
| Refrigerant Type | R-410A |
| Refrigerant Volume | 45.86 oz |
| Decibel Rating | 23.5 dBA to 44.5 dBA |
| Decibel Rating Low | 23.5 dBA |
| Decibel Rating High | 44.5 dBA |
| Inverter | Yes |
| Min Ambient Cool | 5F - 122F |
| Min Ambient Heat | 5F - 75.2F |
| Line Set Length | 16ft - Included |
| Max Lineset Length | 30ft |
| Liquid Line Size | 1/4 in |
| Suction Line Size | 1/2 in |
| Compressor Motor Type | Rotary |
| Condenser Fan Motor RPM | 1200/700 |
| Blower Motor Speeds | 3 |
| Blower Motor RPM | 1200/1000/900 |
| Filter Type | Washable |
| Modes | Fan Only Sleep Mode Auto Cool Dry Heat |
| Wifi Compatibility | Yes |
| App Compatibility | Yes |
| Compatible with | IOS Android |
| Includes | Remote |
| Certifications | UL Listed Energy Star AHRI |
| Registered Warranty | 2-year Parts/1-year Compressor |
